UB 9H
Available now from ADJ USA

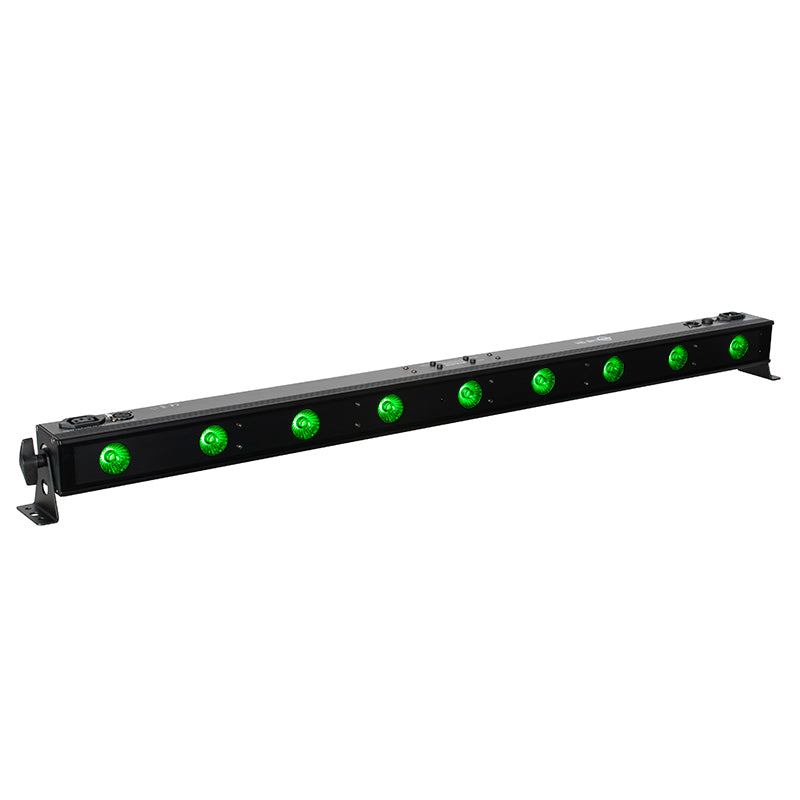

The ADJ UB 9H is a 41.75-inch (1-meter) professional grade indoor linear fixture powered by nine 6-Watt HEX LEDs. Its bright chromatic 40-degree beam angle provides vibrant TRI color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.
UB 9H features built-in Color Macros (built-in colors), 4 DMX Channel Modes, 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ UC IR wireless remote that is included inside the box.To learn more about the UB 9H, check out this product spotlight article: CLICK HERE
Specifications
• 41.75-inch (1 meter) indoor Linear Bar with 9 x 6W Ultra bright HEX LEDs
• Variable RGBWA+UV color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
• 4 DMX Channel Modes: 6, 10, 12 or 18 channels
• 5 operational modes: Auto (Program Run), Sound Active, RGB Dimmer, Static Color and DMX-512 Mode
• 3-Section Pixel control

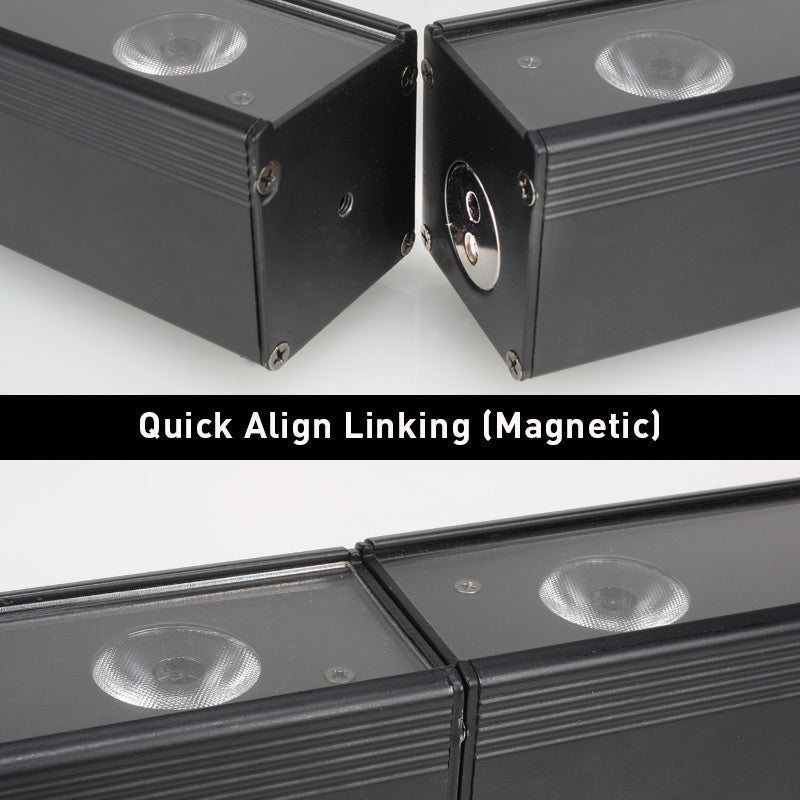

• Patent Pending Quick Align (Magnetic)
• Beam Angle: 40 degrees
• Flicker Free
• 4-Button DMX LED Display
• 35 built-in Color Macros
• LED pulse strobe effect
• Electronic Dimming: 0-100%
• Includes mounting brackets to mount on a wall or set on the ground

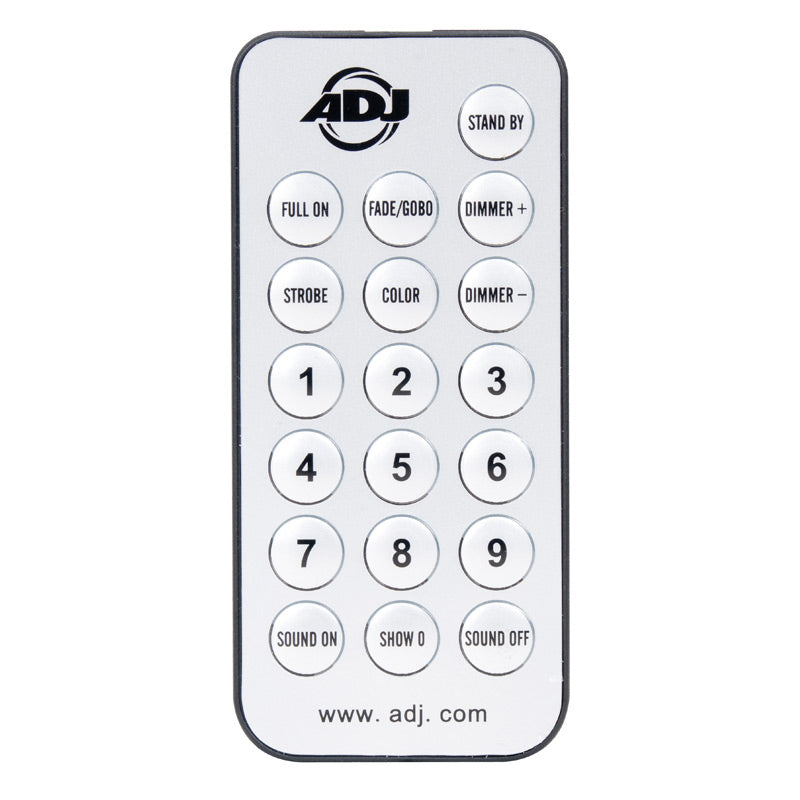

• Compatible with the remote with UC IR (Included) and the Airstream IR APP
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Power Draw: 65W @ 120V.

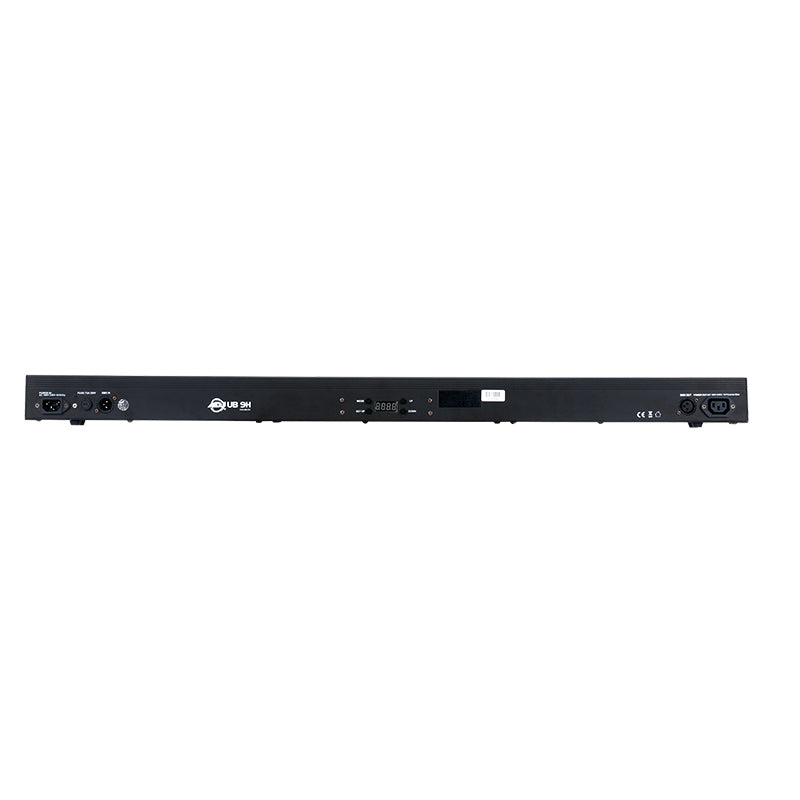

• Linkable: DMX via 3-pin XLR cable; Power via IEC. Daisy-chain power (Up to 10 UB 9H fixtures max., @ 120V can be power linked)
• With Wired Digital Communication Network
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Dimensions (LxWxH): 41.75” x 2.5” x 3.5”/ 1060 x 63 x 90mm
• Weight: 6 lbs./ 2.6 kg.
• cETLus Approved (Control #4002034)
Downloads
Cut sheet
Ies files
Photometrics
User manual
UB 9H Parts & Service
Our UB 9H Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your UB 9H. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
