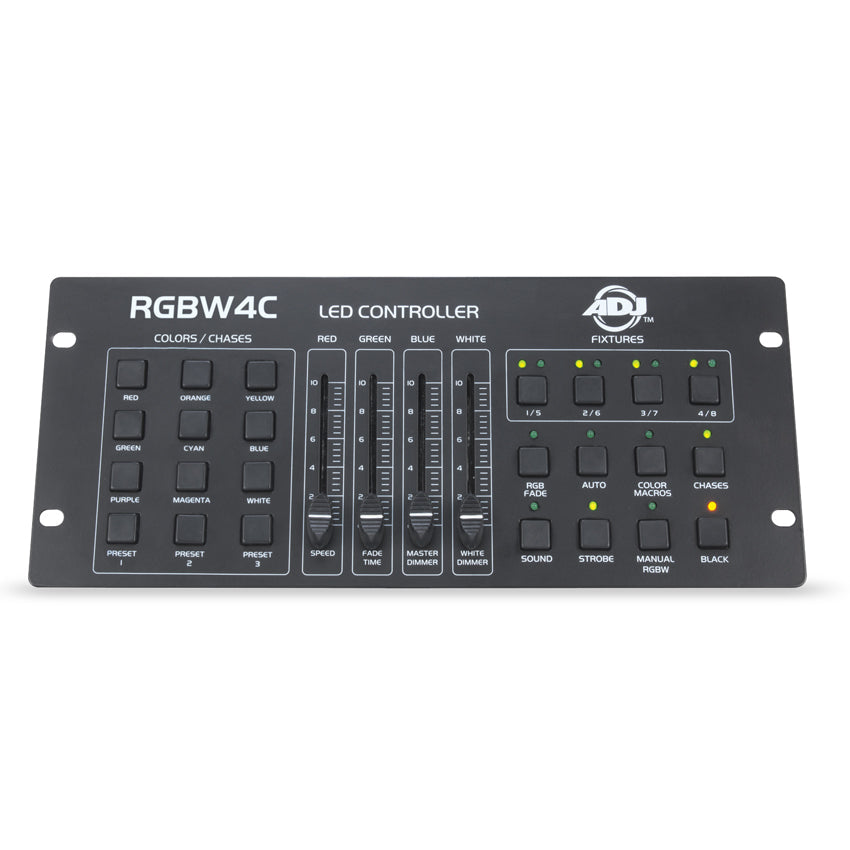

RGBW4C

(Discontinued)
SKU: RGB836 | UPC: Z-NO UPC, DISCONTINUED
The RGBW4c Compact LED Controller from ADJ offers you full control of your LED fixture set-up in an easy to use, portable unit. This unit can control up to 8 LED fixtures or fixture groups independently via four fixture buttons. All LED fixtures and groups must be set to run in DMX mode.
Advantage Points: 80

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

An amazing light entertainment system is key to a quality show that is sure to be remembered. If you want full control over your LED light show setup you need the RGBW4C from ADJ. This compact DMX512 LED controller offers you the ability to easily manage the effects for your LED lighting fixtures, or you can easily take it with you anywhere you need to manage a DMX LED lighting system. You'll have all your operational modes at your fingertip so that at any time you can choose to allow built-in programs to manage your lights while you work on something else, or take full control of their adjustments with the four multi-function faders. A good light show can be as essential as the music; the RGBW4C controller will make synchronizing your music and lights easy so you have more time to focus on your music while your crowd is dazzled by a quality show. Constructed with steel and quality components, the RGBW4C is made for quality and durability while maintaining an affordable price. With the RGBW4C Compact LED Controller by ADJ in your hands the perfect light show can be easily achieved any night, anywhere.

Specifications

Specifications

  • Compact DMX512 controller for RGB, RGBW and RGBA LED fixtures
  • Control up to 8 individual fixtures or fixture groups
  • 3 user programmable color preset, direct access buttons
  • 9 Color preset/Chase program direct access buttons
  • Color Macro playback mode
  • Manual RGBW intensity control mode
  • RGB and Auto modes
  • On the fly Speed & Fade control of all chase programs
  • Sound active mode via internal microphone
  • Adjustable microphone sensitivity
  • Variable strobe
  • Blackout button
  • DMX output connector: 3-pin XLR
  • Power In: 12VDC 500mA UL approved power supply (Included)
  • Power consumption: 3.6 Watts
  • Size: 12.9” x 5.5” x 1.9” (327 x 140 x 48mm)
  • Weight: 2.4lbs. (1.1kgs.)

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
RGBW4C User Manual Download
RGBW4C Cut Sheet Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Are there extension ears so unit can fit into a 19 inch rack thank you

We don't carry those items, but Middle Atlantic http://www.middleatlantic.com/products/accessories.aspx

carries panels.

I am looking to purchase the MEGA BEAM BAR LED. Which DMX controller do you recommend to purchase with it?

The RGBW4C will work fine as long as the fixture is put into a 4 Channel mode which will control only Red,Green, Blue and White.

Could you please confirm whether this controller is suitable to run multiple fixtures such as lasers x2 , adj pocket roll x2 & ADJ mega tri par profile plus x 2. Would I have full control over each pair of fixtures?

You can only control up to 4 channels of color and nothing else. Many of these lighes ghave other features in normal 5 or 6 channel mode which the controller will not be able to access.

Hello, does RGBW4C work with ADJ Mega Tripar Profile PLUS?

Hello Kamil,

Thank you for reaching out to us. Yes, the rgbw4c ir will work with the mega tri par profile. Let me know if you have any further questions.

Thanks,
