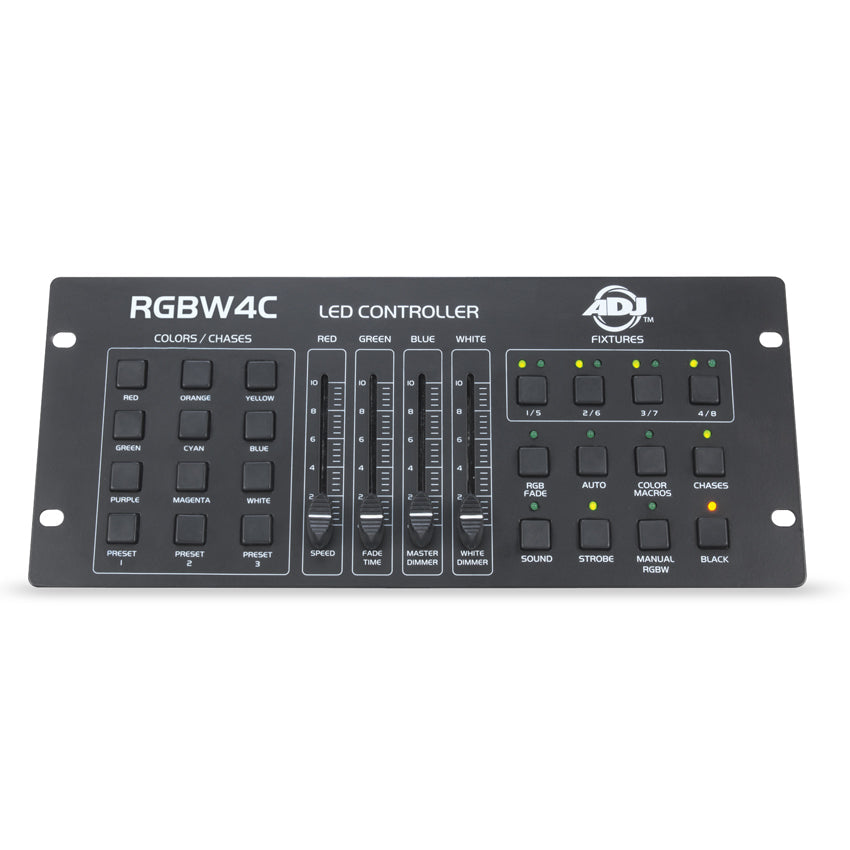

RGBW4C


The RGBW4c Compact LED Controller from ADJ offers you full control of your LED fixture set-up in an easy to use, portable unit. This unit can control up to 8 LED fixtures or fixture groups independently via four fixture buttons. All LED fixtures and groups must be set to run in DMX mode.
UPC: Z-NO UPC, DISCONTINUEDSKU: RGB836

RGBW4C

An amazing light entertainment system is key to a quality show that is sure to be remembered. If you want full control over your LED light show setup you need the RGBW4C from ADJ. This compact DMX512 LED controller offers you the ability to easily manage the effects for your LED lighting fixtures, or you can easily take it with you anywhere you need to manage a DMX LED lighting system. You'll have all your operational modes at your fingertip so that at any time you can choose to allow built-in programs to manage your lights while you work on something else, or take full control of their adjustments with the four multi-function faders. A good light show can be as essential as the music; the RGBW4C controller will make synchronizing your music and lights easy so you have more time to focus on your music while your crowd is dazzled by a quality show. Constructed with steel and quality components, the RGBW4C is made for quality and durability while maintaining an affordable price. With the RGBW4C Compact LED Controller by ADJ in your hands the perfect light show can be easily achieved any night, anywhere.

Specifications

  • Compact DMX512 controller for RGB, RGBW and RGBA LED fixtures
  • Control up to 8 individual fixtures or fixture groups
  • 3 user programmable color preset, direct access buttons
  • 9 Color preset/Chase program direct access buttons
  • Color Macro playback mode
  • Manual RGBW intensity control mode
  • RGB and Auto modes
  • On the fly Speed Fade control of all chase programs
  • Sound active mode via internal microphone
  • Adjustable microphone sensitivity
  • Variable strobe
  • Blackout button
  • DMX output connector: 3-pin XLR
  • Power In: 12VDC 500mA UL approved power supply (Included)
  • Power consumption: 3.6 Watts
  • Size: 12.9” x 5.5” x 1.9” (327 x 140 x 48mm)
  • Weight: 2.4lbs. (1.1kgs.)

Downloads

Cut sheet

User manual
