XSP-15A

This item is discontinued

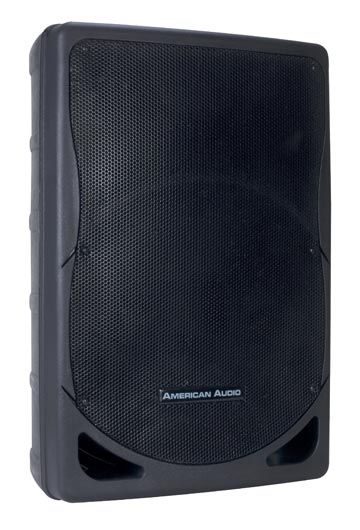

The XSP-15A powered speaker boasts a 15", 2-way active loudspeaker and a 400W bi-amplifier system encased in a lightweight cabinet. It features a 1.75" compression driver, time-aligned crossover, XLR and RCA balanced inputs, a built-in mixer, and an ABS nylon fiber cabinet with handle and full grill.
UPC: 640282000369SKU: XSP-15A

XSP-15A

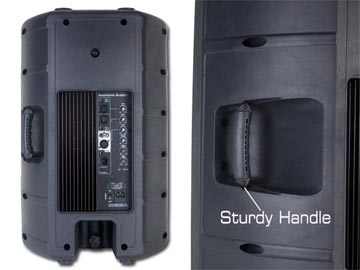

American Audio designed the XSP-15A speaker for use in both portable and permanently installed systems. The speaker includes a pole-mount slot and rubber feet on the bottom for portable applications. Rigging points on the top, bottom, and rear are provided and flight installations.  The XSP-15A by American Audio is a two-way active loudspeaker encased in a light weight cabinet. This speaker has been designed to be used as both a portable and a permanently installed unit.The XSP-15A's built-in power amplifier provides 400W of clean bi-amped power for plenty of output, and the unit has a time-aligned crossover to ensure the clearest possible sound for your program material. The 15" woofer is designed for high output, and the 1" high frequency driver is mounted to a 90° x 50° lens for clean and even dispersion.The XSP-15A features two each 1/4" and XLR microphone inputs, RCA and XLR line inputs, each with independent level control, and 1/4" and XLR line output to feed the signal to an additional powered speaker or subwoofer. Bass and treble controls are also included to tailor the overall sound to your specific taste or venue.

Specifications

  • High-powered 15-inch, 2-way Powered Speaker
  • 400W built-in Bi-amplifier system
  • Neodymium components
  • 1.75" compression driver
  • Time Aligned Electronic Crossover
  • Flyable or Stand Mountable
  • Full grille
  • Built-in mixer with 1 Line input; 2 Mic inputs; Treble amp; Bass Control; Channel and Master Volume
  • XLR through output
  • Dimensions (LxWxH): 17" x 15" x 27" / 430x380x685mm
  • Weight: 57 lbs. / 26 kg.
SPEAKER SPECIFICATIONS:
  • Frequency Response: 20Hz - 20KHz
  • Crossover: 4.8k
  • Nominal Dispersion: 90 x 50 (HXV)
AMPLIFIER SPECIFICATIONS:
  • Line: -20dB(100mV)
  • Microphones: -40dB(10mV)
  • Output Sensitivity: 97.4 plusmn; 2dB/m/w

Downloads

Cut sheet

User manual
