XSP-12A

This item is discontinued

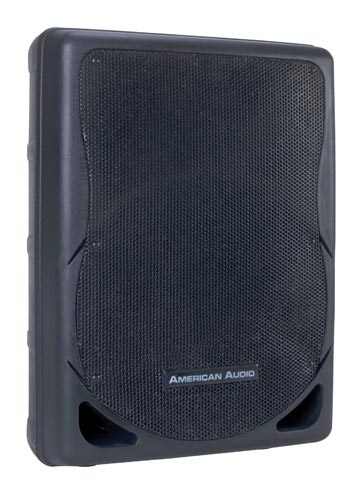

American Audio designed the XSP-12A speaker for use in both portable and permanently installed systems. The speaker includes a pole-mount slot and rubber feet on the bottom for portable applications. Rigging points on the top, bottom, and rear are provided and flight installations.
UPC: 640282000376SKU: XSP-12A

XSP-12A

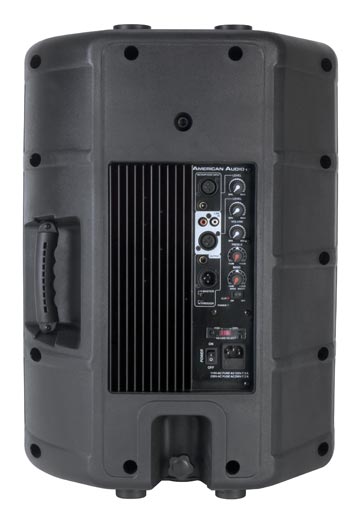

The XSP-12A from American Audio is a professional 2-way loudspeaker ideal for performances, lectures, and more. The unit has a 10quot; woofer and a 1quot; compression tweeter to deliver crisp, clear audio with a wide frequency response. Dual internal amplifiers with a total power of 200W provide strong audio with low distortion, while a time-aligned crossover ensures that each driver section performs to its maximum potential.Vented bass ports help to extend low frequency response.#160;#160; The rear panel features an integrated mixer complete with XLR and 1/4quot; mic inputs, as well as XLR and RCA line inputs. It also offers 1/4quot; and XLR line outputs for connecting additional speakers and devices. The mixer has treble and bass controls, plus channel and master volume controls.The cabinet has a rugged ABS nylon fiber construction with a full grille for excellent durability on the road. An integrated handle provides easy transportation, while a pole socket and fly points let you mount the speaker on a stand or suspend it from a ceiling. The speaker has a selectable operating voltage for international use.

Specifications

  • High-powered 12-inch, 2-way Powered Speaker
  • 300W built-in Bi-amplifier system
  • Neodymium components
  • 1.75" compression driver
  • Time Aligned Electronic Crossover
  • Flyable or Stand Mountable
  • Full grille
  • Built-in mixer with 1 Line input; 1 Mic input; Treble amp; Bass Control; Channel and Master Volume
  • XLR through output
  • Dimensions (LxWxH): 16" x 12" x 23" / 405x305x585mm
  • Weight: 44 lbs. / 20 kg.
SPEAKER SPECIFICATIONS:
  • Frequency Response: 20Hz - 20KHz
  • Crossover: 3.8k
  • Nominal Dispersion: 90 x 50 (HXV)
AMPLIFIER SPECIFICATIONS:
  • Power consumption: 12 Watts
  • Line: -20dB(100mV)
  • Microphone: -40dB(10mV)
  • Output Sensitivity: 97.4 plusmn; 2dB/m/w

Downloads

Cut sheet

XSP-12A Parts & Service

Our XSP-12A Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your XSP-12A. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
