XSP-10A
This item is discontinued
American Audio designed the XSP-10A speaker for use in both portable and permanently installed systems. The speaker includes a pole-mount slot and rubber feet on the bottom for portable applications. Rigging points on the top, bottom, and rear are provided and flight installations.

XSP-10A
Sale price$0.00
XSP-10A

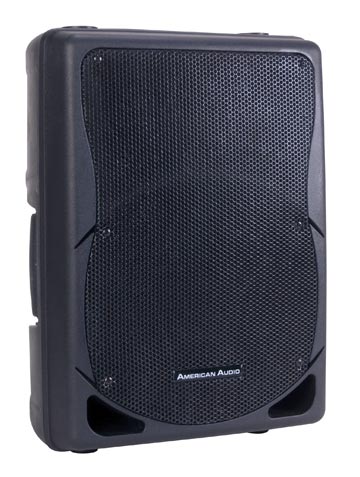

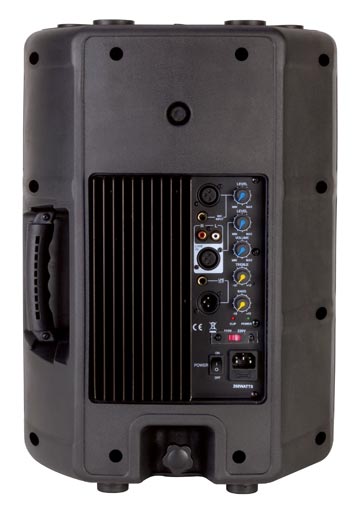

The XSP-10A from American Audio is a professional 2-way loudspeaker ideal for performances, lectures, and more. The unit has a 10" woofer and a 1" compression tweeter to deliver crisp, clear audio with a wide frequency response. Dual internal amplifiers with a total power of 200W provide strong audio with low distortion, while a time-aligned crossover ensures that each driver section performs to its maximum potential.Vented bass ports help to extend low frequency response. The rear panel features an integrated mixer complete with XLR and 1/4" mic inputs, as well as XLR and RCA line inputs. It also offers 1/4" and XLR line outputs for connecting additional speakers and devices. The mixer has treble and bass controls, plus channel and master volume controls.The cabinet has a rugged ABS nylon fiber construction with a full grille for excellent durability on the road. An integrated handle provides easy transportation, while a pole socket and fly points let you mount the speaker on a stand or suspend it from a ceiling. The speaker has a selectable operating voltage for international use.
Specifications
- 10-inch 2-way Powered Speaker
- 200W built-in Bi-amplifier system
- 1-inch Compression Driver
- Time Aligned Electronic Crossover
- Flyable or Stand Mountable
- Full grille
- Built-in mixer with 1 Line input; 1 Mic input; Treble Bass Control; Channel and Master Volume
- XLR through output
- Dimensions (LxWxH): 14” x 11” x 19” / 355x280x480mm
- Weight: 31 lbs. / 14 kg.
- Frequency Response: 20Hz - 20KHz
- Crossover: 3.5k
- Nominal Dispersion: 90 x 50 (HXV)
AMPLIFIER SPECIFICATIONS:
- Power consumption: 12 Watts
- Line: -20dB(100mV)
- Microphone: -40dB(10mV)
- Output Sensitivity: 97.4 ± 2dB/m/w
XSP-10A Parts & Service
Our XSP-10A Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your XSP-10A. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
