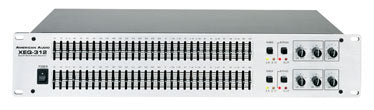

XEQ-312
This item is discontinued
XEQ-312
Sale price$0.00
XEQ-312
Specifications
- Input type: Active balanced / Unbalanced
- Output Impedance: lt;150 Ohms Input Max: (2k Ohms) +26dBu (bal.), +21dBu (unbal.) - (600 Ohms) +22dB (bal.), +15dB (unbal.)
- Input Max: +26dBu (bal.), +21dBu (unbal.)
- Output type: Servo-Balanced
- Source Impedance: 20k Ohms (bal.), 15k Ohms (unbal.)
- Min. Output Load Impedance: 600 Ohms
- Max Output Level: 22dBm
- Connectors: 1/4 phone jack, XLR amp; RCA phono (unbal.)
- Frequency Resp.: 20Hz-20kHz, +/-0.5dB
- Total Harmonic Distortion: lt;.01 +10dBu
- IM Distortion: .005
- Channel Separation: 50dB @ 1KHz
- Gain Control: - infinity to +60dB
- Filter Type: Constant Q
- Low Cut Filter: 25Hz / 12dB oct
- High Cut Filter: 3K / 12dB oct
- Range: +/- 6dB or +/- 12dB (selectable)
- S/N Ratio: 101dB below max
