WM-16LAV

This item is discontinued

UPC: 640282056274SKU: WM 16LAV

WM-16LAV

Specifications

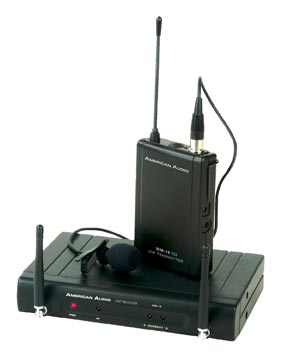

  • Wireless Body Pack, Lavalier, Receiver 12V DC Power Supply
  • Switching diversity (Antenna diversity)
  • Super high sensitivity, low noise transmission and reception
  • Diversity A/B indicators the antenna has received the RF signal
  • AF indicators the audio signal has been received
  • Uni-directional electret condenser unit microphone
  • 16 selectable UHF frequencies
  • Outputs: XLR balanced unbalanced _-inch mono jack
  • Wireless range up to 150 ft. (In standard condition)
  • Freq. channel: 790 - 806MHz
  • S/N ratio more than 94dB
  • On/Off control on mic
  • On Low Battery LED indicators
  • Includes small screwdriver inside mic to change frequencies
  • Power Supply: DC 12V~18V for receiver
  • Battery: DC3V (2 x 1.5V AA size batteries) or DC2.4V (2 x 1.2V AA size rechargeable batteries) for transmitter
  • Weight (Body Pack, Lavalier receiver): 0.73 lbs / .33 kgs
  • Dimensions: (Receiver only LxWxH): 6.7”x4.17”x1.26” / 170x106x32mm

Downloads

User manual
