WiFLY EXR Hex Par
WiFLY EXR Hex Par
The ADJ WiFLY EXR HEX Par is a compact Wash Fixture with ADJ’s WiFLY EXR extended range wireless DMX built-in. It offers the power of 5x 10-Watt RGBWA+UV Hex LEDs (Red, Green, Blue, White, Amber, & UV) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY EXR Battery Transceiver will communicate up to 2500 feet/760M (open line of sight) with the WiFLY EXR HEX PAR.
This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 50W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFLY Transceiver.
Specifications
- Rechargeable Lithium battery powered, with wireless DMX
- Extended range wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
- Built-in WiFLY wireless DMX: compatible with ADJ’s WiFLY Transceiver (sold separately)
- Variable RGBWA+UV color mixing offers a smooth, seemingly unlimited color palette - Great for stage or wall washing!
- Compatible with ADJ RFC wireless remote control (sold separately)
- 5 DMX Channel modes: 6, 7, 8, 11 or 12 channel modes
- 5 Operational modes: RGBWA+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, 1 color/fade combo mode); Static Color mode; and DMX Controlled
- 16 Color Change Modes
- 16 Color Fade Modes
- 63 built-in Color Macros
- LED pulse and strobe effect
- Flicker Free Operation
- Refresh Rate: 1KHz
- Electronic Dimming: 0 - 100%
- Beam angle: 40-degree
- DMX linkable via 3-pin or 5-pin DMX cable (In/Out)
- With Wired Digital Communication Network

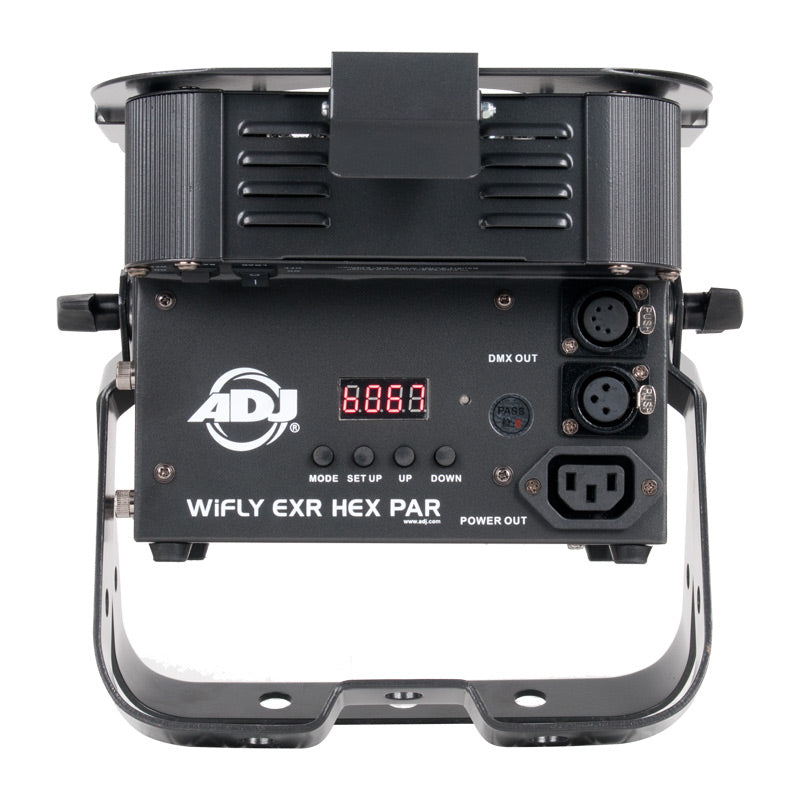

- 4-button DMX menu display on rear panel
- Dual bracket yoke allows fixture to be hung or set on the ground
- IEC Power AC IN/OUT outlets on rear to daisy chain power (up to 10 units)
- Run all night – No duty cycle
- LED Source: 5x 10-Watt Hex LEDs (6-in-1 RGBWA+UV- Red, Green, Blue, White, Amber, UV LEDs, rated at approximately 50,000 hrs)
- Light output: 866 LUX @ 2M; 206 LUX @ 4M (40-degree beam)
- Battery Charge Time: 5 Hours (With POWER switch Off)
- Battery Life: 6 Hours Full On, 10.5 Hours in Energy Save Mode (With Full Charge)
- Energy Saving Mode
- Power Draw: 58W total (All LED's @ Full On)
- Power Cable Length: 1.8m (IEC)
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Dimensions (LxWxH): 10.5” x 9.5” x 6.5” / 265 x 240 x 164mm
- Weight: 12 lbs. / 4.42kg.
- Battery Charge Time: 5 Hours (Load Switch Off)
- Battery Life: 6 Hours Full On (Full Charge), 10.5 Hours in Energy Saving Mode (Full Charge)
- Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
- Battery Type: Fixed Lithium Battery
- Battery Energy: 227.92WH (Watt Hours)
- Battery Weight: 2.8lbs. / 1.31kg
- Battery Voltage: 25.9V
- Battery Capacity: 8.8AH
- Total Lithium Ion Cells: 28pcs
- Battery Wrap Material: PVC Sleeving + Highland Barley Paper
