Vortex 150
This product is CE certified.
This product is FCC certified.
The Eliminator Vortex 150 is a classic moonflower effect with a barrel mirrored scanner that produced multiple razor-sharp 3-degree beams of light powered by an 150W LED engine. It features 11 Color/GOBOs combinations, GOBO shake effect, mesmerizing strobe effects and has 6 built-in light shows.
Vortex 150
Sale price$0.00
Video
Vortex 150
The Vortex 150 continues to redefine dynamic lighting with its classic moonflower effect and barrel mirrored scanner. Powered by a robust 150W white LED engine, it delivers razor-sharp 3-degree beams that cut through the air with precision. Featuring 11 vibrant Color/GOBO combinations, GOBO shake effects, mesmerizing strobe effects, and 6 built-in light shows, the Vortex 150 is designed to captivate audiences and help bring a party to life.

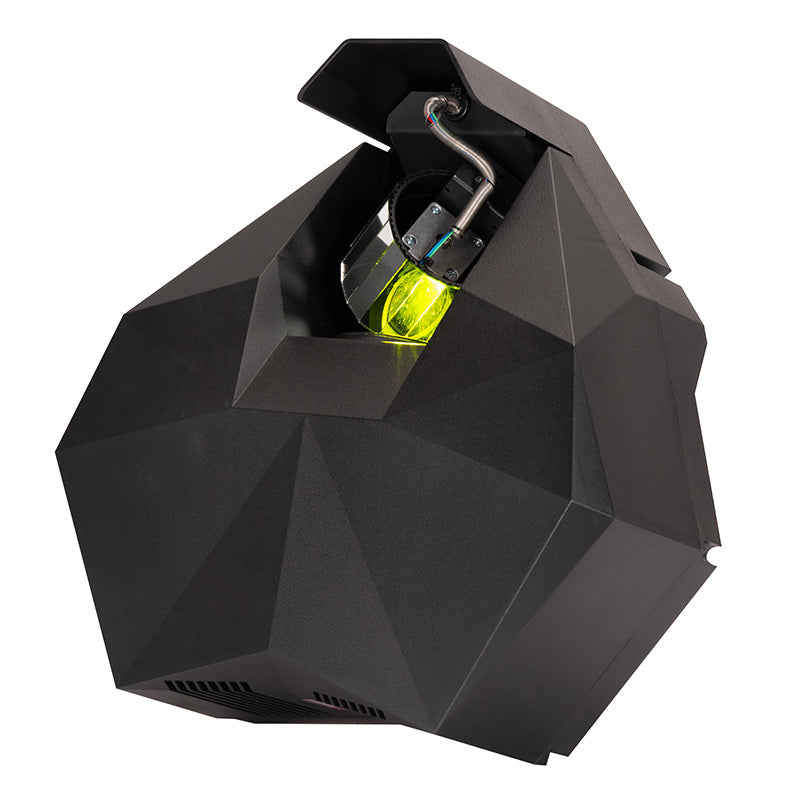

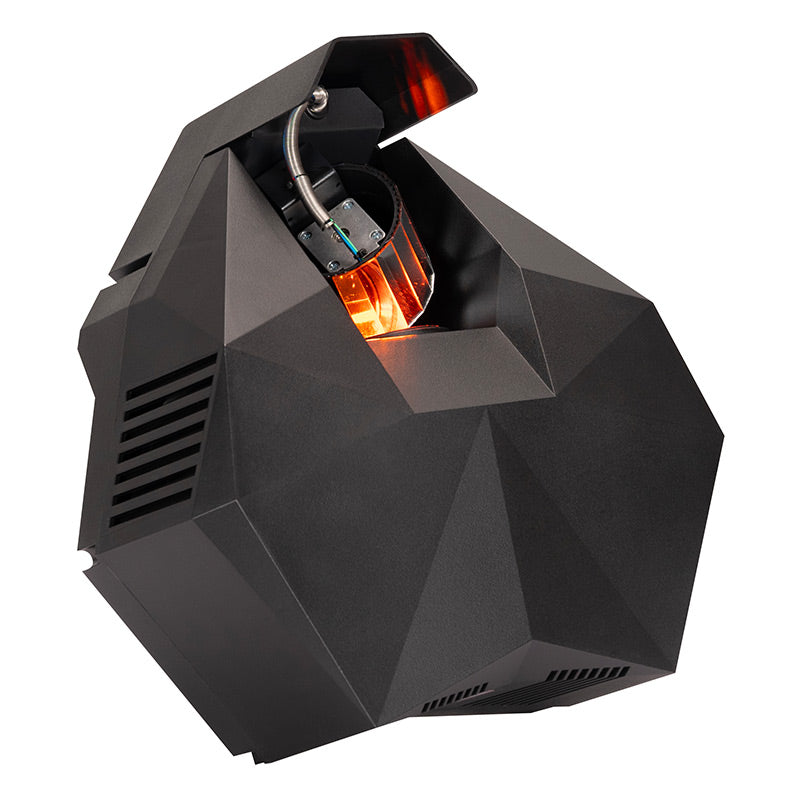

Take control with multiple operation modes, including DMX, Remote Device Management (RDM), sound activation, or show mode. Adjust settings effortlessly using the intuitive 4-button control menu and digital display. The barrel mirror ensures rapid, fluid movements with a range of 180° on the X-axis and a full 360° on the Y-axis. Fine-tune the beams and GOBO patterns using the manual focusing knob for ultimate precision.
The fixture is equipped with 5-pin DMX In/Out connections, an IP65 locking power input, and a safety loop for secure mounting. Compact and lightweight, the Vortex 150 is ideal for tight spaces, low ceilings, and high-energy venues such as nightclubs, bars, lounges, roller rinks, and fun centers.
Specifications
Light Source:
• 150W White LED (30,000 Hrs.)

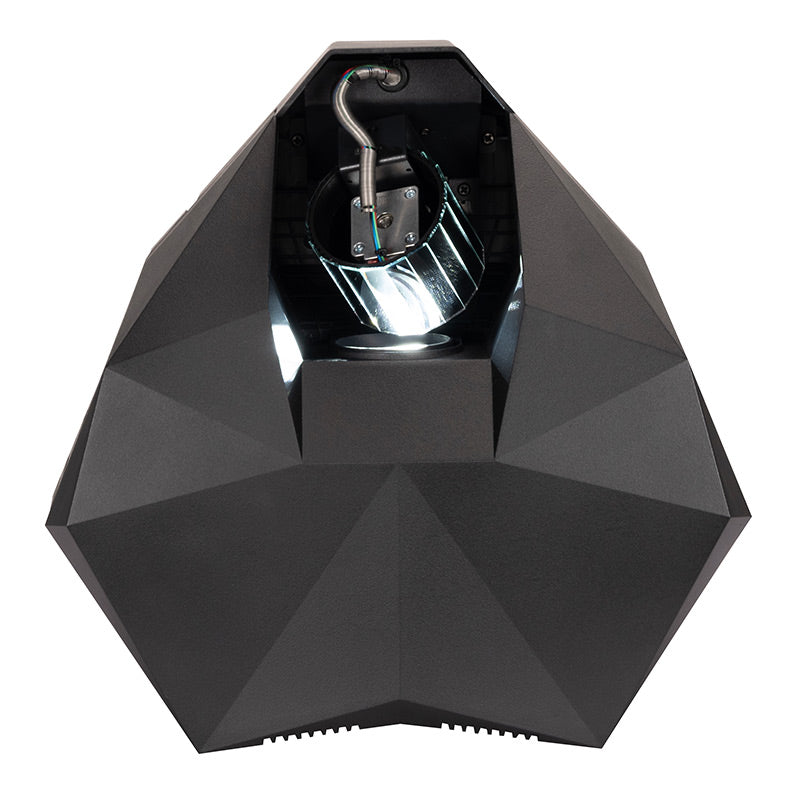

Barrel Mirror:
• Barrel Movement: X-Axis = 180°, Y-Axis 360°
• Beam Angle: Multiple Beams, 3° each
• Beam Focusing Knob

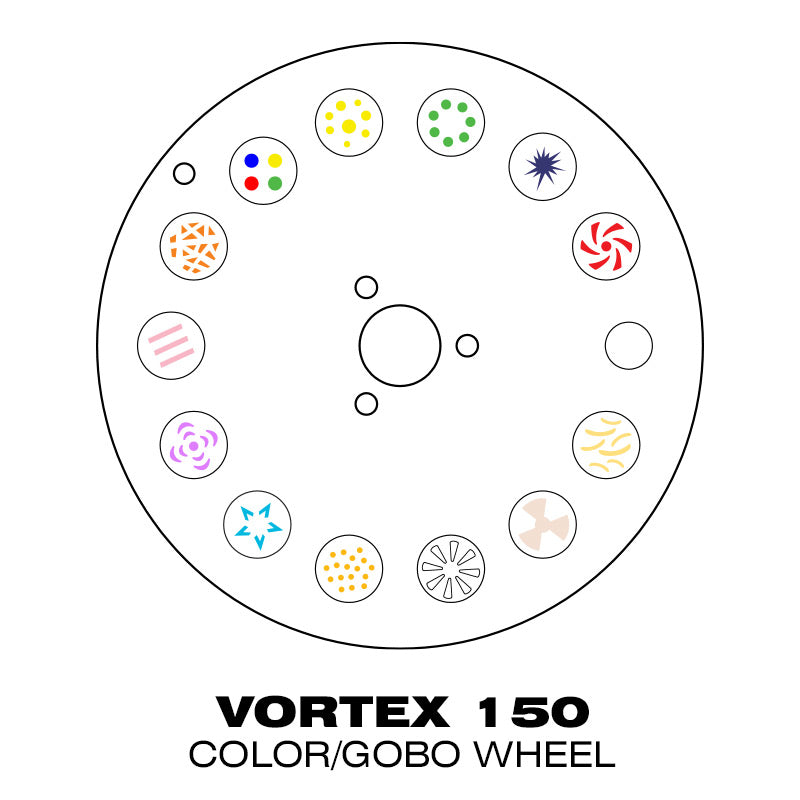

Colors/GOBOs:
• 11 Color / Gobo combinations (2 Beam Reducers)
• Color/Gobo Shake
Control:
• DMX512, RDM, Sound and Show Mode
• 0.5-33Hz Strobe Rate
• User selectable LED Refresh Rate
• 6 Built-In Light Shows
• DMX Modes: 2 DMX Control Modes (10 & 12 Channels)
• 4-Button Digital Display

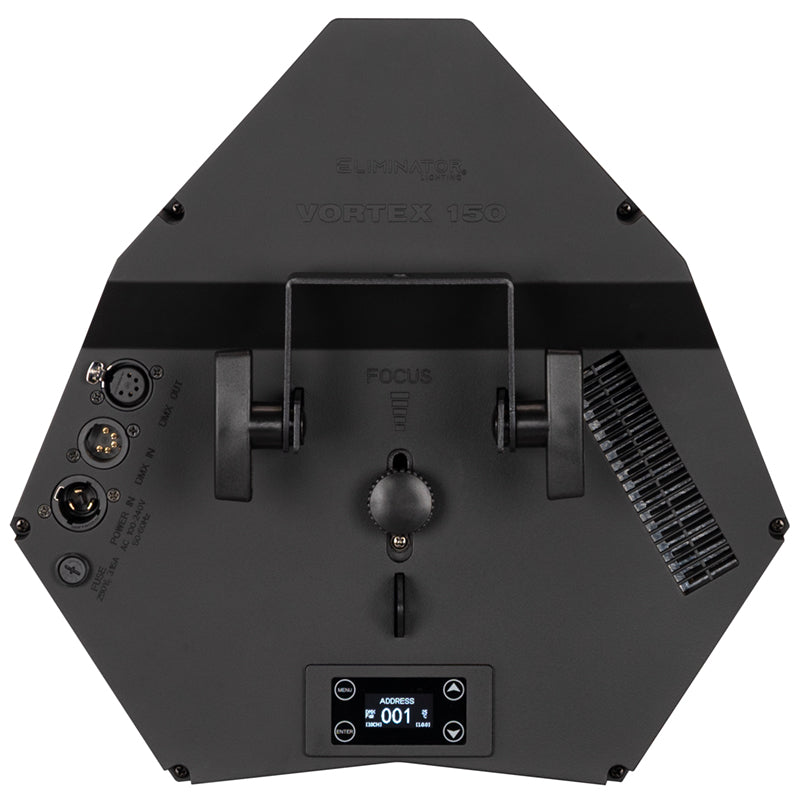

Connections:
• 5-pin DMX In/Out
• IP65 Locking power input
• Safety eye to attach a safety cable
Electrical:
• Power: 100-230VAC, 50/60HZ
• Power Consumption: 195W@ 120V., 175W@230V.
Size / Weight:
• Dimensions (LxWxH): 13.35" x 9.28" x 13.17" (339x235.6x334.4mm)
• Weight: 11.24 lbs. (5.1Kg)
Approvals & Rating:
• CE
• cETLus (Control # : 5028947)
• FCC
• IP20
Included:

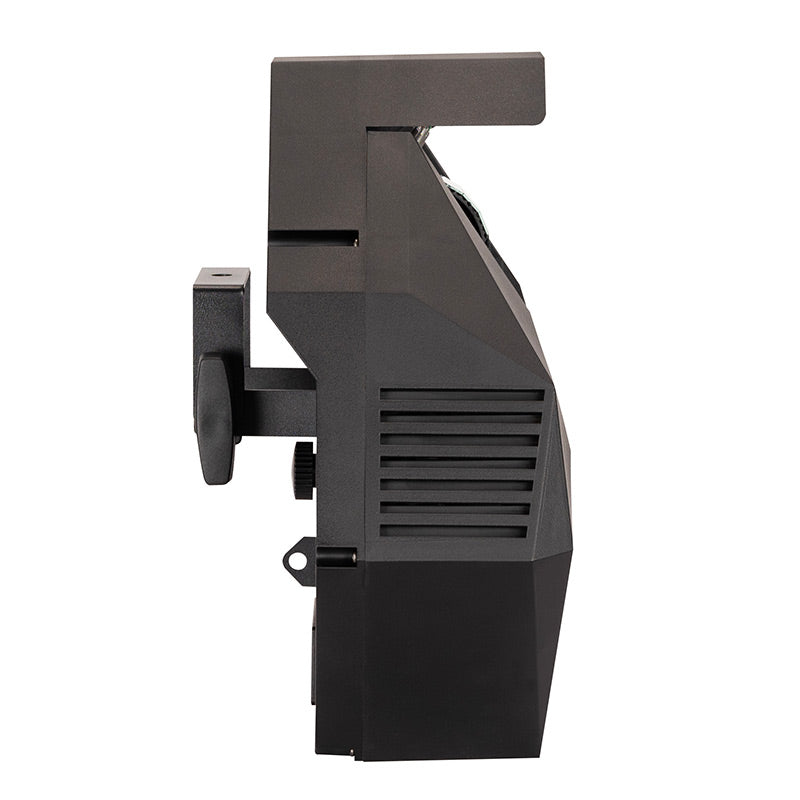

• Adjustable Angle Hanging Bracket
• Power Cable
Specifications are subject to change without notice.
