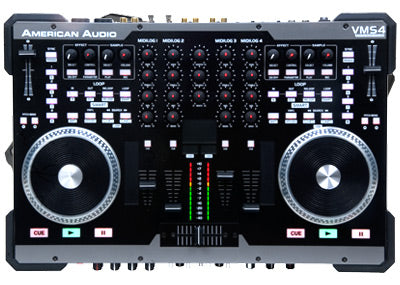

VMS4
VMS4
Sale price$0.00

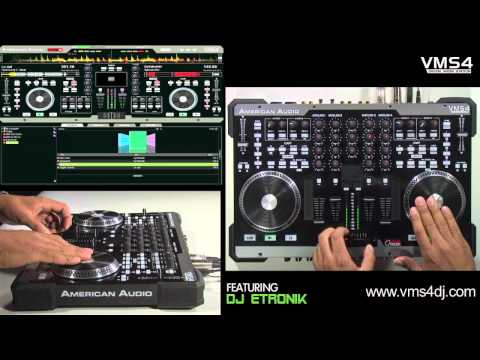

Video
VMS4
Specifications
- 4x Midilog™ Channels (Compatible with any "Midi Learn" Software or Analog Inputs - such as CD Players, Turntables, etc.)
- 2x Mics with Gain, Treble, Mid amp; Bass Control
- Crossfader Curve Adjustment
- Balanced XLR Outputs
- Assignable Touch Strips
- Built-in Mouse Pad
- Built-in Soundcard

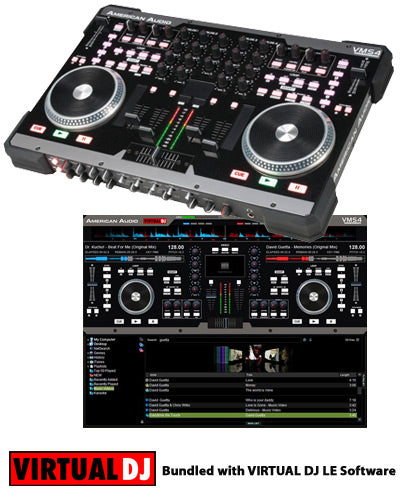

- Bundled with Virtual DJ LE Software
GENERAL FEATURES:
- Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi amp; Analog) channels
- All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
- On/Off soft startup and turnoff
- Gain/treble/mid/bass EQ on all MIDILOGTM channels
- 2 phono/line selectable analog channels
- Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
- On/off cueing on each MIDILOGTM channel
- Split cueing Stereo Phone jack with rotary mix control
- Illuminated rubber knobs for ease of use in dark environments
- Solid 1.6mm thick faceplate for extra durability
- Panel mounted rotary knobs
- Full analog mixer operation if the computer crashes or with external power supply
- Innofader replaceable crossfader compatible (sold separately)
- Crossfader curve control
- Crossfader assign and reverse
- Q-Start crossfader controlled startup for 2 external audio players
- User replaceable channel faders
- Master and Booth outputs with L/R balance
- Balanced Master outputs
- 12 position stereo master output VU meter
- Dimensions (LxWxH): 19”x12.75”x1.5” / 482x325x40mm
- Weight: 13 lbs. / 6 kg.
MIDI FEATURES:
- Built-in mouse pad
- Long life MIDI assignable touch strips
- Two 10- bit resolution pitch sliders
- 62 assignable MIDI buttons and switches
- 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
- 4 assignable rotary encoders
- 34 assignable rotary controllers
- 5 assignable linear fader controllers
- Dual MIDI controls on all buttons and switches
- Dual 2000 point resolution touch sensitive turntable scratch controllers
AUDIO FEATURES:
- 24-bit 48 kHz analog audio
- 16-bit 44.1kHz USB audio
- 10-bit resolution on all analog fader controls
- THD lt;0.1%*
- Channel separation gt;60dB*
- S/N ratio gt;85dB*
- Analog channel audio latency lt; 1msec
- Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
- 2 msec response on all buttons
- 4 msec response on all rotary and linear faders
- 1 msec USB latency
