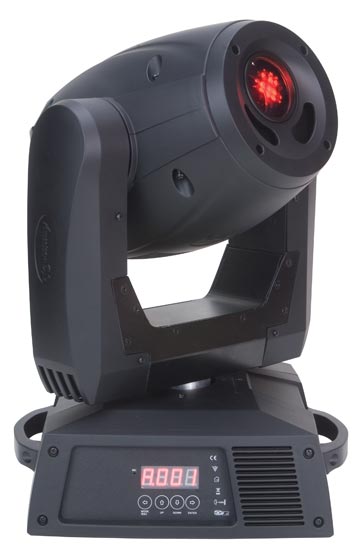

Vizi Spot 5R

This product is CE certified. This product is ETL certified.
This item is discontinued

Utilizing the revolutionary Philips® Platinum 5R discharge lamp technology, the Vizi Spot 5R from ADJ offers quality and power in a lighter and more compact unit. Sporting 7 dichroic colors + white and 8 interchangeable rotating gobos, this Moving Head will provide the effect you need to make the perfect light show.
UPC: 640282001236SKU: VIZ477

Video

Vizi Spot 5R

Get your stage productions, nightclub or special event going with this professional grade fixture to enhance your light show. The Vizi Spot 5R from American DJ works great either as a standalone piece or as part of a larger light entertainment system. With its powerful Phillips Platinum 5R lamp, this fixture will provide an intense beam or clear image from short to long distances. You'll have no trouble setting up the ADJ Vizi Spot 5R in DMX mode, Primary/Secondary, Stand Alone or Sound Active modes with its built in LED display. Create stunning lighting effects with 7 dichroic colors + white along with 8 rotating replaceable gobos + spot and a 3 facet prism. ADJs Vizi Spot 5R is the perfect lighting solution for live events, nightclubs, corporate functions or anytime a quality spot lighting effect is required.

Specifications

  •  RDMX - Remote DMX addressing (Change DMX values remotely from any DMX console)
  •  4 operational modes: DMX, Primary/Secondary, Stand Alone Sound Active
  •  13 DMX channels
  •  Gobo scroll mode

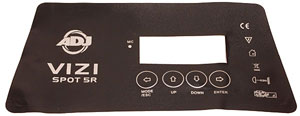

  •  LED DMX 4-Button menu system
  •  18-degree beam angle
  •  Auto X-Y repositioning
  •  7 dichroic colors + white
  •  8 rotating gobos + spot (interchangeable: 4x metal, 4x glass)
  •  3-facet prism with macros
  •  Gobo Shake effect
  •  Gobo size: 14mm (8 mm viewable gobo size)
  •  Independent gobo and color wheels
  •  Pan: 360-degree standard (540-degree optional)
  •  Tilt: 270-degree
  •  Shutter: Pulse effect; random strobe slow to fast
  •  Dimming: 0% - 100%
  •  Strobe effect
  •  Stepper motors with micro stepping
  •  Hanging bracket included
  •  3-pin XLR In/Out
  •  LUX: 2947 @ 5M
  •  Lumens: 8000 LUX
  •  Multi-voltage Operation: 115V/60Hz or 230V/50Hz (Switchable)

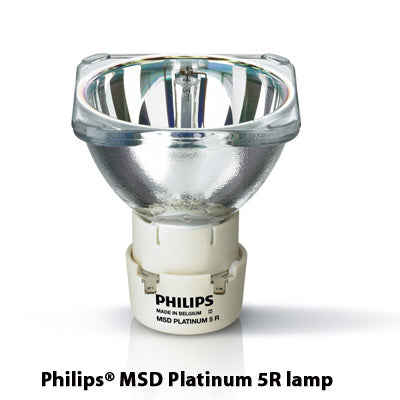

  •  Lamp: Philips® Platinum 5R discharge, 8,000°K - 2,000 hr. long life
  •  Dimensions (LxWxH): 13.25”x12.25”x17.75” / 335x310x448mm
  •  Weight: 27 lbs. / 12 kg.
  •  ETL approved

Downloads

User manual

Vizi Spot 5R Parts & Service

Our Vizi Spot 5R Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Vizi Spot 5R. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.

Vizi Spot 5R Parts & Service
