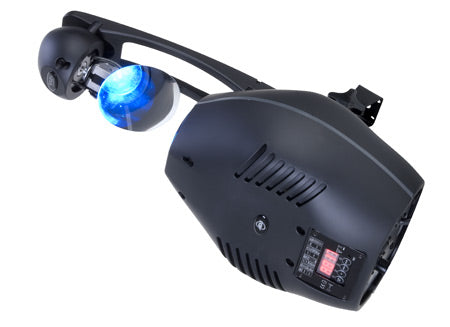

Vizi Scan LED Pro
This item is discontinued
American DJ's Vizi Scan LED Pro is a high performance 2-in-1 DMX Scanner offering both hard edge spot beam and frost (wash) effects. 8 Dichroic colors (+ white), 7 rotating interchangeable gobos, SLOCK™ Slide Lock gobo changing system, and gobo shake make this an incredible lighting fixture
Vizi Scan LED Pro
Sale price$0.00
Video
Vizi Scan LED Pro
Like the BOOM-BAP, drum & base, yin and yang, two is always better than one. the Vizi Scan LED Pro from American DJ is exactly that: a 2-in-1 effect offering both a hard edge spot beam and a frost (wash) effect! This ADJ high performance DMX scanner offers the precision of a hard edge spot beam for intensity and the soft focus of a wash for laid back mood lighting. Beyond having 8 Dichroic colors (+ white) and 7 rotating interchangeable gobos, this amazing fixture features a gobo shake effect that will make your patterns pulsate to the beat. For professional quality effects, American DJ's professional quality lighting fixtures are a sure bet. The Vizi Scan LED Pro includes numerous features that will make your performance stand out above the competition, including Remote DMX addressing (change DMX values remotely from any DMX console), the SLOCK™ Slide Lock gobo changing system (makes changing gobos super simple), and many others, this fixture is sure to be a star of the show.
Specifications
- 50W High Output LED DMX Scanner that produces a spot and a frost (wash) effect
- RDMX - Remote DMX addressing (Change DMX values remotely from any DMX console)

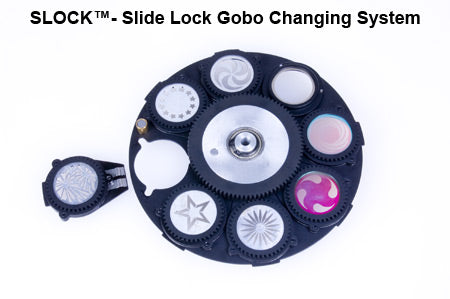

- 7 Rotating, Interchangeable Gobos + Spot (5 metal + 2 glass gobos) with SLOCK™ (Slide Lock) gobo changing system
- 7 Colors + UV Filter + White
- Independent gobo and color wheels
- 12 Ch. or 14 Ch. DMX Modes
- 4 operational modes: DMX, Primary/Secondary, Stand Alone Sound Active
- Prism Wheel: 3-Facet or Infinite
- Frost Effect (Wash)
- Pan/Tilt (8-Bit) + Fine Pan/Tilt (16-Bit)
- Metal Gobo size: 27mm (22mm viewable gobo size; thickness: 0.3mm)
- Glass Gobo size: 27mm (22mm viewable gobo size; thickness: 2mm)
- Dimming: 0% - 100%
- 13-degree beam angle
- Remote Focus
- Gobo Shake
- Gobo Indexing
- Strobe effect
- Pan: 540-degree standard (630-degree optional)
- Tilt: 35-degrees
- LED DMX 4-Button menu system
- Stepper motors with micro stepping
- Hanging bracket included
- 3-pin XLR In/Out
- Fan cooled
- Gobo scroll mode
- Auto X-Y repositioning
- Shutter: Pulse effect; random strobe slow to fast
- Flicker-free operation
- Multi-voltage Operation: 100-240V, 50Hz/60Hz
- Power Consumption: 130W max
- Lamp: 50W white LED source, 6500°K (60,000 hour rated)
- Dimensions (LxWxH): 11.75”x12”x22.25” / 297x301x563mm
- Weight: 17 lbs. / 7.5kg.
Vizi Scan LED Pro Parts & Service
Our Vizi Scan LED Pro Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Vizi Scan LED Pro. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
