Vizi Hex Wash7

This product is CE certified. This product is ETL certified.

The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. At 105W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY and Aria X2 wireless DMX on-board.
UPC: 819730019745SKU: VIZ614

Video

Vizi Hex Wash7

Available now from ADJ USA

The Vizi Hex Wash7 is a 105W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 15W HEX (RGBWA+UV) LEDs. It features 64 built-in Color Macros, super fast pan/tilt movement, electronic dimming with 5 dimming curves and a pan/tilt inversion mode or contrasting movement when fixtures are linked together.

The Vizi Hex Wash7 has 3 DMX channel modes, 3-pin or 5-pin DMX connections and locking power In/Out connections for power linking. Plus, this fixture is equipped with ADJ's WiFLY and Aria X2 wireless DMX. This fixture is ideal for stages, theaters, churches, nightclubs, concert venues and event productions.

Learn more about the Vizi Hex Wash7 in this product spotlight blog: http://tinyurl.com/hv8x5td

Specifications

Optical

• Light Source: 7 (15) Watt HEX RGBWA+UV LED

• Life Expectancy: 50,000 hrs

• Beam Angle: 5~55-degree

• Refresh Rate: 1.2KHz

Specifications

• Pan amp; Tilt Range: 630-degree (540 Optional) /Tilt 270-degree

• Colors: 64 built-in color macros

• Dimming: Electronic

• Zoom: Motorized 5°-55°

• Strobe: Electronic

• Dimmer Curves: 5 dimmer curves

• Operational Modes: 2 modes Program/ DMX

• Flicker Free

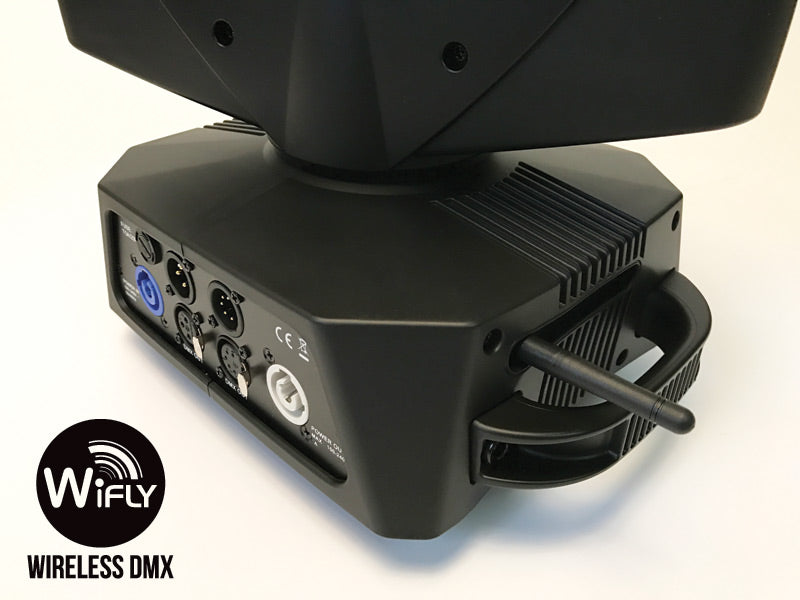

• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight). Also compatible with Aria X2 Transceivers for Wireless DMX control.

• Dimensions (LxWxH): 11.75” x 8 x15.75”/300x200 x 400mm

• Weight: 19 lbs./8.5 kgs

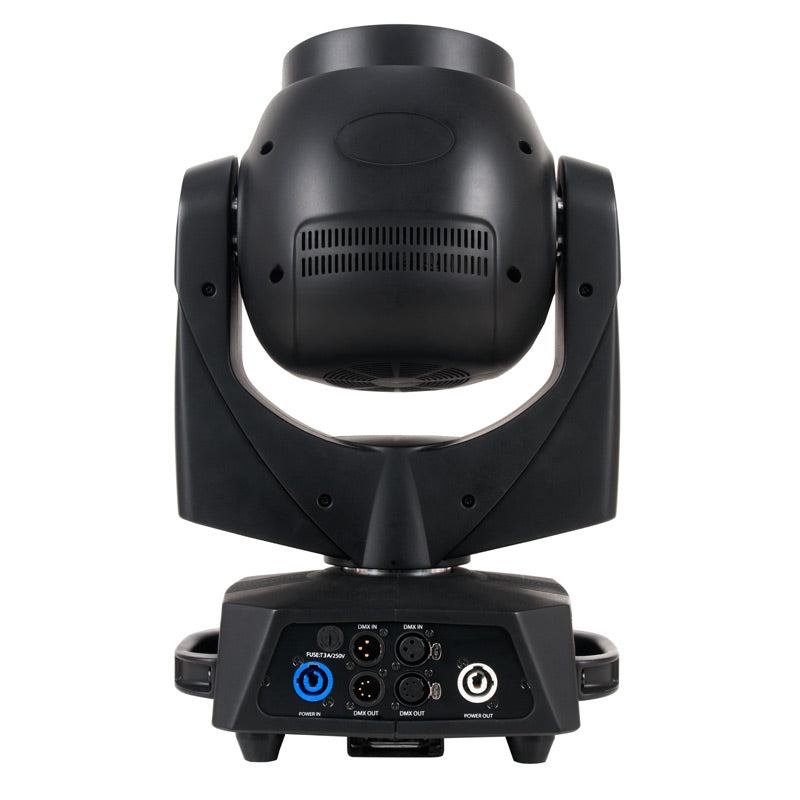

Connections

• Power Input: Locking power IN connection

• Power Pass through: Locking power OUT connection

• Data: 3 amp; 5-pin In/Out DMX

• With Wired Digital Communication Network

Control

• DMX Modes: 2, RDM (Remote Device Management)

• On Board: LCD menu 180 degree inverse

• 16 Selectable WiFLY Address Channels


Certifications

• ETL Approved, CE Certified


Electrical

• Input Voltage: 100~230 V, 50 Hz./60Hz

• Power draw @120V: 137W

• Power draw @ 220V:


Optional Road Cases:

• DRC MH: 2 Vizi Hex Wash7 fit in the DRC MH Road Case

• QRC MH: 4 Vizi Hex Wash7 fit in the QRC MH Road Case

Whats Included

• Omega bracket

• Locking power to Edison cable

• User Manual
