Vizi Beam RX2
This product is CE certified.
This product is ETL certified.

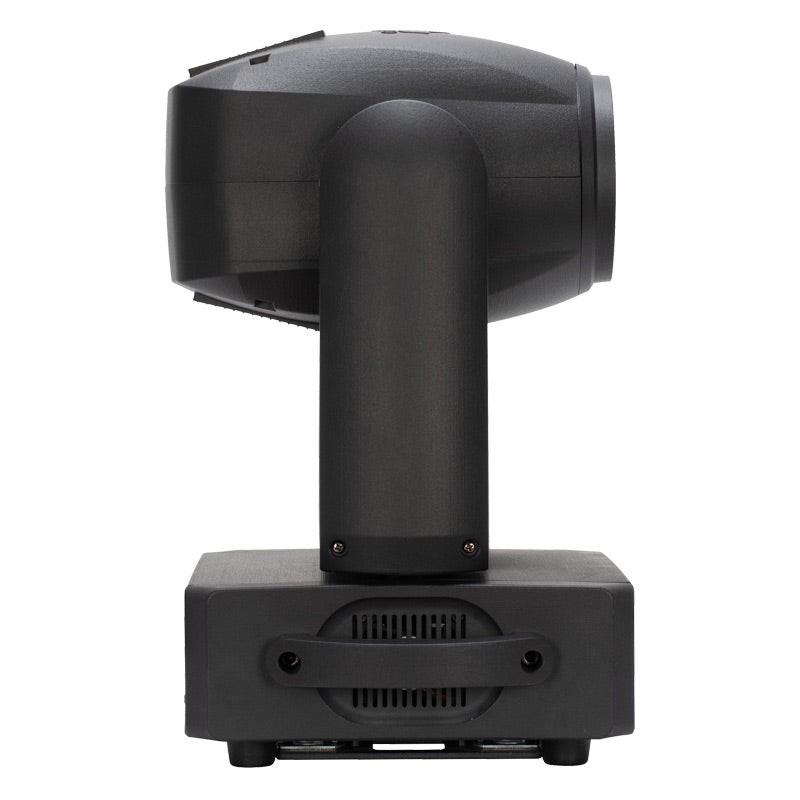

The ADJ Lighting Vizi Beam RX2 is a compact, high-performance moving head beam fixture that features a 100W Osram Sirius HRI discharge lamp, a razor-sharp 2-degree beam, two prism effects, and a host of high-performance features for the modern lighting professional.
Vizi Beam RX2
Sale price$0.00
Key features
| Feature | Value |
|---|---|
| Beam Angle | 2-Degree |
| Feature | 3-Phase Motors |
| Frost | Frost Filter |
| Lamp Source | Osram Sirius HRI 100W Discharge (9000K) |
| Prism | 2 Prism Wheels |
Video
Vizi Beam RX2
AVAILABLE NOW FROM ADJ USA
Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance. Vizi Beam RX2 is designed for live events and venues looking for a small footprint lighting fixture that creates high impact lightshow.Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (4500K & 9000K) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers).
The fixture boasts advanced features, including 2 rotating prisms (16-facet circular & 6-facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability during transportation and rigging. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.
Designed for convenience, it features outdoor-rated In/Out locking connections for power daisy-chaining, 5-pin In/Out DMX sockets and a color LCD display with 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.
Specifications
Light Source:
- OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
- Color temperature: 9000K (+/- 300K)
Features:
- On-Board Wireless DMX
- Motorized Focus + 16-bit fine focus
- 2-degree beam angle
- Frost Filter to create wash effect
- High quality glass lens
- 2 Rotating prisms:
- 0-100% smooth dimming
- Various strobe speeds
- OTA, wireless, firmware updates
- Fan cooled

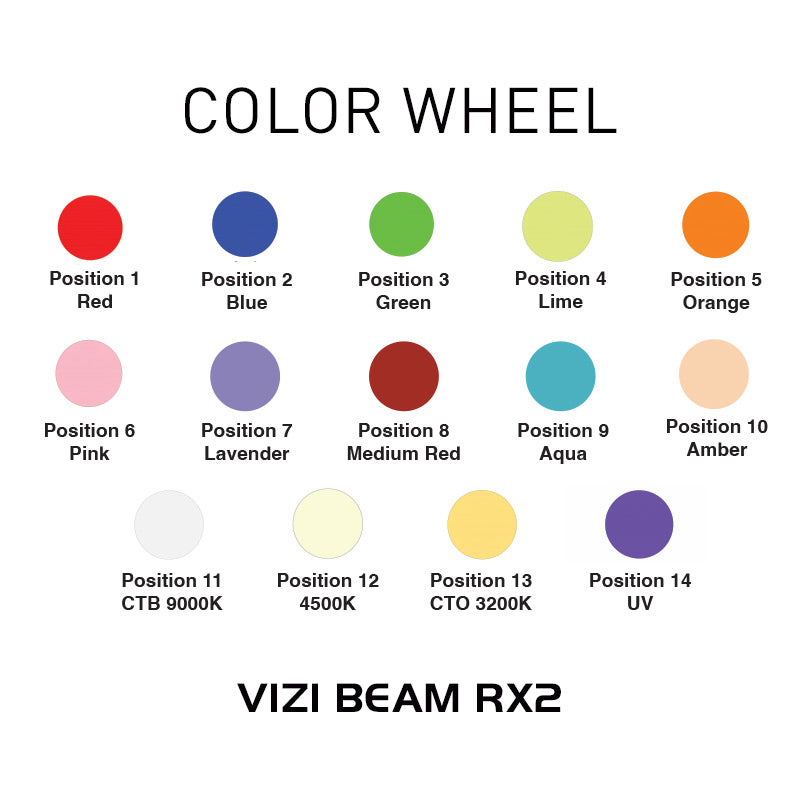

Color Wheel:
- 14 dichroic colors + white (Includes CTO (3200K), CTB (4500K amp; 9000K) amp; UV filters)
- Indexable color wheel for split colors

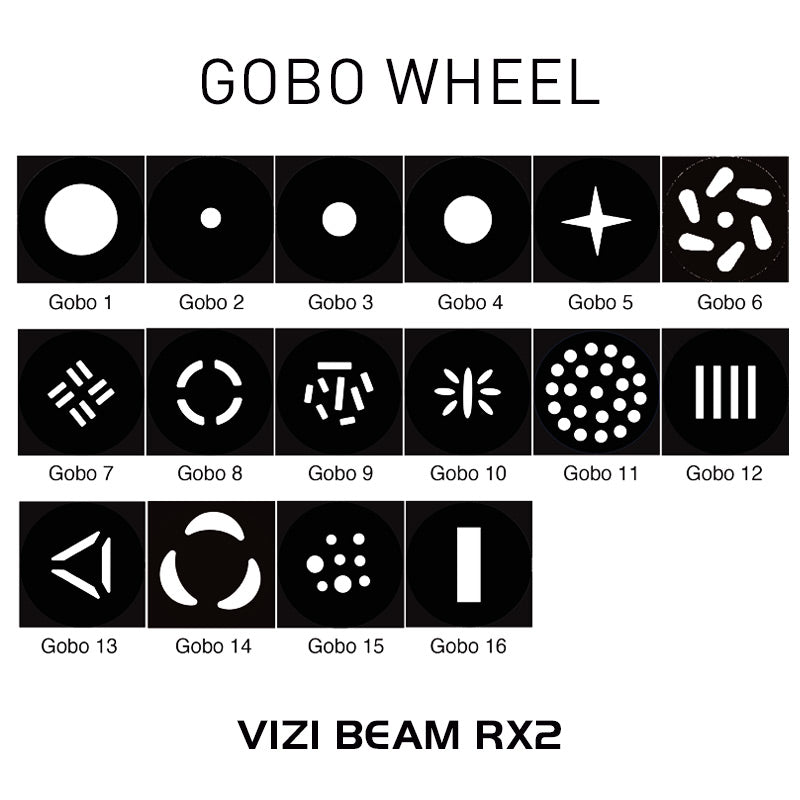

GOBO Wheel:
- 15 static GOBOs + open (3 GOBOs are beam reducers)
- GOBO Shake Effect
Prism Wheels:
- 2 Rotating prisms
- 16- facet circular and 4-facet linear prisms
Control:
- Protocols: DMX512 amp; RDM
- Control Mode: DMX512 amp; Manual (On-board Controls)
- 2 DMX Channel Modes: 16/20 Channels
- Aria X2 Wireless Management / DMX System

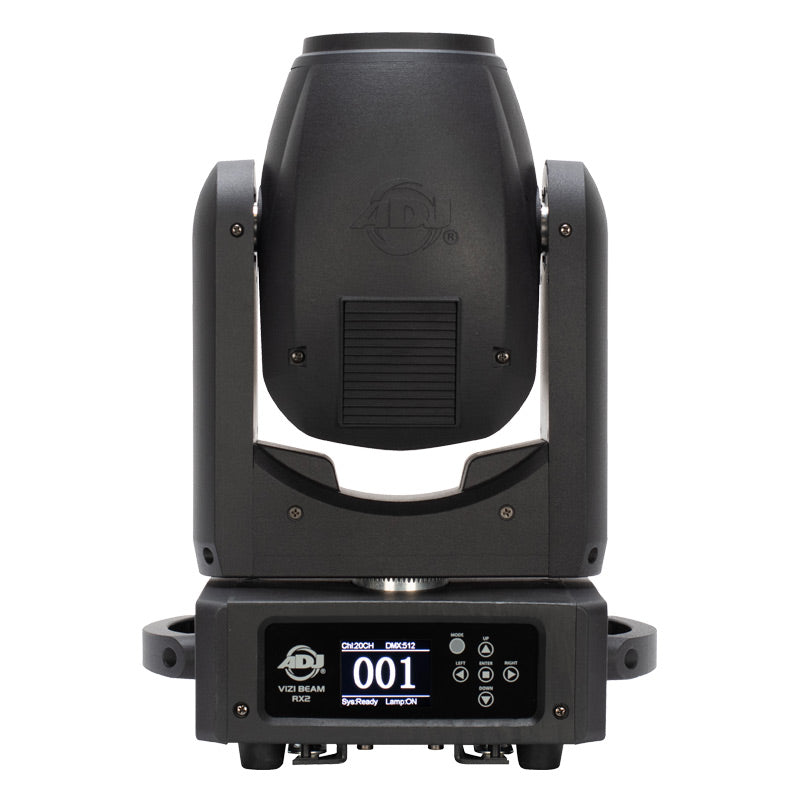

- Color LCD display with 4-button function menu
- 0-100% smooth dimming
- Various strobe speeds
- With Wired Digital Communication Network
Pan/Tilt:
- Pan: 540 degrees (plus 16-bit fine pan)
- Tilt: 270 degrees (plus 16-bit fine tilt)

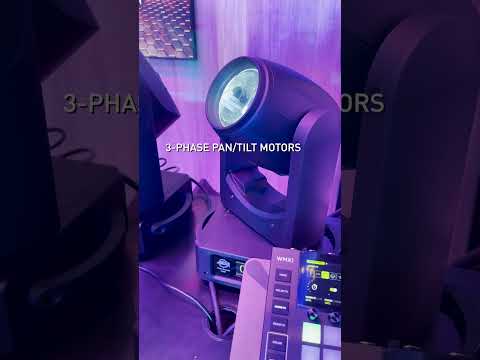

- 3-phase, High Speed, Pan/Tilt motors

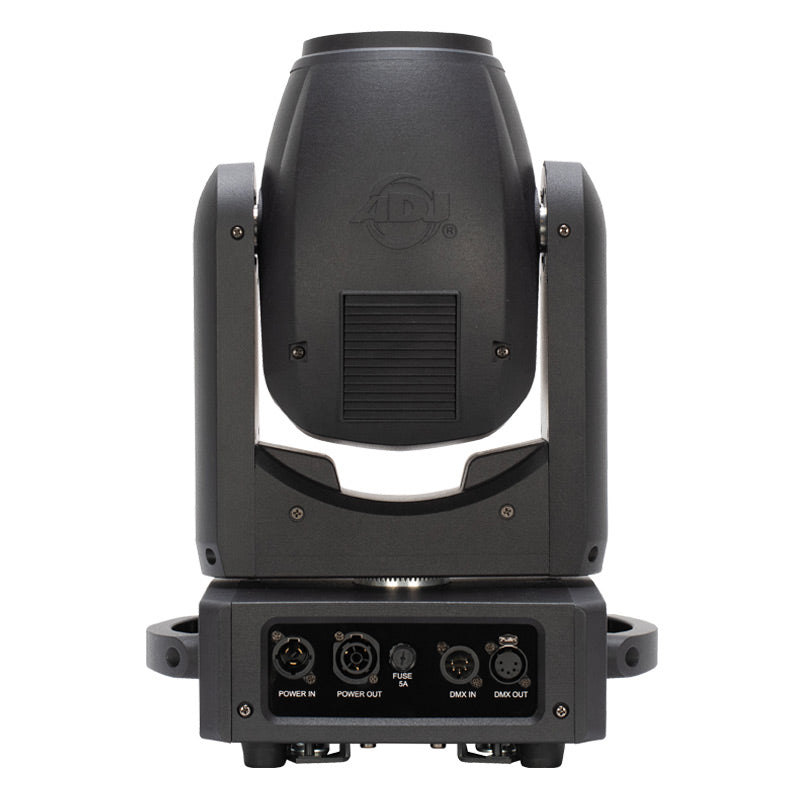

Connections:
- DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
- Power Connections: Outdoor locking In/Out connections to daisy chain power
Electrical:
- Multi-voltage operation: 100-240V, 50/60Hz
- Max power consumption: 168W (@120V), 157W (@230V)
- Fuse Protected: 3.15A
Dimensions amp; Weight:
- Dimension: 9” (L) x 12” (W) x 16.4” (H) (230 x 304 x 416mm)
- Weight: 21.8 lbs. / 9.9 kg.
Approvals / Ratings
- CE
- cETLus (Control # 5028947)
- FCC
What’s Included:
- 2x Omega Brackets (107 Type)
- 2M, outdoor locking 14AWG power cord
Road Cases:
Specifications are subject to change without notice.
