Vintage X
Vintage X combines retro amber blinder effects (2000K) with vibrant background RGB LEDs, offering rich multi-color eye candy effects and smooth dimming. With advanced controllability, built-in lightshows, and versatile connectivity, it’s perfect for creative stage and event lighting setups.
Video
Vintage X

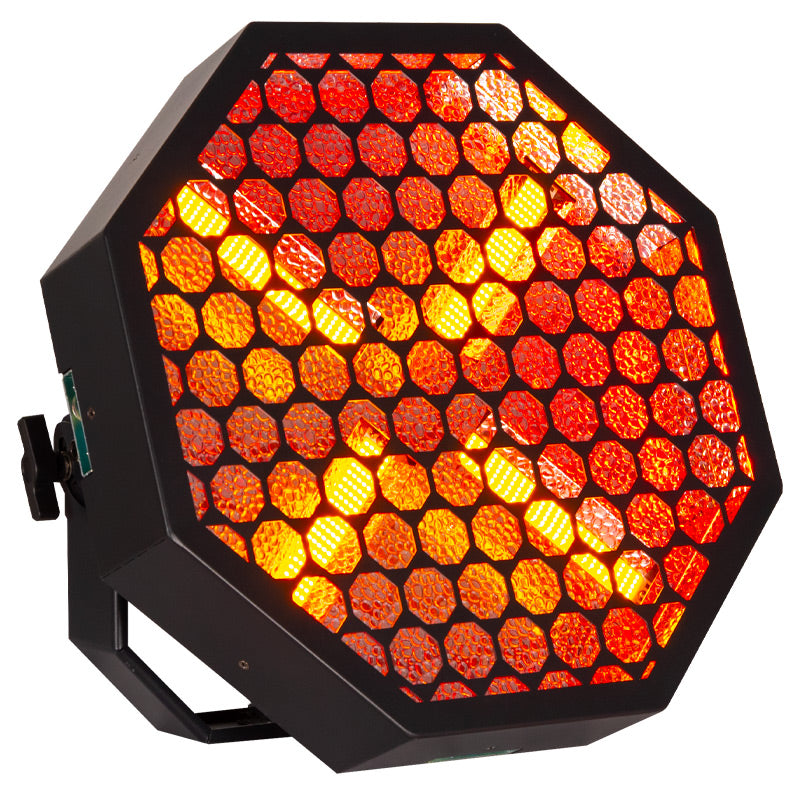

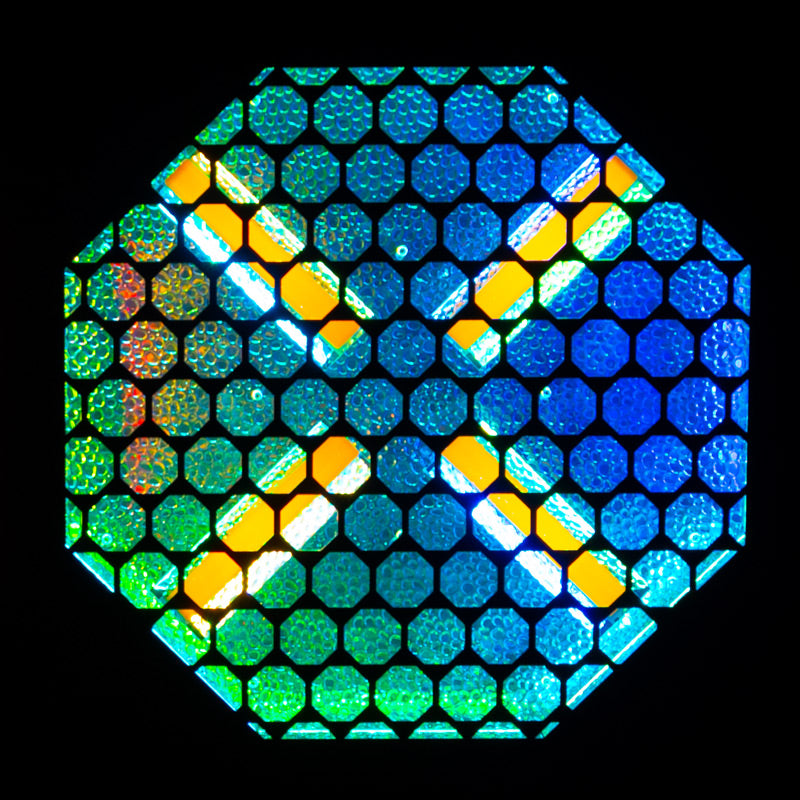

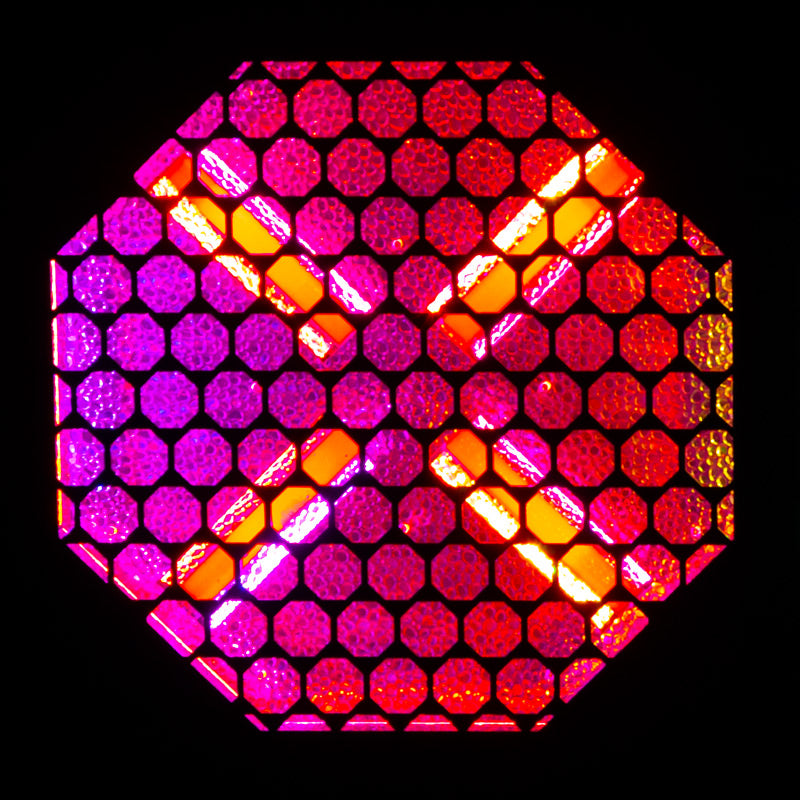

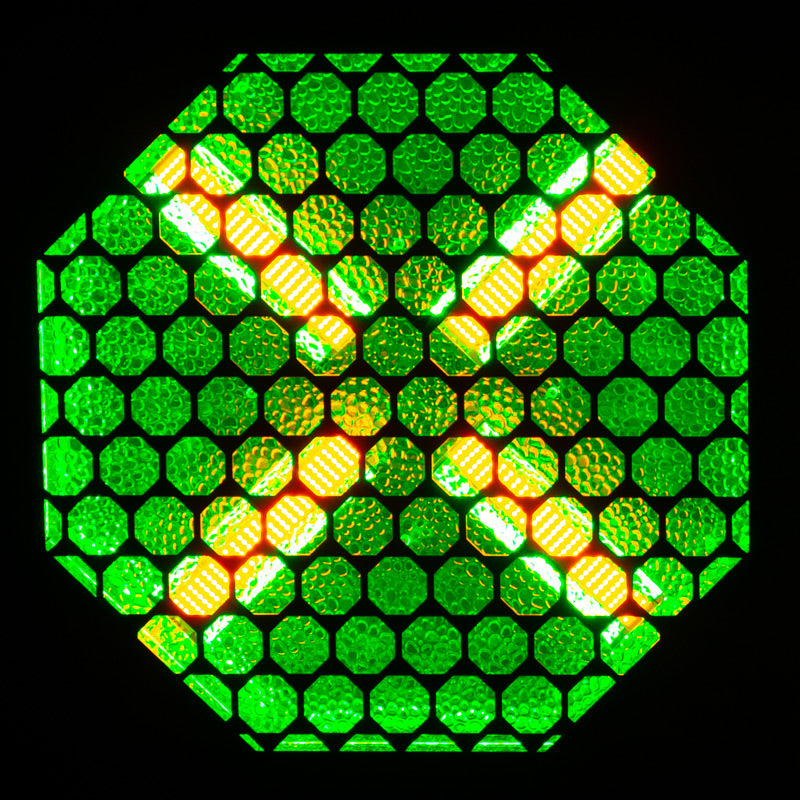

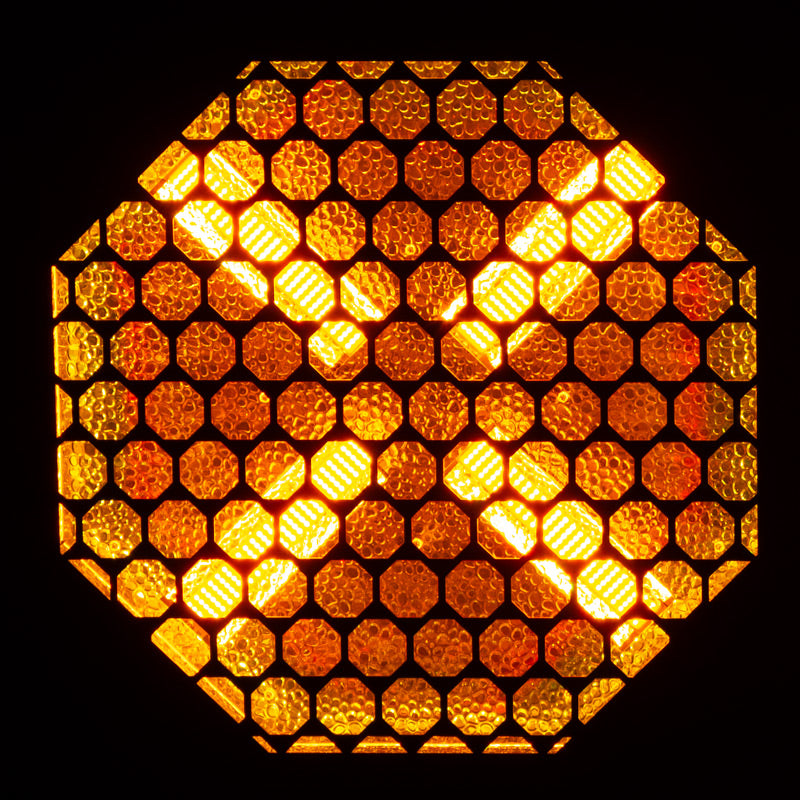

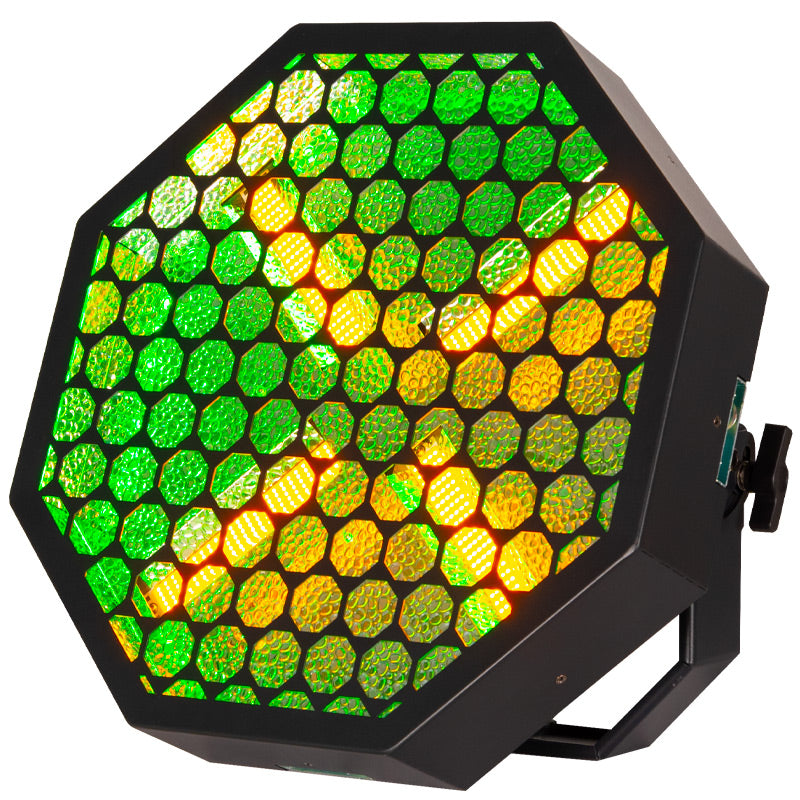

Vintage X is a highly adaptable scenic lighting fixture that sparks creativity and captures attention with its dual-purpose design. Featuring four 60-watt foreground amber LEDs (2000K), it produces the warm glow of a retro blinder effect, while 64 vibrant 3-watt RGB LEDs deliver rich, dynamic color tones and stunning background effects. This combination allows for smooth dimming transitions and bold, captivating lighting displays in an intriguing octagon shaped fixture.
With its wide 150-degree field angle, the Vintage X is perfect for stage productions, live events, and theatrical applications. Additional features include advanced strobing effects, retro background lighting, and silent operation, while its flicker-free performance guarantees smooth visuals. The fixture also boasts a user-friendly OLED display and compatibility with DMX, RDM, Bluetooth, and Aria X2 wireless management system for over the air firmware/software updates for streamline control.
Designed for flexibility, the Vintage X supports multiple control modes, and a coffin locking system to interlock up to eight fixtures together, making it ideal for immersive lighting environments. Combining classic vintage aesthetics with cutting-edge technology, it offers both creative versatility and reliable performance for modern lighting designs.
Specifications
Features:
4 Foreground Amber LEDs
64 Background RGB LEDs
All LED's are Individually Controllable via DMX
Built-In Foreground LED Programs
Built-In Background LED Programs
Variable White Color Temperature Control (2,700K ~ 10,000K) (RGB LEDs)
User Selectable LED Refresh Rates (900Hz ~ 25K)
6 User Selectable Dim Modes
4 User Selectable Dim Curves
Electronic Strobe (0.1Hz ~ 20Hz)
Electronic Dimming
Source:
(4) 60W, 2000K, Amber Foreground LEDs
(64) 3W RGB Background LEDs
50,000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
Amber: 2000K (+/- 50K)
RGB: 2,700K ~ 10,000K White Color Temperature Range
Output: 220 Lux, 7000 to 8000 Lumens
140° Beam Angle
150° Field Angle
Physical:
IP20, Metal Housing
Safety Eyelet
Digital Display
Coffin Lock System to Interlock up to 8 Vintage X units

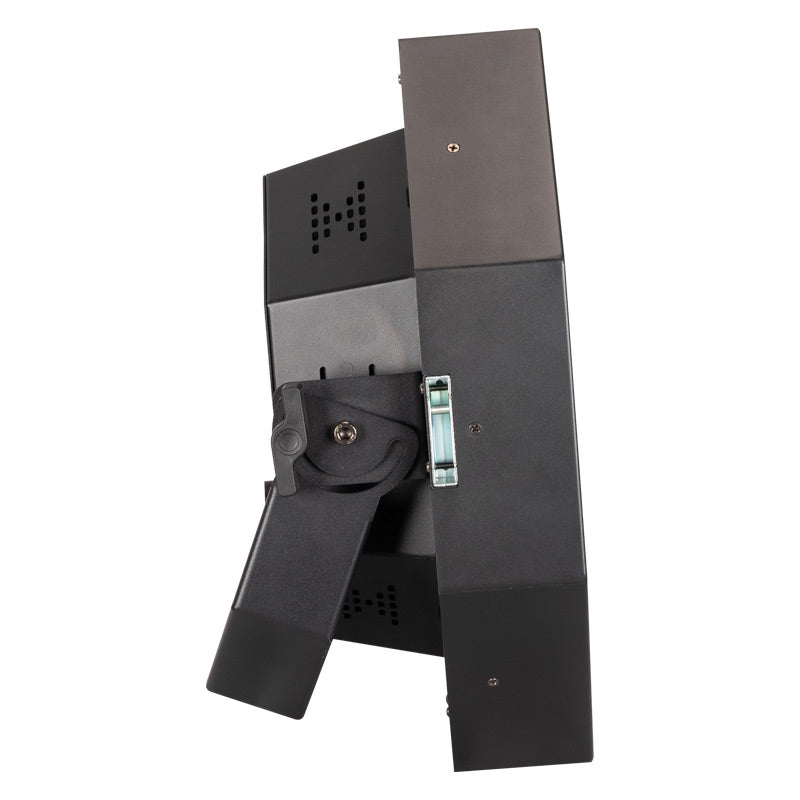

Adjustable Hanging Bracket
Omega Clamp Receivers (Omega Clamp Sold Separately
Control:
DMX512

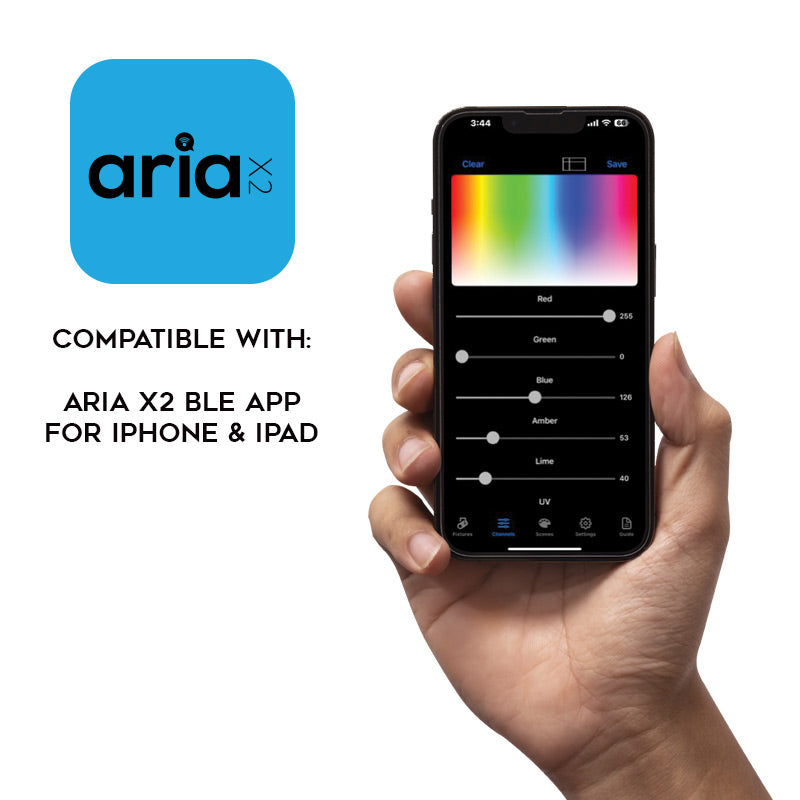

Aria X2 Wireless Management / DMX System
Bluetooth
RDM and RDM Net Compatible
(10) DMX Channel Modes (10, 16, 25, 42, 47, 196, 203, 210, 214, and 218 Channel modes)
On-board Manual Control Mode
Primary / Secondary Mode

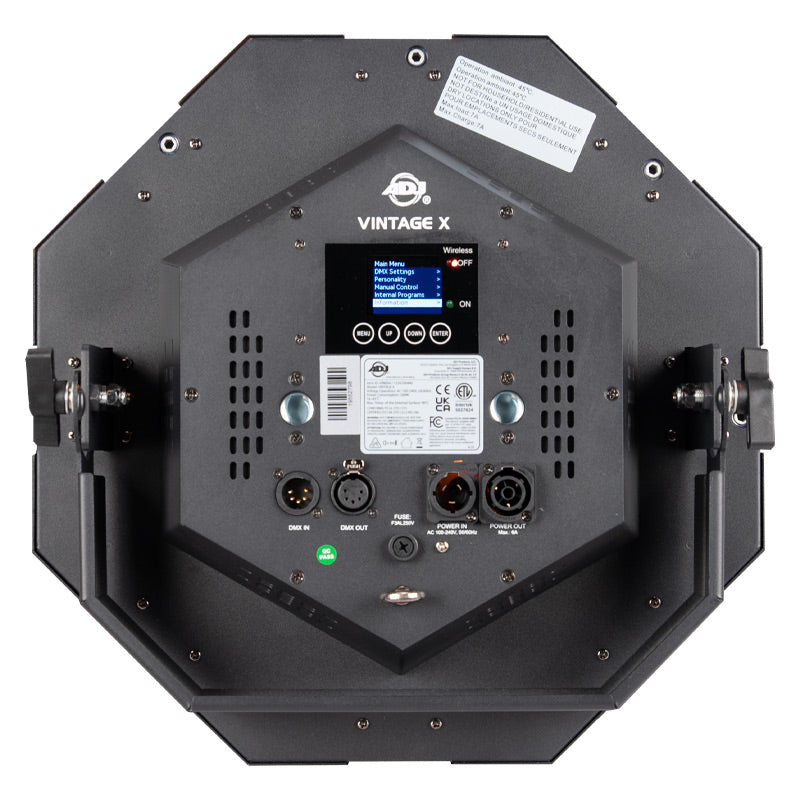

Connections:
5-pin XLR DMX In/Out Sockets
IP65 Locking Power In & Thru Sockets
Dimensions & Weight:
Length: 15.7" (398mm) Width: 15.7" (398mm) Height: 7.6" (194mm)
Weight: 18 lbs. (8.2 kg)
Power:
AC100-240V/50Hz-60Hz Input
200W Power Consumption
Link 2 pieces @120VAC or 4 pieces @ 230VAC
Thermal:
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications & IP Rating:
CE
cETLus (Control # 5027824)
FCC
IP20
Included Accessories:
(1) IP65 Locking Power Cable
Optional Accessories:
Omega Clamp (107mm)
Specifications and documentation subject to change without notice.
