VF Volcano

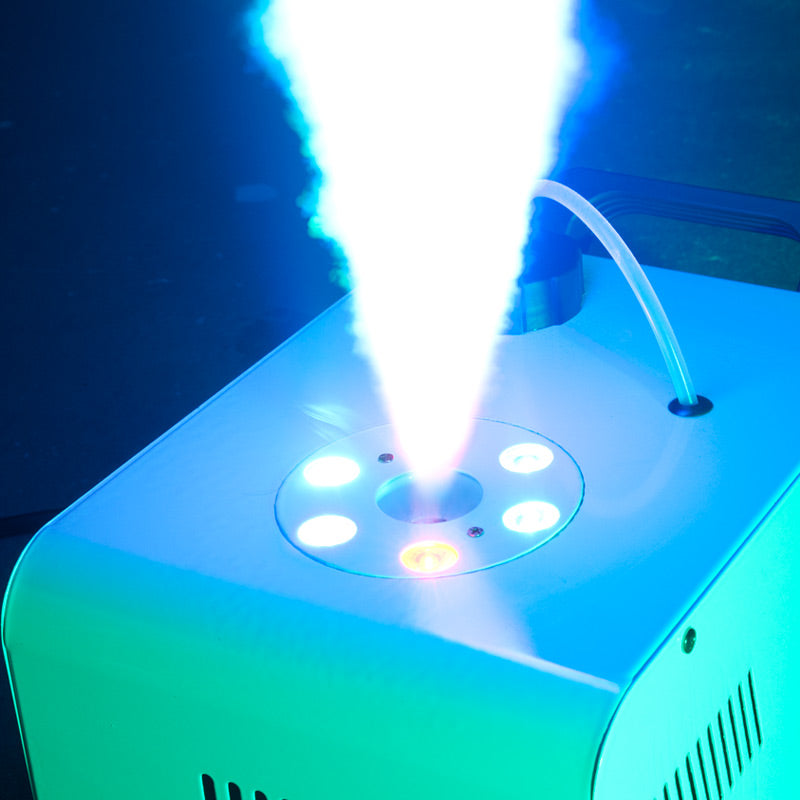

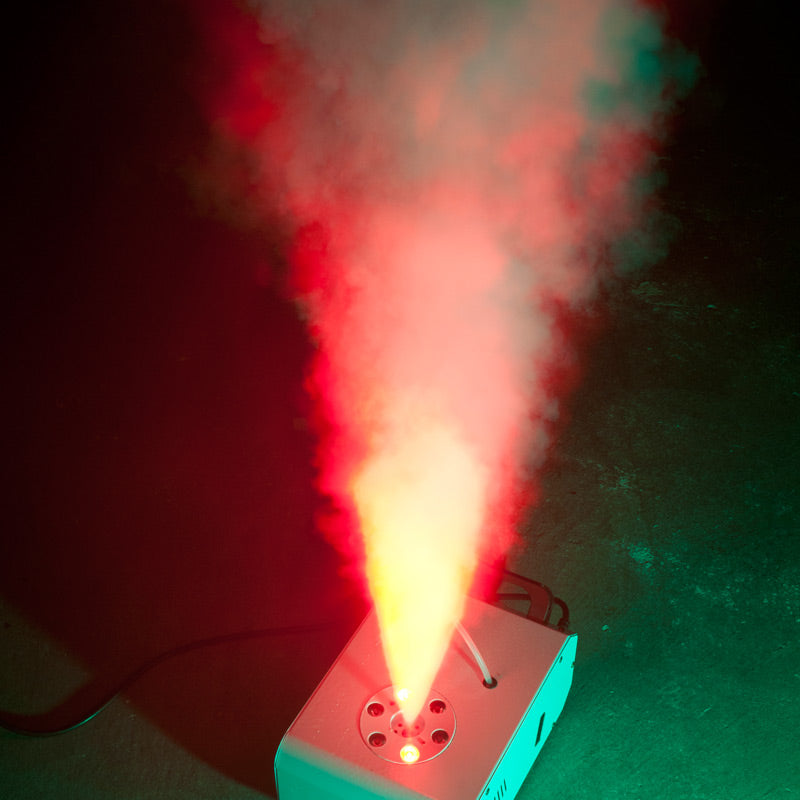

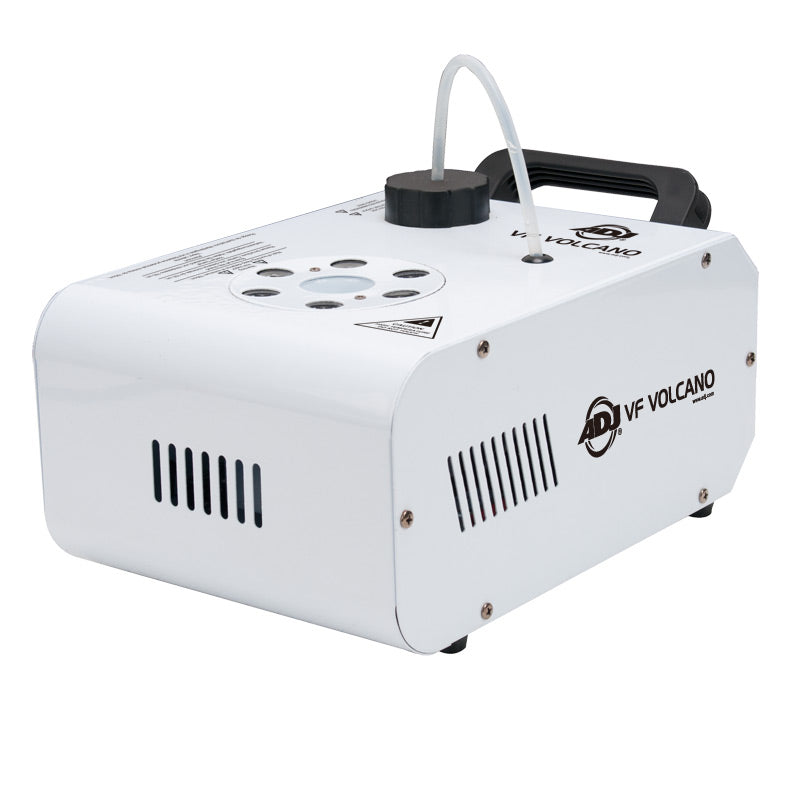

The ADJ VF Volcano is a compact and affordable vertical Fog Machine that mixes color into the fog from 6x 3-Watt RGB LEDs. With new advances in ADJ’s heater technology, the VF Volcano produces a dry even blast of fog over 15 feet (4.5 meters) in the air. It has a special heating element design that uses an oil type transmission throughout the pipeline to prevent clogging. It is also equipped with a high performance Italian pump system for optimum output. ADJ’s Electronic Thermo Sensing (ETS) technology is on-board to maintain optimum heat levels with short warm-up time between fog blasts.
The VF Volcano should only be used in a position so fog is shooting upright. The ADJ VFV-WR wireless remote comes included with the VF Volcano.
Specifications
• 750W professional vertical Fog Machine with 6 x 3-Watt LEDs
• High performance pump for optimum output
• ADJ’s Electronic Thermo Sensing (ETS) technology
• Special heating element design that uses an oil type transmission pipeline system to minimize the possibility clogging
• 2 Operational modes: Manual Remote Control
• Convenient carrying handle

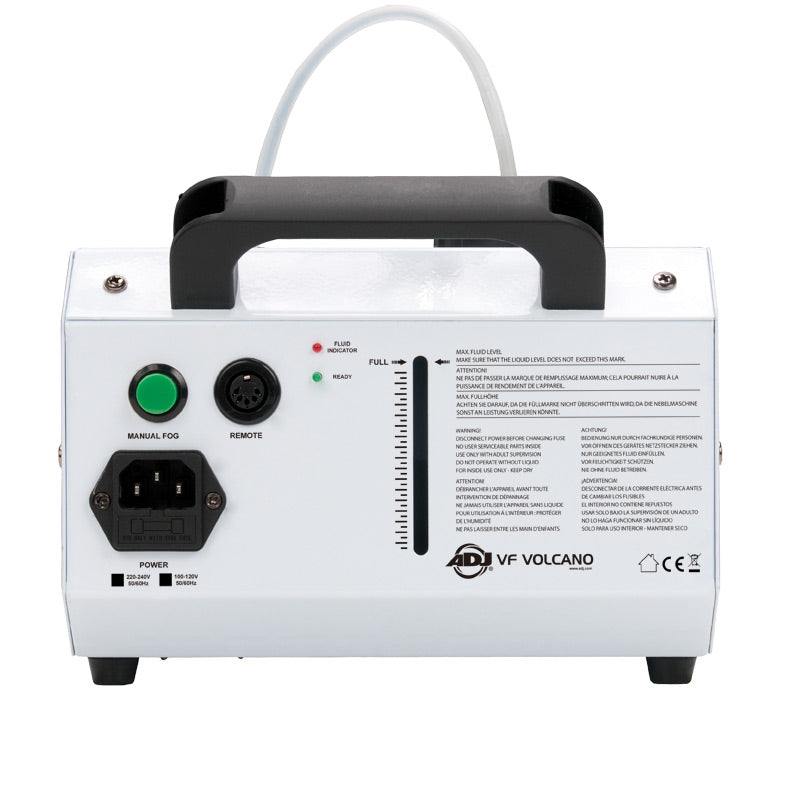

• Low Fluid LED Indicator on rear
• Warm-up time: 6 min
• Output time: 8 seconds （max）
• Re heat interval: 9.3 seconds（Average )
• Second Fog Shooting Time: 9 Seconds

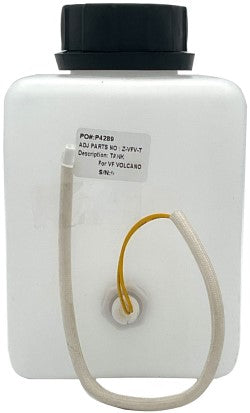

• External fog fluid tank: 1 Liter
• Fog Output: 8,000 (cu.ft/min)
• Fluid consumption:14ml/min
• Included Accessory: VFV-WR wireless remote
• Power Connection: IEC AC In
• Only use high quality, water-based fog fluid
• Light Source: 6 x 3-Watt LEDs, (2 Red, 2 Green, 2 Blue LEDs)
• Heater: 750W
• Voltage: AC 120V or 240 50/60Hz (non switching)
• Power Consumption: 770W
• Fluid consumption: 14ml/min
• Dimensions (LxWxH): 13” x 8.25” x 7” / 327 x 212 x 177mm
• Weight: 7.4 lbs. / 3.36 kg.

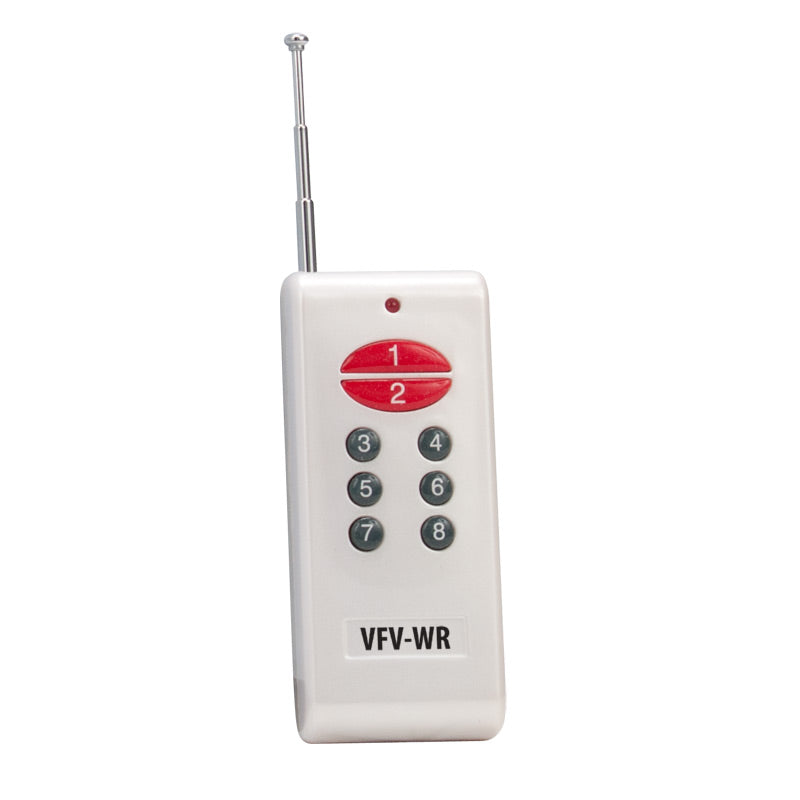

VFV-WR Remote Functions:

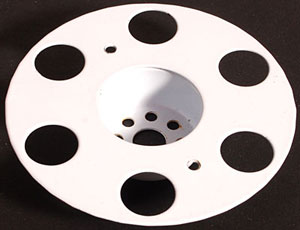

VF Volcano Parts & Service
Our VF Volcano Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your VF Volcano. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
