V5002

This product is CE certified.
This item is discontinued

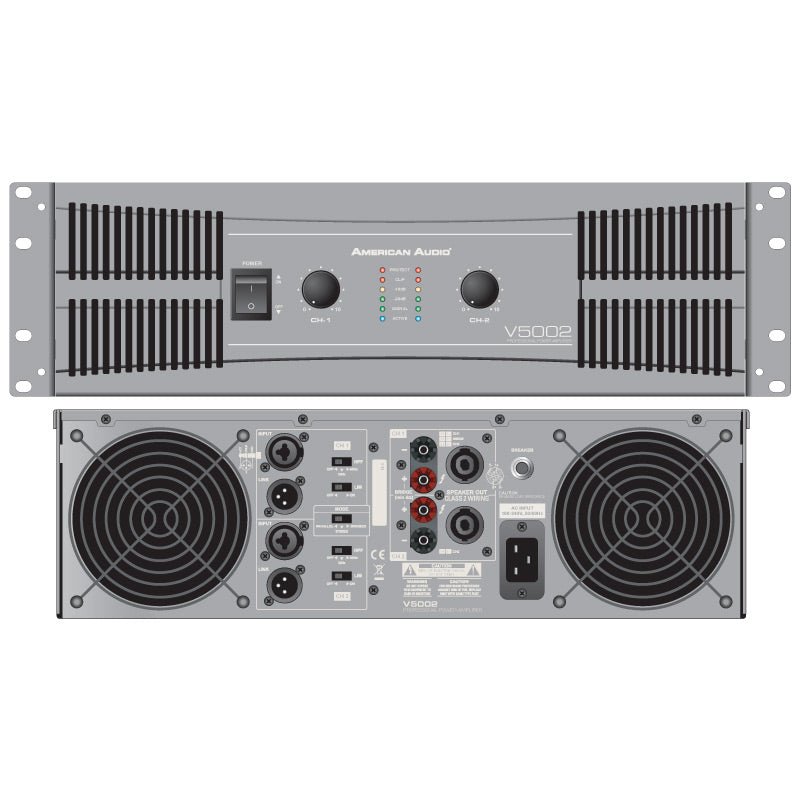

The American Audio V5002 is a professional power amplifier with power ratings of 2000W Stereo @ 2 Ohms and 4000W Bridged Mono @ 4 Ohms.
UPC: Z-CDB8813SKU: Z-CDB8813

V5002

The American Audio V5002 is a professional power amplifier with power ratings of 2000W Stereo @ 2 Ohms and 4000W Bridged Mono @ 4 Ohms.

Specifications

Features:

• Controls Front: Volume control by 21 detent potentiometer for each channel

• Controls Rear: Mode Selector Switch (Parallel/Stereo/Bridged Mono)

• High Pass Filter (HPF): On/Off switch for each channel

• Limiter: On/Off switch for each channel

• Connectors Input: Combo jack electronically balanced XLR Male for input link

• Connectors Output: 5-way binding post locking connectors for each channel

• Indicators: Signal: -20dB, -10dB, 0dB, Clip, Protect Active

• Protections: output current limiting, thermal protection, DC offset protection circuit breaker

• Two variable speed fans



Specifications:

• 900W Stereo @ 8 Ohms (1 kHz, THD 1%)

• 1400W Stereo @ 4 Ohms (1 kHz, THD 1%)

• 2000W Stereo @ 2 Ohms (1 kHz, THD 1%)

• 2600W Bridged Mono @ 8 Ohms (1 kHz, THD 1%)

• 4000W Bridged Mono @ 4 Ohms (1 kHz, THD 1%)

• Input Sensitivity (4 Ohms, 1 kHz): 4dB

• Input Impedance: 30k Ohms Balanced / 15k Ohms Unbalanced

• Input CMRR (1kHz): >60dB

• Slew Rate (8 Ohms): 40 V/msec

• Frequency Response (±0.5dB): 20Hz - 20kHz

• Amplifier Class: H

• T.H.D. (1 kHz, rated power): <0.03%

• Signal to noise ratio: >100dB

• Damping Factor (8 Ohms, 1kHz): >400

• Channel separation: >80dB

• Power source: AC 100-240V, 50/60Hz

• Weight: 69 lbs. / 31kg.

• Dimensions (LxWxH): 19”x19”x5.25” / 482x482x132mm
