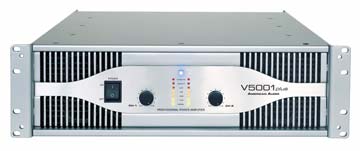

V5001 Plus

This item is discontinued

Pump up your sound with the ADJ V5001 Plus 1-rack-mount amplifier that features less than 0.03% total harmonic distortion for smooth, clear audio and 2 cooling fans to keep the amplifier in peak operating condition. Perfect for any audiophile out there.
UPC: 640282045933SKU: V5001

V5001 Plus

The ADJ V5001 rugged professional power amplifier offers the excellent sound quality along with the features and conveniences that today's pro audio customers demand. The undistorted sound is lessened by the V5001 having less than 0.03% amount of harmonic distortion. With the 2 included fans and a heat sink, you can be sure that your V5001 will keep cool all the way into the night.There is a bridge mode or mono mode so you can use the V5001 to run all your DJ equipment. With the size being 5.25" x 19" x 15.9" it will fit perfectly into a 1-rack mount space. There is a built-in subwoofer that will deliver top notch bass through your speakers. Useful in the home, studio, or by the professional entertainer.The ADJ V5001 rugged professional power amplifier features a LED mode indicator that will allow you to know exactly which mode your amplifier is set to. By choosing the ADJ V5001 you will ensure that your sound is of the highest quality and that it will be a great fit with the rest of your audio equipment.

Specifications

  • Sub Woofer
  • Crossover 20-200Hz
  • LED mode indicator
  • Contractor Smart™ Feature (Switch on rear panel to disable front volume controls)
OUTPUT POWER:
  • 2 ohms, 1 khz 1% THD 2150W RMS per channel
  • 4 ohms, 1 khz 1% THD 1500W RMS per channel
  • 8 ohms, 1 khz 1% THD 980W RMS per channel
  • (Bridged Mode, mono)
  • 4 ohms, 1 khz 1% THD 4250W RMS per channel
  • 8 ohms, 1 khz 1% THD 3100W RMS per channel
TOTAL HARMONIC DISTORTION (THD):
  • Less than 0.03% (20Hz-20kHz, @ 4 Ohms)
INPUT SENSITIVITY IMPEDANCE:
  • 1.0v rms (0 dBv) (@ 8 Ohms)
DIMENSIONS WEIGHT:
  • Height: 5.25” (13.3cm)
  • Width: 19” (48.3cm)
  • Depth: 15.9” (40.5cm)
  • Weight: 62 lbs (28 kg)
FREQUENCY RESPONSE:
  • ±.5dB, 1W RMS 8 ohms (10Hz - 35 kHz)
  • ±3dB, 1W RMS 8 ohms (5Hz - 85 kHz)
HUM NOISE:
  • 100 dB, unweighted (@ 8 Ohms)
SIGNAL TO NOISE RATIO:
  • 100 dB , unweighted (@ 4 Ohms full power) “A” Weighted
SLEW RATE:
  • 25v/usec
DAMPING FACTOR:
  • 400 (@ 8 Ohms)
PROTECTION CIRCUIT:
  • DC output protection, Overload protection
  • Short circuit protection, On Off protection
POWER CONSUMPTION:
  • 45A @ 120V AC (@ 4 Ohms) / 22.5A @ 240V AC (@ 4 Ohms)
TURN-ON THUMP PROTECTION:
  • Yes
COOLING SYSTEM:
  • Dual 2 speed fans heatsink
