V4002

This item is discontinued

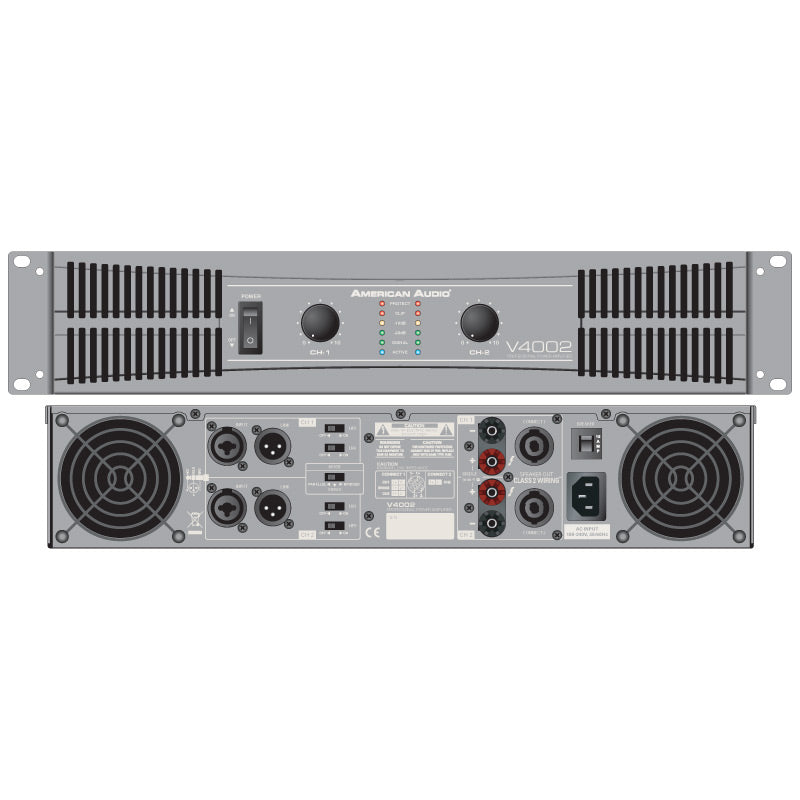

The American Audio V4002 is a professional power amplifier with power ratings of 1600W Stereo @ 2 Ohms and 3200W Bridged Mono @ 4 Ohms.
UPC: 819730015150SKU: V4002

V4002

The American Audio V4002 is a professional power amplifier with power ratings of 1600W Stereo @ 2 Ohms and 3200W Bridged Mono @ 4 Ohms.

Specifications

Features:
• Controls Front: Volume control by 21 detent potentiometer for each channel
• Controls Rear: Mode Selector Switch (Parallel/Stereo/Bridged Mono)
• High Pass Filter (HPF): On/Off switch for each channel
• Limiter: On/Off switch for each channel
• Connectors Input: Combo jack electronically balanced XLR Male for input link
• Connectors Output: 5-way binding post locking connector for each channel
• Indicators: Signal: -20dB, -10dB, 0dB, Clip, Protect Active
• Protections: output current limiting, thermal protection, DC offset protection circuit breaker
• Two variable speed fans



Specifications:
• 700W Stereo @ 8 Ohms (1 kHz, THD 1%)
• 1100W Stereo @ 4 Ohms (1 kHz, THD 1%)
• 1600W Stereo @ 2 Ohms (1 kHz, THD 1%)
• 2200W Bridged Mono @ 8 Ohms (1 kHz, THD 1%)
• 3200W Bridged Mono @ 4 Ohms (1 kHz, THD 1%)
• Input Sensitivity (4 Ohms, 1 kHz): 4dB
• Input Impedance: 30k Ohms Balanced / 15k Ohms Unbalanced
• Input CMRR (1kHz): >60dB
• Slew Rate (8 Ohms): 40 V/msec
• Frequency Response (±0.5dB): 20Hz - 20kHz
• Amplifier Class: H
• T.H.D. (1 kHz, rated power): <0.03%
• Signal to noise ratio: >100dB
• Damping Factor (8 Ohms, 1kHz): >350
• Channel separation: >80dB
• Power source: AC 100-240V, 50/60Hz
• Weight: 44 lbs. / 20kg.
• Dimensions (LxWxH): 19”x17.5”x3.5” / 482x440x88mm
