Ultra Kling Bar 18
This product is ETL certified.
This item is discontinued

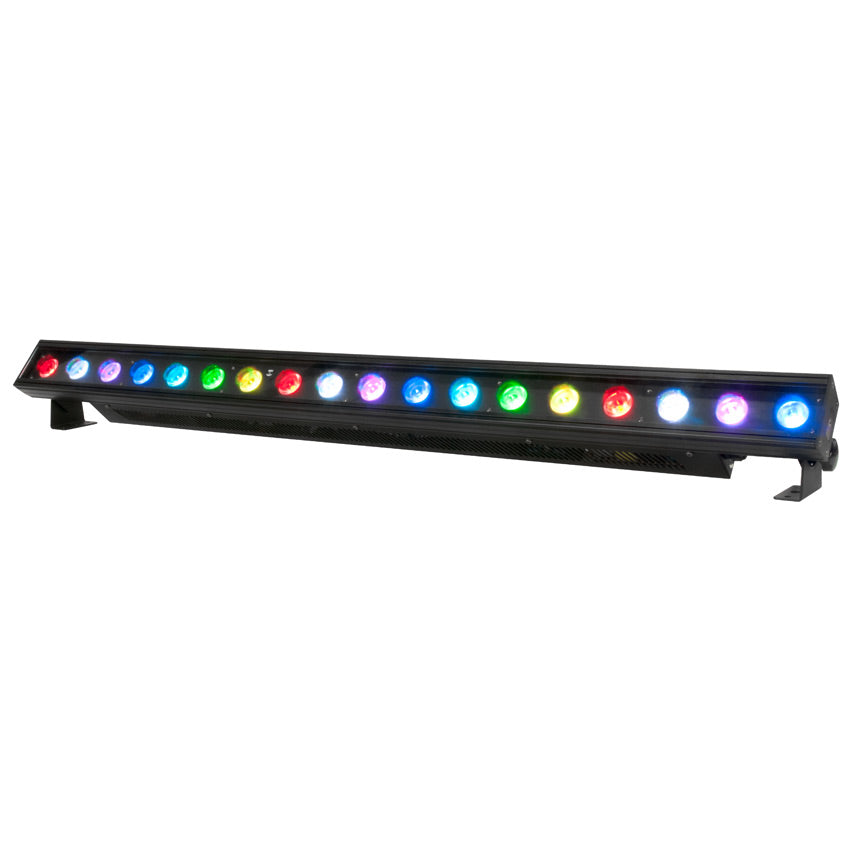

The ADJ Ultra Kling Bar 18 is a 1-meter linear fixture with 18x 3-Watt TRI LEDs. It features individual pixel control allowing for this product to be used in conjunction with Arkaos Kling-Net software to project low-res video across one or multiple fixtures. It may also be used as a traditional linear wash for uplighting and stage lighting utilizing 5 operational modes, 7 DMX channel modes, 14 built-in programs and 32 built-in color macros.
Ultra Kling Bar 18
Sale price$0.00

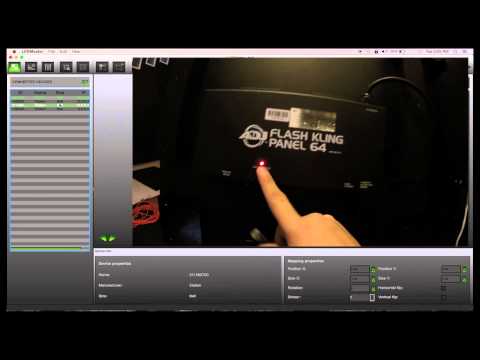

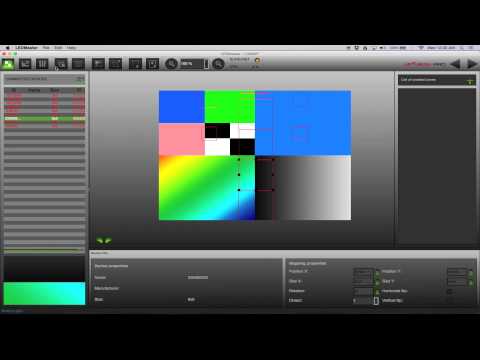

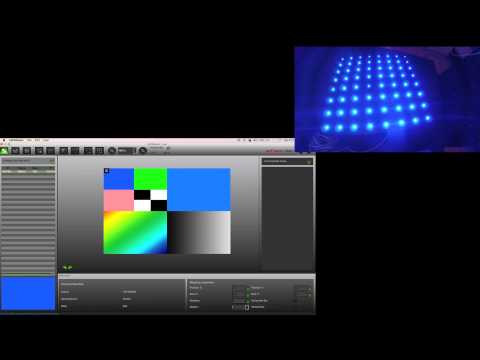

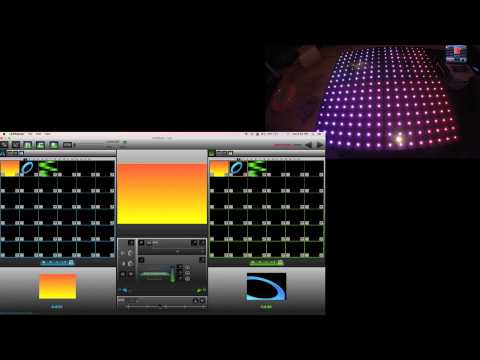

Video
Ultra Kling Bar 18

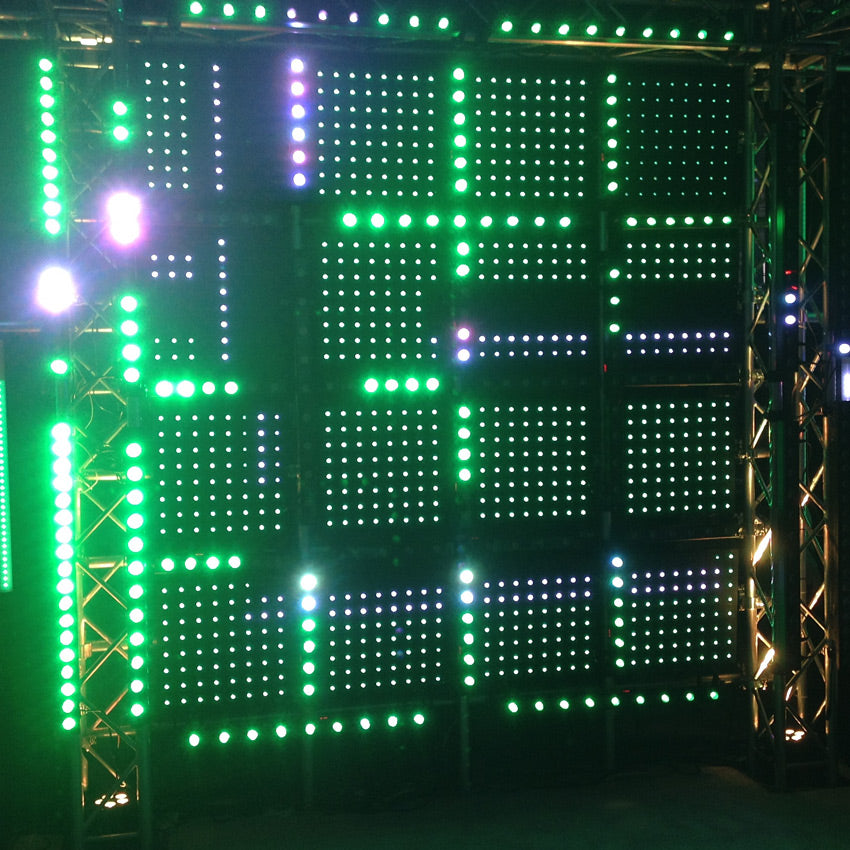

The ADJ Ultra Kling Bar 18 is a 1-meter linear fixture with 18x 3-Watt TRI LEDs. It features individual pixel control allowing for this product to be used in conjunction with Arkaos Kling-Net software to project low-res video across one or multiple fixtures. The result is a stunning video wall that produces pure lighting excitement at a permanent install such as a nightclub, bar, lounge, restaurant or inside a building. The Ultra Kling Bar 18 may also be used as a traditional linear wash for uplighting and stage lighting utilizing 5 operational modes, 7 DMX channel modes, 14 built-in programs and 32 built-in color macros.
Specifications
- 1 Meter, 18x 3W Tri LEDs Pixel Bar
- 5 Operational Modes
- 7 DMX Channel Modes
- Built-In Programs amp; Color Macros
- Electronic Dimming 0-100%
- Kling-Net amp; Art-Net Control available
- Individual Pixel Control
- Light Source: 18 x 3W TRI LEDs, (Rated at approximately 50,000 hours)
- Operational Mode: 5 - DMX Controlled / Sound Active / Net Control / Dimmer / Auto Run
- Beam Angle: 40-Degrees
- Luminance: 393 @ 3M at 40deg;
- Kling Net Control: Yes
- Art-Net Control: Yes
- Display: 2 x 8 LCD character display
- RJ45 Connection: Yes In/Out
- DMX Channels: 7 DMX Modes, (3, 4, 6, 8, 9, 15, or 54 Ch)
- DMX Connections: 3-Pin In/Out
- Built-In Programs: 14
- Color Macros: 32
- Dimming: Electronic 0-100%
- Flicker Free: Yes
- Refresh Rate: 1KHz
- Shutter / Strobe: Yes
- Strobe Rate: Adjustable
- Sound Active: Yes
- Light output: 816 LUX @ 2M; 238 LUX @ 4M (40-degree beam)
- Power Connection: IEC AC In/out
- Input Voltage: AC 100V-240V 50/60Hz
- Power cable length: 1.8 meter (IEC)
- Power Consumption: 98W (Full on)
- Power Link: Up to 6 Ultra Kling Bar 18rsquo;s
- Dimensions: (LxWxH) 43.5" x 3.25" x 4.5" / 1100 X 80 X 116mm
- Weight: 13 lbs. / 6 kg.
- ETL Approved
Ultra Kling Bar 18 Parts & Service
Our Ultra Kling Bar 18 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Ultra Kling Bar 18. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
