Ultra Bar 10 Plus Pak
Ultra Bar 10 Plus Pak

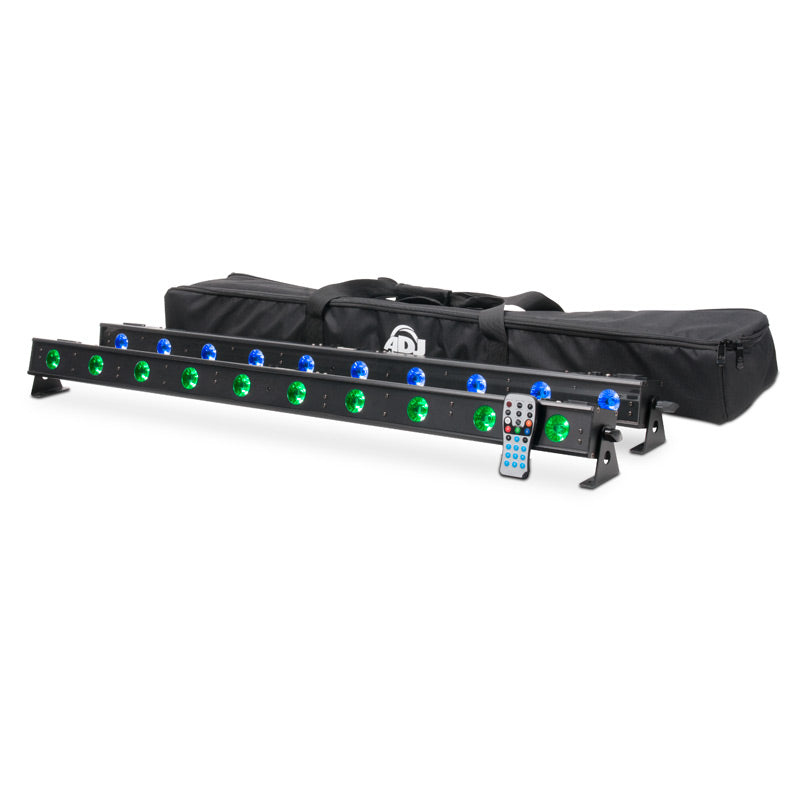

The ADJ Ultra Bar 10 Plus Pak is a low profile LED Linear fixture kit with two Ultra Bar 10 Plus LED Bars, a deluxe padded bag and an IR wireless remote. The LED Bars feature ten 4-Watt, 4-IN1 LED (red, green, blue and UV), adjustable hanging brackets, and a 4-button DMX display. The Ultra Bar 10 Plus is designed for linear uplighting and stage lighting, and will bring color and excitement to any party.
The Ultra Bar 10 Plus offers smooth RGB+UV Color Mixing, have a 40-degree beam angle, 64 built-in color macros, 5 operational modes (including DMX, Sound Active and auto run), and has 5 DMX Channel modes for a variety of programming options. Users can also use the included ADJ LED RC2 IR wireless remote to change colors and functions of the LED Bars.

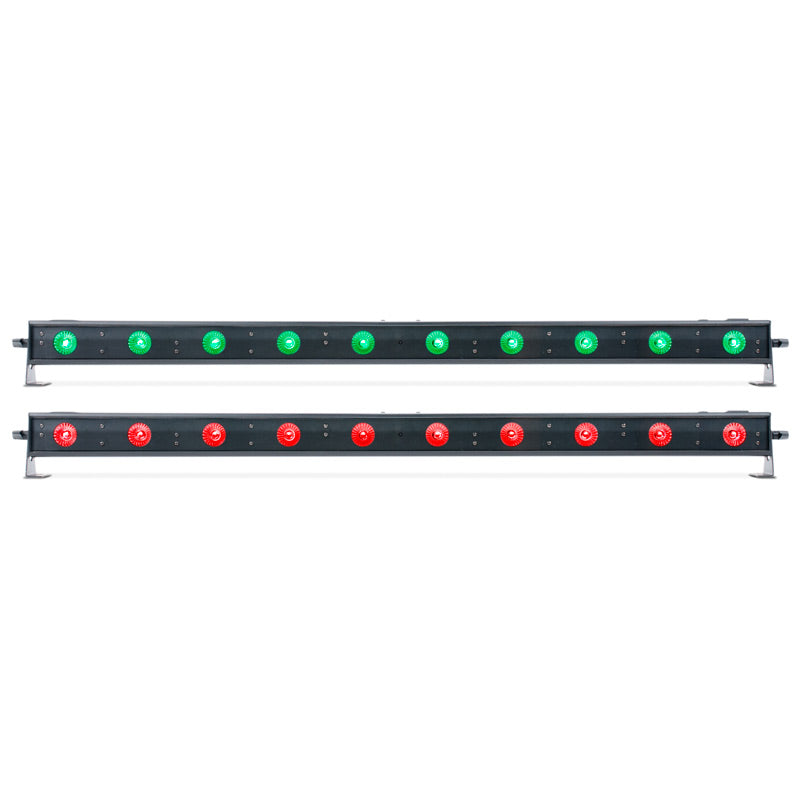

Pack Includes: • 2x Ultra Bar 10 Plus Linear Fixtures

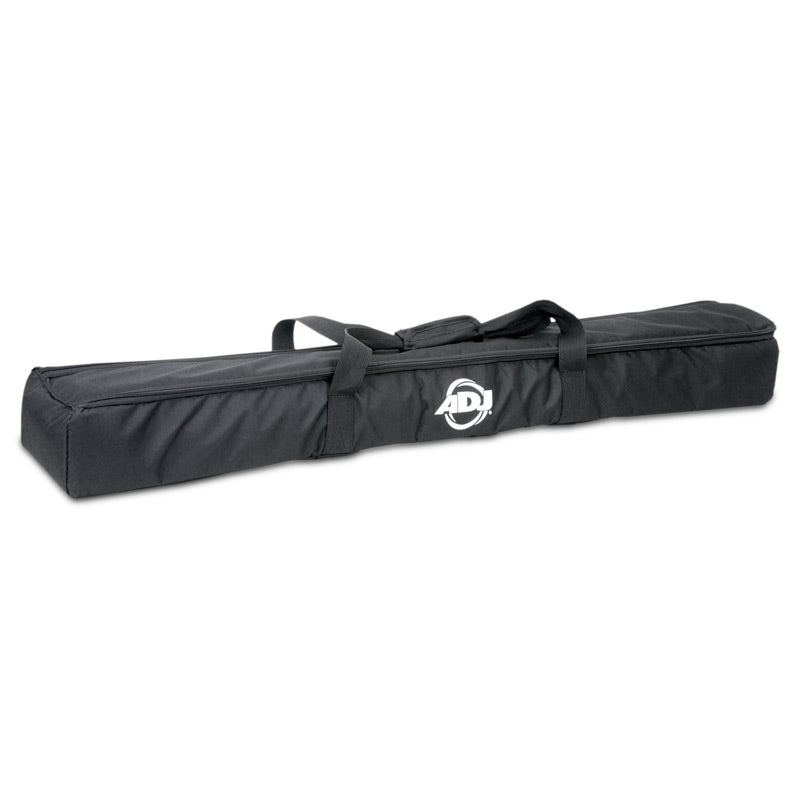

- 1x Deluxe padded Bag

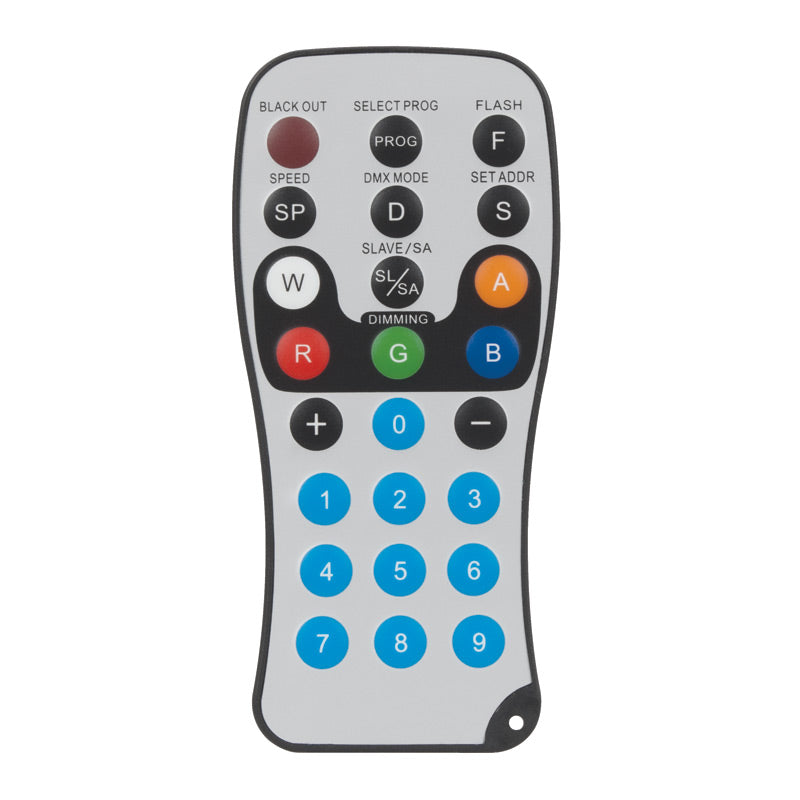

- 1x ADJ LED RC2 IR Wireless Remote
Specifications

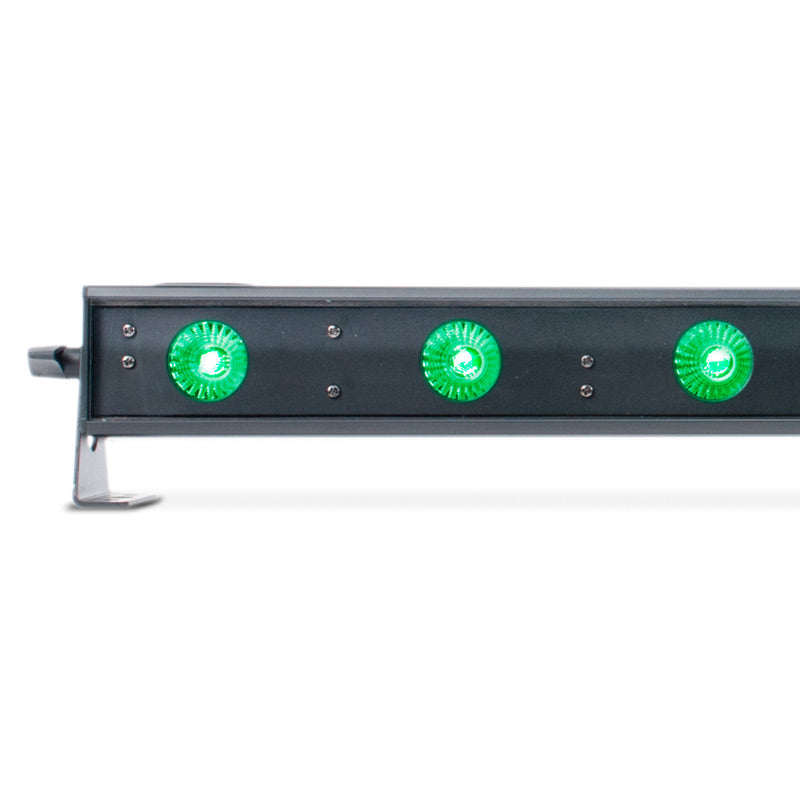

• Ultra bright, compact black linear fixture with 10 x 4-Watt, 4-IN-1 QUAD LEDs (RGB+UV) – casts no RGB shadows
• Smooth RGB+UV Color Mixing (fast or slow color change operation)
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• 5 DMX Channel modes: 4, 5, 6, 9, or 10 channels
• 5 Operational modes: RGB+UV Dimmer mode, sound active mode, static color mode, auto run mode (16 color change, 16 color fade, 1 combined programs), and DMX Control
• Digital LED Display with 4-button menu for easy navigation
• Stand Alone or Primary/Secondary Configuration
• Beam Angle: 40 degrees
• 64 built-in Color Macros
• DMX-512 protocol
• Color strobe effect
• Linkable via 3-pin XLR cable
• Electronic Dimming: 0-100%
• Flicker Free
• Refresh Rate: 504Hz
• Adjustable mounting brackets; mount on a wall or set on the ground
• Long Life LEDs (50,000 hrs.)
• Power Draw: 50W Max
• IEC AC input and out put on the side of the fixture to daisy chain the power cords
(link up to 12 fixtures)
• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (included in the pak)
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Dimensions (LxWxH): 41.75” x 2.5” x 3.5”/ 1060 x 63 x 90mm
• Weight: 5.5 lbs./ 2.51 kg.
Ultra Bar 10 Plus Pak Parts & Service
Our Ultra Bar 10 Plus Pak Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Ultra Bar 10 Plus Pak. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
