UB 6H
Video
UB 6H
Available now from ADJ USA

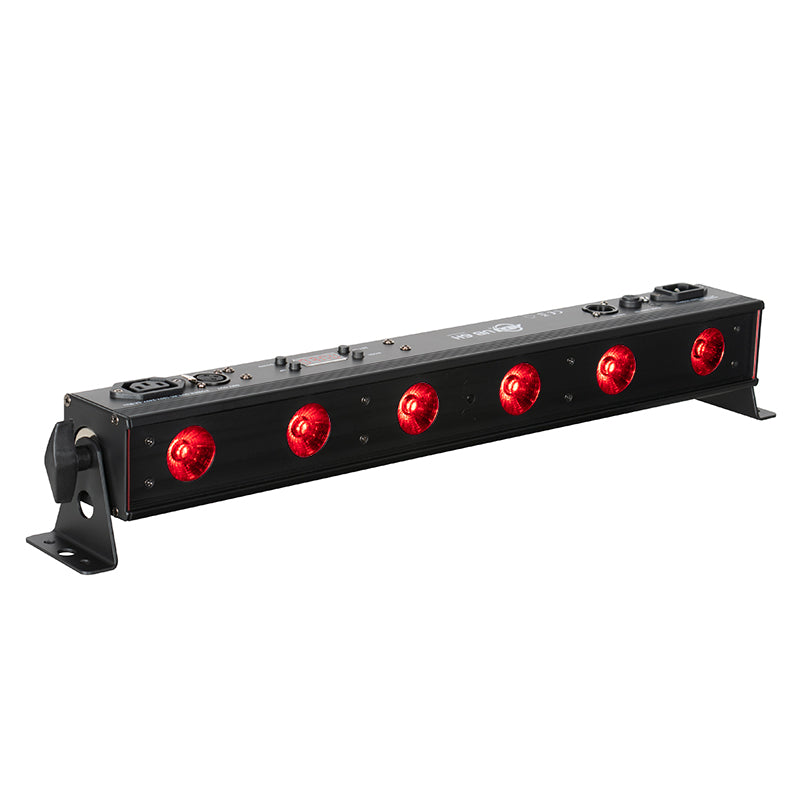

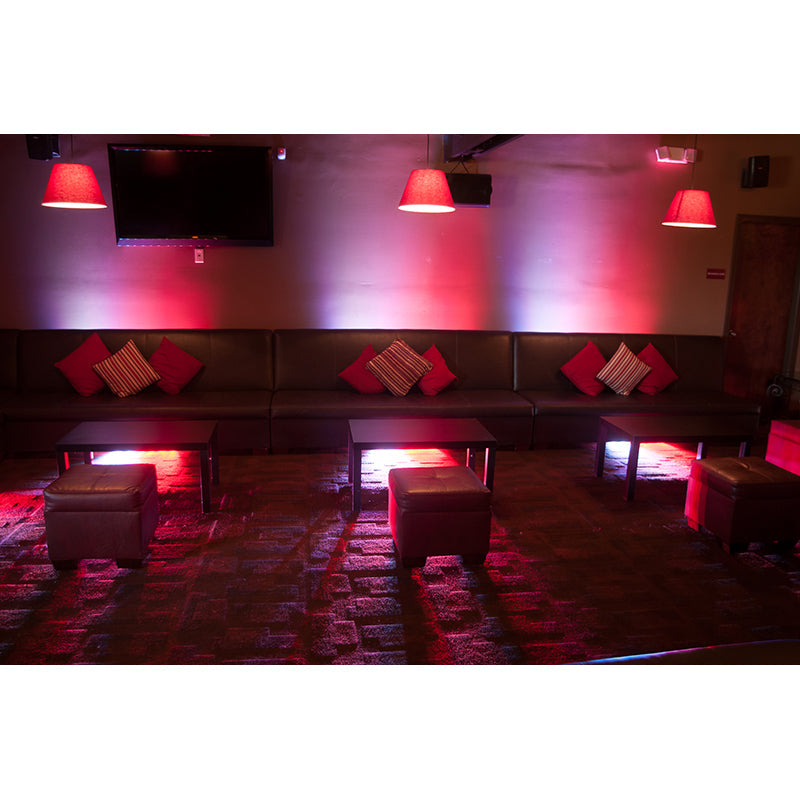

The ADJ UB 6H is a 22.5-inch (.5 meter) professional grade indoor linear fixture powered by six 6W-Watt HEX RGBWA+UV (6-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant HEX color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.The UB 6H features built-in Color Macros (built-in preset colors), 4 DMX Channel Modes, 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ UC IR wireless remote and Airstream IR app.To learn more about the UB 6H, check out this product spotlight article: CLICK HERE
Specifications
• 22.5-inch (.5 meter) indoor Linear Bar with 6x 6W Ultra bright RGBWA+UV HEX (6-IN-1) LEDs
• Variable RGBWA+UV color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
• 4 DMX Channel Modes: 6, 10, 12 or 18 channels
• 6 operational modes: Auto Run, Program Mode, Sound Active, RGBWA+UV Dimmer, Static Color and DMX-512 Mode
• 3-Section Pixel control

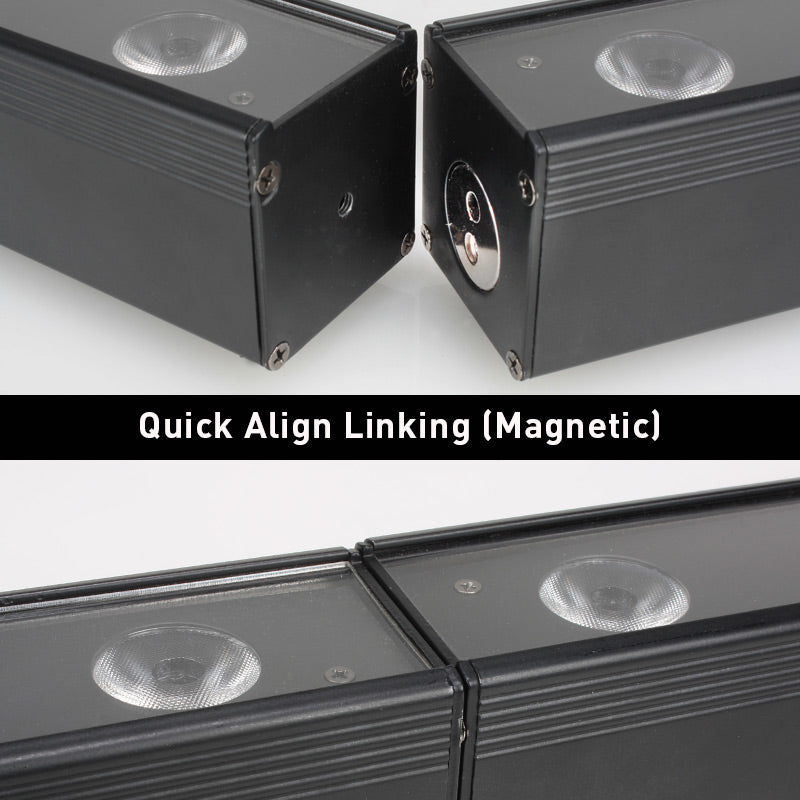

• Patent Pending Quick Align (Magnetic)
• Beam Angle: 40 degrees
• Flicker Free operation @2200Hz
• 4-Button DMX LED Display
• 63 built-in Color Macros
• LED pulse strobe effect
• Electronic Dimming: 0-100%
• Includes mounting brackets to mount on a wall or set on the ground

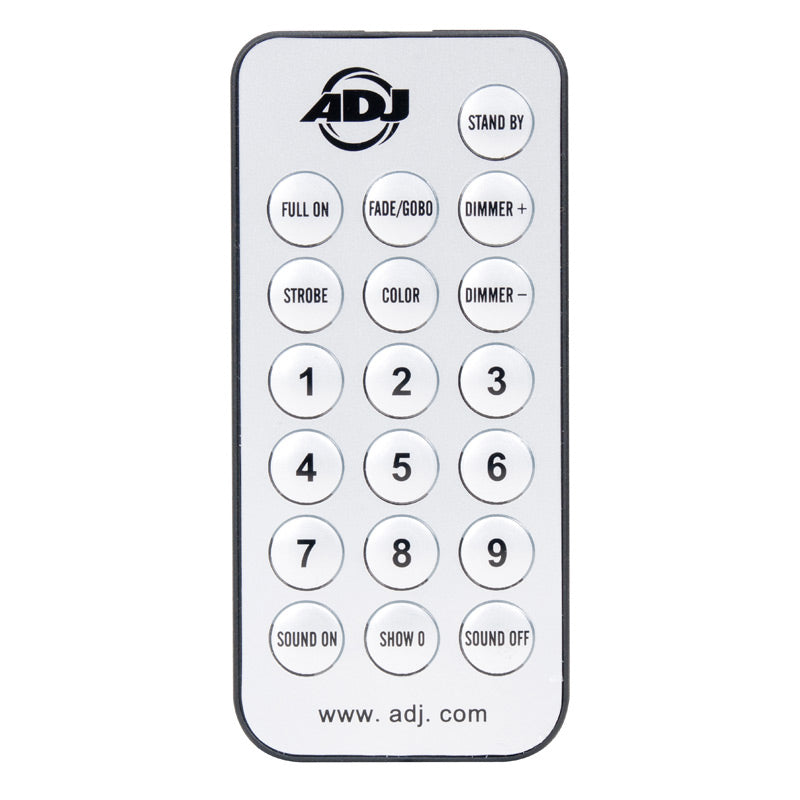

• Compatible with the ADJ UC IR (included) and Airstream IR App
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Power Draw: 33W @ 120V

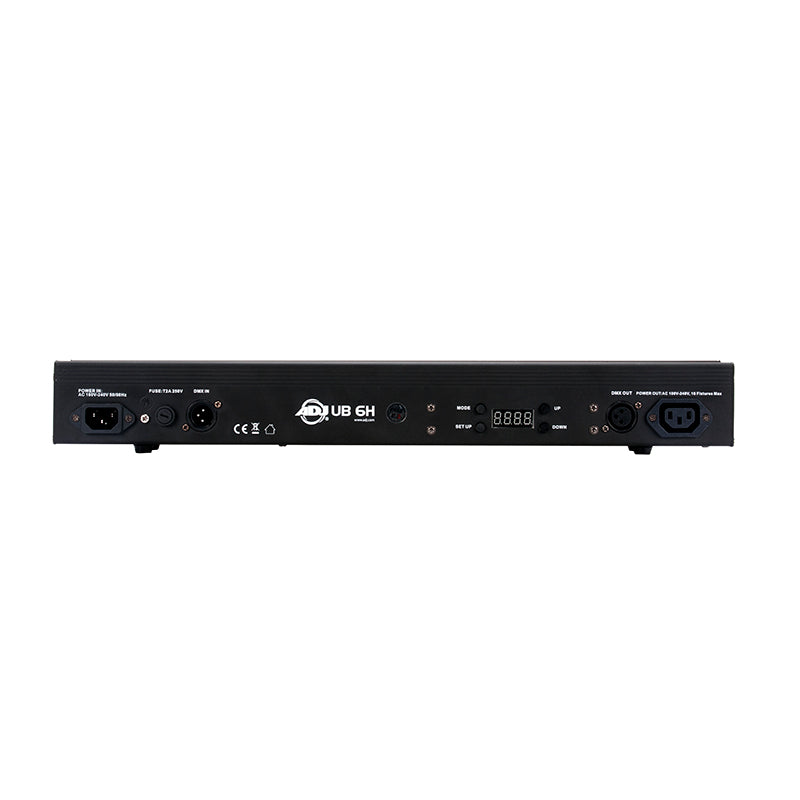

• Linkable: DMX via 3-pin XLR cable; Power via IEC. Daisy-chain power (Up to 17 UB 6H fixtures max., @ 120V can be power linked)
• With Wired Digital Communication Network
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Dimensions (LxWxH): 22.5” x 2.5” x 3.75”
560 x 63 x 90mm
• Weight: 3.5 lbs./ 1.58 kg.
• cETLus Approved (Control #4002034)
Downloads
Cut sheet
Ies files
Photometrics
User manual

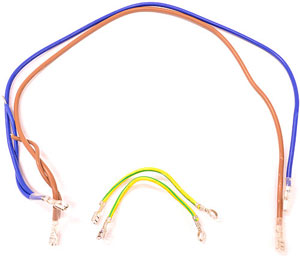

UB 6H Parts & Service
Our UB 6H Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your UB 6H. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
UB 6H Parts & Service
