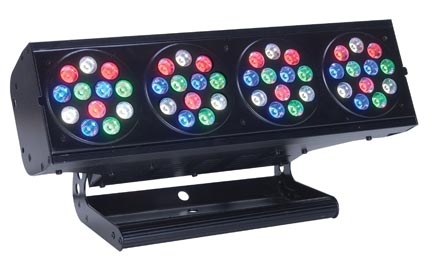

Theatrix Pro 48 LED
This item is discontinued
Theatrix Pro 48 LED
Sale price$0.00
Video
Theatrix Pro 48 LED
Specifications
- High output LED color wash bar with 48x 1Watt LEDs (12x Red, 12x Green, 12x Blue 12x White LEDs)
- Smooth RGBW color mixing (fast or slow color change operation)
- Increased versatility and color mixing capabilities due to the 12x White LEDs
- Operational modes: Built-in programs, Sound mode, Primary/Secondary mode DMX mode
- 7 different DMX Modes: 4 Channel, 5 Channel, 7 Channel, 8 Channel, 11 Channel, 16 Channel 19 Channel modes
- Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
- Color strobe effect
- DMX-512 Protocol
- Electronic Dimming: 0 - 100%
- Linkable via 3-pin XLR cable

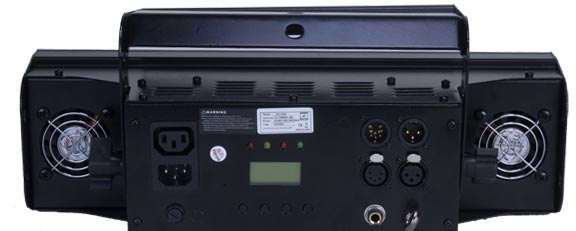

- 4-button LED display on rear panel
- Optional controller: easy-to-use American DJ UC3 controller (sold separately)
- IEC AC outlet on rear to daisy chain power

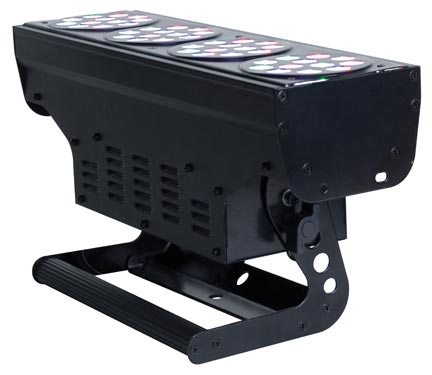

- Includes pro mounting brackets to hang on truss or set on the floor
- Beam angle: 12-degrees (120-degrees when lenses are removed)
- Optional 15-degree beam angle lenses sold separately
- Power consumption: 57W
- Multi-voltage: 100-240V, 50/60Hz
- Dimensions (Including bracket - LxWxH): 16.75” x 6.25” x 7” / 422x169x174mm
- Weight: 11 lbs. / 5 kgs.
Downloads
Photometrics
User manual
Theatrix Pro 48 LED Parts & Service
Our Theatrix Pro 48 LED Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Theatrix Pro 48 LED. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
