TB30

TB30

This product is CE certified.

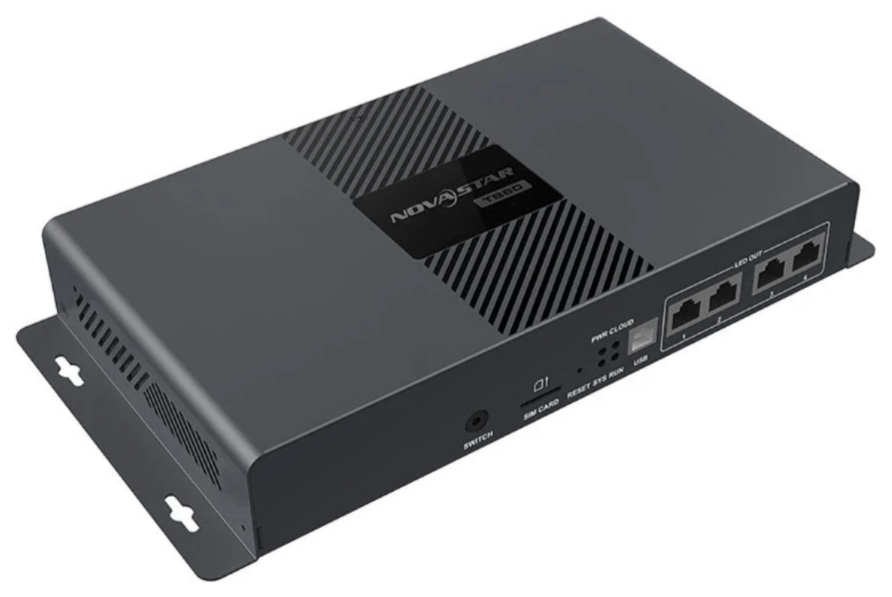

The NovaStar TB30 is a third-generation multimedia player and LED controller designed for full-color LED displays. It integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with NovaStar's cloud-based publishing and monitoring platforms, the TB30 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

SKU: TB3003

TB30

The TB30 is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB30 enables users to manage LED displays from an Internet-connected device anywhere, anytime.
Thanks to its reliability, ease of use, and intelligent control, the TB30 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, retail store displays, door head displays, shelf displays, and much more.

Specifications

  • Processor: Quad-core ARM Cortex-A55 CPU
  • Memory: 2GB RAM
  • Storage: 16GB eMMC internal storage
  • Operating System: Android-based system
  • Control Methods: LAN, Wi-Fi
  • Video Outputs: 2x Gigabit Ethernet ports for LED screen control
  • Loading Capacity: Up to 650,000 pixels (maximum width 4096 pixels, maximum height 1920 pixels)
  • Supported Media: Images, videos, audio files, text, and office documents
  • Synchronization: Frame synchronization supported for multiple players
  • Content Management: Remote publishing and monitoring via NovaStar VMP software or cloud platform
  • Interfaces:
    • 1x HDMI output (for real-time monitoring)
    • 2x USB 2.0 ports
    • 1x Audio output (3.5mm jack)
    • Intelligent Features:
    • Scheduled content publishing
    • Device monitoring and reporting
  • Operating Temperature: -20°C to +60°C
  • Power Supply: DC 12V
  • Certifications: CE, FCC, RoHS

Specifications are subject to change without notice.
