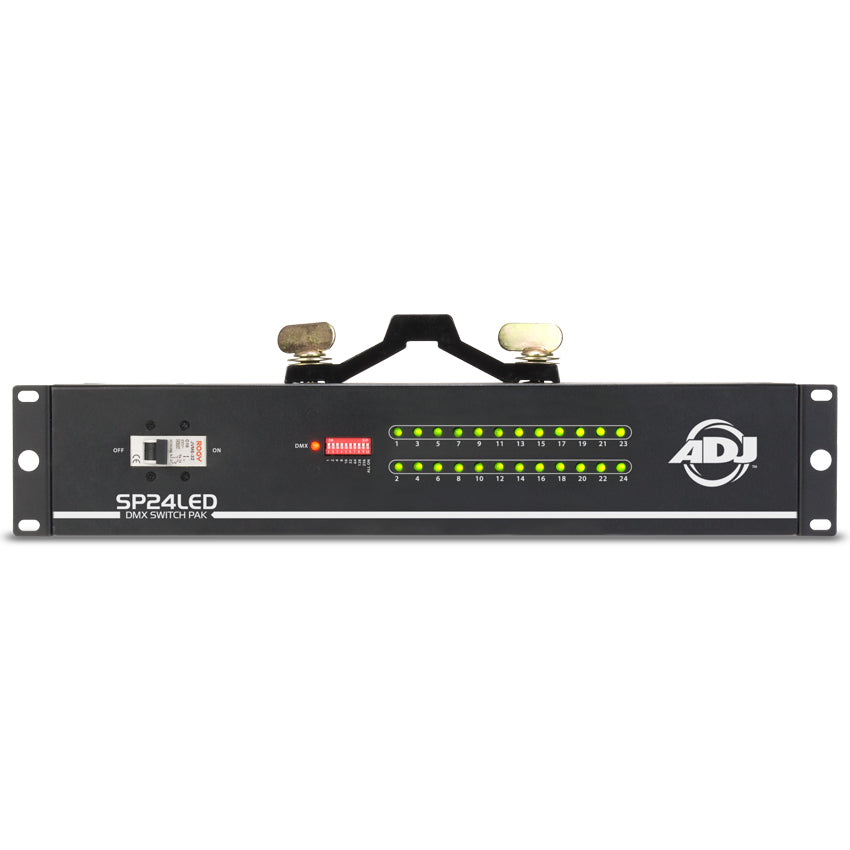

SP24LED

This item is discontinued

The SP24LED from ADJ is a DMX Switch Pack allowing for the On/Off control of up to 24 LED fixtures when coupled with a  DMX Controller such as the ADJ RGBW4C. Daisy Chain up to 21 SP24LEDs to create a single DMX-512 Chain controlling over 500 LED light fixtures.
UPC: 640282002318SKU: SP2742

SP24LED

In order to create an impressively complex and intricately timed light show you often need to be able to individual control and program hundreds of light fixtures.  A DMX Controller such as the RGBW4C is necessary but cannot fully control everything to the degree desired past a certain number of fixtures. This is where the SP24LED comes in. This DMX Switch Pack allows for you to control the On/Off of to up to 24 LED fixtures when used with a DMX Controller like the RGBW4C. With the ability to daisy chain up to 21 units into one DMX-512 chain for your controller, the SP24LED allows for you to control the On/Off of over 500 LED fixtures! If you're looking to create a massive stage production, several DMX Switch Packs are a necessity. With the quality steel construction of ADJ's SP24LED you can create the show of a lifetime and know that it won't be cut short. Get the quality and control you can trust for a component that is a must, get the SP24LED DMX Switch Pack from ADJ today.

Specifications

  • 24-channel Switch Pack with DMX In/Out
  • Independently control On/Off for 24 LED fixtures
  • Daisy-chain up to 21 SP24LED Switch Packs in one DMX-512 chain
  • Rack mountable or hang from truss (Includes omega, quick lock, bracket for truss mount)
  • 16 amp resettable breaker
  • DMX Addressing: DMX DIP Switches
  • Dimensions (LxWxH): 19"x5"x3.5" /482.5x123x89mm ndash; 2 rack spaces

ADJ USA Model Only:

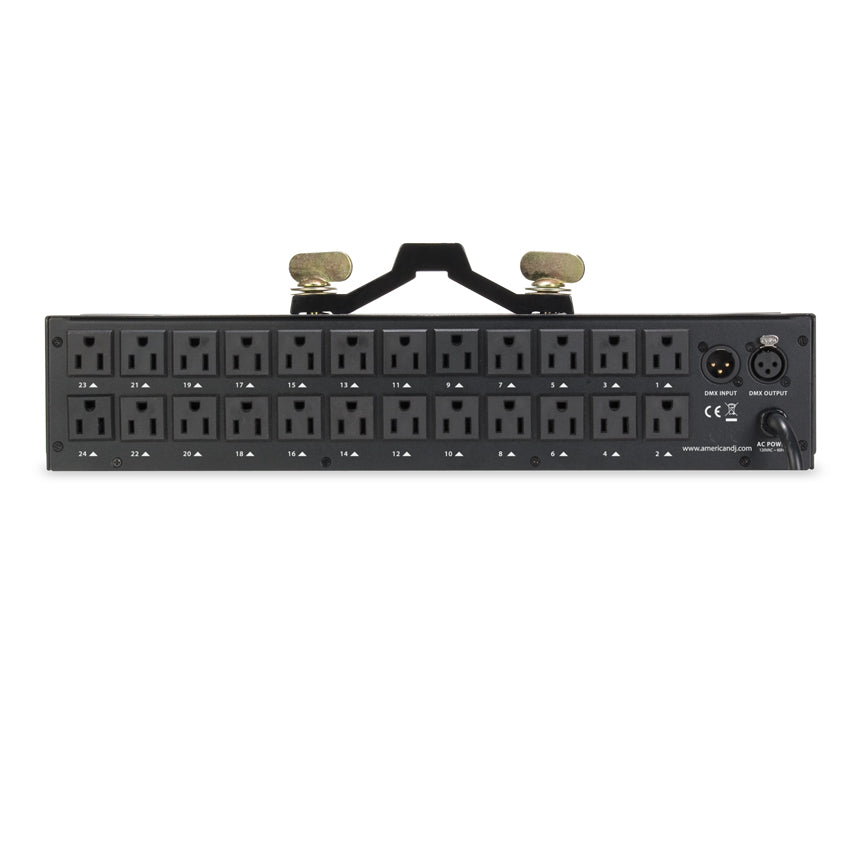

  • 24x 120V 3-prong Edison plugs
  • Max power (120V): 60W (0.5 Amps) per channel or 1440W (12 Amps) total
  • Power Supply: 120V/60Hz
  • Weight: 8 lbs. / 3.5kg.
ADJ Europe Model Only:
  • 24x 230V IEC plugs
  • Max power (230V): 115W (0.5 Amps) per channel or 2760W (12 Amps) total
  • Power Supply: 230V/50Hz
  • Weight: 4.1kg.

Downloads

Cut sheet
