SIP20MPC

This product is CE certified.

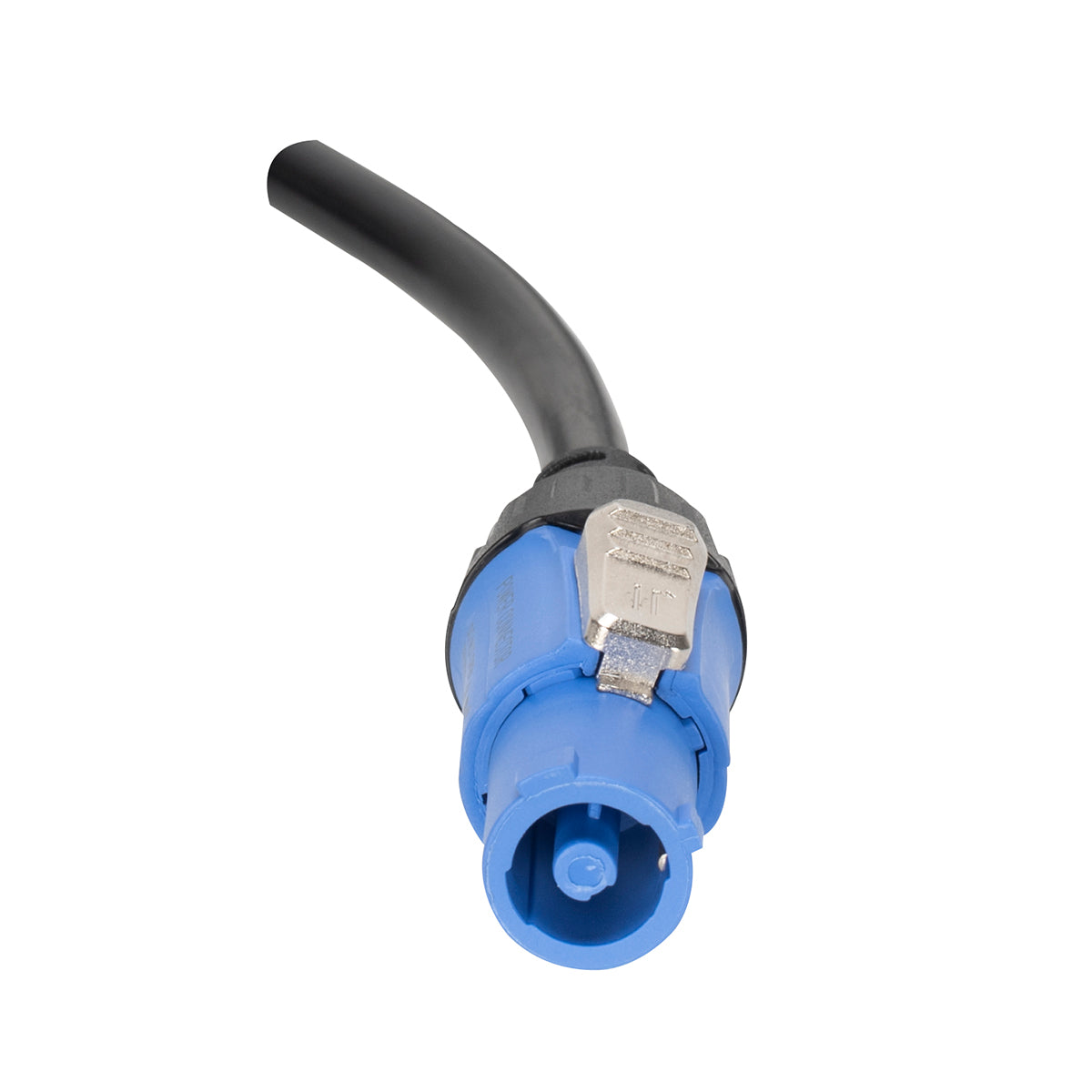

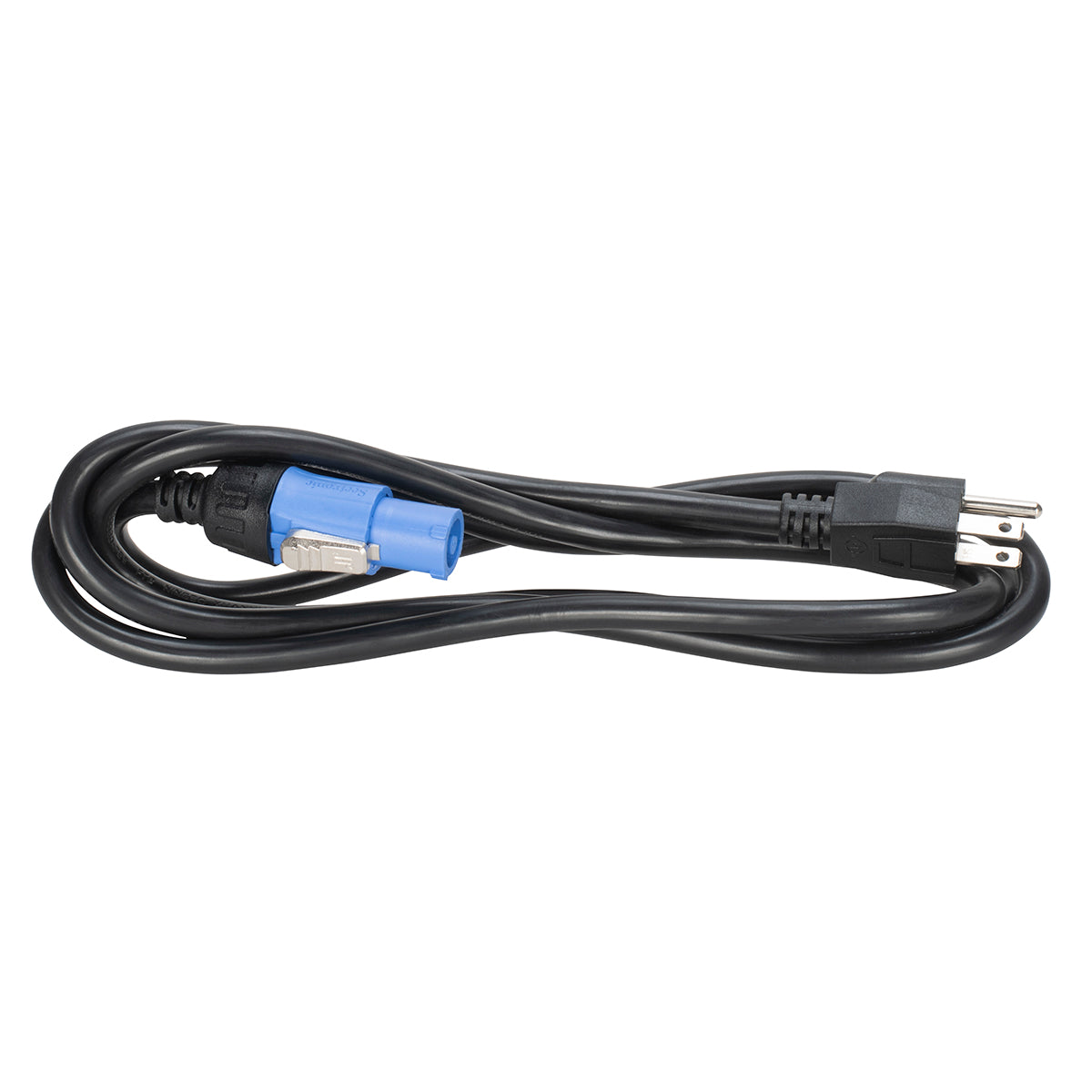

Moulded Locking IP20 fixture side connector to 120V, IP20 male Edison plug.
UPC: 818651029994SKU: SIP293

SIP20MPC

Moulded Locking IP20 fixture side connector to 120V, IP20 male Edison plug.

Specifications

  • Contacts: 2+PE
  • Rated Current: 15A
  • Rated Voltage: 250V AC
  • Contact Resistance: ≤5mΩ
  • Dielectric Strength: 4000V DC
  • Insulation Resistance: gt;1000MΩ
  • Sevice Life: gt;1000 Mating Cycles
  • Shell: PA
  • Contacts: Cu Alloy
  • Contact Surface Ag
  • Ingress Protection: IP20
  • Flame-retardant Grade" UL94-V0
  • Temperature Range: -22F to 176F (-30C to +80C)
  • Standard: IEC61984
