Saber Bar 6
Saber Bar 6

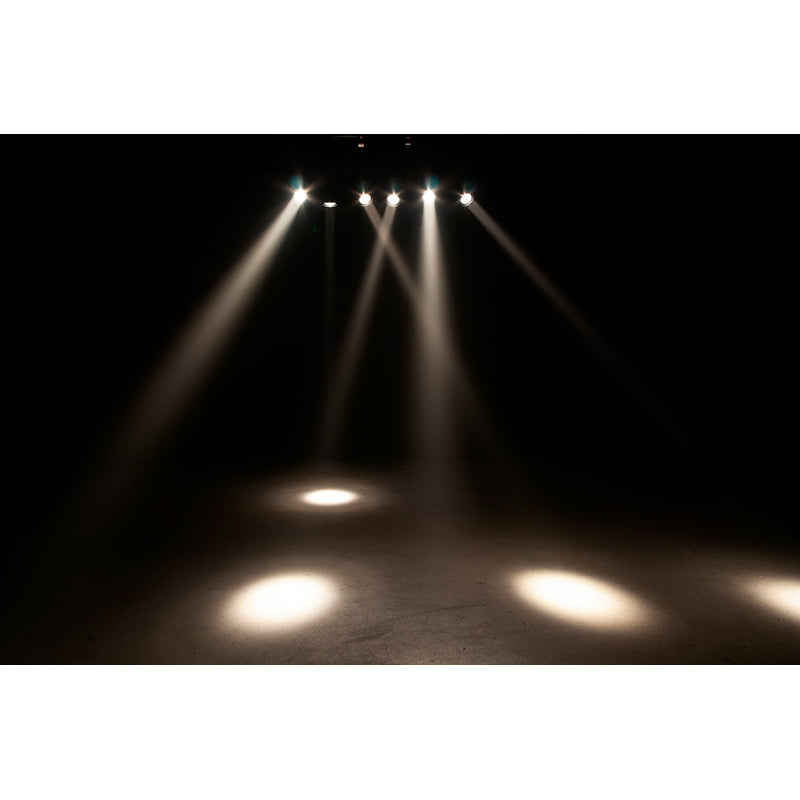

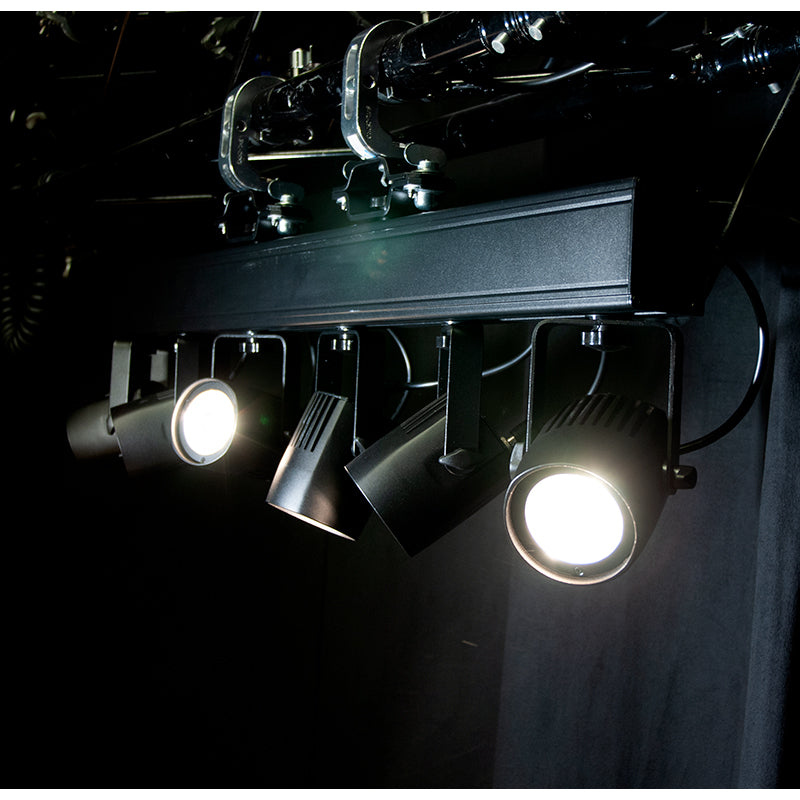

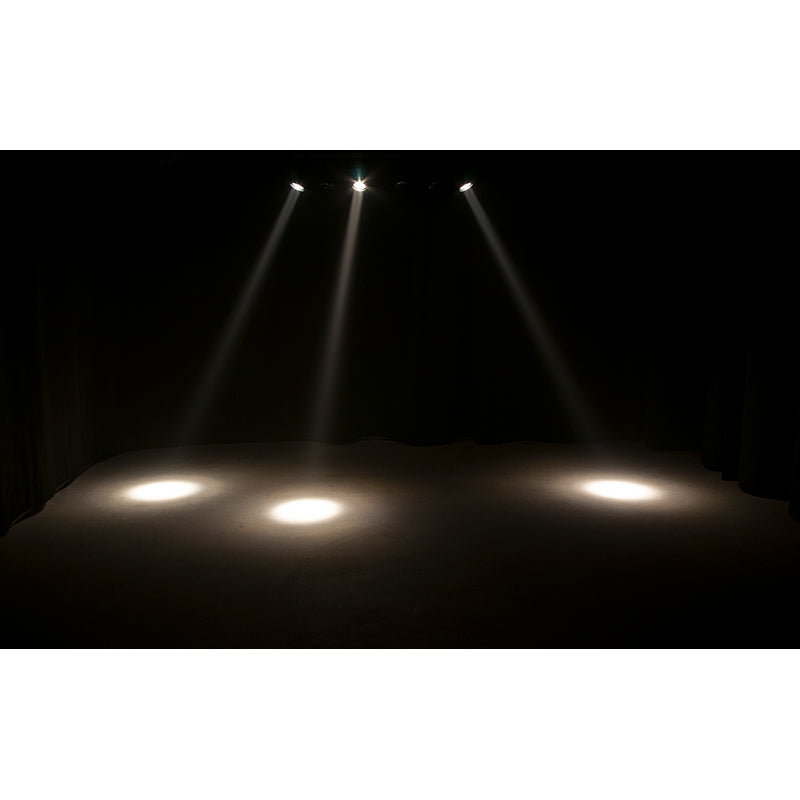

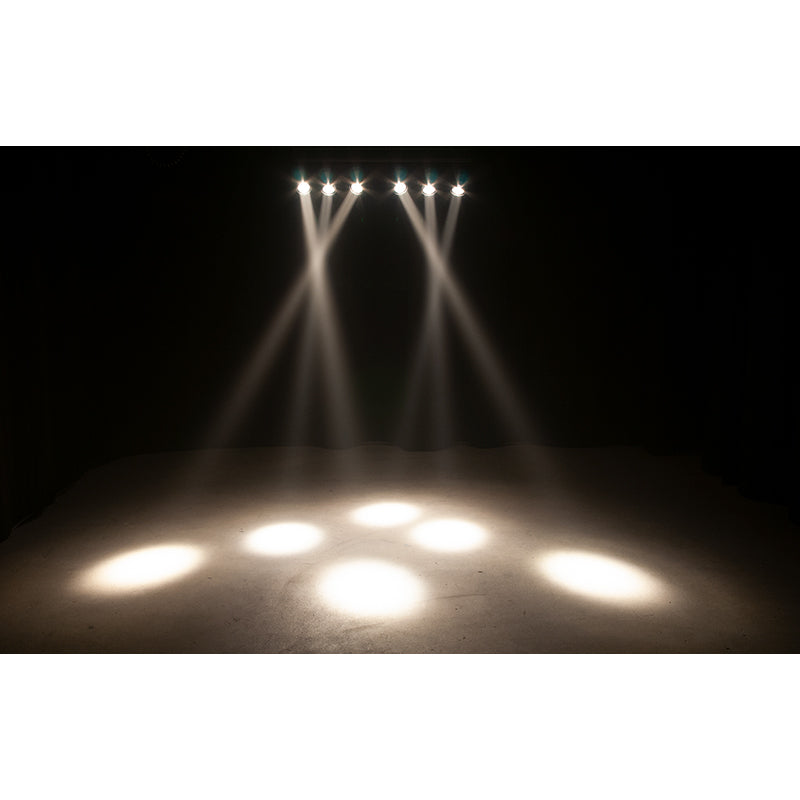

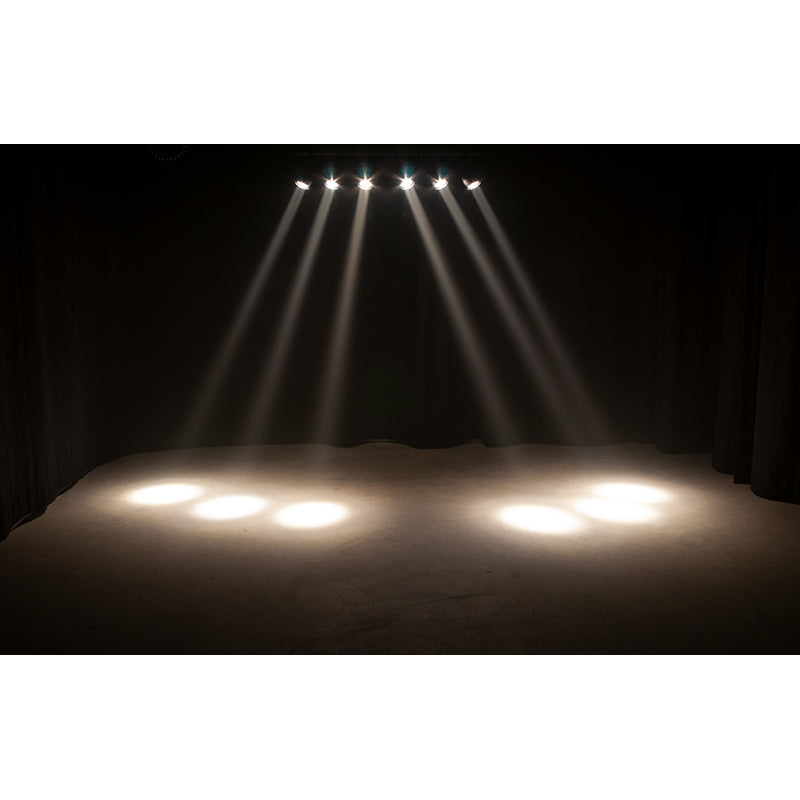

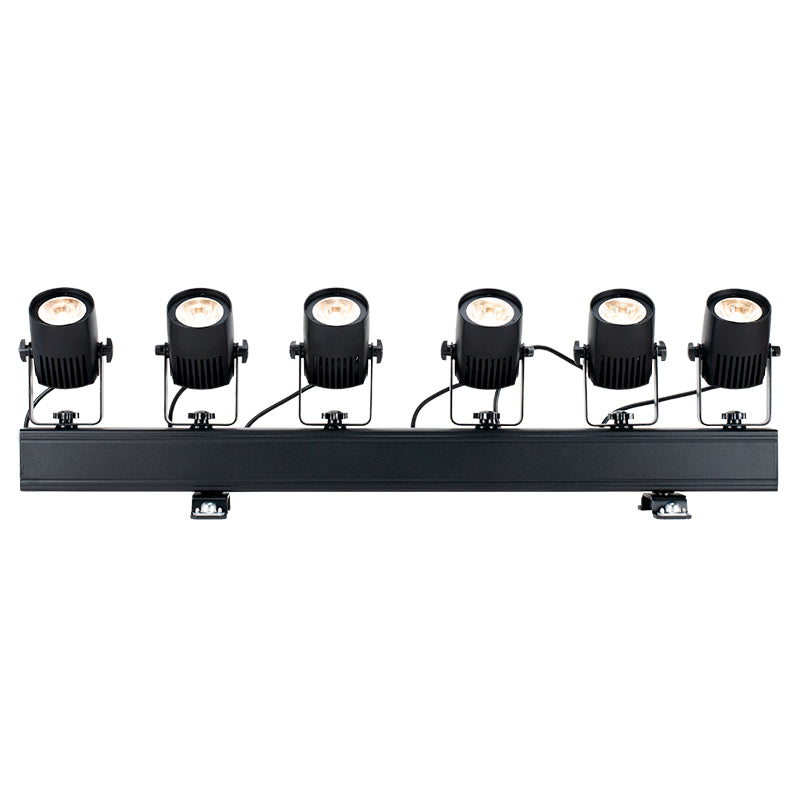

The Saber Bar 6 is a 6-head pinspot lighting system mounted on a 1-meter linear base with built-in power and DMX connections. Each pinspot is similar to the Saber Spot WW with a 15W Warm White LED (3100K) and an ACL lens that produces a razor sharp 5-degree beam. Each fixture’s X/Y axis may be individually adjusted manually for precision angling of the beams. The fixture includes a 10-degree and 45-degree lens kits so that designers can change the beam angle depending on the application. There are two heavy duty adjustable brackets to mount the fixture to a ceiling or truss.

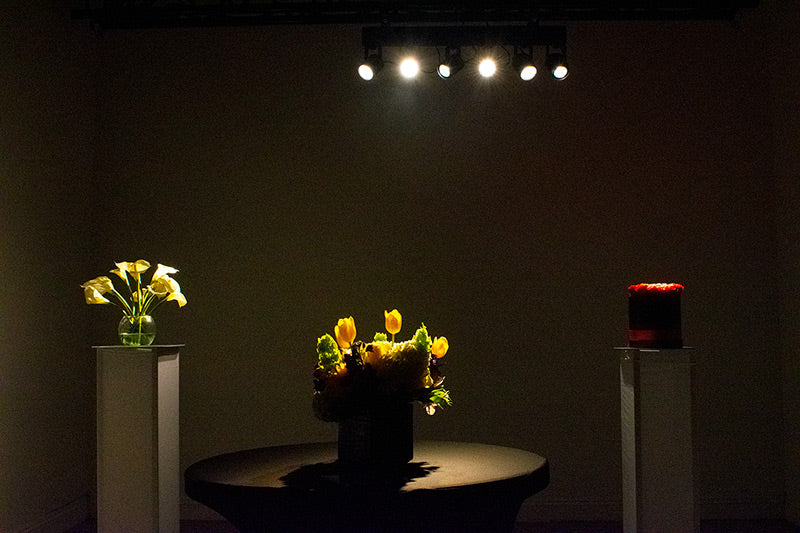

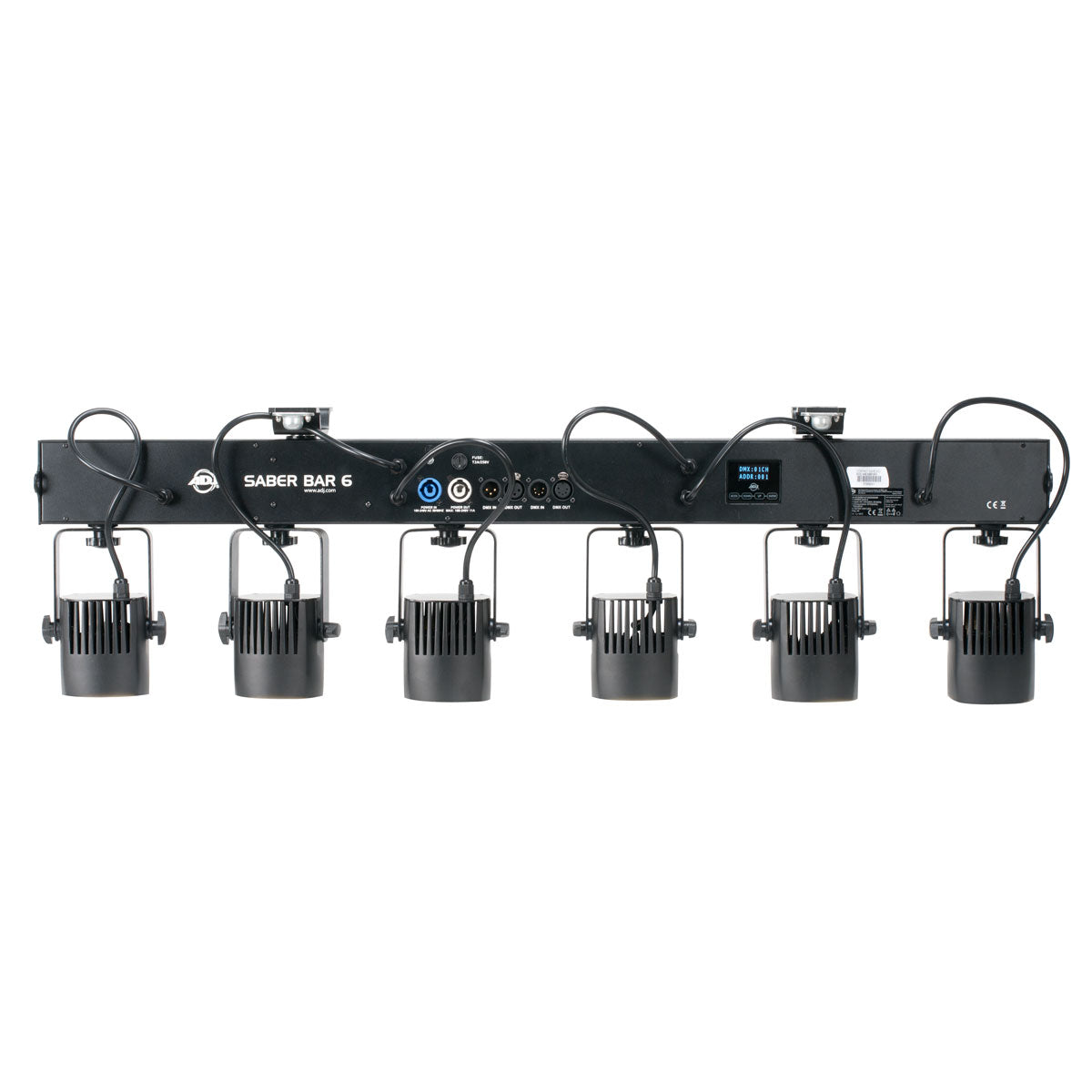

The rear panel features a display with function buttons, 3-pin and 5-pin DMX In/Out to link data and power locking In/Out connections to daisy chain power. There are multiple DMX channel modes to choose from, built-in programs and 6 dimming curve modes. The Saber Bar 6 is s ideal for performance stages, installations, table spotting and lighting in retail stores.
Specifications
• LED: 6x 15W Warm White LEDs (50,000 hr.)
• Color Temperature: 3100K
• CRI: 96

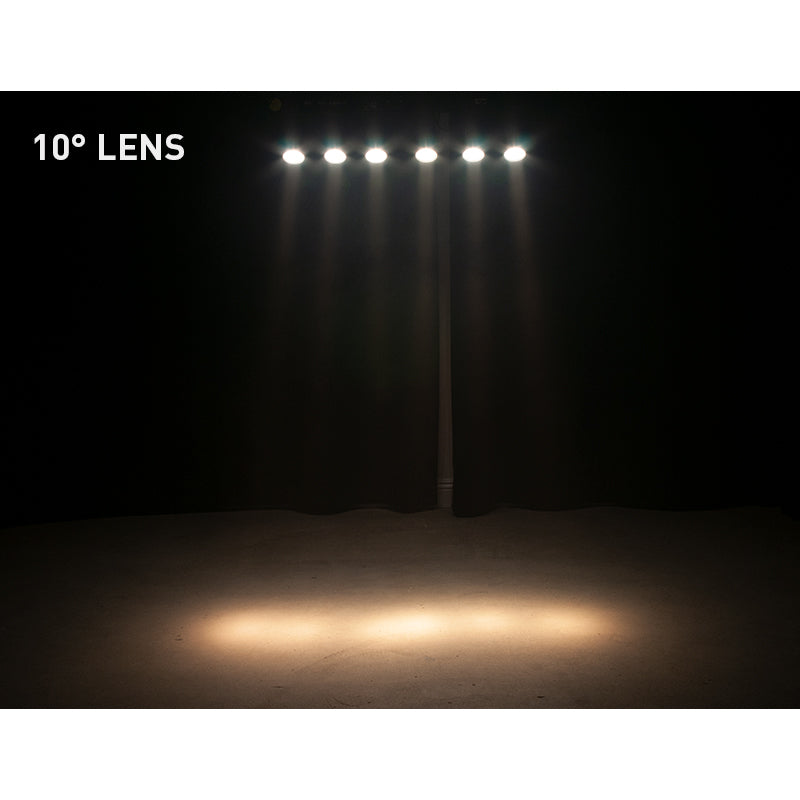

• Beam Angle: 5-degrees (Includes 10-degree and 45-degree lens kits)
Features:
• All metal construction with black housing
• ACL lens for razor sharp beams
• Includes heavy duty adjustable brackets for hanging

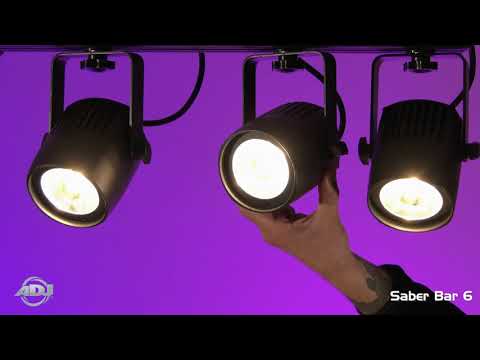

• Individually adjust X/Y axis of each fixture manually
Construction:
• Display with function buttons
• Data In/Out: 3-pin and 5-pin DMX In/Out to link data
• Power locking In/Out connections to daisy chain power
• Daisy chain up to 11 fixtures @ 120V; 12 fixtures @ 240V
Control:
• Multiple DMX channel modes
• Control Modes: DMX512, RDM (Remote Device Management)
• Built-in internal programs
• 0-100% Dimming + smooth 16-bit fine dimming
• 6 Dimming Curve Modes
• Adjustable LED refresh rate
• Strobe Pulse effects
• With Wired Digital Communication Network
Electrical:
• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
• Power consumption: 85W max
Dimensions Weight:
• Dimension (LxWxH): 39.5” x 11.5” x 3.75” / 1005x292x95mm
• Weight: 25 lbs. / 11.3 kg.

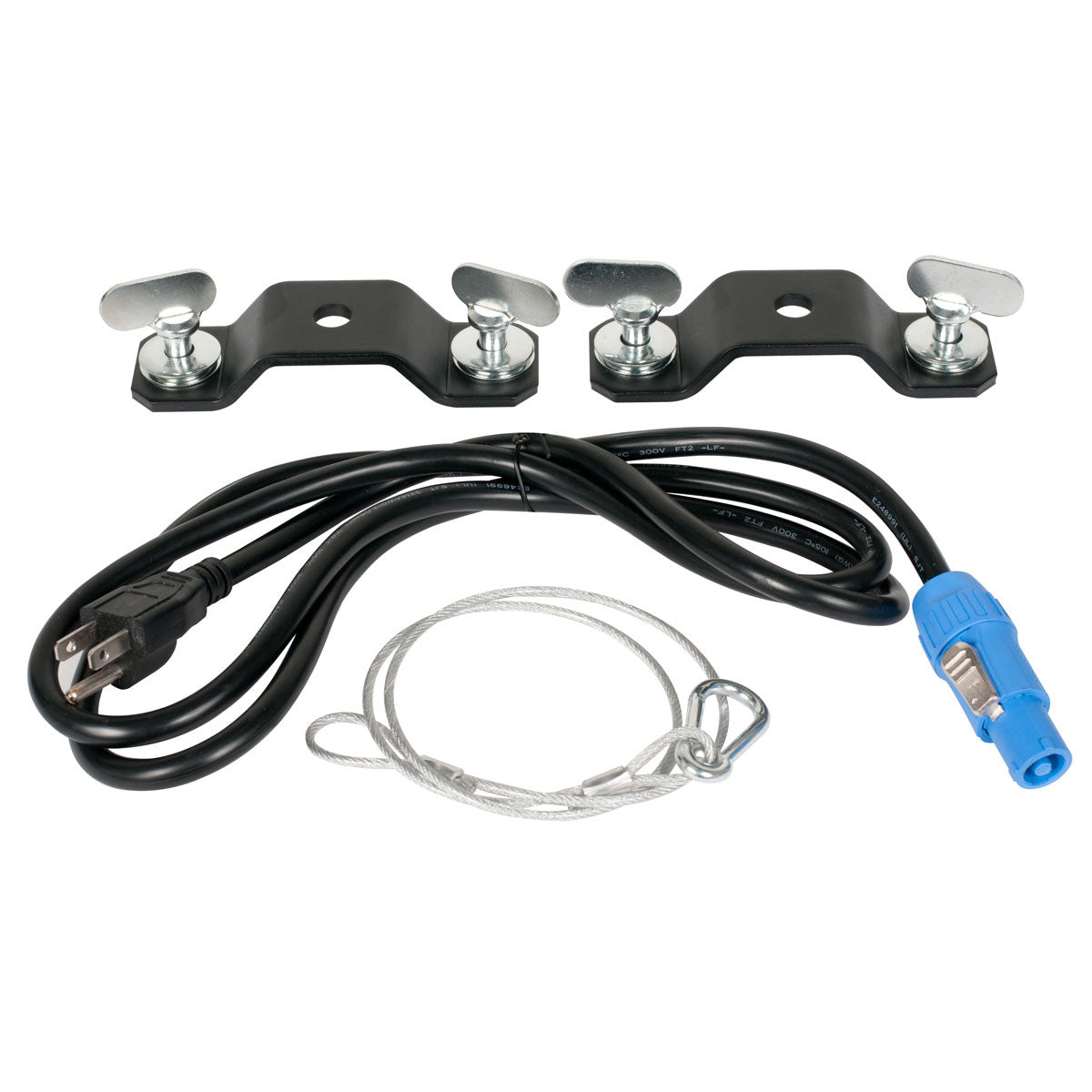

What's In The Box:
• 1x Power Cable
• 1x Safety Cable
• 2x Omega Brackets

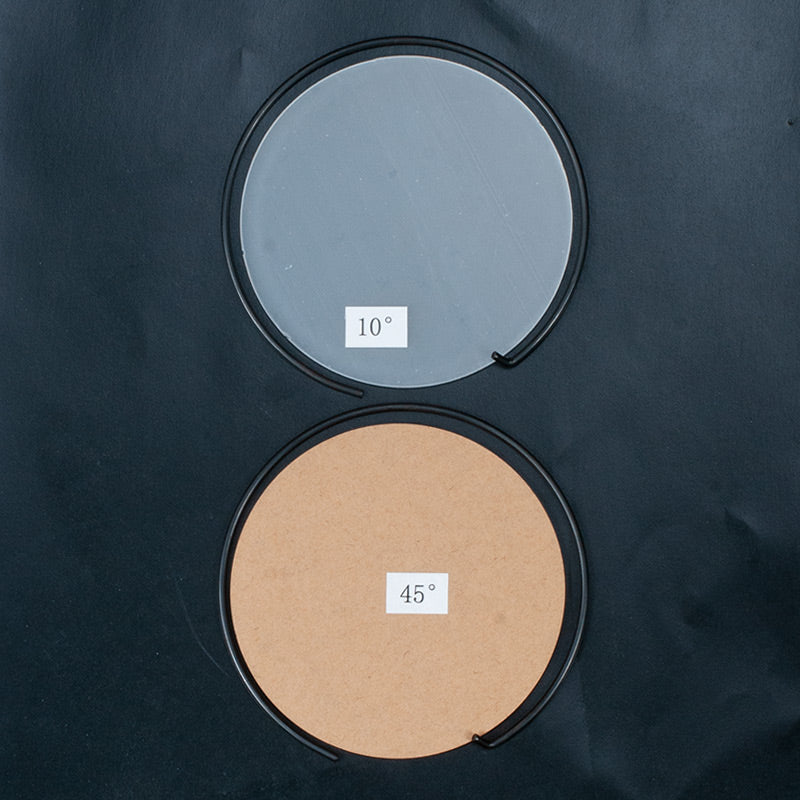

• 6x 10-degree frost filters
• 6x 45-degree frost filters
