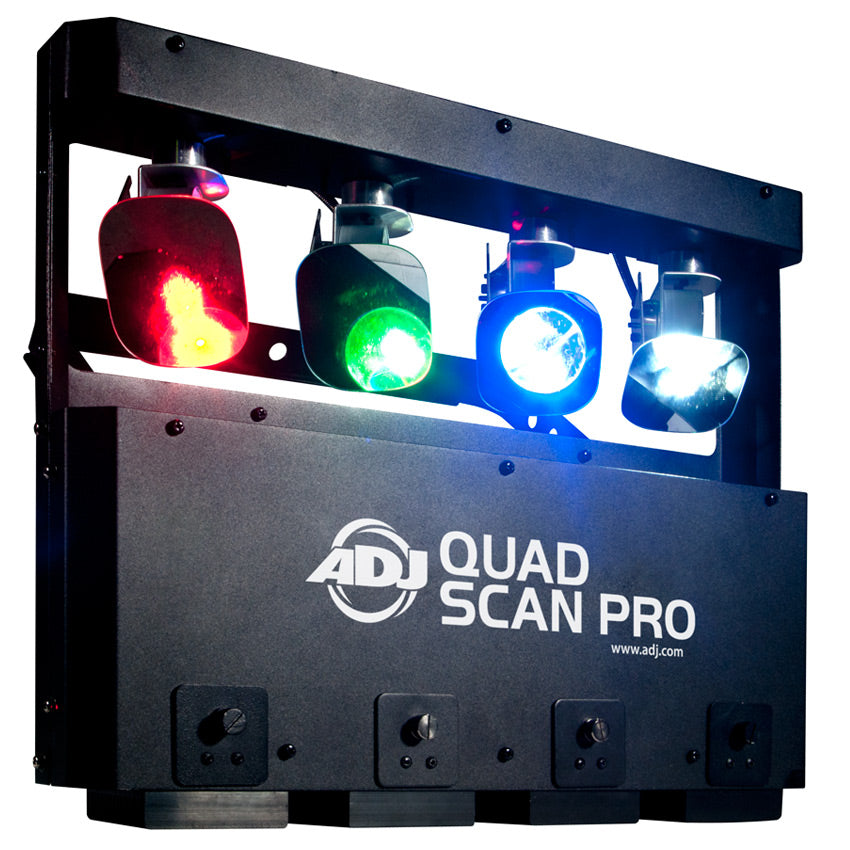

Quad Scan Pro

This item is discontinued

Featuring 4x RGBW Quad LEDs, the Quad Scan Pro from ADJ is a perfect choice for mobile entertainers, DJs, bands, or bowling alleys. Includes 4 replaceable gobo patterns and 3 operational modes. LEDs lifetime rated at 50,000 hrs (approx). Let ADJ add intensity to your show today
UPC: 819730010759SKU: QUA313

Video

Quad Scan Pro

The Quad Scan Pro from ADJ is an incredible addition to any mobile entertainer's lighting set-up. Designed to be super mobile, this scanner is light-weight and has an easily portable case. Whether you're a DJ at special events, a band setting out on tour, or anyone else, this fixture is amazing! This versatile unit is great for everything from hyping up the crowd at the start of the night to slowing things down with subdued blues. With built-in programs, it's easy up the intensity of the music with complementary lighting effectsADJ's super bright Quan Scan Pro is designed to dazzle the crowd with its high output 4x RGBW Quad LEDs. These LEDs also add huge value to the unit with an extremely long 50,000 hour lifetime and low (88W max) power consumption. This fixture also offers 4 replaceable gobo patterns and 3 operational modes (DMX controller, Primary/Secondary, and Sound Active) to give you limitless combinations of colors and effects to complement your performance perfectly. With a 4-button DMX display on the rear for easy programmability and compatibility with other ADJ lighting effects through the UC3 controller (sold separately), creating a light show that will stun the crowd is easier than ever before!

Specifications

  •  4x 4-in-1 RGBW “QUAD Color” LEDs - produces a variety of color effects
  •  Includes 4 replaceable gobo patterns (Gobo size: 20.5mm; Viewable size: 12mm)
  •  3 DMX Channel Modes (1, 5 or 32 Channels)

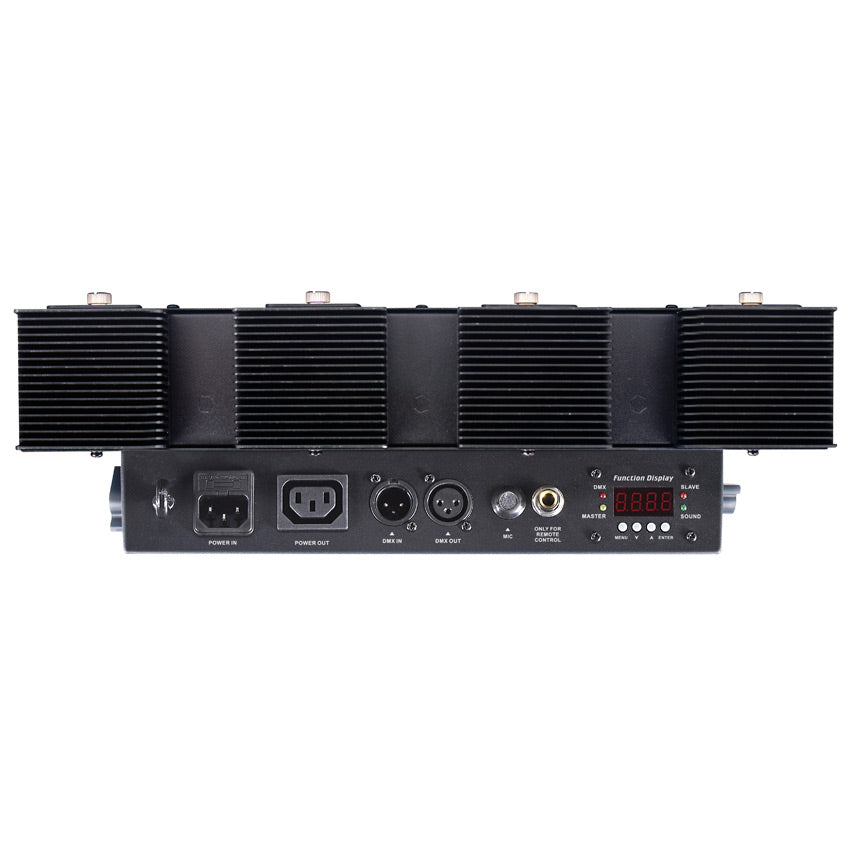

  •  4-Button menu system LED Display making it easy to navigate
  •  3 Operational modes: DMX controller, Primary/Secondary Sound Active
  •  Exciting built-in lighting programs
  •  Dimming: 0-100%
  •  LED Strobe effect
  •  Single Yoke + safety loop included
  •  Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  •  IEC AC IN/OUT on rear to daisy chain power (up to 4 Quad Scan PRO’s@120V, and 7 Quad Scan PRO’s @ 230V)
  •  Extreme long lifetime of the LED (Rated at approximately 50,000 hr.)
  •  Power consumption: 88W max
  •  LED Source: 4x 10W Quad LED’s
  •  Multi-voltage operation: AC 100V~240V 50/60Hz- IEC socket
  •  Dimensions (LxWxH): 17.25" x 14.25" x 5.25" / 438 x 356 x 133mm
  •  Weight: 17 lbs. / 7.5 kg.
