Q-SPAND
This item is discontinued

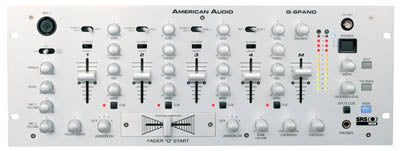

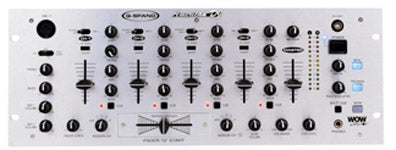

Q-SPAND
Sale price$0.00
Q-SPAND
Specifications
- 3 Phono, 4 Lines, 3 Auxiliaries amp; 3 Mics
- Fader "Q" Start w/ on/off switches for each channel
- WoW™ by SRS® button - Sonic Enhancer with 3 dimensional sound
- 3D Stereo button w/ Width level knob (Highs)
- Tru Bass button w/ Bass level knob (Lows)
- Feather Fader plus Crossfader with VCA fader control (replaceable)
- Balanced XLR Mutputs
- Bass, treble for each microphone
- Volume control for each microphone
- on/off/Talkover for mics
- Gain for each channel
- on/off channel assign switch
- Split Cue on 1/4-inch Stereo Phone Jack
- High level 1/4-inch Stereo Phone Jack
- Zone volume knob
- Cue Mixing and Cue Level knobs
- Master level indicators w/ peak hold
- Cue button w/ L.E.D. for each channel
- Left/right master balance
- 12V BNC light connector for gooseneck light
- Neutrik™ microphone connection 1/4" (6.3mm)/XLR
- Independent light control signal output for touch panels and chase controllers – 1/4" connection
- Soft-touch rubber knobs for better control
- "L" shaped rear case design
- Line output: 28V, peak to peak (+20dB)
- S/N ratio: gt;85dB
- Frequency Range: 20Hz – 20kHz, +/- 1dB
- Distortion: lt;0.03%
- Talkover: -15dB
- 1/4-inch Stereo Phone Jack Impedance:16 ohms
- Power: 115V 60Hz / 230V 50Hz switchable
- Crossfader: Feather Fader plus
- Dimensions: 19" W x 7" D x 3.25" H
- Weight: 8 lbs.
