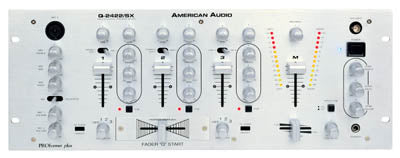

Q-2422/SX
This item is discontinued

Q-2422/SX
Sale price$0.00
Q-2422/SX
Specifications
- 2 phono, 4 line, 2 auxiliaries amp; 2 mic inputs
- Fader "Q" Start w/ On/Off switch
- Fader "Q" On/Off switch
- Balanced XLR Outputs
- Bass, mid amp; treble control for mics
- Volume control for each mic
- High qualityFeather Fader plus for smooth, clean crossfading
- On/Off Channel assign switch
- Balance, Pan and Gain for each channel
- Bass, mid and treble control for each channel
- Master volume control
- Cue mixing slider
- Split Cue on 1/4-inch Stereo Phone Jack
- Cue Level Control
- Master Level Indicators w/ peak hold
- Left/Right master balance
- 12V BNC light connector for gooseneck light
- Zone/Booth volume, treble and bass control
- Neutrik microphone connection 1/4"(6.3mm)/XLR
- On/off/talkover switch for DJ mic
- Left amp; right turntable ground connectors conveniently located on rear panel
- Independent light control signal output for touch panels and chase controllers -
- Soft-touch rubber knobs for better control
- Line Output: 28V, peak to peak, (+20dB)
- S/N Ratio: gt;85dB
- Power: 115V/60Hz or 230V/50Hz switchable
- Crossfader: FF-Plus/S
- Dimensions: 19" W x 7" D x 2.25" H - 482mm x 176mm x 65mm (4 r.m. spaces)
- Weight: 8.5 lbs. / 3.8kg.
