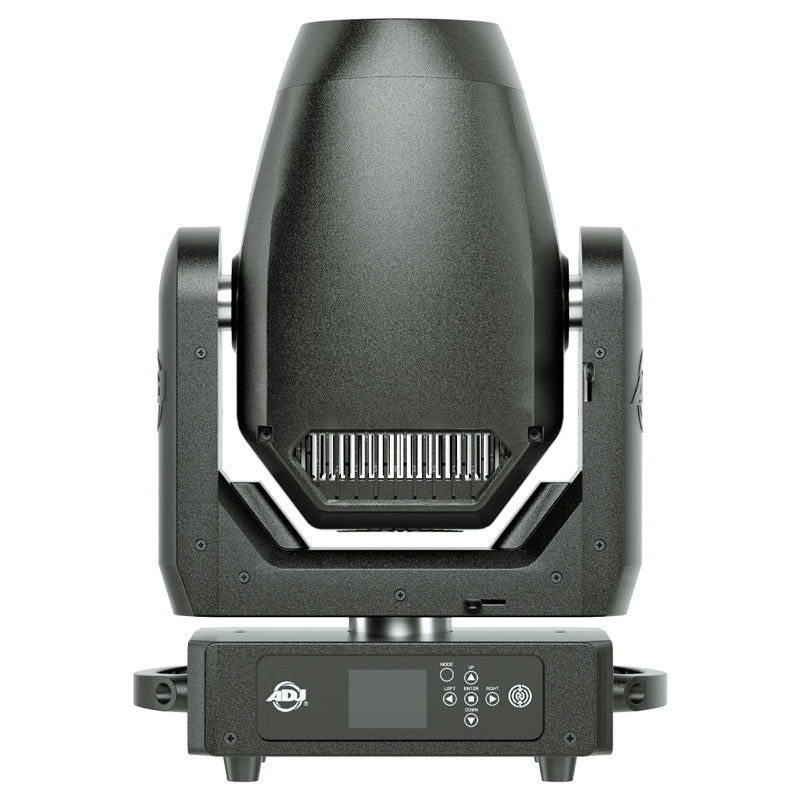

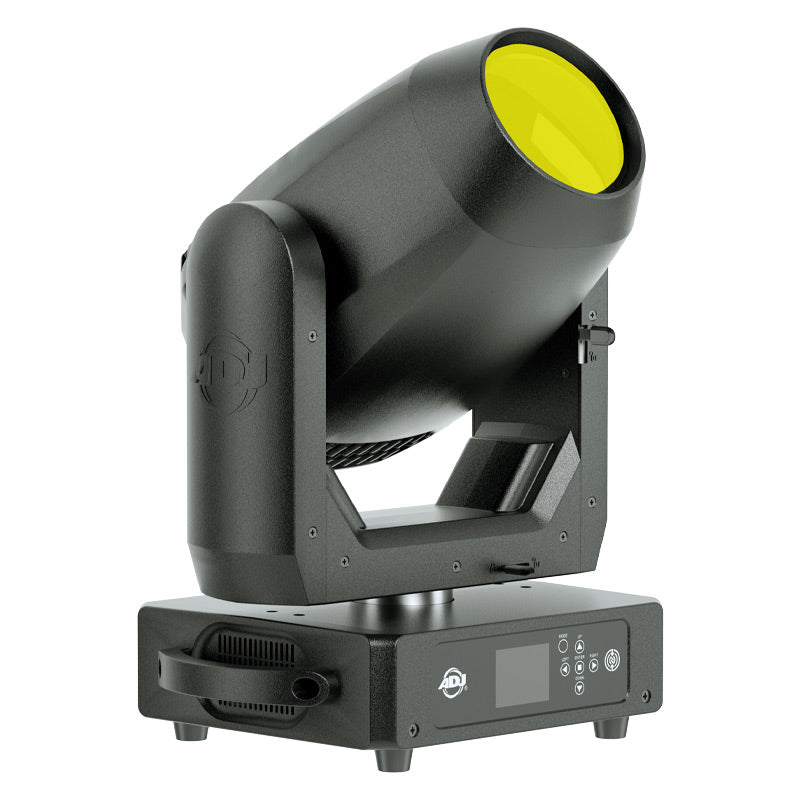

Protégé XS
Three Powerful Effects. One Versatile Moving Head.

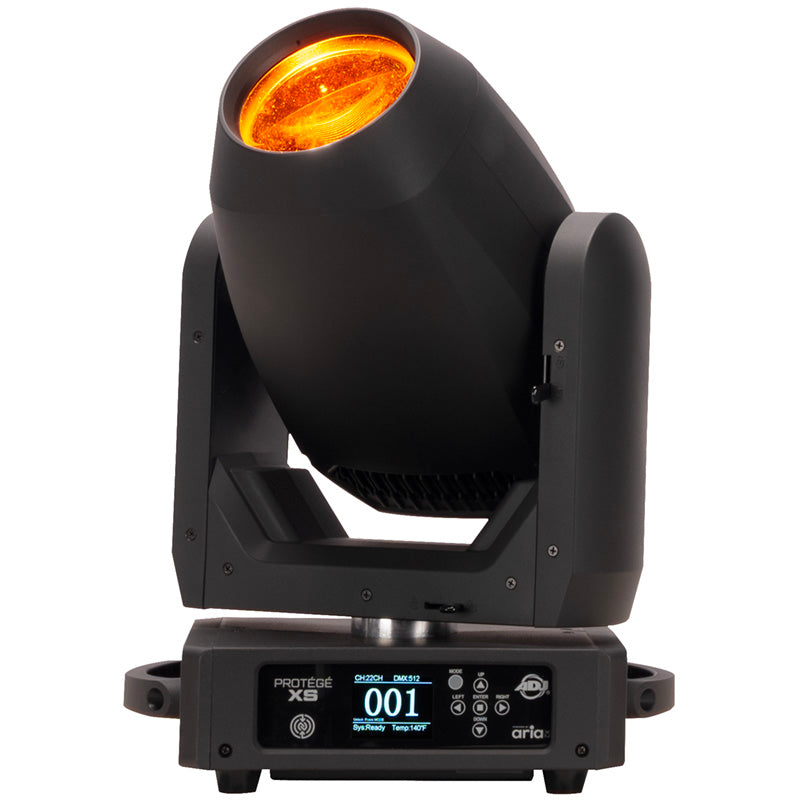

The ADJ Protégé XS is a compact, high-performance Beam, Spot, and Wash (BSW) moving head designed to deliver exceptional versatility, powerful output, and an extensive range of creative effects for professional lighting applications. Combining three essential lighting functions in one fixture, the Protégé XS allows lighting designers to transition seamlessly between intense, narrow aerial beams, sharp gobo projections, and wide, smooth wash effects without changing fixtures.
Powered by a 250W white LED engine with an average rated life of 20,000 hours, the Protégé XS generates an impressive peak luminous intensity of 2,860,286 candela at its narrowest zoom setting. This exceptional intensity produces powerful, concentrated aerial beams that cut through atmospheric effects, while its advanced optical system delivers the flexibility required for detailed projections and broader stage illumination.
Precision Optics for Beam, Spot, and Wash Applications
At the heart of the Protégé XS is its precision motorized zoom system, offering an optical output range of 3.6°–37.4°, measured from the narrowest beam angle to the widest field angle. With a measured beam angle range of 3.6°–28.4° (50% intensity) and field angle range of 4.8°–37.4° (10% intensity), the fixture delivers exceptional flexibility across its three primary functions.
In Beam mode, the narrow 3.6° beam angle creates intense, tightly focused shafts of light for dramatic aerial effects and dynamic stage looks. For Spot applications, motorized zoom and focus allow precise gobo projections, textured patterns, and clearly defined lighting effects across a variety of distances. When wider coverage is required, the heavy frost filter softens the output, transforming the fixture into a versatile wash light capable of producing smooth, diffused illumination.
For applications requiring improved color rendering, the Protégé XS also features a high CRI mode achieving up to 87.6 CRI, expanding its versatility for productions where color quality is particularly important.
Extensive Color and Gobo Capabilities
The Protégé XS features two independent color wheels, each offering eight color positions, providing a broad palette of vibrant and saturated colors. The selection includes primary colors, rich theatrical tones, UV, CTO 3200K, CTB 9000K, and multicolor filters, allowing lighting designers to create everything from bold concert looks to subtle atmospheric effects.
For projection and aerial effects, the fixture features a rotating gobo wheel with seven interchangeable glass gobos and a static gobo wheel with 11 fixed aluminum gobos, including two beam reducers. This combination provides extensive creative possibilities for textured projections, animated patterns, and dynamic aerial effects.
Dynamic Effects and Creative Flexibility
A comprehensive effects system further expands the creative capabilities of the Protégé XS. Two 6-facet prisms, one linear and one circular, can be overlaid to create complex multi-beam effects, expanding the fixture's impact during aerial beam sequences and dynamic stage productions.
An animation wheel mounted on a movable arm adds movement and texture to projected gobos, creating flowing visual effects. The motorized focus provides precise image adjustment, while the heavy frost filter transforms the fixture's output into smooth, diffused wash effects.
An electronic strobe with adjustable rates from 1Hz to 10Hz allows the creation of rhythmic flashes, dynamic accents, and dramatic lighting transitions.
Precision Movement and Advanced Control
Equipped with high-performance three-phase motors, the Protégé XS delivers precise and responsive movement with selectable 540° or 630° pan ranges, a separate 360° continuous pan rotation mode, and 270° tilt movement. Adjustable 8-bit and 16-bit movement resolution provides smooth positioning for demanding professional applications.
The fixture offers three DMX channel modes—Basic, Standard, and Extended—along with DMX512 and RDM compatibility. Integration with the Aria X2 Wireless Management System and NFC technology provides additional fixture management capabilities.

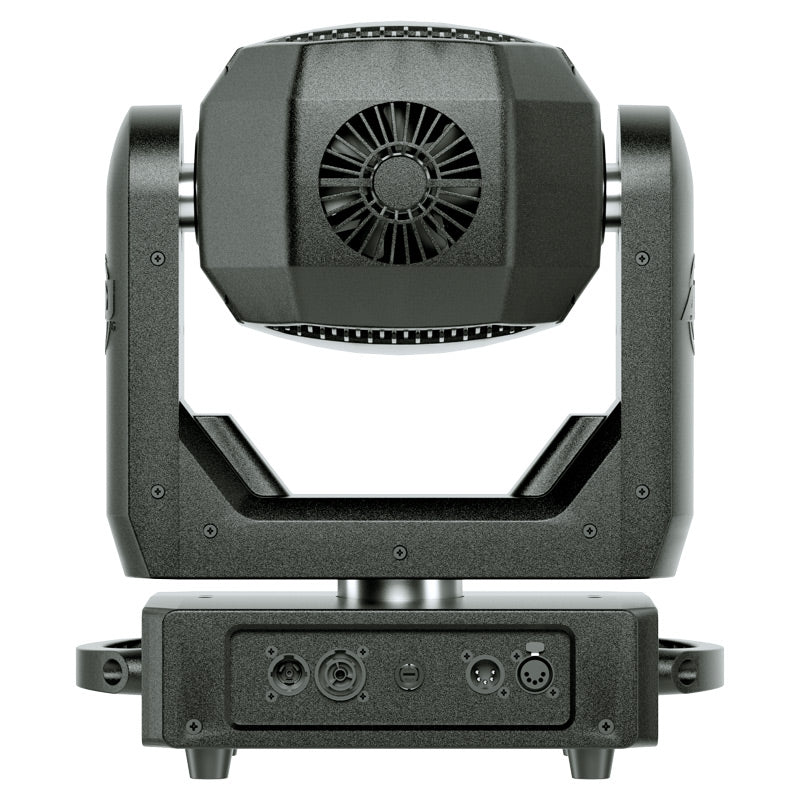

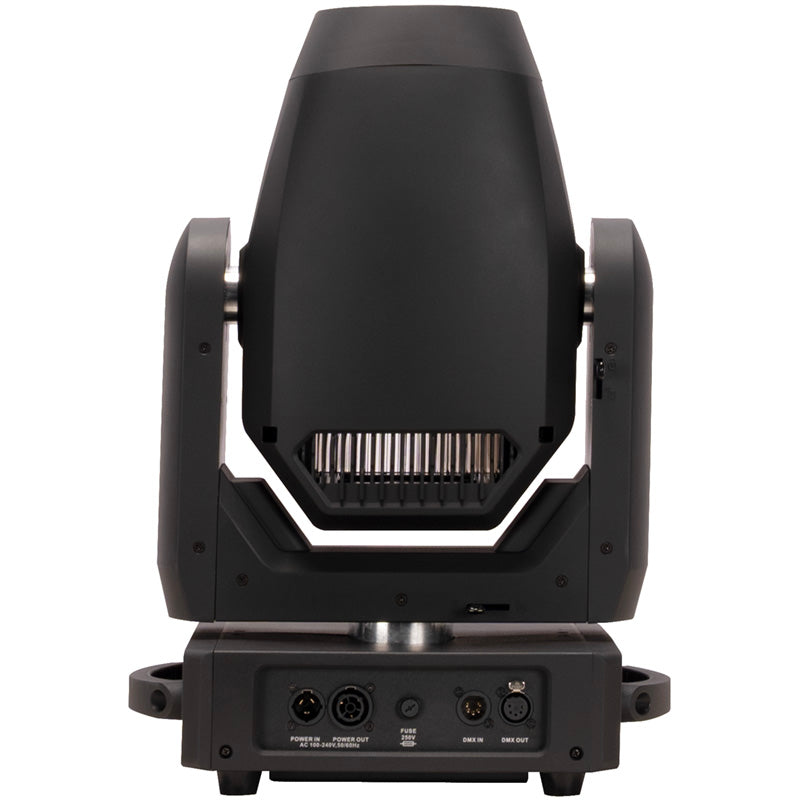

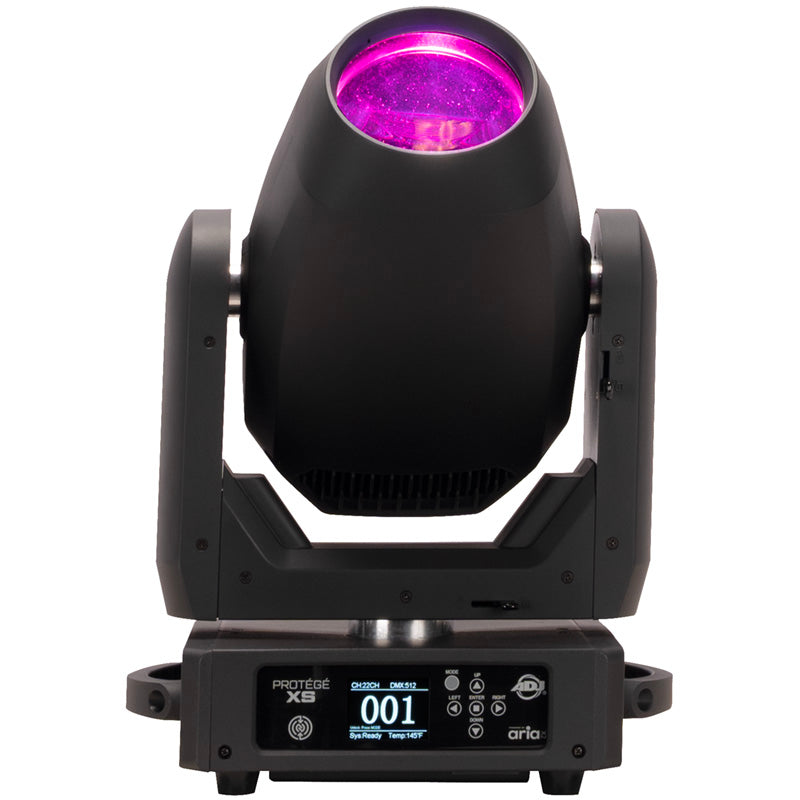

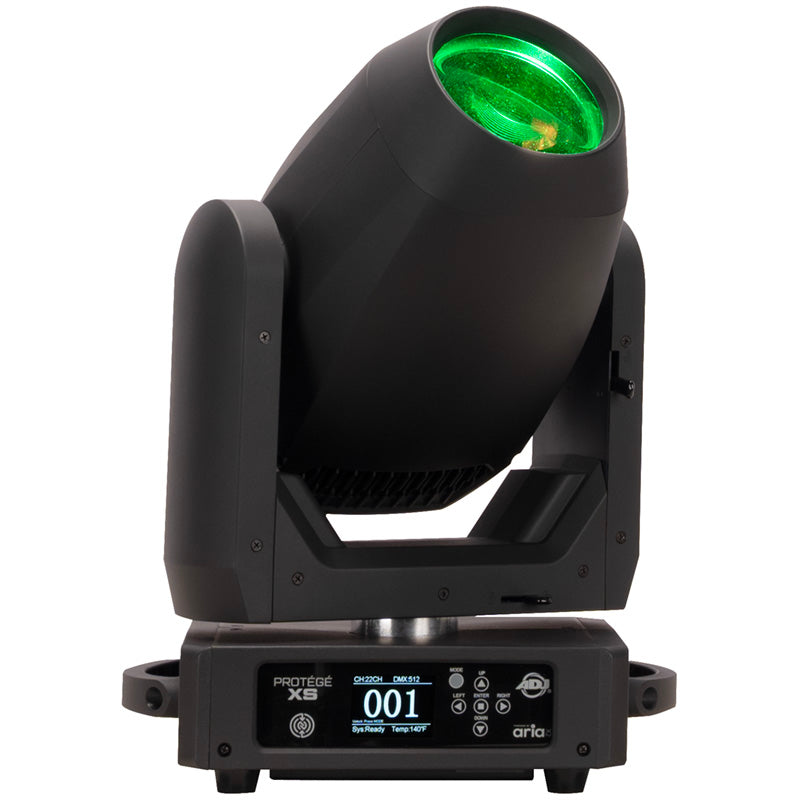

A full-color, 180° reversible LCD menu display with six-button touch control provides convenient access to fixture settings. Professional 5-pin XLR DMX connections and IP65-rated locking power input and output connectors ensure reliable connectivity.
Compact Design for Professional Applications

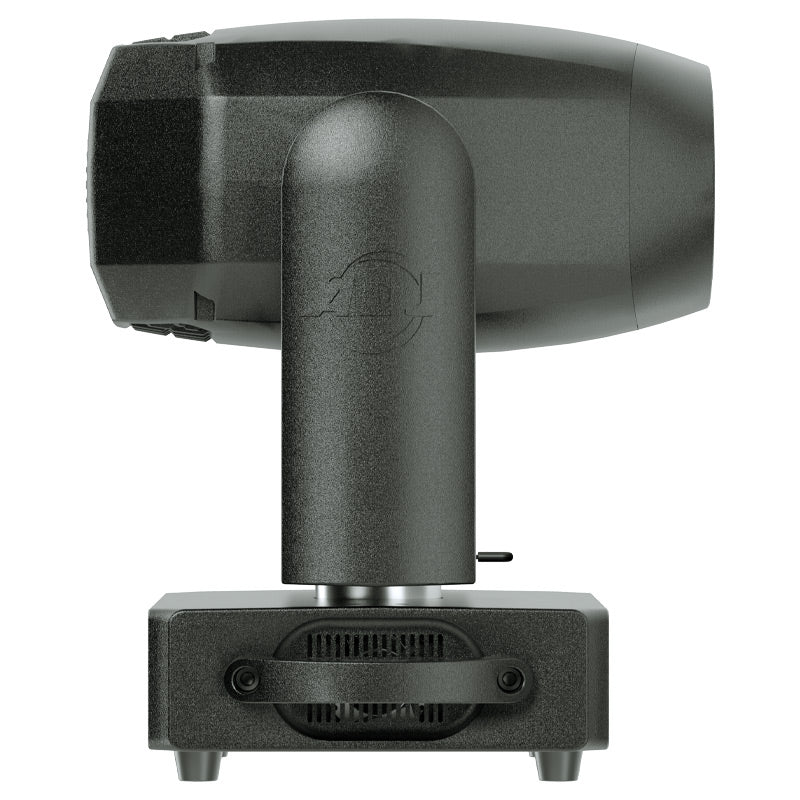

Despite its powerful output and extensive feature set, the Protégé XS maintains a compact housing measuring just 20 inches tall and weighing approximately 39 lbs. (17.85 kg), making it suitable for touring productions, rental inventories, entertainment venues, houses of worship, and permanent installations.
Integrated pan and tilt locks simplify handling and transportation, while the included Omega mounting brackets, safety cable, and locking power cable provide essential installation accessories. For transportation and storage, two Protégé XS fixtures fit into the optional ADJ DRC MHX Road Case.
By combining the powerful aerial effects of a beam fixture, the projection capabilities of a spot, and the smooth illumination of a wash light, the ADJ Protégé XS delivers three essential lighting functions in one compact, versatile professional moving head. Its combination of intense LED output, precision optics, extensive creative effects, continuous pan rotation, and advanced fixture management makes it a flexible lighting solution for a wide variety of professional productions.
Specifications
- 250W White LED Engine
- Color Temperature: 8500K (+/-350k)
- 20,000 Hour Average LED Life*
- CRI: Up to 87.6 (Zoom at 50%, High CRI Filter In)
- Peak Luminous Intensity: 2,860,286 Candela (Narrow Zoom, Full Output)
- Color Temperature: 8,803K (Zoom at 50%, High CRI Filter In)
- Optical Output Range: 3.6°–37.4° (Narrow Beam to Wide Field)
- Beam Angle Range (50% Intensity): 3.6°–28.4°
- Field Angle Range (10% Intensity): 4.8°–37.4°
- Narrow Zoom Beam Angle: 3.6° (50% Intensity, Full Output)
- Narrow Zoom Field Angle: 4.8° (10% Intensity, Full Output)
- Mid Zoom Beam Angle: 12.0° (Zoom at 50%, Full Output)
- Mid Zoom Field Angle: 14.5° (Zoom at 50%, Full Output)
- Wide Zoom Beam Angle: 28.4° (50% Intensity, Full Output)
- Wide Zoom Field Angle: 37.4° (10% Intensity, Full Output)
- 2x Color Wheels
- 8 colors per color wheel
- Color Wheel 1: Red, Blue, Green, Orange, Quad Color,Yellow, Magenta, Congo Blue
- Color Wheel 2: Dark Red, Light Turquiosise, UV, Pink, Quad Color, Lavender, CTO 3200K, CTB 9000K
- 1x Rotating Gobo Wheel: 7 Interchangeable, glass gobos (OD: 16mm, Image: 10mm)
- 1x Static Gobo Wheel: 11 Fixed, aluminum gobos, including two beam reducers
- Motorized Zoom: 3.6° ~ 38°
- 2x Prisms: 1x 6 Facet Linear & 1x 6 Facet Circular (Overlay Capable)
- Heavy Frost Filter for Smooth Wash Effects
- Animation Wheel on Movable Arm
- Motorized Focus
- 1Hz ~10Hz Strobe Rate (Electronic)
- (3) DMX Channel Modes (Basic / Standard / Extended)
- DMX, RDM
- Aria X2 Wireless Management System
- NFC System
- 6 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- 8 / 16 Bit Resolution Adjustable Movement
- 5 pin XLR DMX In/Out
- IP65 Locking Power In/Out
- Pan: 540/630° and separate 360° Continuous Pan Rotation
- Tilt: 270°
- Pan/Tilt Locks
- 3 Phase Motors
- Length: 14.3" (364mm)
- Width: 9.8" (248mm)
- Vertical Height: 20” (509mm)
- Center-to-Center Distance: 17.8" (453mm)
- Weight: 39 lbs. (17.85kg)
- AC 100-240V - 50/60Hz
- Max Power Consumption: 616W
- Power Link: 2 units @120V., 5 units @ 230V.
- Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
- CE
- FCC
- cETLus
- IP20
- (1) Outdoor Locking Power cable (6.5ft.)
- (2) Omega brackets (107mm)
- (1) Safety Cable, 3mm (1.97ft.)
- (2) Protégé XS fixtures fit in the ADJ DRC MHX Road Case
