PIXIE DRIVER 2000 V2
This product is CE certified.
This item is discontinued
This product has been discontinued. Click here to see the current model: https://www.adj.com/pixie-driver-2000-v3
PIXIE DRIVER 2000 V2
Sale price$0.00
PIXIE DRIVER 2000 V2
This product has been discontinued. Click here to see the current model: https://www.adj.com/pixie-driver-2000-v3
Pixie Driver 2000 V2 is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 340 max pixels via Art-Net or sACN (streaming ACN) protocols.

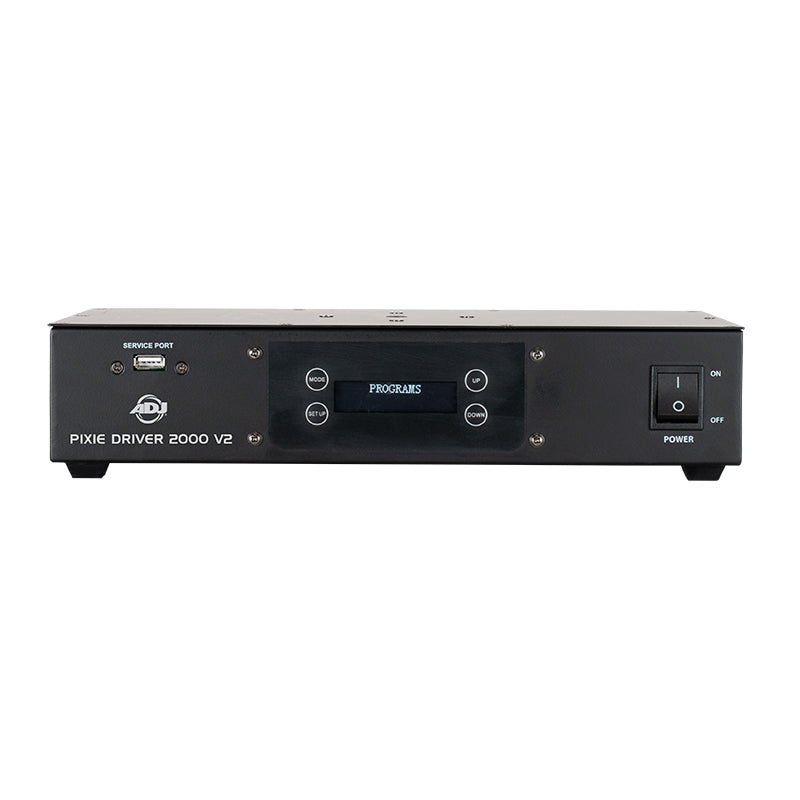

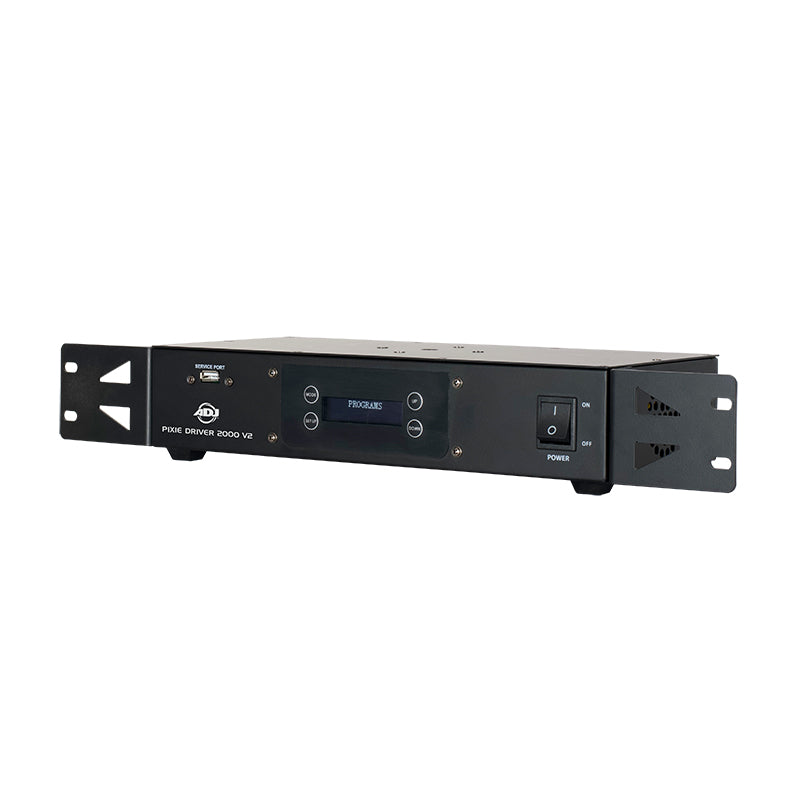

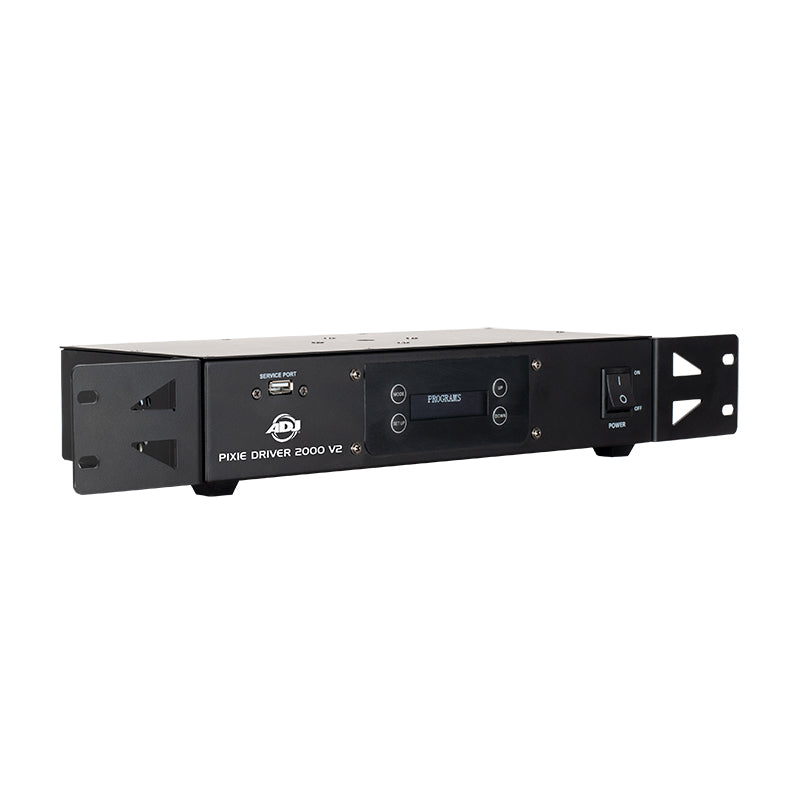

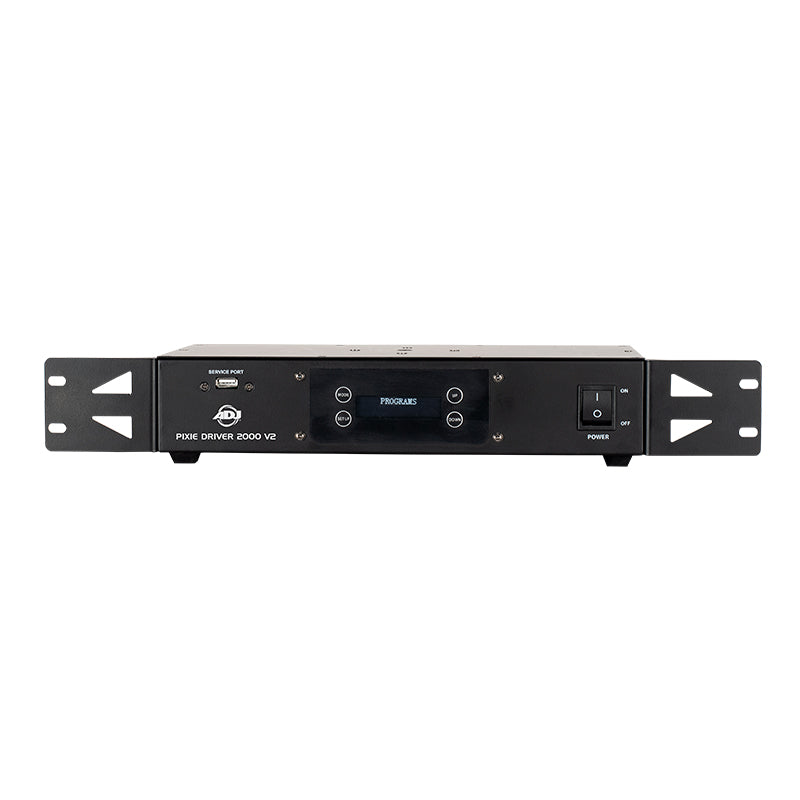

The Pixie Driver 2000 V2 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (2) outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixel strip (available in lengths from 1 to 50 feet). The Pixie Driver 2000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included). There is a USB port on the front panel to easily make updates to the firmware.
Specifications
Control Features:
• Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• 340 Pixels via Art-Net and sACN (streaming ACN)
• OLED screen with 4-button menu
• RDM compatible
• USB port for Firmware Updates
Control Quantity:
Art-Net/sACN: max 34x Pixie Strip 30; 17x Pixie Strip 60; 8x Pixie Strip 120
ArtNet: 170 pixels max each port
sACN: 170 pixels max each port

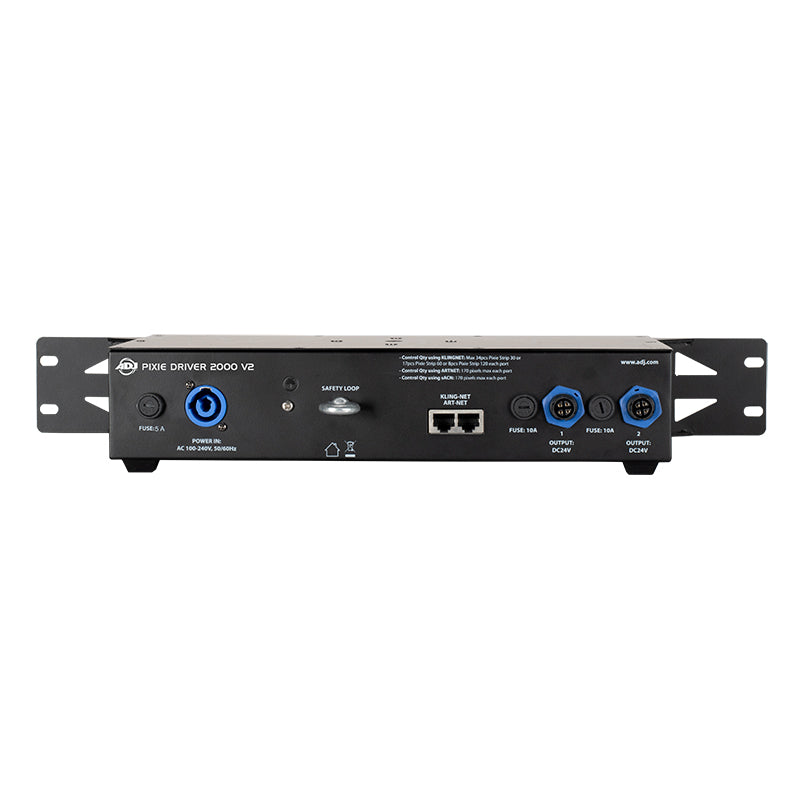

Connections:
• Power: PowerLock Input
• Two Artnet ethernet ports
• Two 4-pin DC24V power/data outputs to Pixie Strips
Mounting Options:

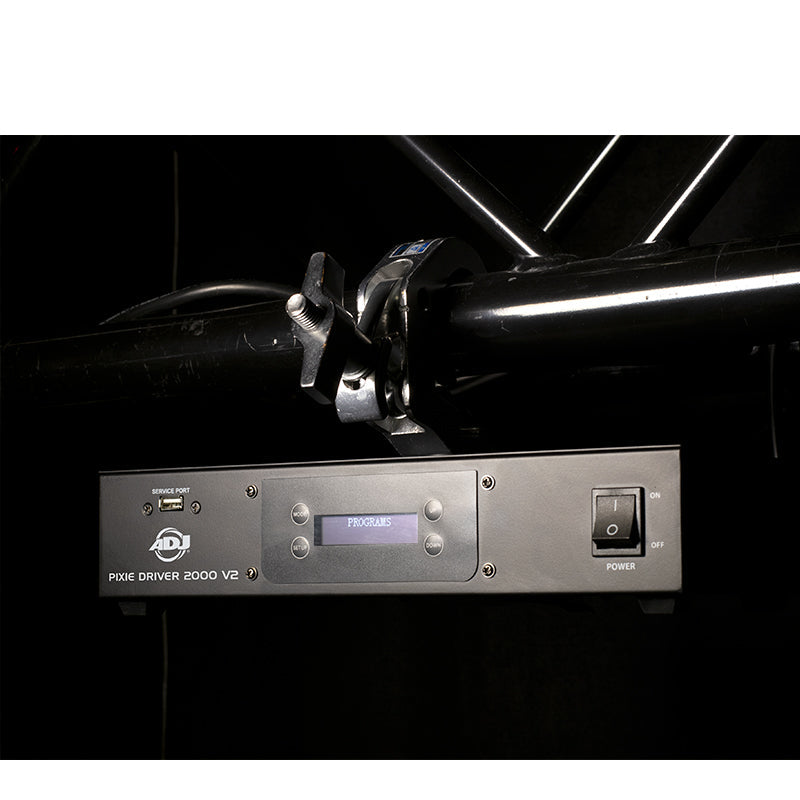

• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye
Electrical:
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Consumption: 400W max
• -4°F to 113°F (-20°C to 45°C)
Dimensions / Weight:
• Dimensions (LxWxH): 18.9” x 7.11” x 2.91” / 480x180.8x74mm
• Weight: 5.6 lbs. / 2.5 kg.
What's Included:
• Twist-Lock power cable
• 19-inch rack mount ears
• 4-pin data cable
Approvals:
CE | cETLus
Accessories:
PSLC1 (PIX158): 1-foot Pixie Strip Link Cable
PSLC3 (PIX174): 3-foot Pixie Strip Link Cable
PSLC5 (PIX188): 5-foot Pixie Strip Link Cable
PSLC10 (PIX200): 10-foot Pixie Strip Link Cable
PSLC15 (PIX213): 15-foot Pixie Strip Link Cable
PSLC25 (PIX229): 25-foot Pixie Strip Link Cable
PSLC50 (PIX242): 50-foot Pixie Strip Link Cable
Specifications are subject to change without notice.
