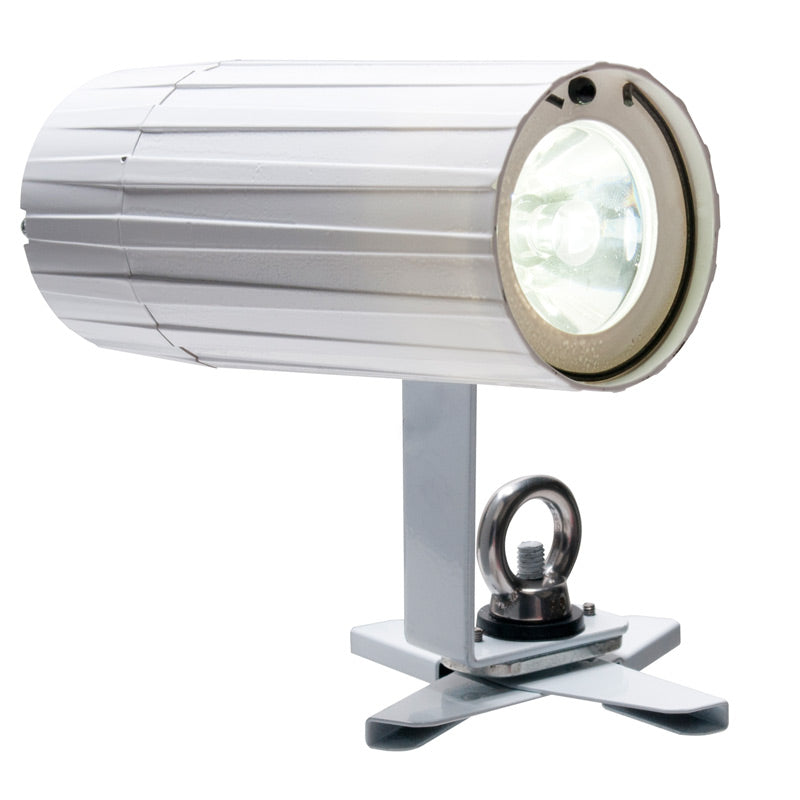

PinPoint Go
PinPoint Go
Specifications
• Rechargeable battery powered, bright 3W Cool White LED Pinspot with 5-degree beam angle (15-degree with Frost Filter)
• Compact high-tech plastic case design
• Long-life LED: 50,000 hour LED life
• Refresh Rate: 1KHz
• Power consumption: 3W 15W (When Battery Charging)

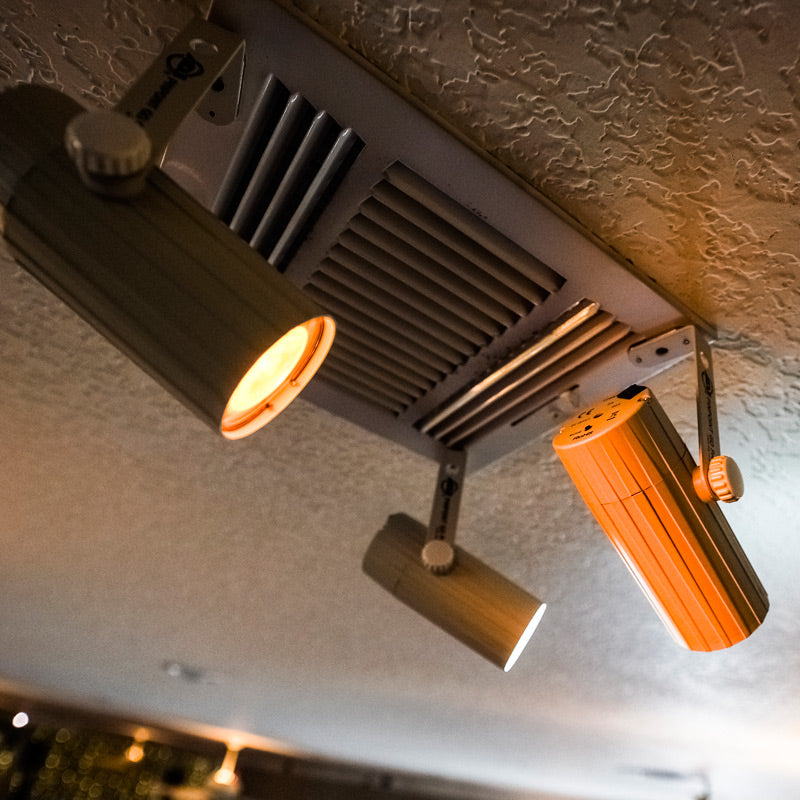

• Includes magnetic bracket for easy quick install on metal
• X-CLIP Bracket for drop ceiling frame mounting
• Includes Frost Filter Color Correction Filter

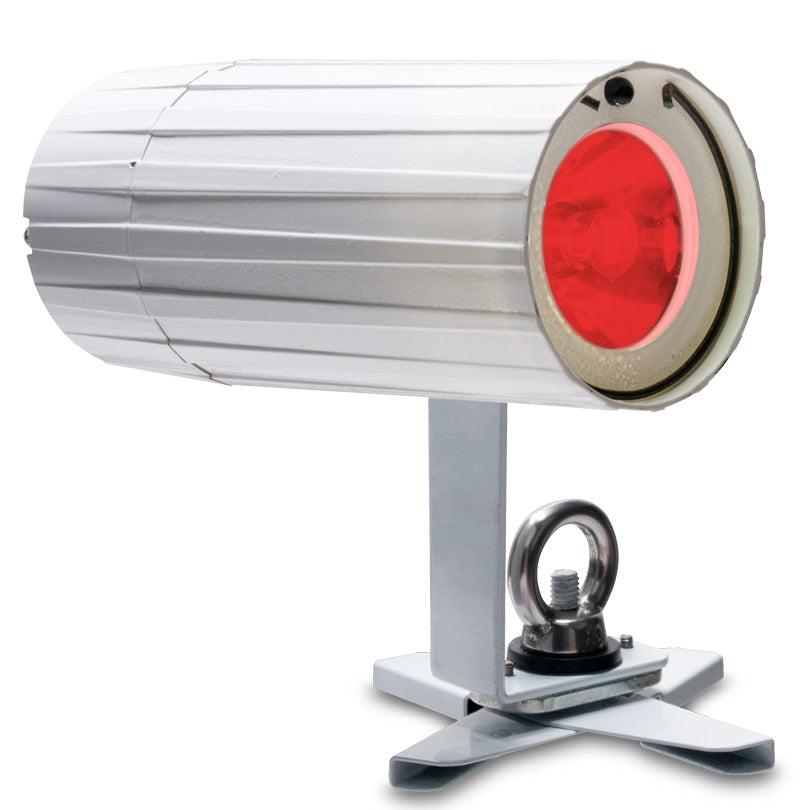

• Includes Red, Blue, Green Color Filters
• Rechargeable battery included in fixture
• Includes Power Adapter (DC 13V 1A)
• ADJ LED RC3 Remote Control (Sold Separately)
• Battery Charge Time: 4.5 Hours (With Load Switch Off)
• Battery Life:
7.5 Hours (Full On)
11 Hours (In Energy Saving Mode w/ Full Charge)
• Dimensions (LxWxH): 7.25” x 3.5” x 3.75” / 183 x 92 x 95mm
• Weight: 1 lbs. / 0.44 kgs.
• Bolt Diameter: 16mm (Inner) 27mm (Outer)

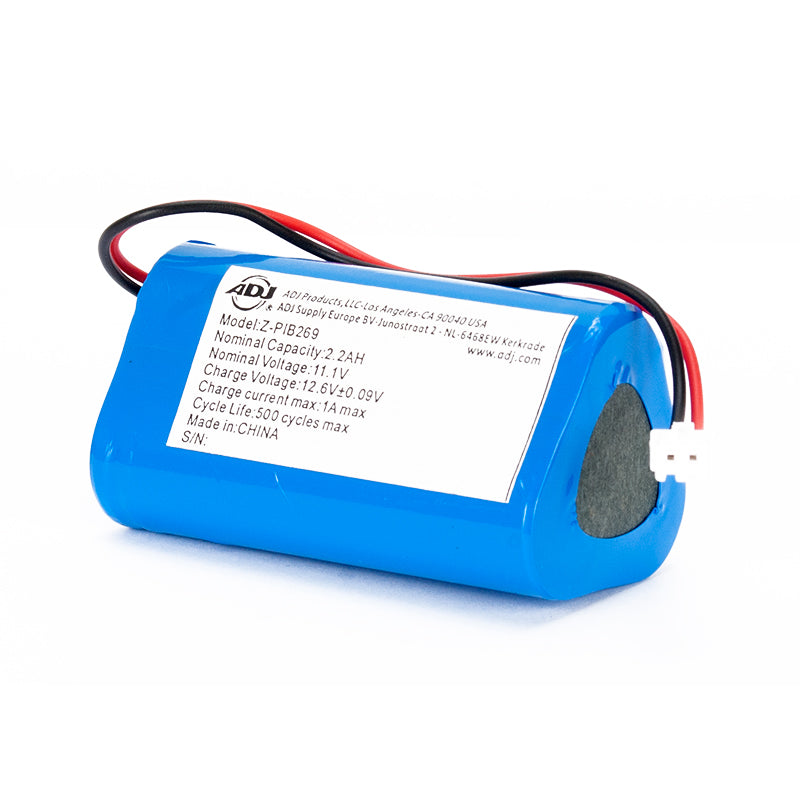

Battery Specifications
- Battery Charge Time: 4.5 Hours (Load Switch Off)
- Battery Life: 7.5 Hours Full On (Full Charge), 11 Hours in Energy Saving Mode (Full Charge)
- Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
- Battery Type: Fixed Lithium Battery
- Battery Energy: 24.42WH (Watt Hours)
- Battery Weight: 0.3lbs. / 0.14kg
- Battery Voltage: 11.1V
- Battery Capacity: 2.2AH
- Total Lithium Ion Cells: 3pcs
- Battery Wrap Material: PVC Sleeving + Highland Barley Paper
Specifications subject to change without notice
