Octo Beam WW
This product is ETL certified.
This item is discontinued

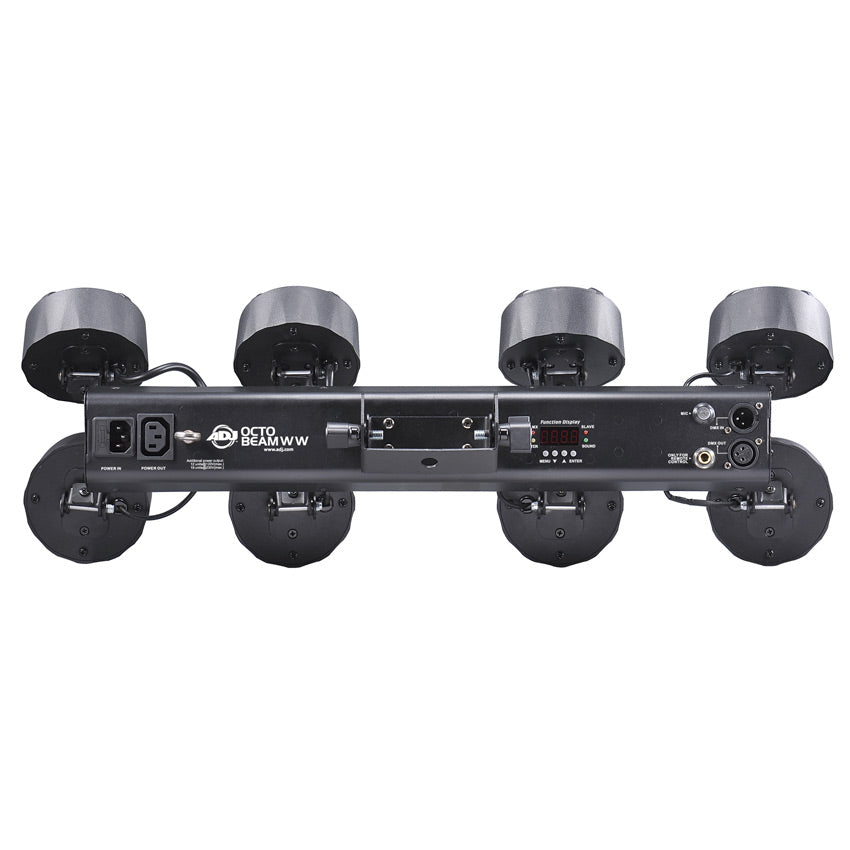

The ADJ Octo Beam WW produces a classic effect with a modern twist! It produces sharp, bright beams at a 3.4 degree beam angle. The rear control panel features a 4-button LED display menu, 3-pin DMX In/Out connections and IEC In/Out for power linking up to 12 units at 120V or 19 units at 230V operation.
Octo Beam WW
Sale price$0.00
Video
Octo Beam WW

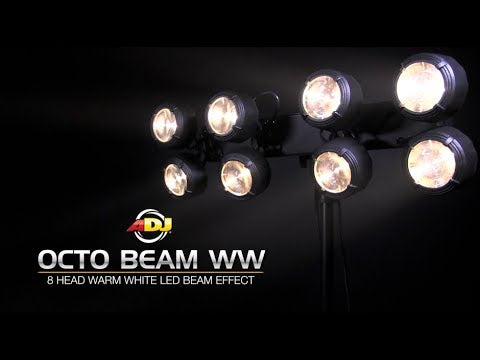

The ADJ Octo Beam WW produces a classic effect with a modern twist! The effect looks like an all white Halogen bulb effect but in essence uses 8x 3-Watt warm white LEDs. It produces sharp, bright beams at a 3.4 degree beam angle. The Octo Beam WW has 3 DMX channel modes (1, 8 or 10), 3 operational modes (Sound Active, Show or DMX modes), LED pulse and strobe effects and 0-100% electronic dimming. The rear control panel features a 4-button LED display menu, 3-pin DMX In/Out connections and IEC In/Out for power linking up to 12 units at 120V or 19 units at 230V operation. This fixture is compatible with the ADJ UC3 easy-to-use controller.
Specifications
- 8-head beam effect with eight warm white LED’s
- 3 DMX Channel modes: 1, 8 or 10 channel modes
- 3 Operational modes: Sound Active Mode, Show Mode, DMX Controlled
- Stand Alone or Primary/Secondary Configuration Manual control of each fixture head setting Dim and Full on.
- LED pulse strobe effect
- Flicker Free
Electronic Dimming: 0 - 100% - Beam angle: 3.4-degree
- Linkable via 3-pin XLR cable
- 4-button digital display on rear panel
- IEC AC IN/OUT on rear to daisy chain power (up to 12 Octo Beam WW’s @ 120V and 19 Octo Beam WW’s @ 230V )
- Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
- Includes mounting yoke to mount on a wall or on to trussing
- Light Source: 8x 3W (2700K-3300K) Warm White LED source (Rated at approximately 50,000 hours)
- Safety loop on rear
- Run all night – No duty cycle - Low power consumption
- Multi-voltage: 100-240V, 50/60Hz
- Power Draw: 28.9W max (All LED's @ Full On)
- Dimensions (LxWxH): 25” x 9” x 8” / 632.6 x 226.9 x 199mm
- Weight: 8 lbs. / 3.5 kg.
- ETL Approved
Octo Beam WW Parts & Service
Our Octo Beam WW Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Octo Beam WW. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
Octo Beam WW Parts & Service
