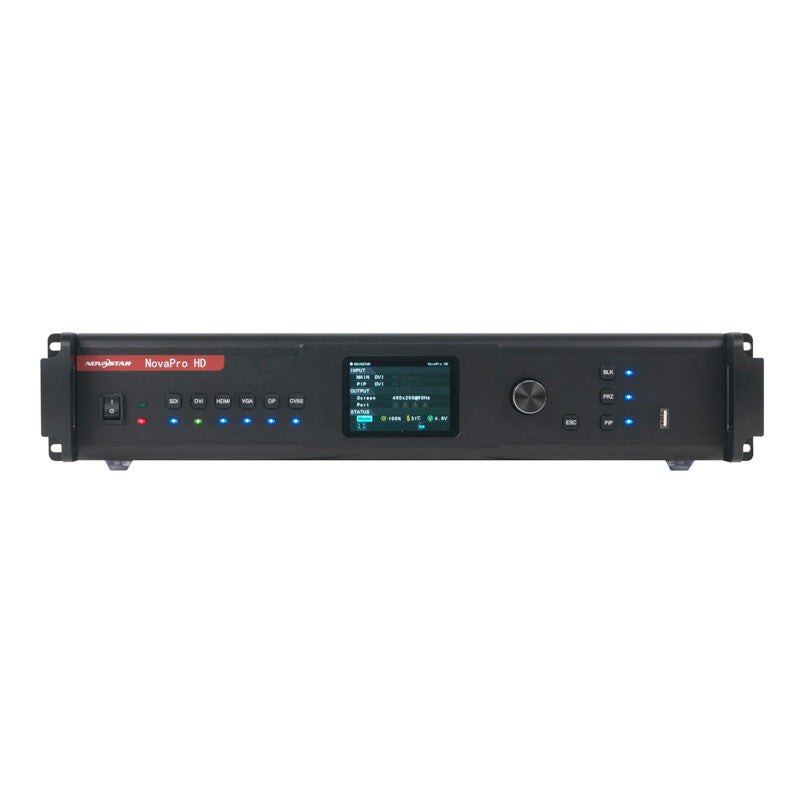

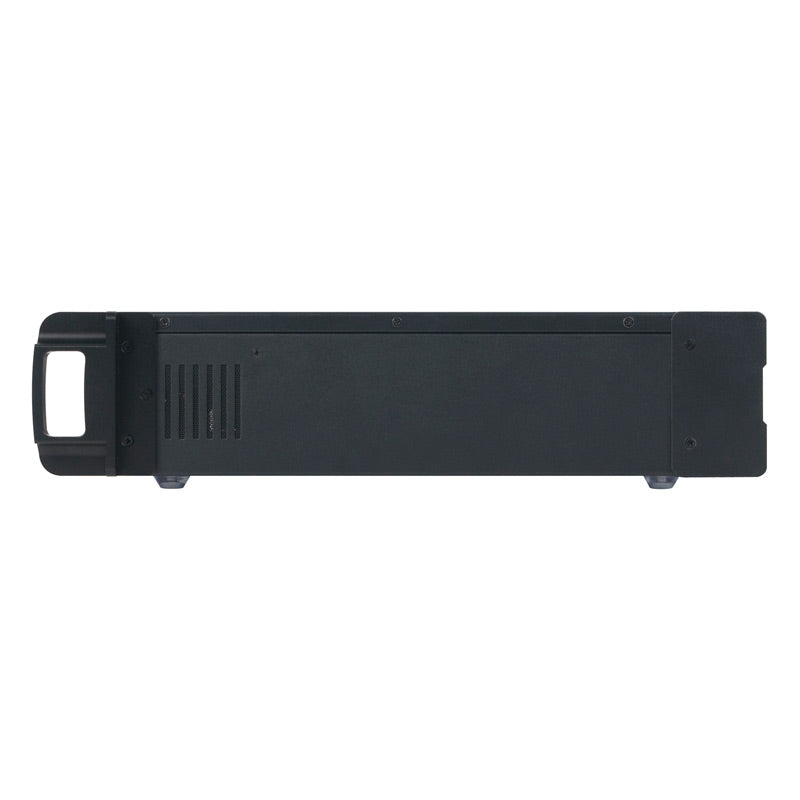

Novastar Novapro HD
This item is discontinued
The new NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / 3G-SDI, up to 1080p @60Hz input resolution, 165MHz pixel clock and 4G-Bit output bandwidths. NOVAPRO HD is compatible with all of ADJ's current video products.
Novastar Novapro HD
Sale price$0.00
Novastar Novapro HD
No Computer or External Scaler Needed (standard rectangular layouts only)Up to 1080p @60Hz Input Resolution165Mhz Pixel Clock / 4G-Bit Output BandwidthMultiple Video Signal Format SupportCascade Multiple Units TogetherRack Mountable Aluminum Enclosure (screws not included)
Specifications
CONTROL / CONNECTIONS

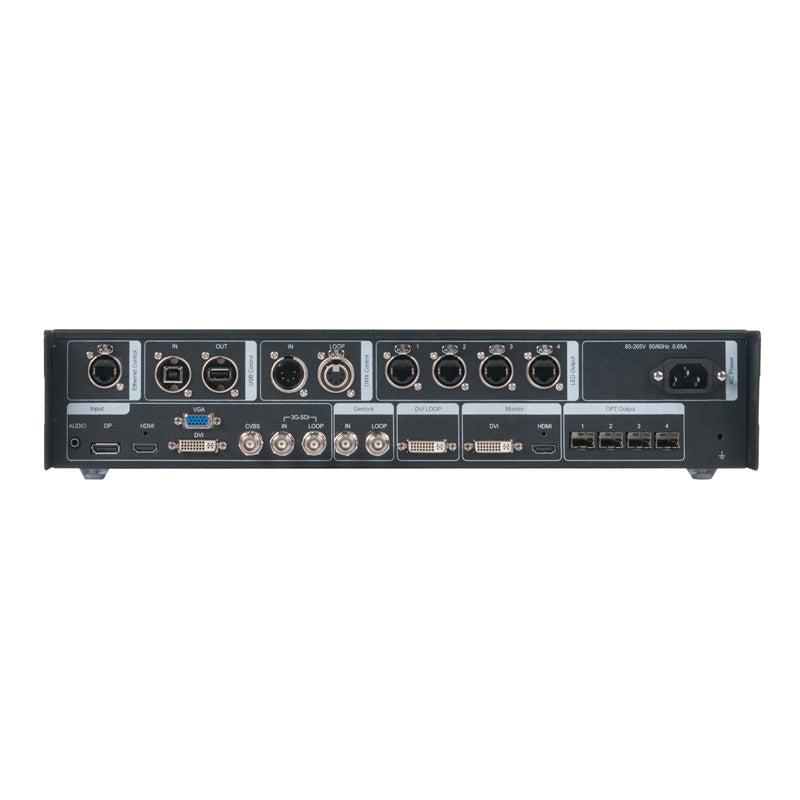

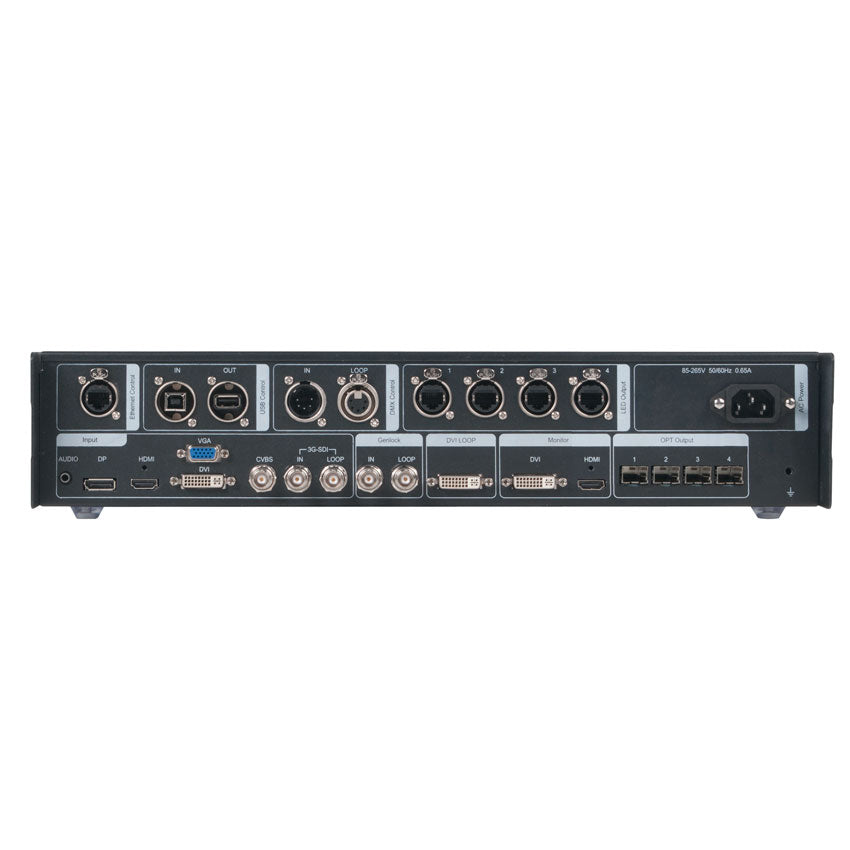

(1) Input and (4) Output RJ45 EtherCON Ports
USB, 5pin DMX, and GenLock In/Out Ports
Audio Input: 1/8 inch connector
Video Input: DP / HDMI / VGA / DVI / CVBS / 3G-SDI
Locking IEC Power Input
SIZE / WEIGHT
Length: 19.0” (483mm)
Width: 15.3” (389mm)
Height: 3.5” (88.2mm)
Weight: 13.2 lbs. (6.0kg)
ELECTRICAL
AC 85-265V - 50/60Hz - 0.65A
Max Power Consumption: 30W
Specifications and documentation subject to change without notice.
