NET 4
This product is CE certified.
This product is ETL certified.

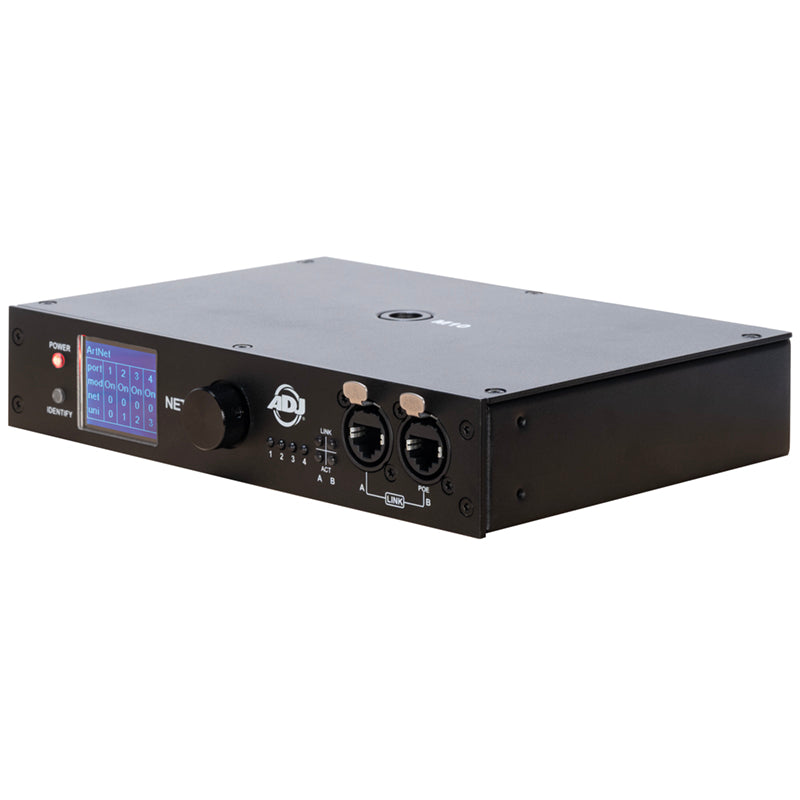

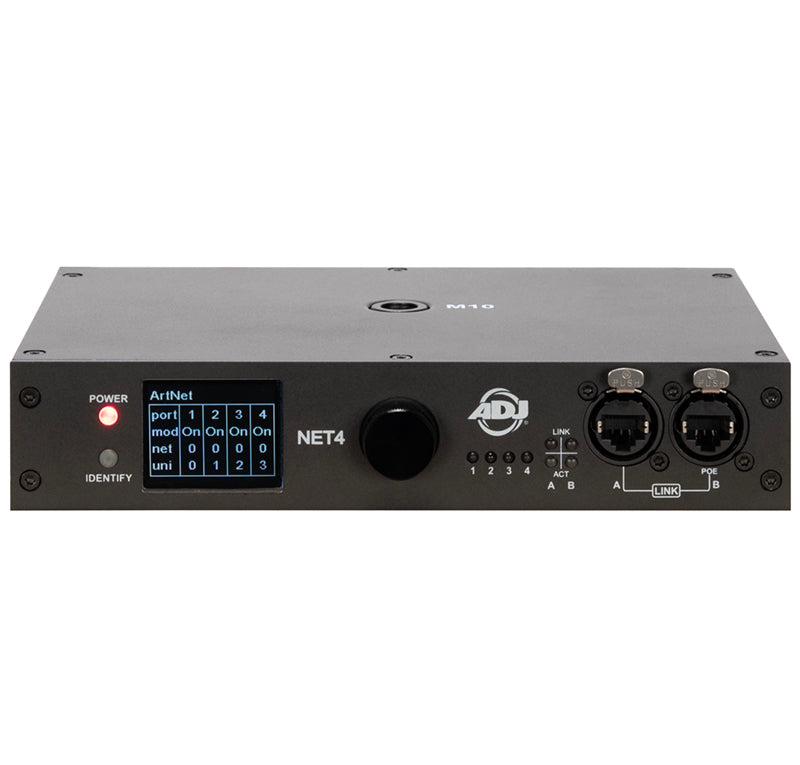

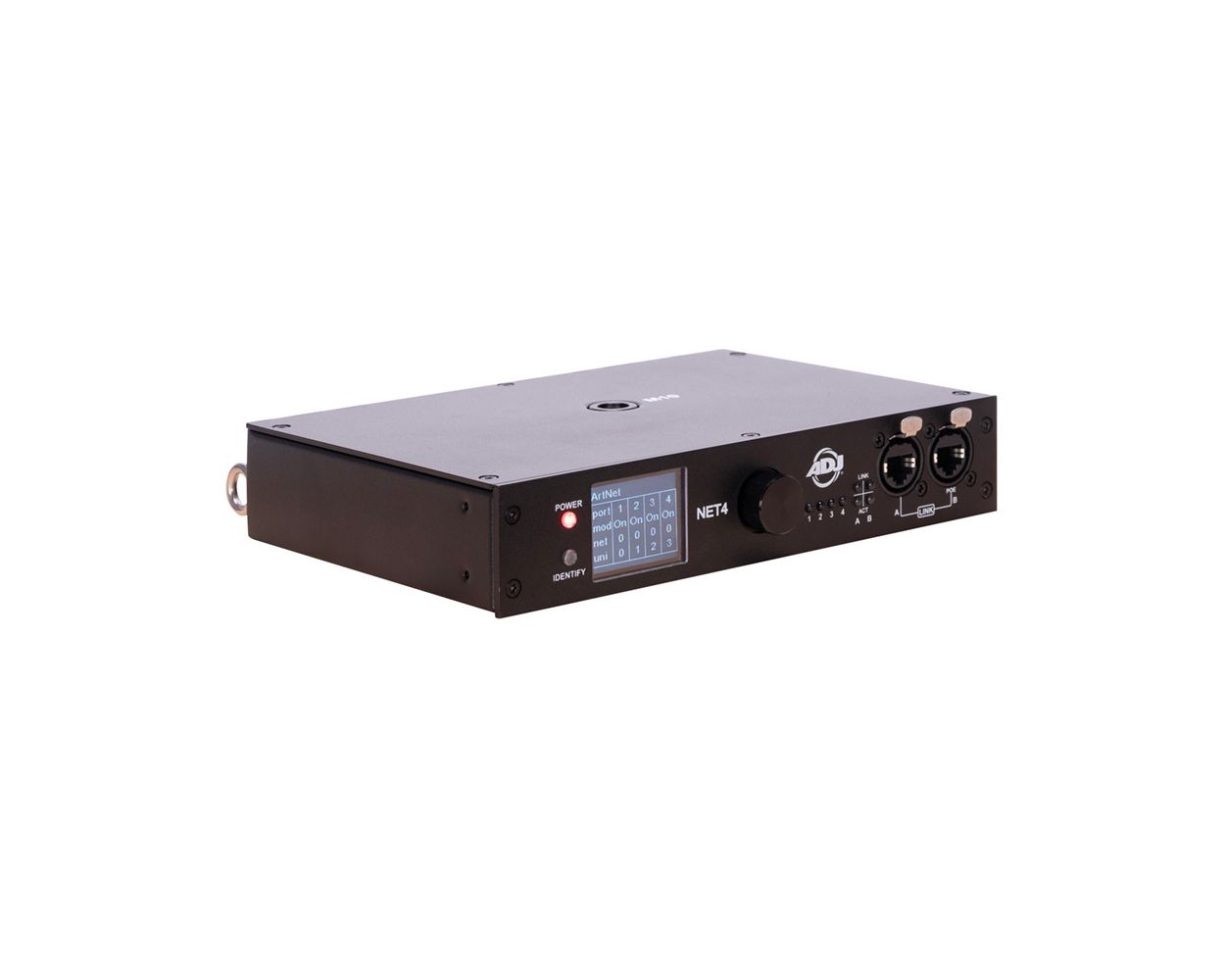

NET 4 is a versatile 4-port DMX over Ethernet node that can be truss mounted with M10 or M12 threads or rack mounted using the optional Aria X2 shelf. It is compatible with DMX-512, RDM, Art-Net and sACN protocols, ensuring a broad spectrum of integration possibilities. The 1.7-inch LED display facilitates easy configuration, allowing you to fine-tune settings and monitor status at a glance.
NET 4
Sale price$0.00
NET 4
ARRIVING MAY 2025
NET 4, a cutting-edge 4-port DMX over Ethernet node that revolutionizes your lighting control experience. This versatile node supports Art-Net, sACN, DMX and RDM protocols, providing a seamless integration platform for your dynamic lighting setups. Whether you prefer traditional Line Voltage or the convenience of Power over Ethernet (PoE), NET 4 empowers you with flexible power options to suit diverse installation scenarios.
Configuring NET 4 is a breeze, offering the choice between DHCP or Static IP Address settings. This adaptability ensures that the node seamlessly integrates into your existing network infrastructure. What sets NET 4 apart is its user-friendly interface, allowing configuration adjustments from the unit menu or the convenience of a web browser. Whether you’re on-site or managing your lighting system remotely, NET 4 puts control at your fingertips.
Specifications
Features:
- ArtNet / sACN /DMX, 4 Port Node
- Line Voltage or Power over Ethernet (PoE) powered
- DHCP or Static IP Address
- 1.7”LCD Display
- Configurable from unit menu or web browser
Protocols:
- DMX512
- RDM
- Artnet
- sACN
Physical:

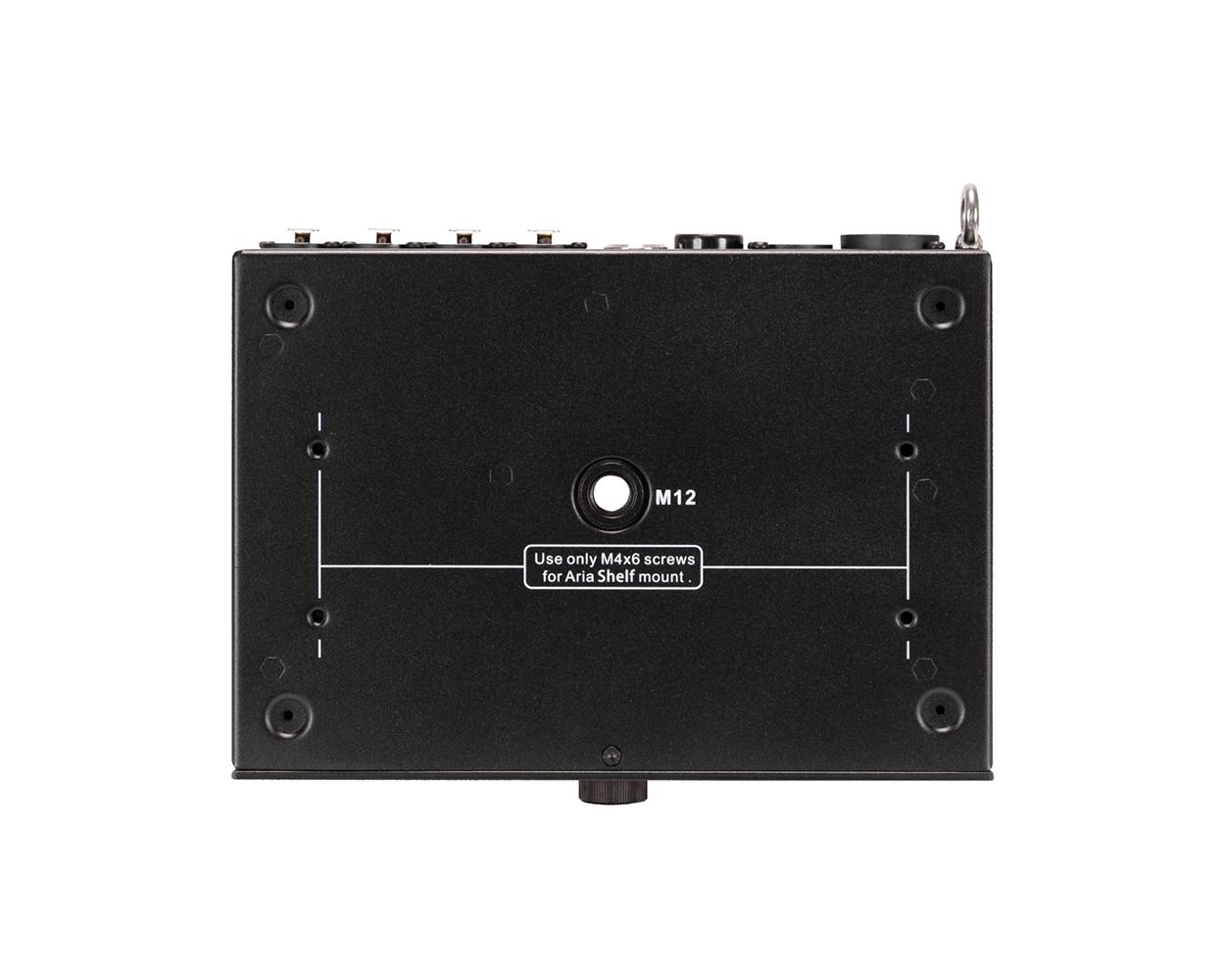

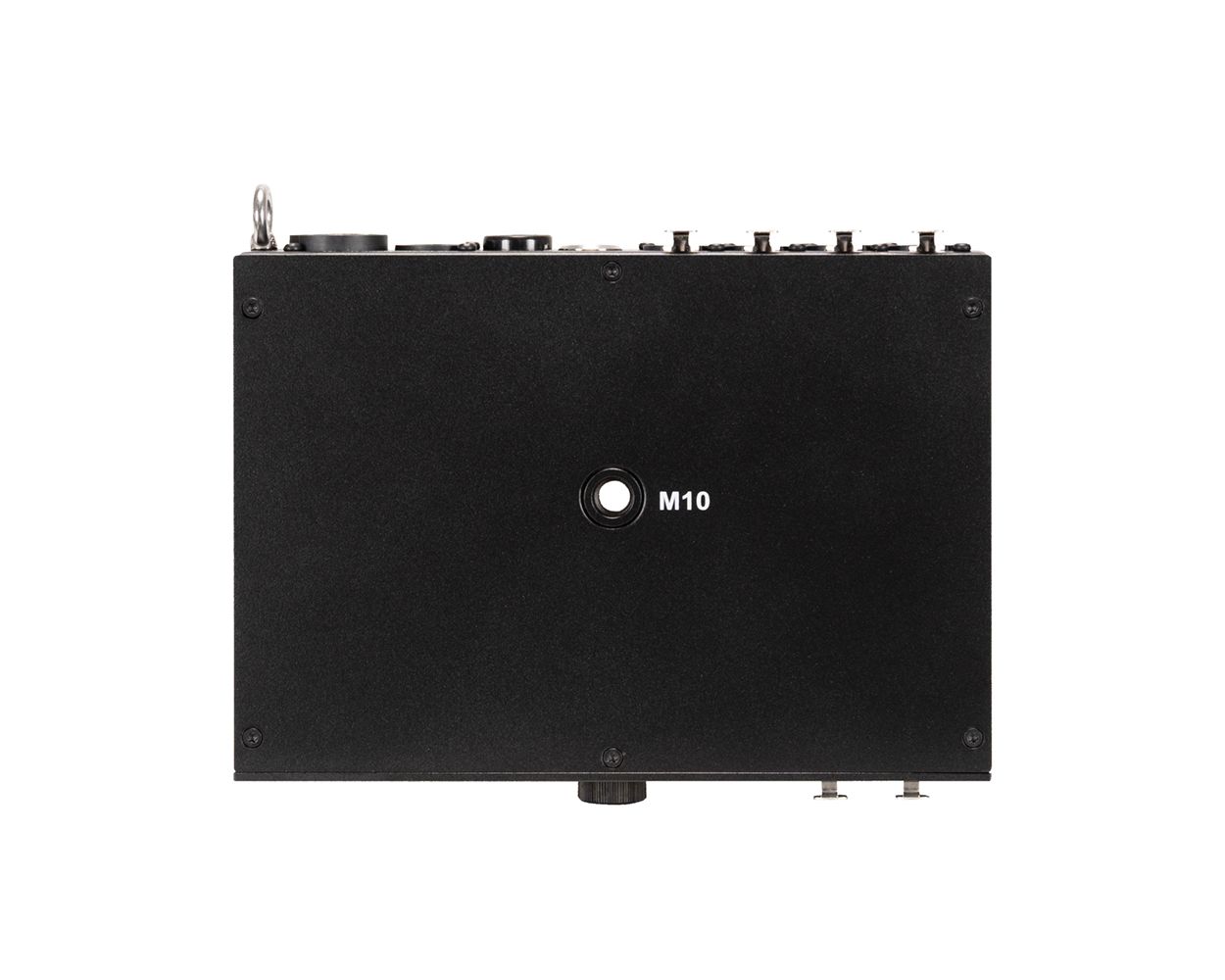

- M10 amp; M12 Threads for rigging

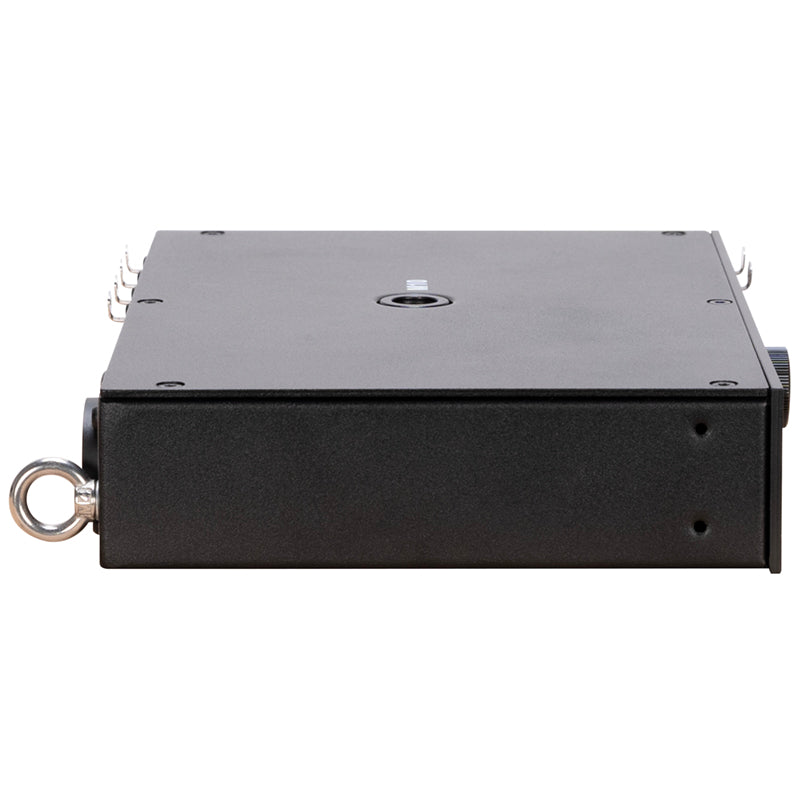

- Safety eyelet
- 2x Indoor RJ45 Input amp; Output

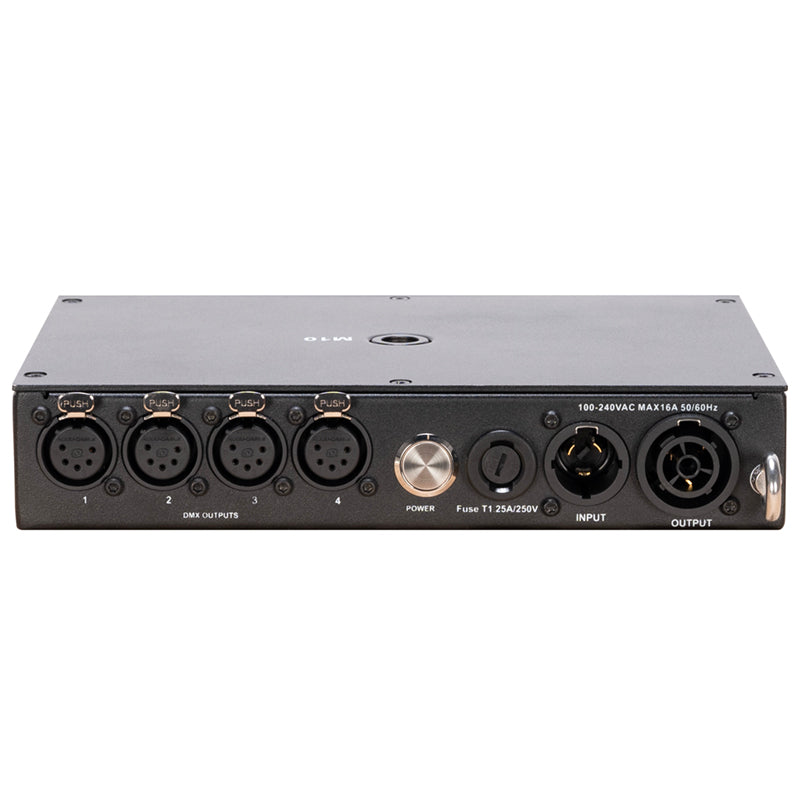

- 4x 5pin XLR Input / Output
- Length: 5.93" (150.5mm)
- Width: 8.48" (215.3mm)
- Height: 1.66" (42mm)
- Weight: 3.16lbs. (1.43kg)
Power:
- AC Input 95-240V,50/60Hz
- PoE 802.3af
- AC Power: 15W
- PoE Power: 15W
- Power Consumption: 118mA 5W (AC100V), 104mA. 5W (AC120V), 66mA 5W (AC230V)
- Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
Thermal:
- Ambient Operational Temperature: 32°F to 113°F (0°C to 45°C)
- Humidity: lt;75%
- Storage Temperature: 77°F (25°C)
Certifications amp; IP Rating:
- CE
- UKCA
- cETLus (Control # 5014475)
- FCC
- IP20
Included Accessories:
- Outdoor locking power cord
Optional Accessories:
- Aria X2 Shelf
- 35mm Din Rail adapter (2pcs. Required)
Specifications subject to change without notice.
