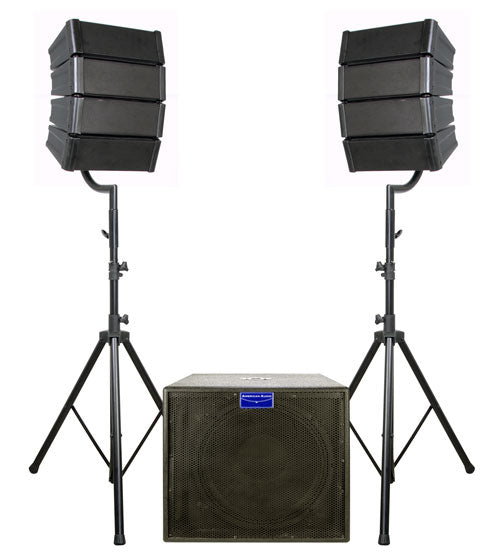

MRAY 4 SYSTEM

This product is CE certified.
This item is discontinued

UPC: Z-CDB8325SKU: Z-CDB8325

MRAY 4 SYSTEM

Specifications

  • 2 MIC inputs - Gain (1/4 inch)
  • RCA Line input
  • XLR Input/XLR Input
  • XLR Output line for multiple units
  • Adjustable high cut filter (80-200Hz)
  • Sub Phase (0°- 180°)
  • Sub woofer independent volume
  • Low cut filter 22, 80, 125 (Sub only)
  • Balance control EQ low
  • +10/-10 2 band EG log + high
  • Multi-voltage switch: 120V/60Hz or 230V/50Hz
  • NL4 connection to speaker
  • 500W RMS Sub @ 8 ohms
  • 150W RMS x 2 speakers @ 8 ohms
  • Signal, Clip and Protect LED indicators (x3)
  • Casters for easy transport
  • Built-in handles
  • Ported sub
  • Impedance: 8 ohms
  • Frequency Response: 40Hz-800Hz
  • Power Handling: 200W(RMS)/600W(Peak)
  • Low Frequency: 15''(385mm), 2.5''(65mm)Voice coil
  • Sensitivity: 100dB
  • Dimensions: 21 x 25 x 18 in. / 514 x 635 x 458mm
  • Weight: 110 lbs / 50kg
  • Array style speakers
  • NLA connectors
  • Spring wire connectors
  • 2 x Curve pole mount adapters with necessary hardware
  • Impedance: 8 ohms
  • Frequency Response: 120Hz-18kHz
  • Power Handling: 200W(RMS)/600W(Peak)
  • Sensitivity(1w/1m): LF 92dB/HF:102dB
  • Nominal Coverage Angle(-6db): Horizontal: 60-degree /Vertical Splay: 20-degree
  • Input Connectors: Locking x2+Screw connect
  • Low Frequency Driver: 5''(118mm), 1.0''(25.5mm) Voice coil x 4
  • High Frequency Driver: 25mm voice coil, 1''(25mm) throat x 4
  • Dimensions: 16 x 10 x 5.4 in. / 408 x 250 x 135mm
  • Weight: 9 lbs / 4 kg.
  • Output Power: 1 x Subwoofer: 450W (RMS) +2 x Arrays: 150W (RMS)
  • Input Connectors: 2x LR
  • Output Connectors: 2xLR+2 locking connections
  • Controls: 2-Band EQ: Subwoofer, Level, Master
