Monster Quad
This item is discontinued

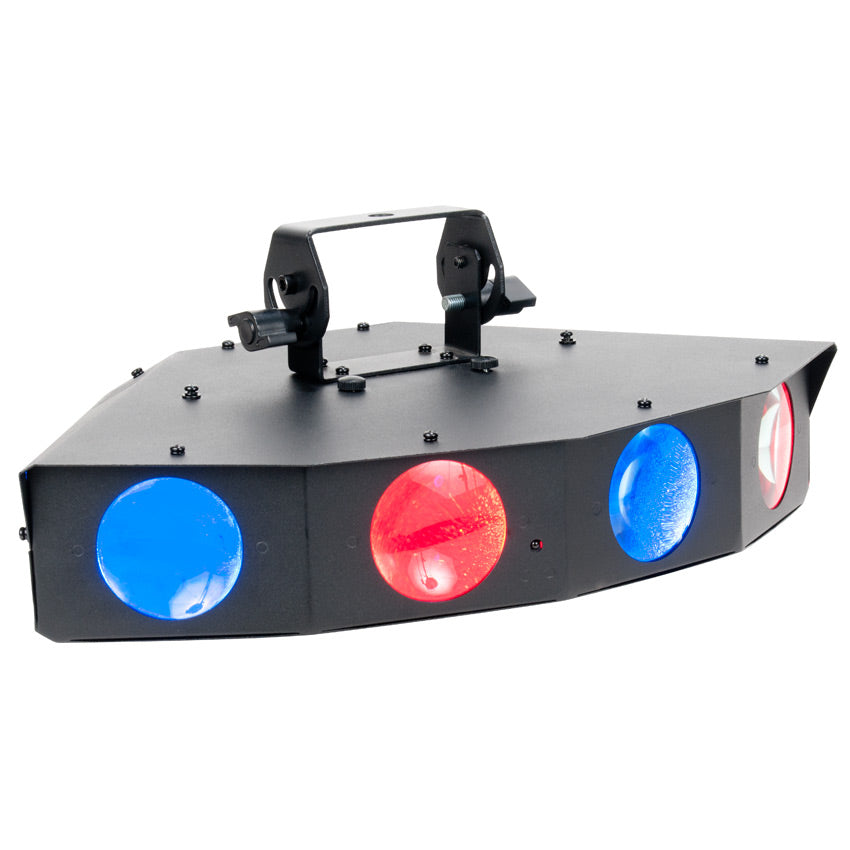

The ADJ Monster Quad is a four lens high output Moonflower effect that is powered by 25 1-Watt RGBWA LEDs and covers a large area of a dance floor and bring pure lighting excitement to any party
Monster Quad
Sale price$0.00
Video
Monster Quad
The ADJ Monster Quad is a four lens high output Moonflower effect that is powered by 25 1-Watt RGBWA LEDs (5x Red, 54x Green, 5x Blue, 5x White, & 5x Amber). With a very wide 93-degree beam angle, vibrant colors and 12 built-in shows, the Monster Quad covers a large area of a dance floor and bring pure lighting excitement to any party. The fixture features stand alone and Primary/Secondary configuration with 3 operational modes: Sound Active, Show Mode or DMX Control. Users may also control this LED Moonflower using a DMX software or hardware controller, or from the ADJ’s UC-IR infrared remote. On the rear panel user can change the functions of the Monster Quad with the 4-button LCD display, daisy chain the power via IEC connections and link multiple fixtures via 3-pin DMX cables. There is a safety loop on the rear panel as well to be used with safety cable.
Specifications
- Quad lens LED Moonflower Effect
- 25x 1W RGBWA LEDs (5x Red, 5x Green, 5x Blue, 5x White, 5x Amber) (Rated at approximately 50,000 hours)
- Beam Angle: 93-Degrees
- Stand Alone or Primary/Secondary Configuration Set Up
- 3 Operating Modes: Sound Active/Show Mode/DMX Control
- 1 DMX Channel
- 12 Built-In Light Shows
- ADJ UC-IR Remote compatible (Sold Separately): Control Stand By, Full On, Color, Strobe, Speed, Sound, Show Dimming

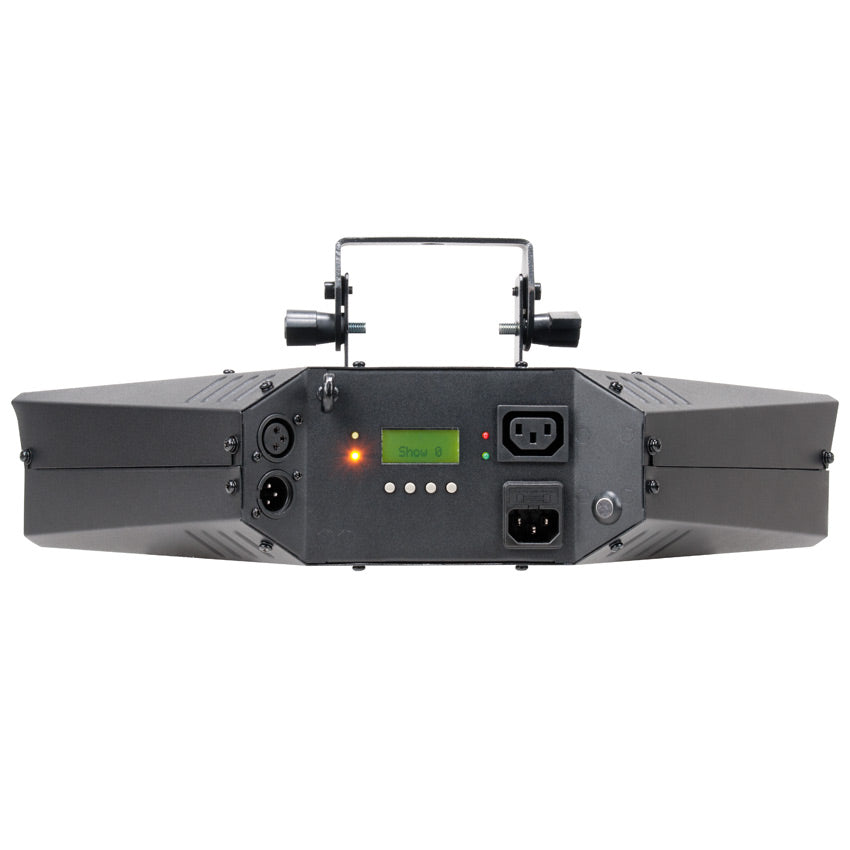

- 4-button DMX LCD display on rear panel
- Linkable via 3-pin XLR cable
- IEC Power Cord Daisy Chain (6 Fixtures Max @ 120V and 10 Fixtures Max @ 230V)
- Includes single yoke to mount on wall or from trussing bracket
- Safety Loop on rear panel
- Multi Voltage: AC 100V-240V 50/60Hz (Auto Sensing)
- Power Consumption: 73W
- Dimensions (LxWxH): 18.25” x 11.25” x 6.5” / 460 x 285 x 167mm
- Weight: 8 lbs. / 3.4 kg.
Monster Quad Parts & Service
Our Monster Quad Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Monster Quad. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
