Mirage Q6 Pak Black
This product is CE certified.
The ADJ Lighting Mirage Q6 Pak Black is an all-in-one event up lighting system with six (6) IP65 rated, for outdoor or indoor use, battery powered fixtures in a durable flight case with an on-board battery charging solution.
Mirage Q6 Pak Black
Sale price$0.00
Video
Mirage Q6 Pak Black
Available now from ADJ USA
The ADJ Lighting Mirage Q6 Pak Black is an all-in-one event up lighting system with six (6) IP65 rated, for outdoor or indoor use, battery powered fixtures and a durable flight case with an on-board battery charging solution.Each Mirage Q6 IP Black fixture is powered by four (4) 10W RGBA LEDs that produce a 11-degree beam angle. The fixture is IP65 rated and is waterproof; suitable for temporary use outdoors with protection against the elements (rain, snow, dust and sand). Built-in Aria X2 Wireless Management System allows for the fixtures to communicate with a lighting controller up to 2,500 feet (700M) away.

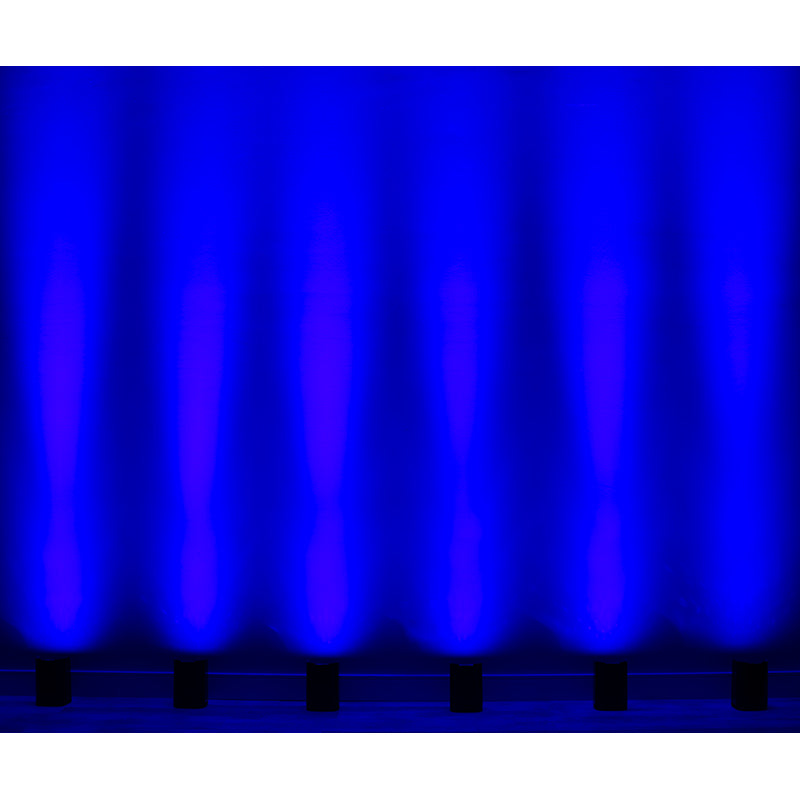

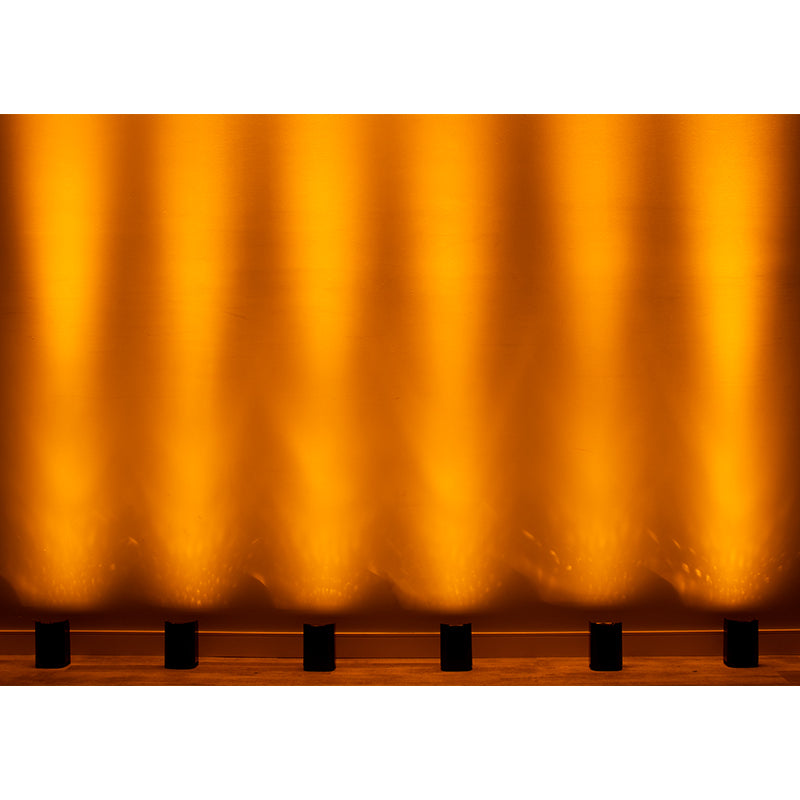

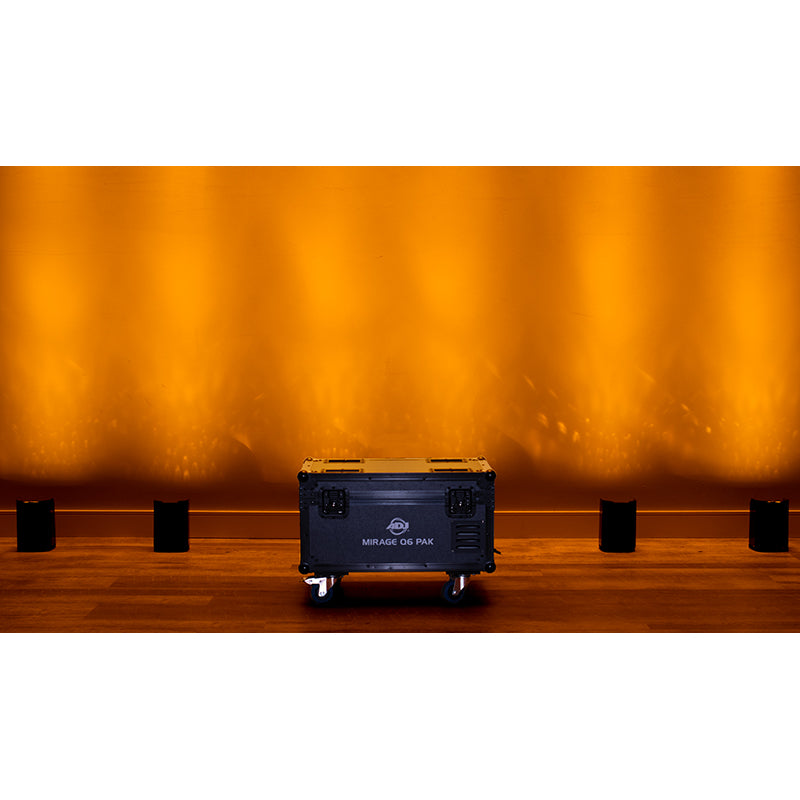

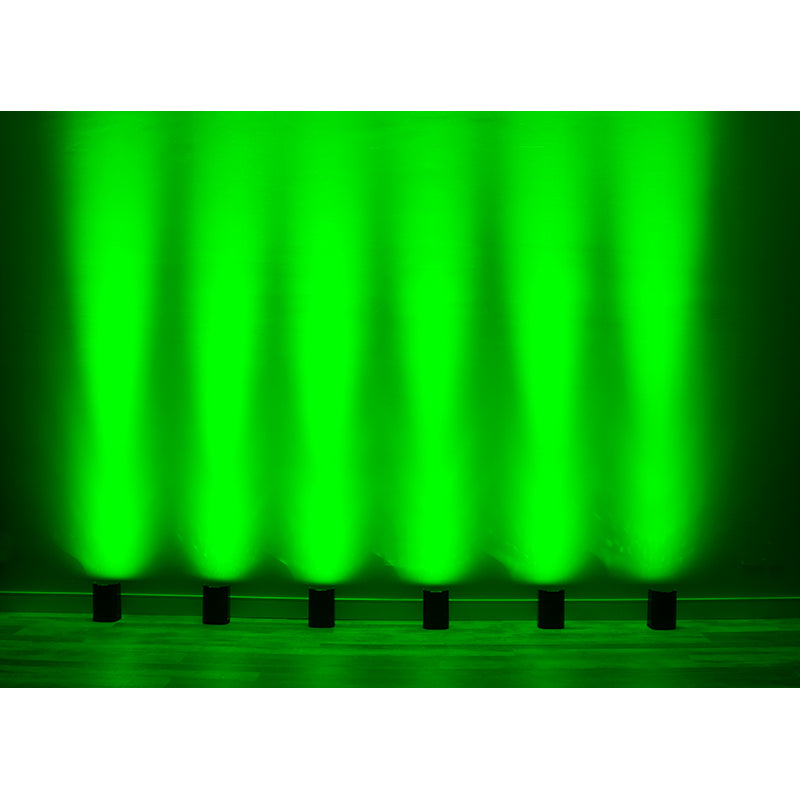

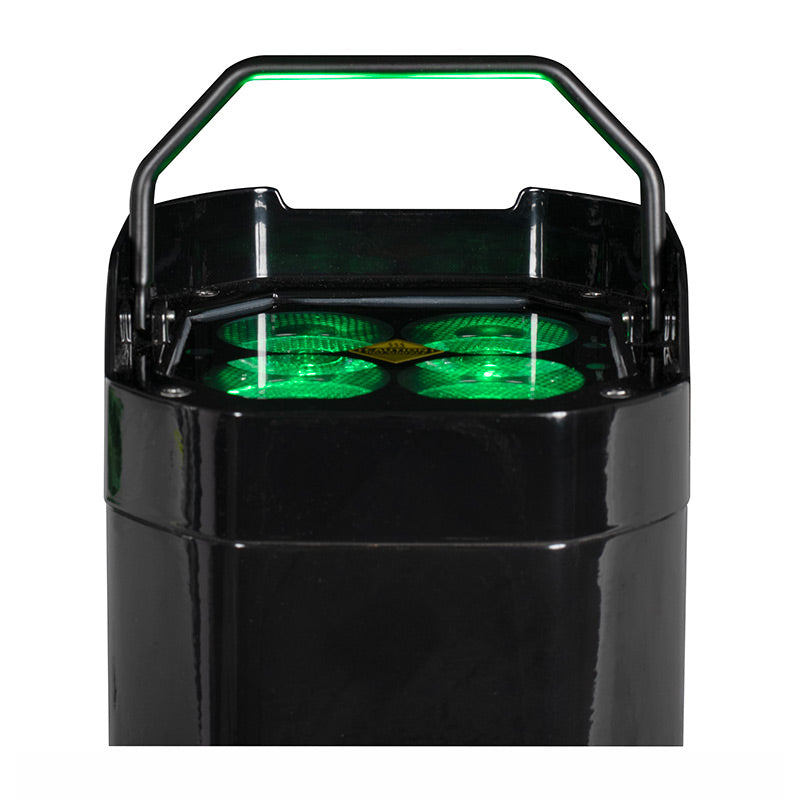

Ideal for wall washing, Mirage Q6 IP Black fixtures are all fitted with an integral carry handle and built-in feet which mean they can simply be dropped in place and are ready to go. They also feature a built-in kickstand which allows the beam to be easily angled inwards towards a wall if required. This creates a more intense wash and minimizes light spill onto the ceiling above.

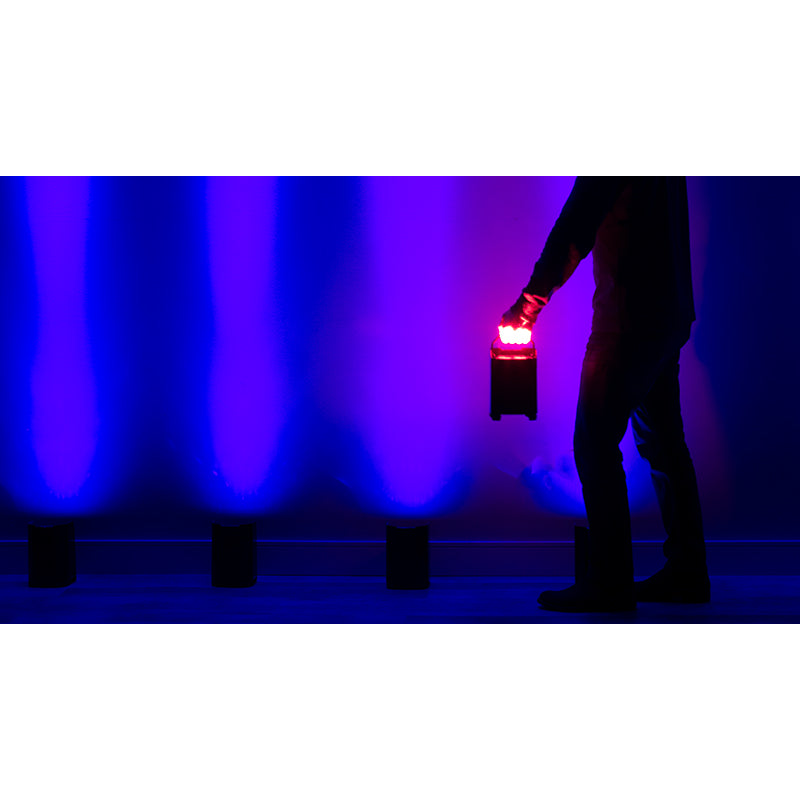

Each fixture has an alarm system with on/off controls. If someone picks up the fixture with the alarm system on, the fixture will make a beeping sound and strobe in red.
The robust battery will operate up to 40 hours on a single color (20 hours changing colors). The battery charge time is 7 hours.
Specifications

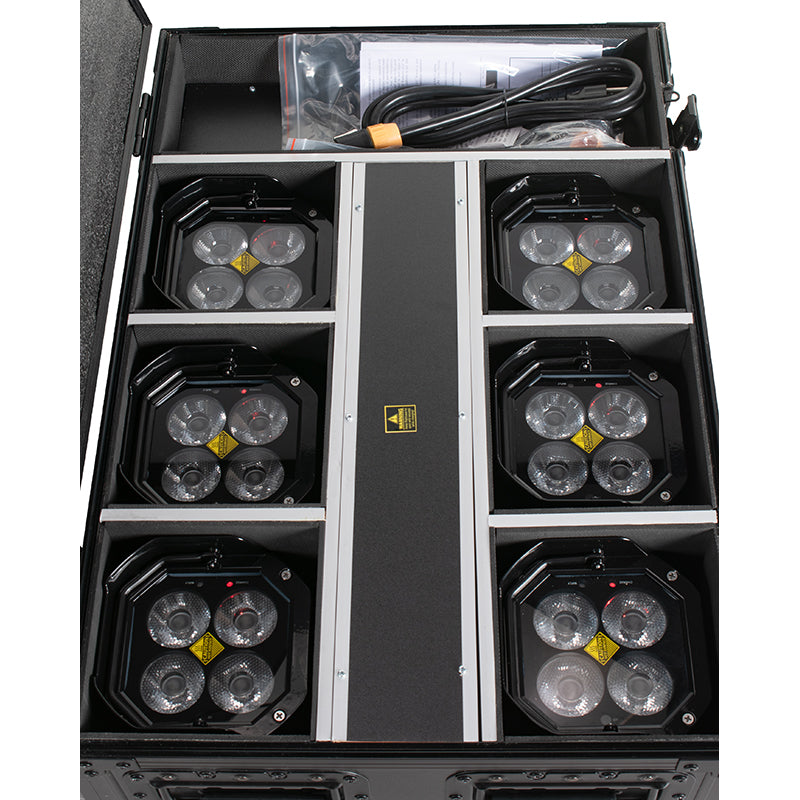

MIRAGE Q6 PAK INCLUDES:
• (6) MIRAGE Q6 IP Black Fixtures

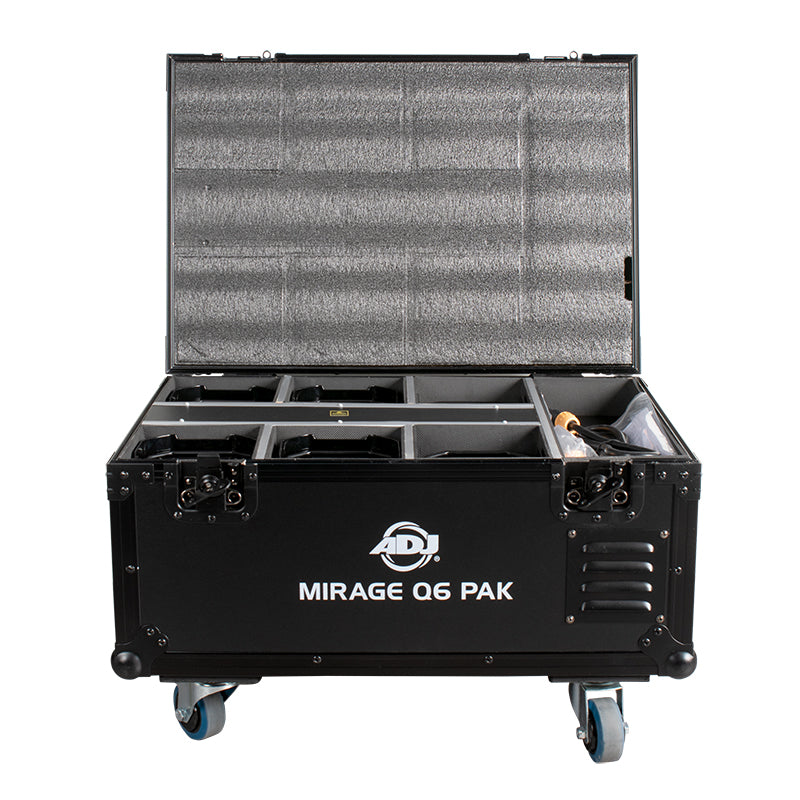

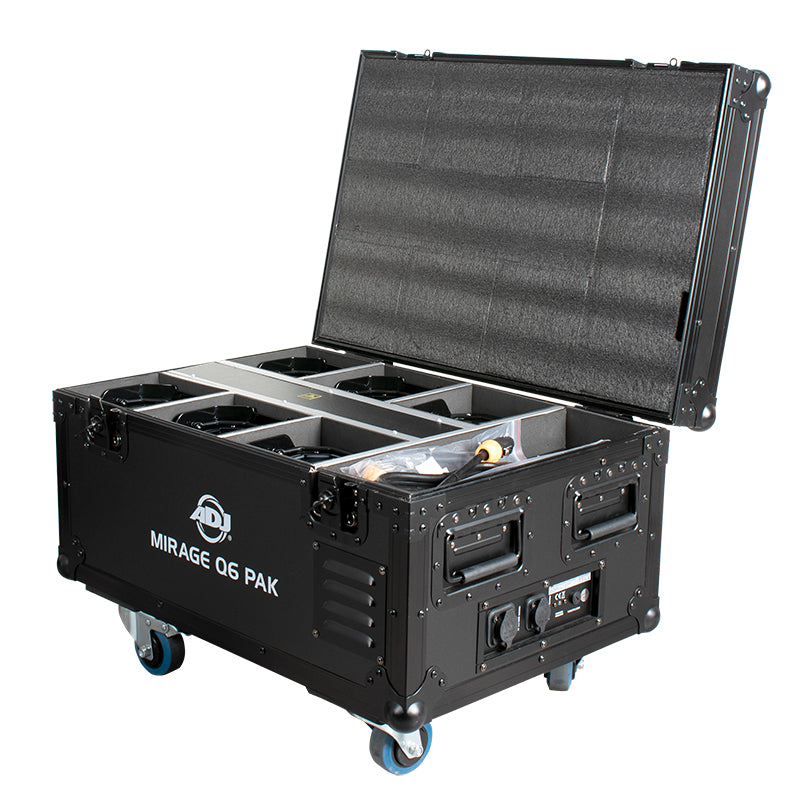

• (1) MIRAGE Q6 FC Flight Case
• (6) MIRAGE Q6 IPCB Charging bases and power supplies

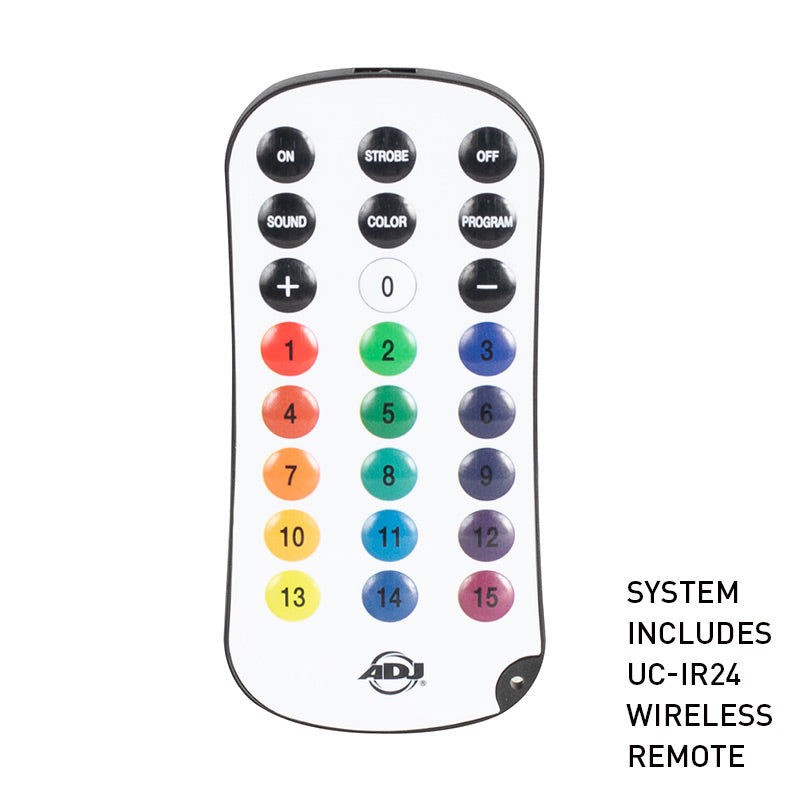

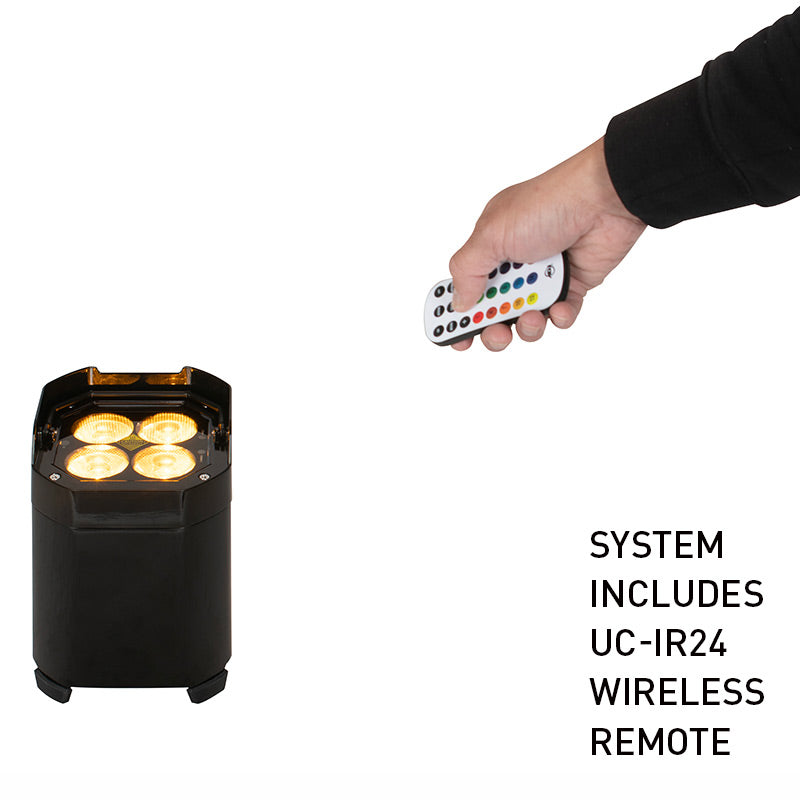

• (1) UCIR24 Wireless Infrared Controller
• (1) IP65 Locking Power Cable
MIRAGE Q6 PAK FEATURES:

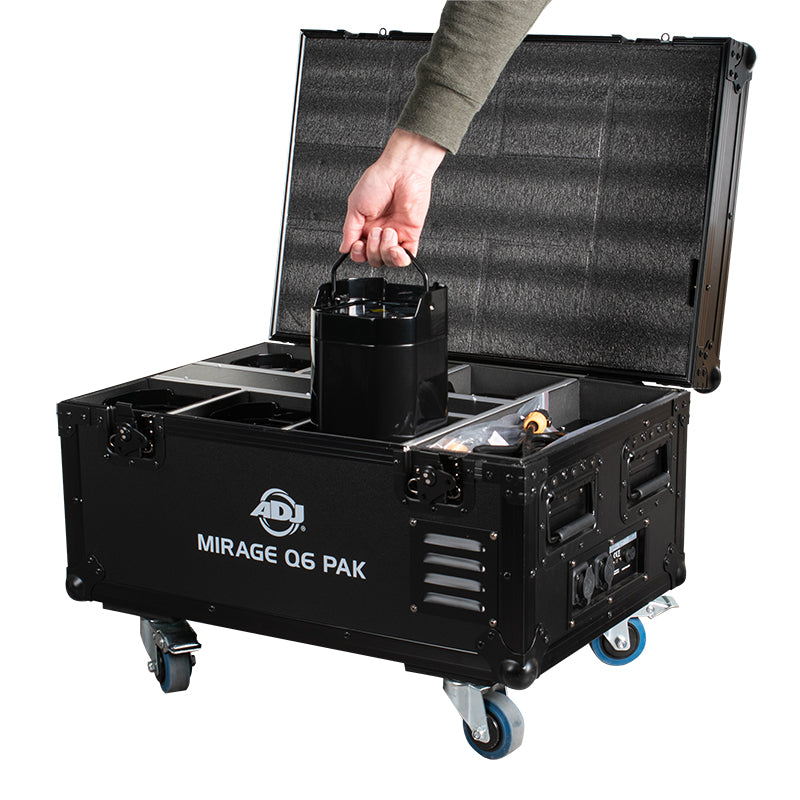

• Houses / Transports and Charges (6) MIRAGE Q6 IP™ BLACK fixtures
MIRAGE Q6 PAK DIMENSIONS / WEIGHT (loaded case with 6 fixtures):
• Length: 26.4” (671mm)
• Width: 18.2” (461mm)
• Vertical Height: 18.1” (459mm)
• Loaded Weight: 97.9 lbs. (44.4 kg)

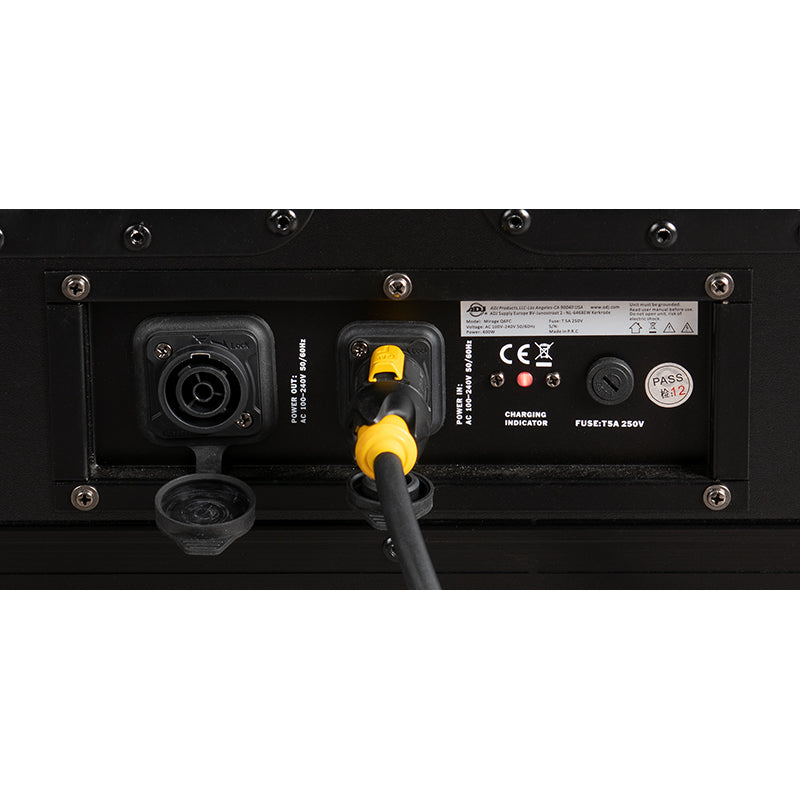

PAK ELECTRICAL / THERMAL:
• Power Input: AC100VAC~240VAC, 50/60Hz
• IP65 Power Locking Input and Output
• Max Power Consumption: 400 Watts
• Power Draw: 4A
• Charge status indicator
• 14°F to 113°F (-10°C to 45°C)

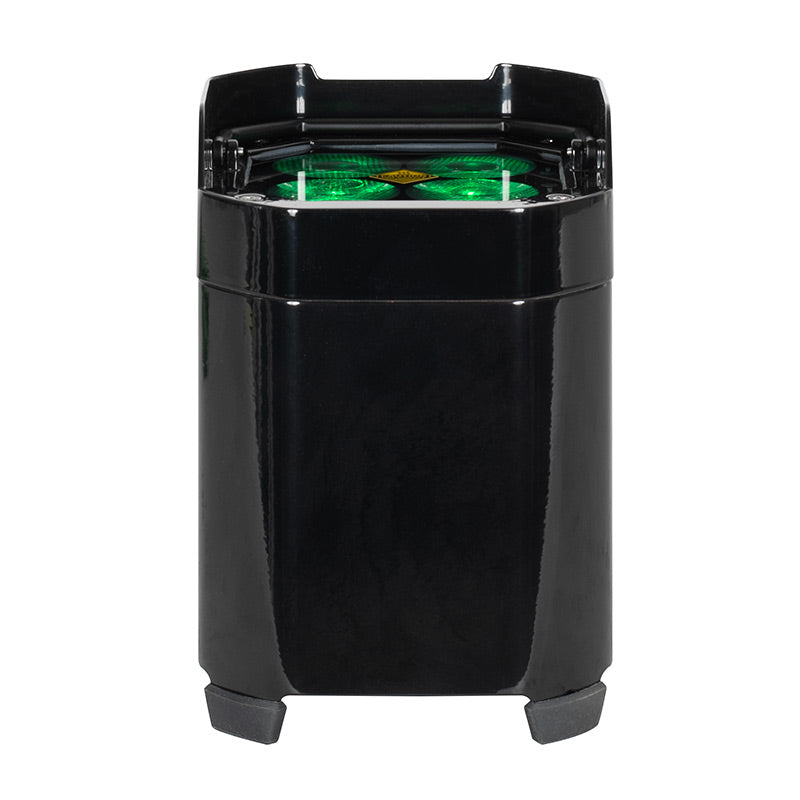

MIRAGE Q6 IP BLACK FIXTURE
FIXTURE SOURCE:
• 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
• 50,000 Hour Average Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA:
• LUX: 9903 @ 2M; 2303 @ 4M
FIXTURE OPTICS:
•11-degree beam angle
FIXTURE CONTROL / CONNECTIONS:
• Control protocol: Aria X2 Wireless Management System
• 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
• Remote control: Aria X2 BLE App and UCIR24 (Included)
• 5 Operation modes: RGBA Dimmer Mode; Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Aria X2 Wireless Management System
• With Wired Digital Communication Network
• Contact Charging system. 6x Charging bases and power supplies included in flight case
FIXTURE FEATURES:
• IP65 Outdoor Rated

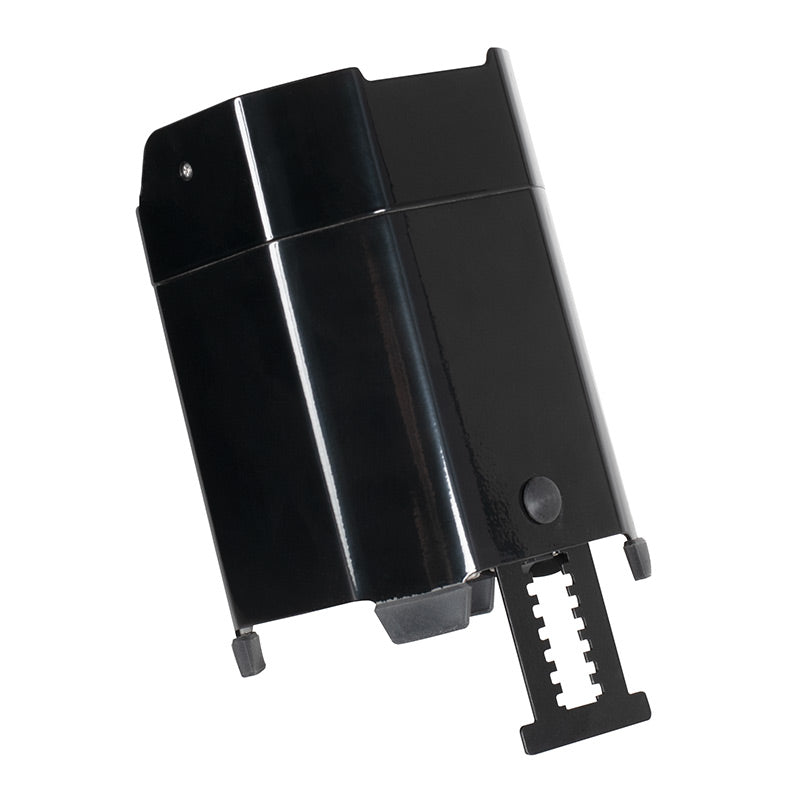

• Built-in kickstand to angle fixture when sitting on the floor

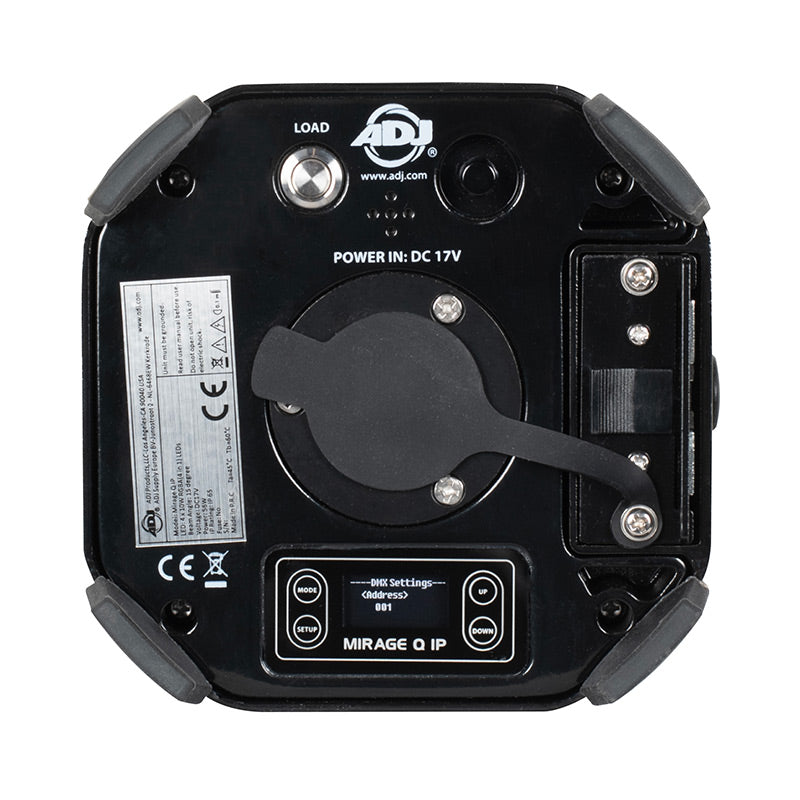

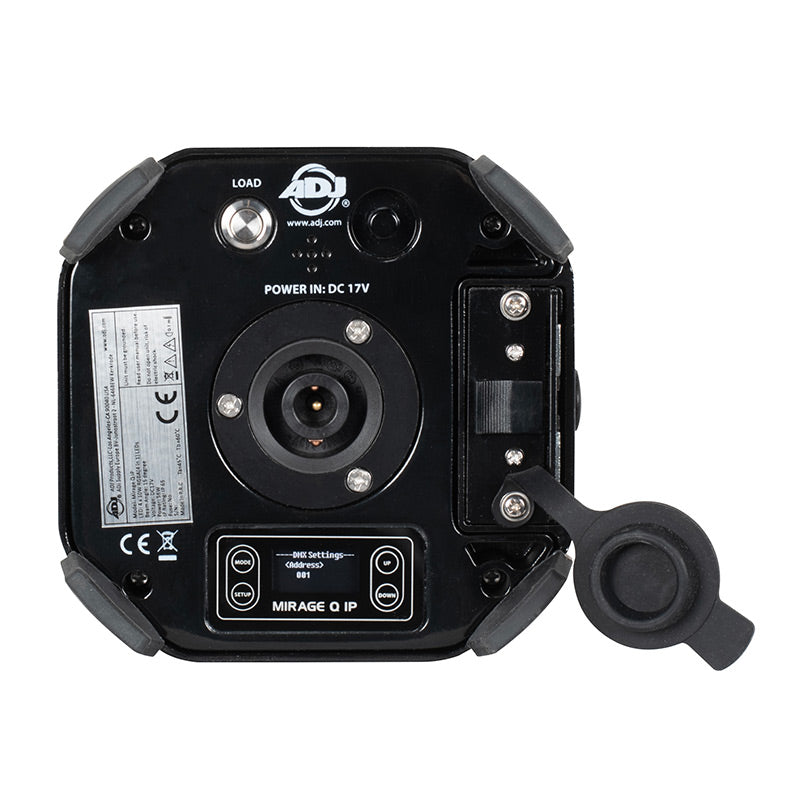

• 4-touch button OLED display on rear panel
• Built-in wireless DMX: Up to 2,500 feet (760M)
• Aria X2 BLE App (Compatible with iPhone and iPad)
• Battery Transceiver
• 64 built-in Color Macros
• Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
• Run all night – No duty cycle
• Energy Save Mode
• Built-in alarm system with On/Off
• Battery charge indicator on each fixture
• Die-cast aluminum housing
FIXTURE BATTERY:
• Battery Type: Fixed lithium battery
• Battery Energy: 162.8WH (Watt Hours)
• Battery Weight: 0.84 kg.
• Battery Voltage: 14.8V
• Battery Capacity: 11000mAh (Typical Capacity)
• Total Lithium Ion Cells: 20 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 7 Hours
• Battery Life: 14 hours (When color changing in Battery Saver Mode 14); 40 hours (When set to a single color in Battery Saver Mode 14) Battery Saver Mode 14 is available in software V1.03>
FIXTURE DIMENSIONS / WEIGHT (SINGLE UNIT):
Dimensions
• Length: 5.6” (143.2mm)
• Width: 5.6” (143.2mm)
• Vertical Height: 8.3” (211mm)
• Weight: 8.84 lbs. (4.01 kg.)
FIXTURE ELECTRICAL / THERMAL:
• Power Input: DC 17.3V
• Amperage Draw: 2A
• 40W Max Power Consumption (each unit)
• 14°F to 113°F (-10°C to 45°C)

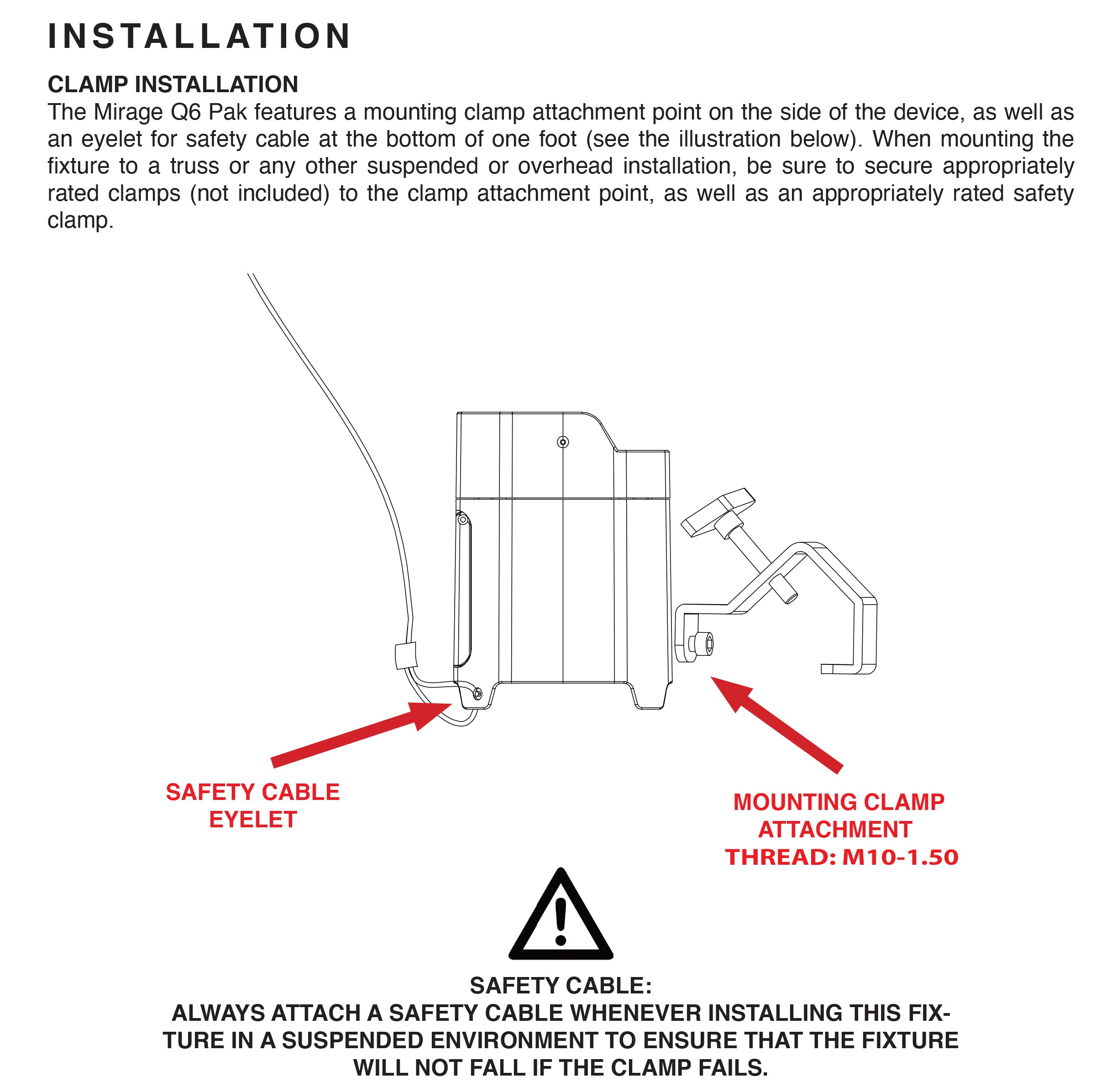

INSTALLATION:
• Rigging: Clamps (Not Included) / Floor
• Working Position: Any (360°)
APPROVALS / RATINGS:
• cETLus (Control # 4002034)
• CE Certified
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Cut sheet
Dimensional drawings
Dmx traits
User manual
