Mega Flat PAK EP
This product is CE certified.
The Eliminator Lighting Mega Flat Pak EP is a convenient solution for the mobile entertainer to provide uplighting or mobile stage at any event. This lighting system includes: 4x Eliminator Lighting Mega Par Profile EP Pars, 4x (1M/3ft.) IEC to Edison power cables, 3x (6ft/2M) DMX Cables and a soft transport bag.
Mega Flat PAK EP
Sale price$0.00

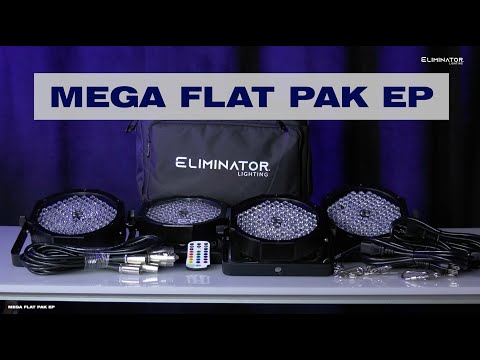

Video
Mega Flat PAK EP
The Eliminator Lighting Mega Flat Pak EP is a convenient solution for the mobile entertainer to provide uplighting or mobile stage at any event It includes four (4) of the popular Eliminator Lighting Mega Par Profile EP LED Wash Fixtures, (4) IEC to Edison power cables, three (3) DMX connector cables, and a soft carrying case to protect your Mega Par Profile EP’s during transport and dust-free while storing.
The Mega Flat Pak EP slim design and vibrant RGB + UV output is perfect for Uplighting, stage washing and wall washing. The carrying case easily fits four Mega Par Profile Plus’s and the DMX cables, plus a space for a small LED Controller (controller sold separately).

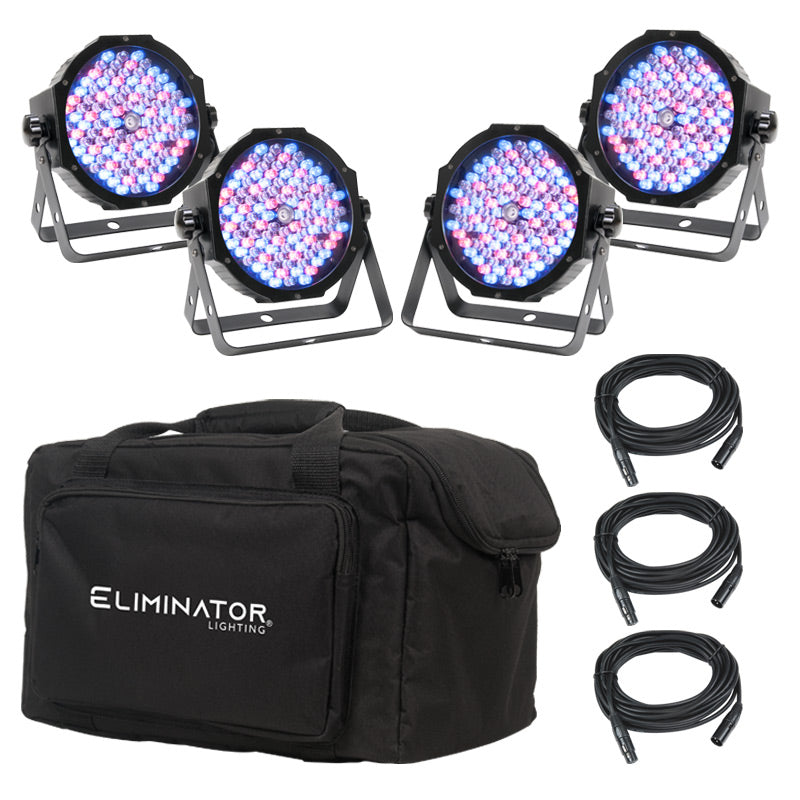

System Incudes:
• 4x Eliminator Lighting Mega Par Profile EP
• 4x (1M/3ft.) IEC to Edison power cables,
• 3x (2m/6 ft) DMX Cables
• 1x Eliminator Lighting F4 Par Bag EP
IEC power link cables sold separately and available in 3, 6, 10 & 15 foot lengths. (Items: ECCOM-3, ECCOM-6, ECCOM-10 & ECCOM-15)
Specifications

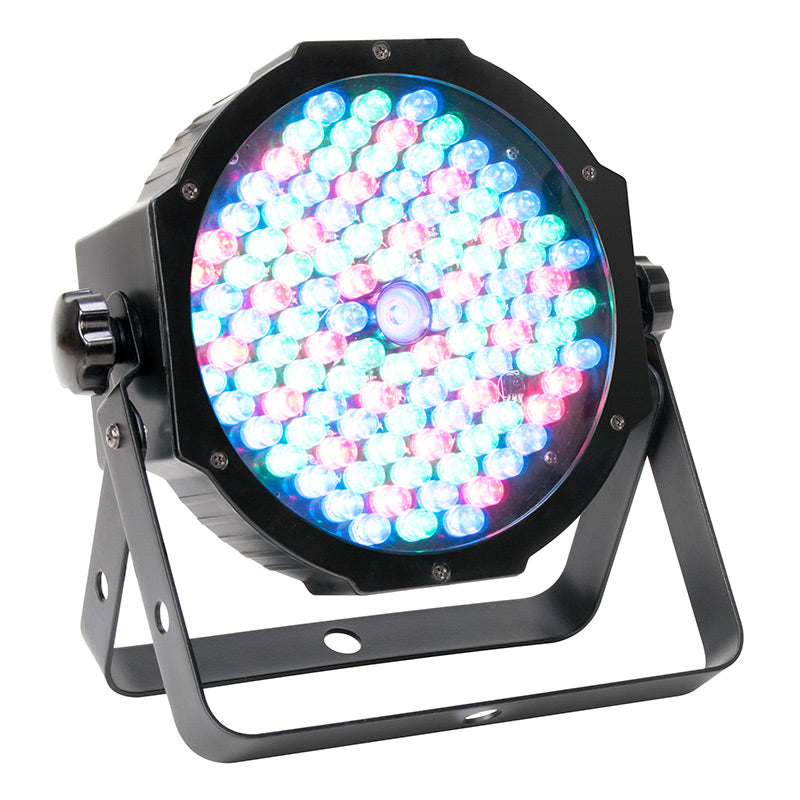

Mega Par Profile EP Specifications:
Source:
• 107x 10mm LEDs (26 Red, 45 Green, 36 Blue LEDs) + 1 3W UV LED)
• Light output: 345 LUX @ 2M; 92 LUX @ 4M (30-degree beam)
• Beam Angle: 30 degrees
• Long Life LEDs (50,000 hrs.)
Features:
• Smooth RGB+UV Color Mixing (fast or slow color change operation)
• Power DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
• Display Inversion Mode
• Color strobe effect
• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (sold separately)
Control:
• 5 DMX Channel modes: 4/5/6/9/10 channels
• 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, DMX Controlled
• 16 Sound Active shows
• 32 Built-in shows (16 Color Changing Shows 16 Color Fading Shows)
• 64 built-in Color Macros
• Stand Alone or Primary/Secondary Configuration
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, Theatre)
• With Wired Digital Communication Network
• Electronic Dimming: 0-100%
• 4-button function display
Connections:
• 3-pin DMX In/Out
• IEC AC IN/OUT on rear to daisy chain power (up to 33 @ 120V and 60 @ 230V)
Electrical:
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power Draw: 16W Max
Dimensions Weight:
• Dimensions (LxWxH): 9”x 8.75”x 3.5”/ 225x220x85mm
• Weight: 3 lbs./ 1.1 kg.
What’s Included:
• Includes scissor yoke to hang on truss, mount on a wall or set on the ground
• Power cable length: 1.8 meter (IEC)
