MDF3

Transform dance floors, stages, and entertainment venues into vibrant illuminated environments with the ADJ MDF3 RGB LED Floor Panel System. Designed for professional lighting applications, the MDF3 combines high-brightness RGB LED technology, a durable tempered glass surface, and a modular design to create colorful, visually engaging floor displays.

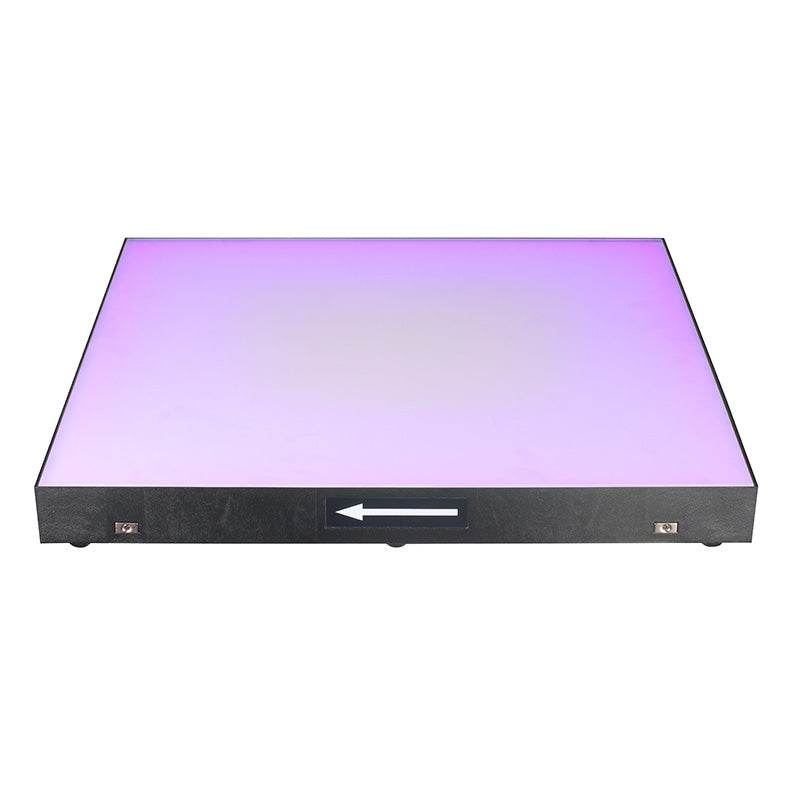

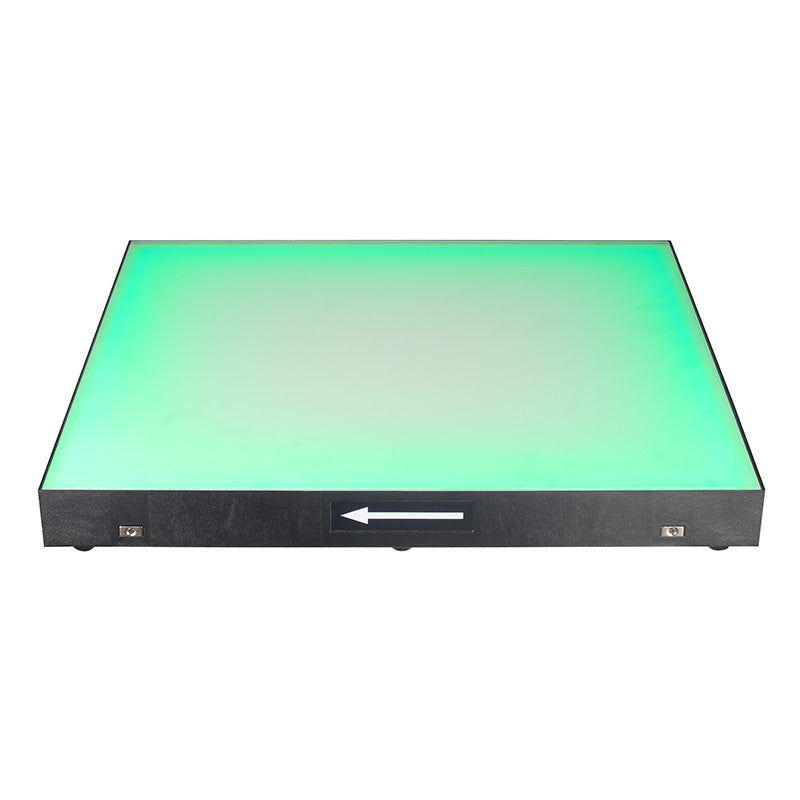

Each MDF3 panel measures 23.6 x 23.6 inches (600 x 600mm) and features RGB 3-in-1 LEDs that produce a wide range of colors and dynamic lighting effects. With a 160-degree viewing angle, the panels provide broad visibility, making them ideal for nightclubs, special events, stage productions, and entertainment installations.

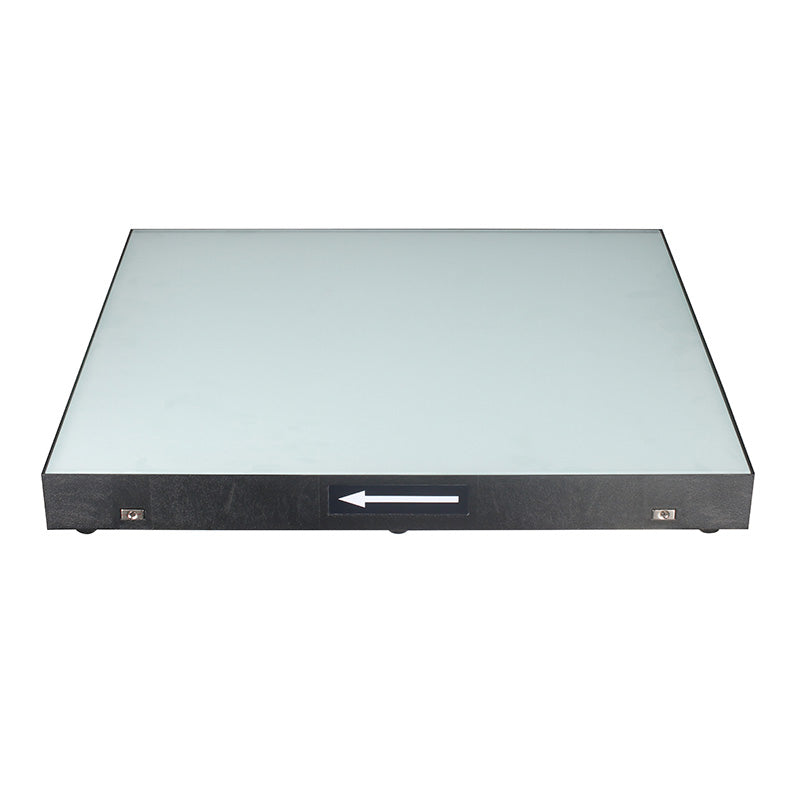

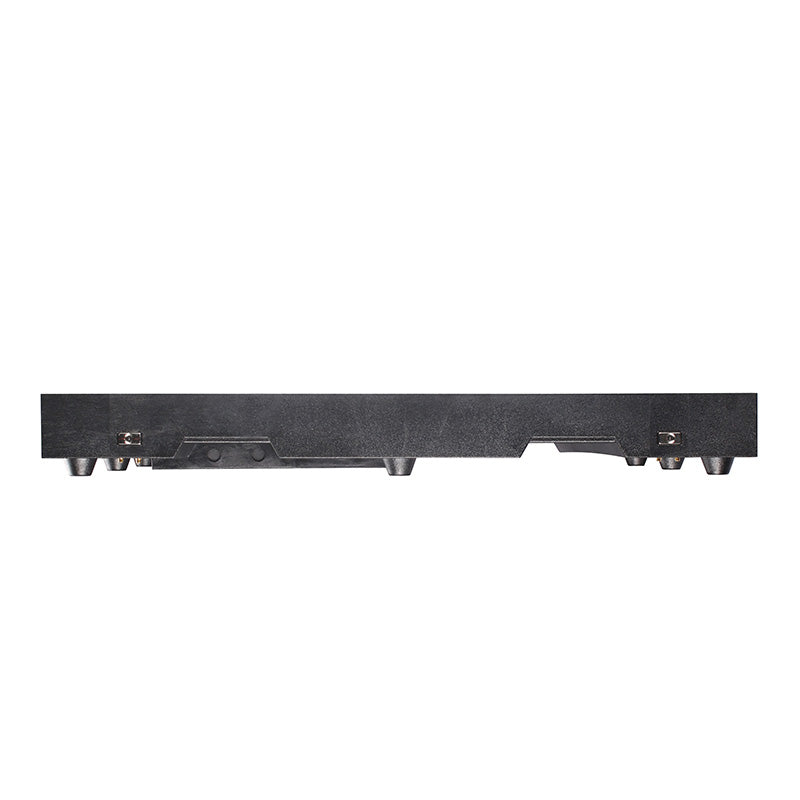

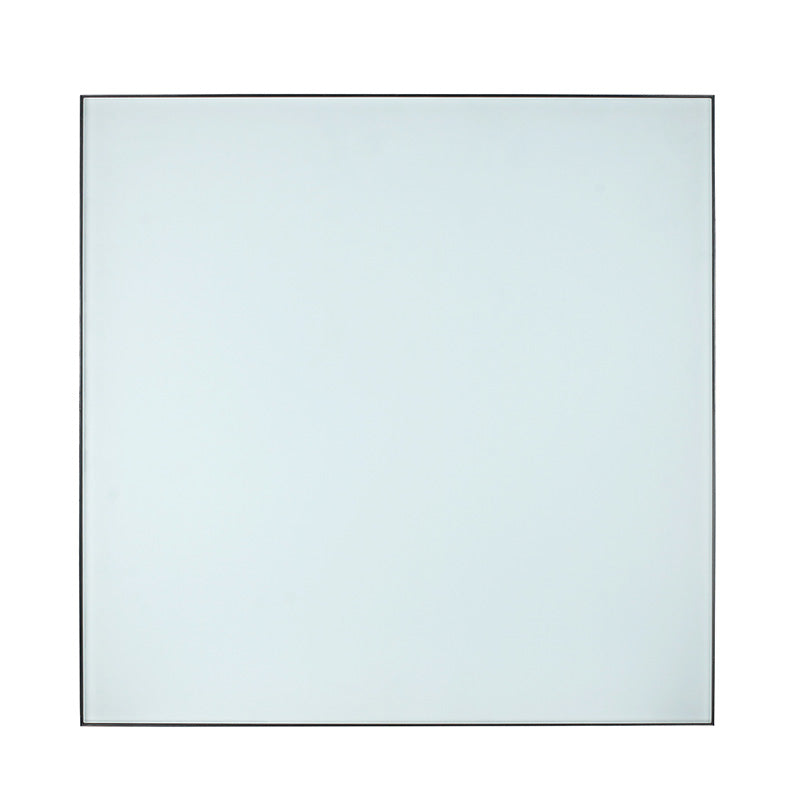

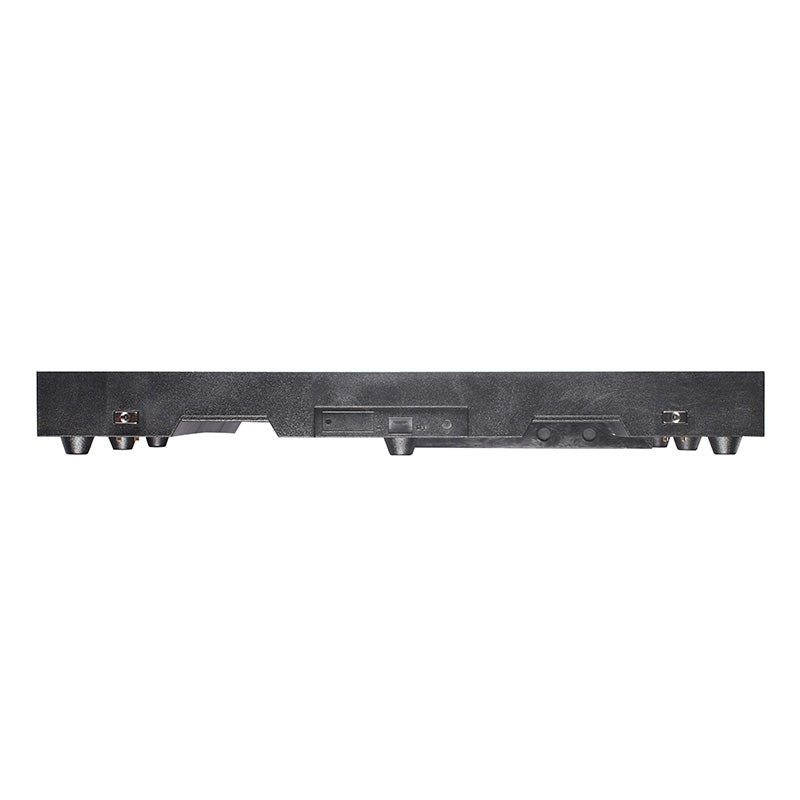

The modular design allows multiple MDF3 panels to be connected together to create illuminated floor layouts of various sizes. Waterproof interconnection cables transfer control signals and data from one panel to the next, simplifying system expansion and installation. Each panel features a tempered glass surface supported by a durable ABS base, with a rated load-bearing capacity of 61.5 lbs. per square foot (300 kg/m²).

The MDF3 system operates on 24V DC power supplied by a compatible MDF power supply, with several power supply options available to accommodate installations ranging from small configurations to systems containing more than 100 panels. Each panel consumes a maximum of just 15 watts.

For lighting control, the MDF3 supports industry-standard DMX512 through a compatible MDF power supply and a standard DMX controller. Four DMX channel modes (3, 5, 7, and 10 channels) provide flexibility for creating custom lighting effects. Additional control options include sound, audio, and remote control operation.

A comprehensive range of optional accessories, including power cables, connection brackets, edging ramps, corner ramps, and panel removal tools, allows the MDF3 system to be configured for different installation requirements.

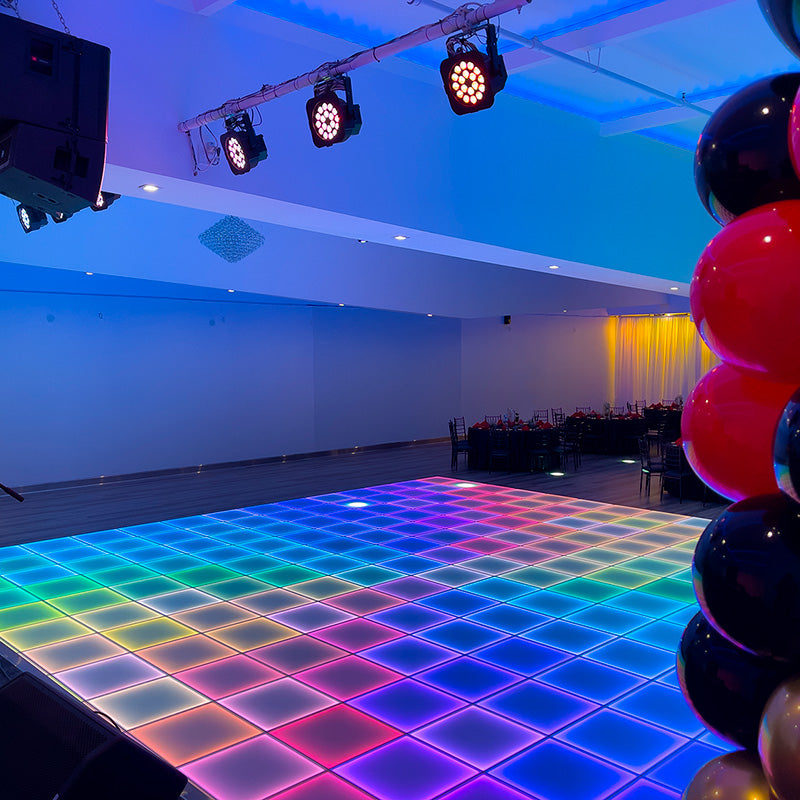

Whether creating an illuminated dance floor for a special event or incorporating dynamic floor lighting into a permanent entertainment installation, the ADJ MDF3 delivers colorful RGB effects, flexible system expansion, and professional DMX control.
