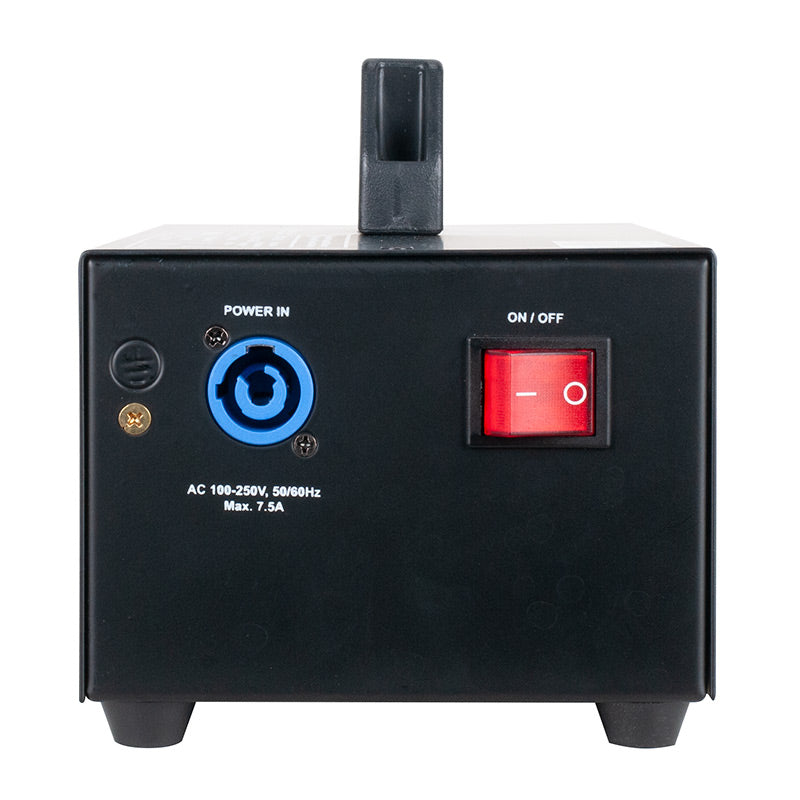

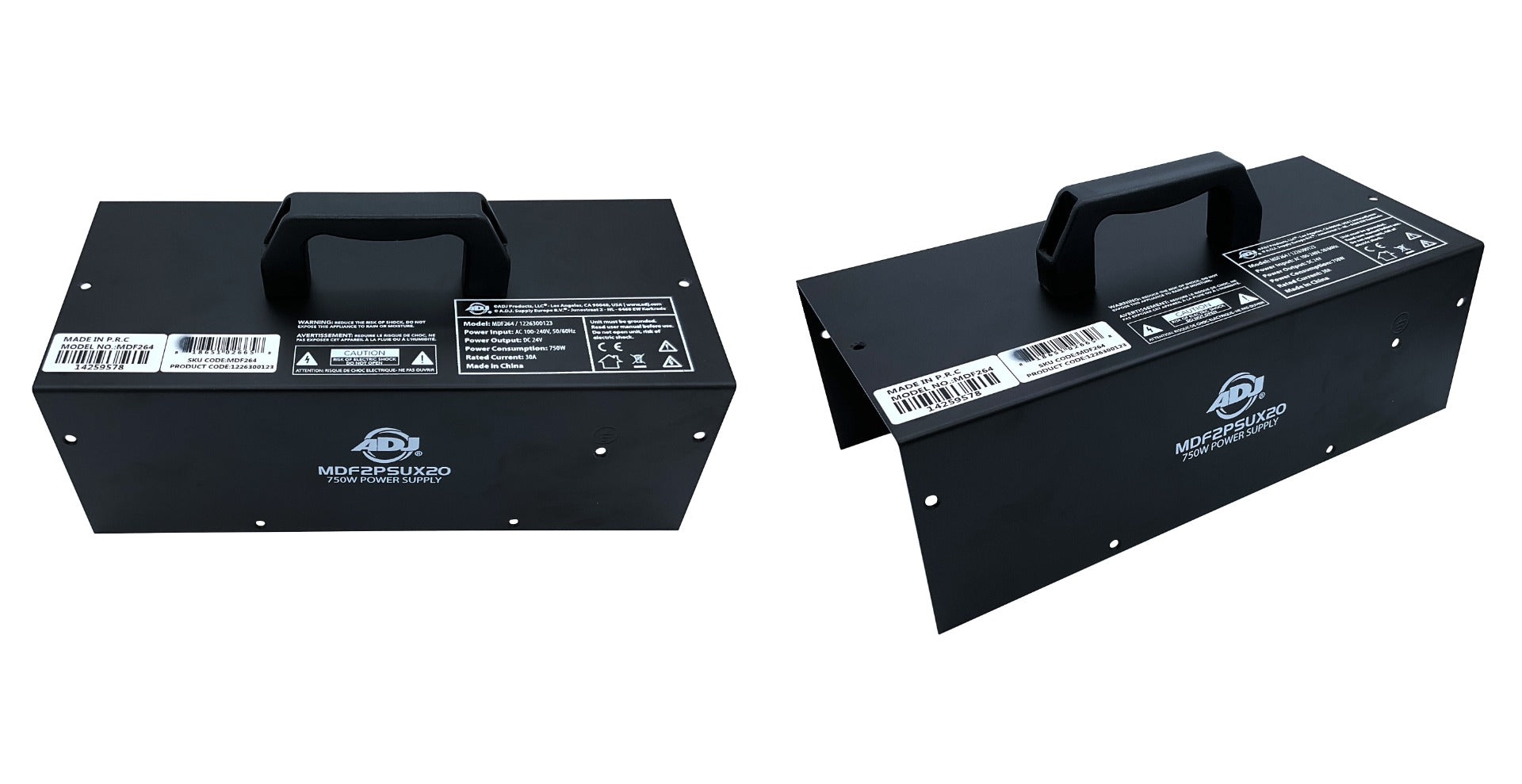

MDF2PSUX20

ELECTRICAL

Input Voltage: AC 100-240V, 50/60 Hz

Output Voltage: DC 24V

Maximum Load Power: 2250 W

Load Current: 90 A

Current Overload Protector Trip Time:

• Within 10A of max load: no trip
• 10-15A over max load: trip within 1 hour
• 15-20A over max load: trips in 5.2 to 30 seconds
• 20-30A over max load: trips in 1.5 to 5.5 seconds

DIMENSIONS

Length x Width x Height: 12.8” x 5.6” x 6.1” (326.0mm x 142.0mm x 155.5mm)

Weight: 30.0 lbs (13.6 kg)

AMBIENT OPERATING CONDITIONS

Ambient Operating Temperature: -4°F to 158°F (-20°C to 70°C)

IP Rating: IP20

INCLUDED ITEMS

Power Cable (x1)

Specifications are subject to change without notice/
