MDF2PSUX156
This product is CE certified.
The ADJ MDF2PSUX156 is external power supply for up to 156 ADJ MDF2 dance floor panels.
MDF2PSUX156
Sale price$0.00
MDF2PSUX156

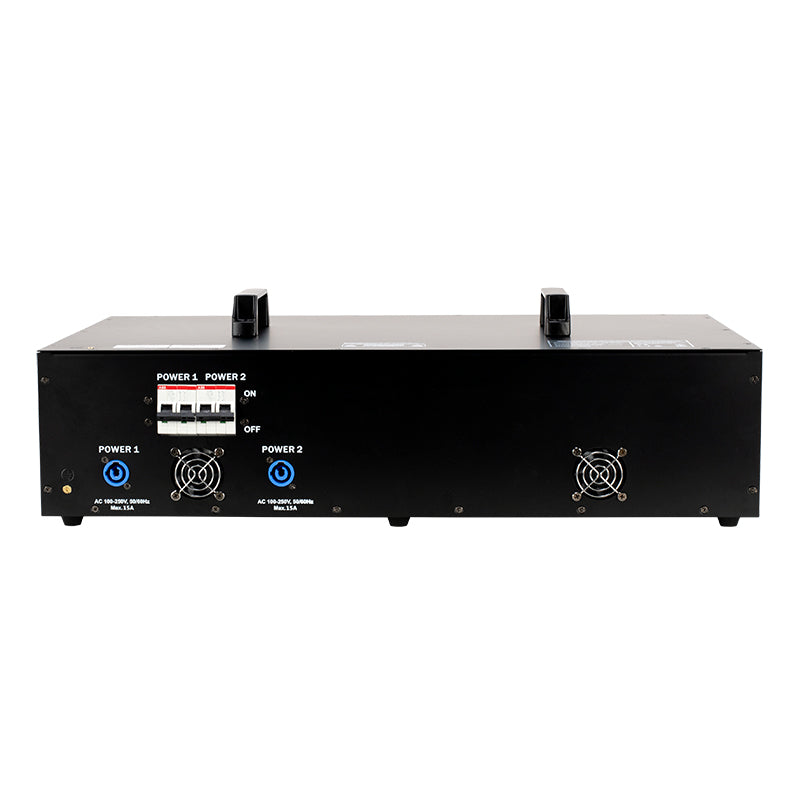

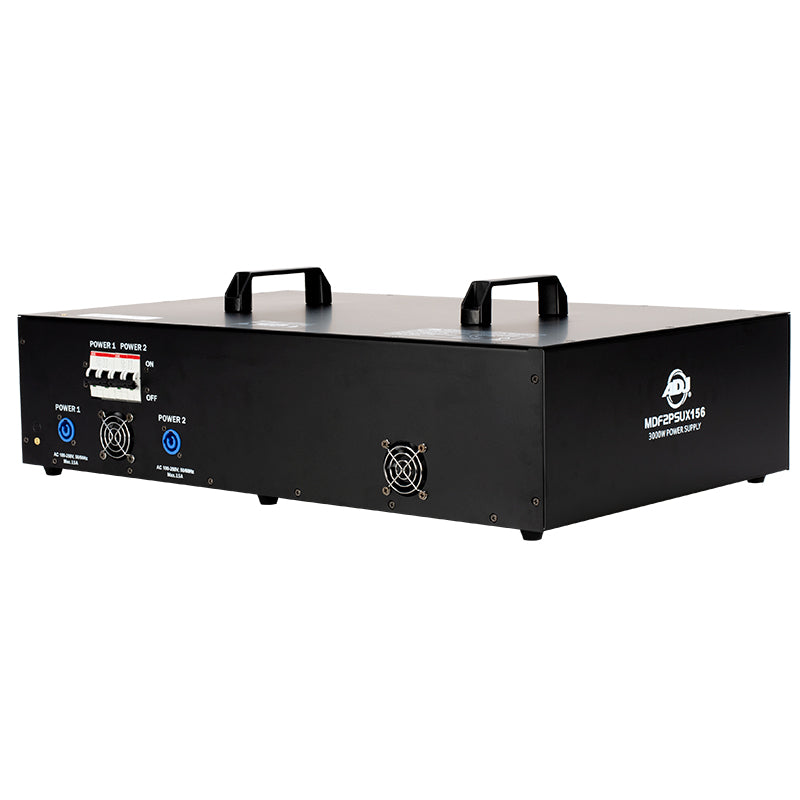

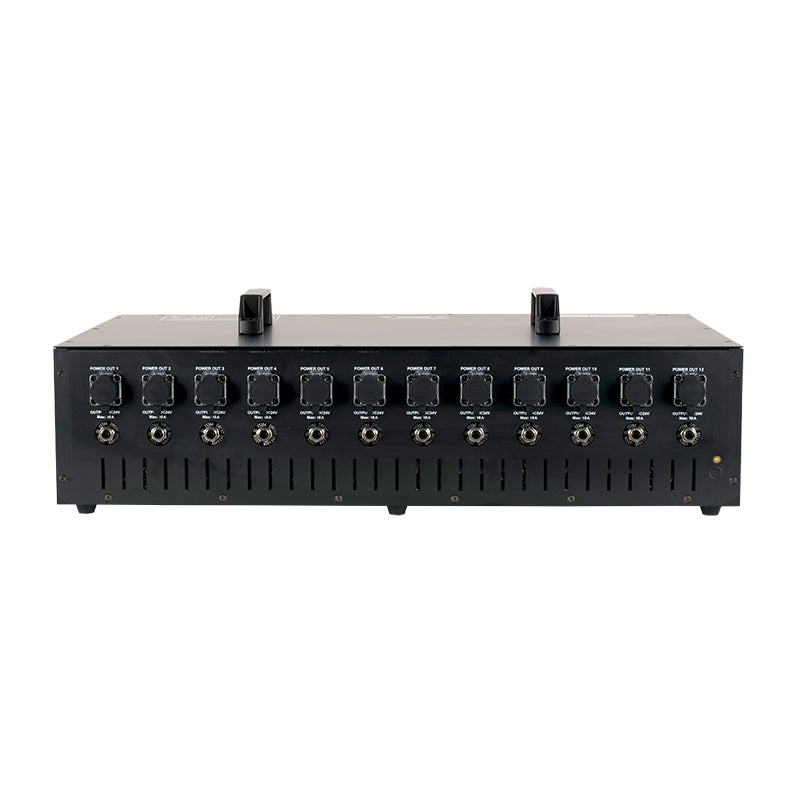

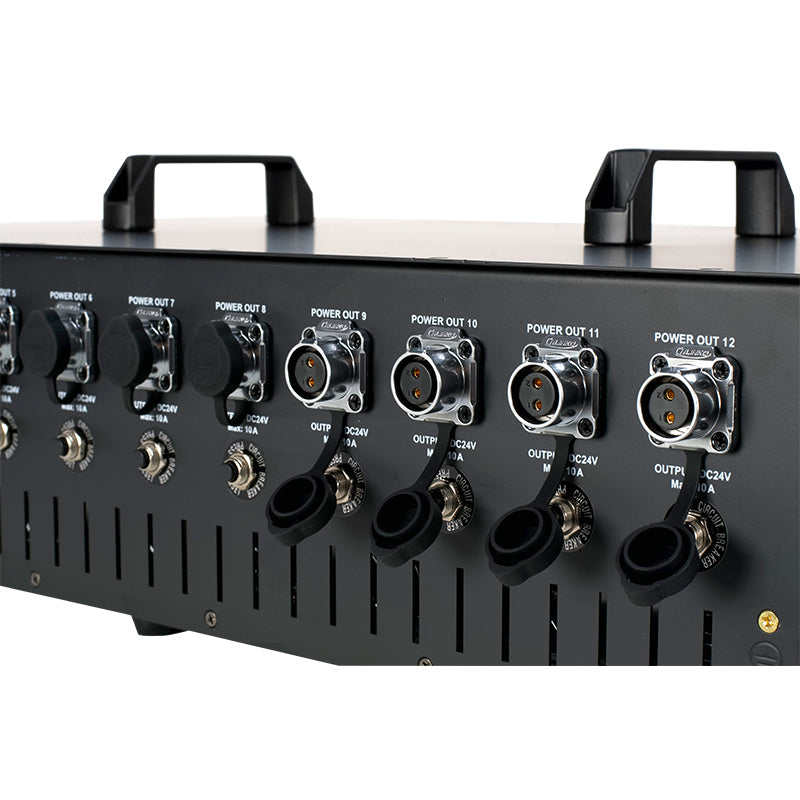

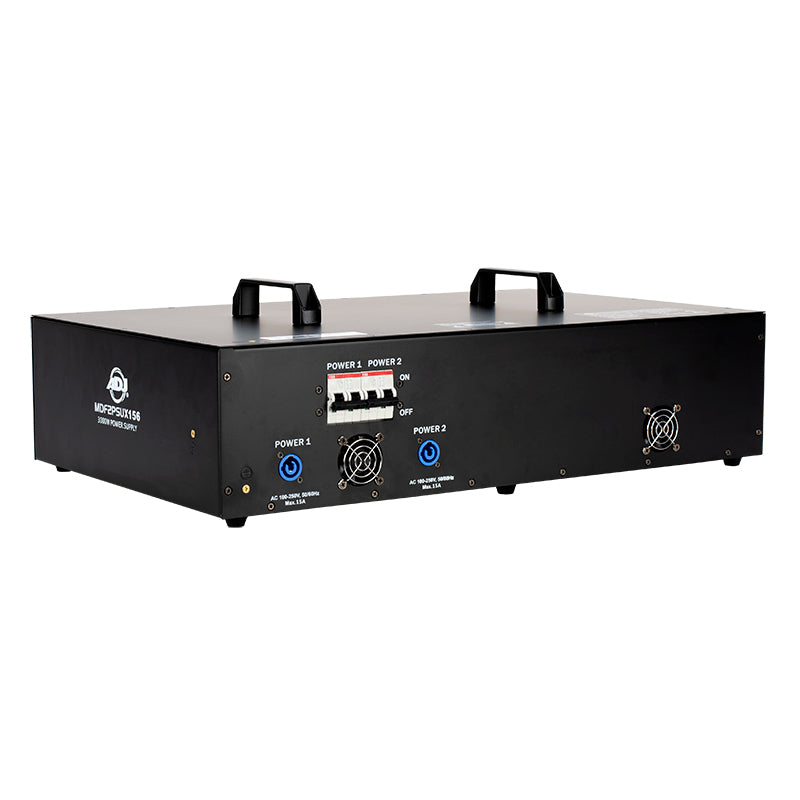

The ADJ MDF2PSUX156 is a 3000W external power supply for up to 156 ADJ MDF2 dance floor panels. It has two power locking inputs and two power breakers that each control 6 outputs. There are 12 power outputs with rubber protectors and 12 resettable breakers.

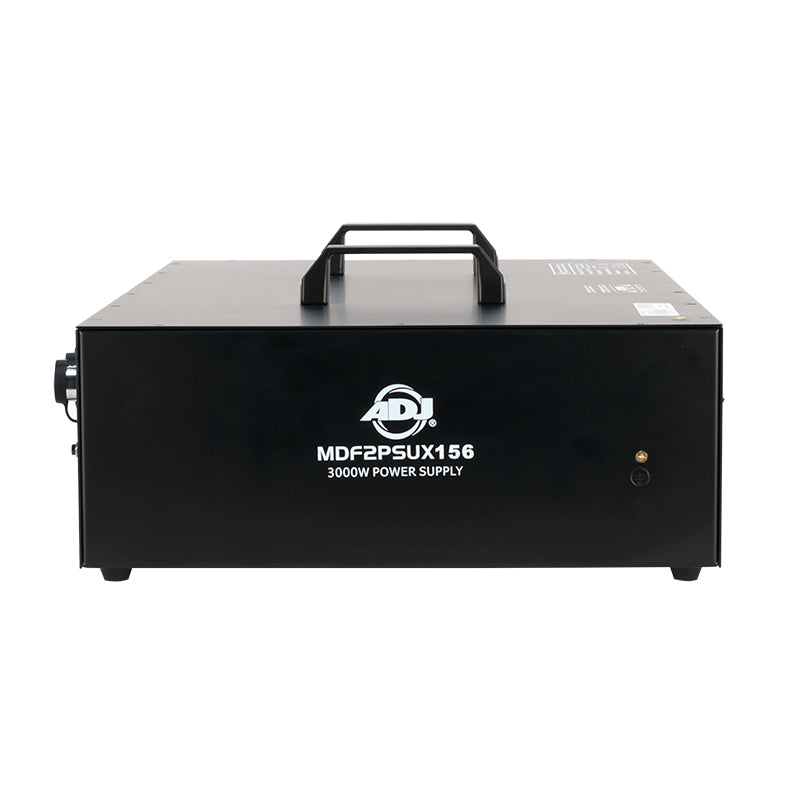

There are two carrying hands on the top of the power supply, with rubber feet on the bottom. The MDF2PSUX156 has two fans to keep the unit cool.

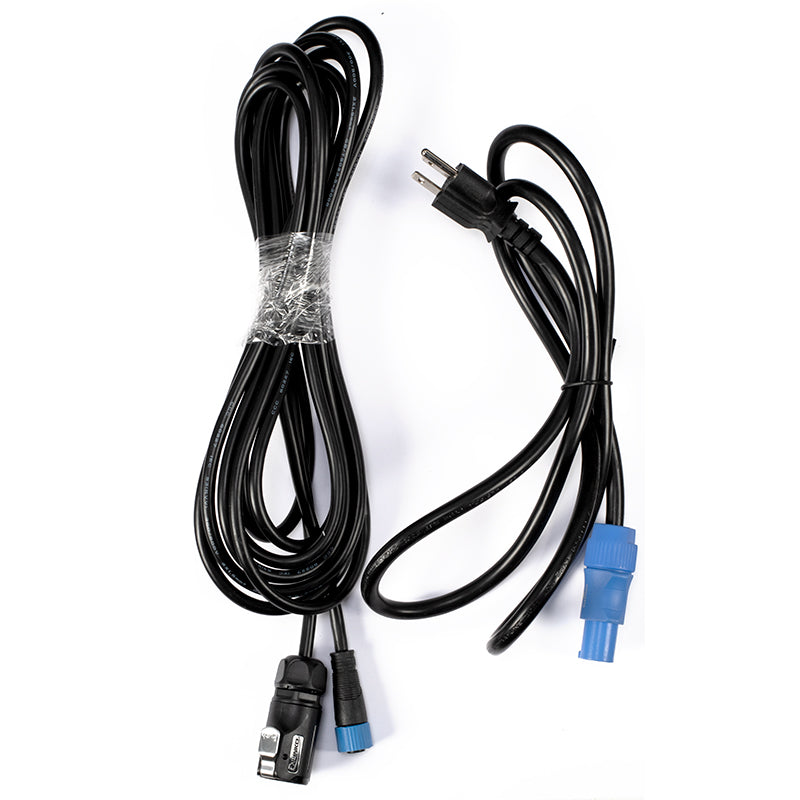

There are two locking input power cables and twelve 2-pin power output cables included in the box.
Specifications
FEATURES:
• 3000W External power supply for up to 156 ADJ MDF2 dance floor panels
• Twelve (12) 2-pin power output connectors that will power a single row up to 13 MDF2 panels
• Twelve (12) resettable breakers
• Two (2) separate power switches: #1 controls outlets 1-6; #2 controls outlets 7-12
• Two (2) locking power inputs
• Two (2) carrying handle
• Rubber feet on bottom of power supply
WHAT’S INCLUDED:
• Includes two (2) 3-foot locking power cables

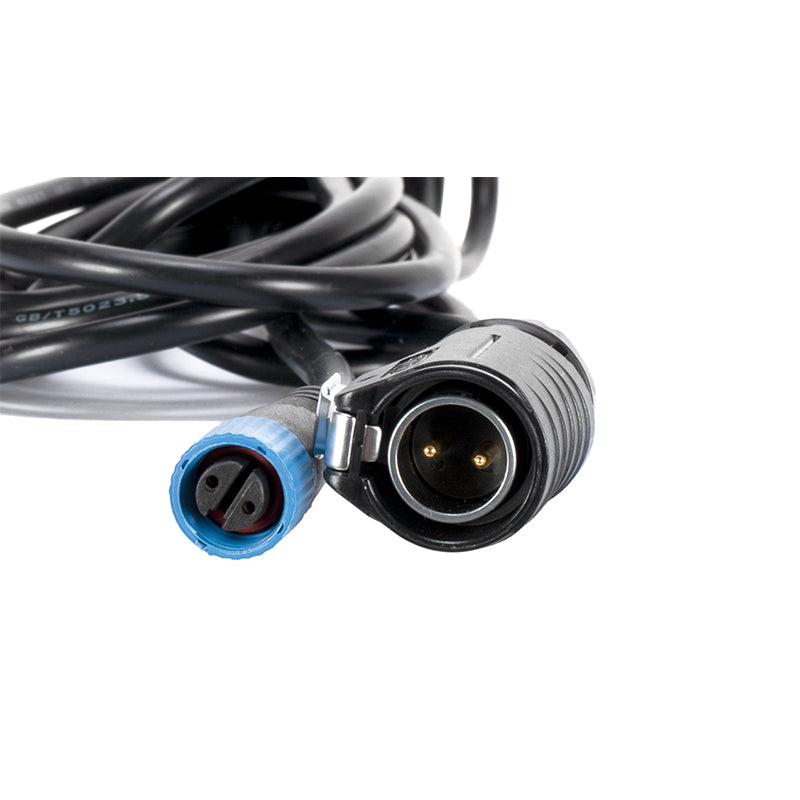

• Includes twelve (12) 15-foot 2-pin power output cables to connect to MDF2 panels
ELECTRICAL:
• Input Voltage: AC 100-240V, 50/60 Hz
• Output Voltage: DC 24V
• Maximum Load Power: 3000 W
• Load Current: 120 A
• Current Overload Protector Trip Time: Within 10A of max load: no trip; 10-15A over max load: trip within 1 hour; 15-20A over max load: trips in 5.2 to 30 second; 20-30A over max load: trips in 1.5 to 5.5 seconds
• Fan cooled
DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 25.6” x 17.0” x 8.1” (650.0mm x 433.0mm x 205.5mm)
• Weight: 37.9 lbs. (17.2 kg)
AMBIENT OPERATING CONDITIONS:
• Ambient Operating Temperature: -4˚F to 158˚F (-20˚C to 70˚C)
• IP Rating: IP20
