MDF2PSUX117
This product is CE certified.
The ADJ MDF2PSUX117 is external power supply for up to 117 ADJ MDF2 dance floor panels.
MDF2PSUX117
Sale price$0.00
MDF2PSUX117

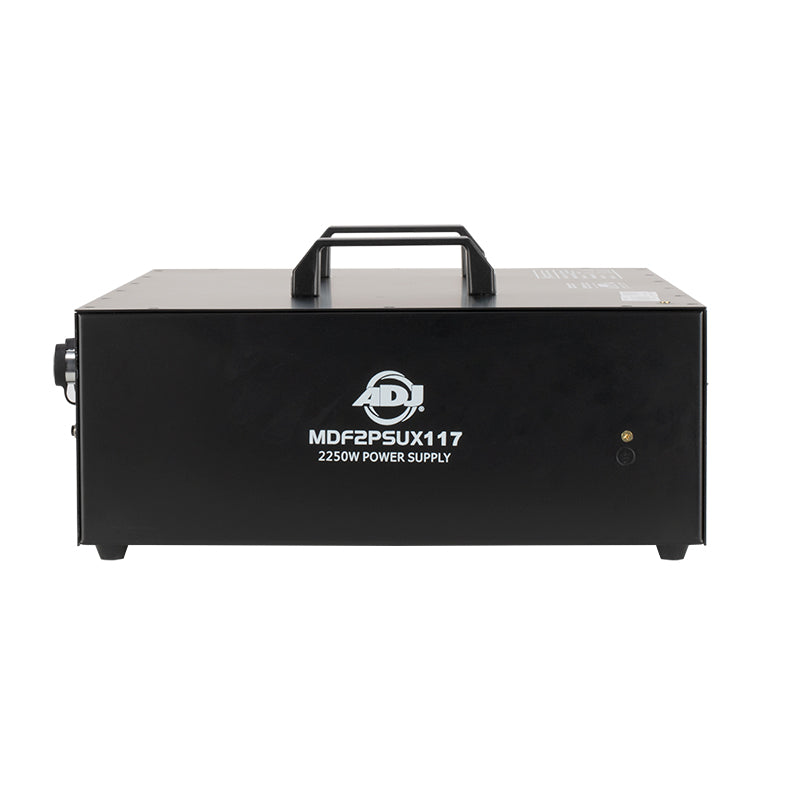

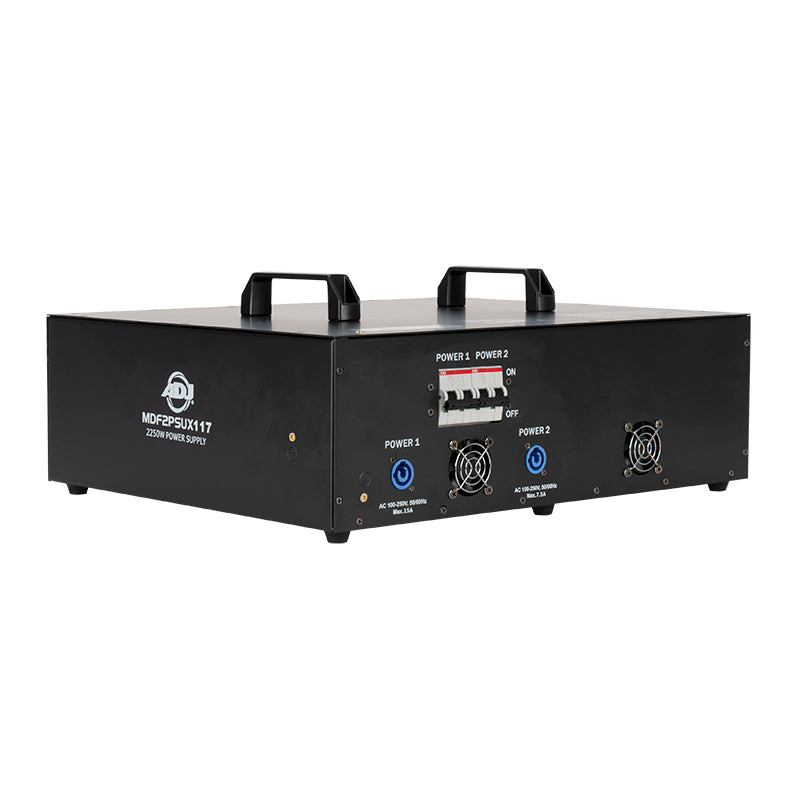

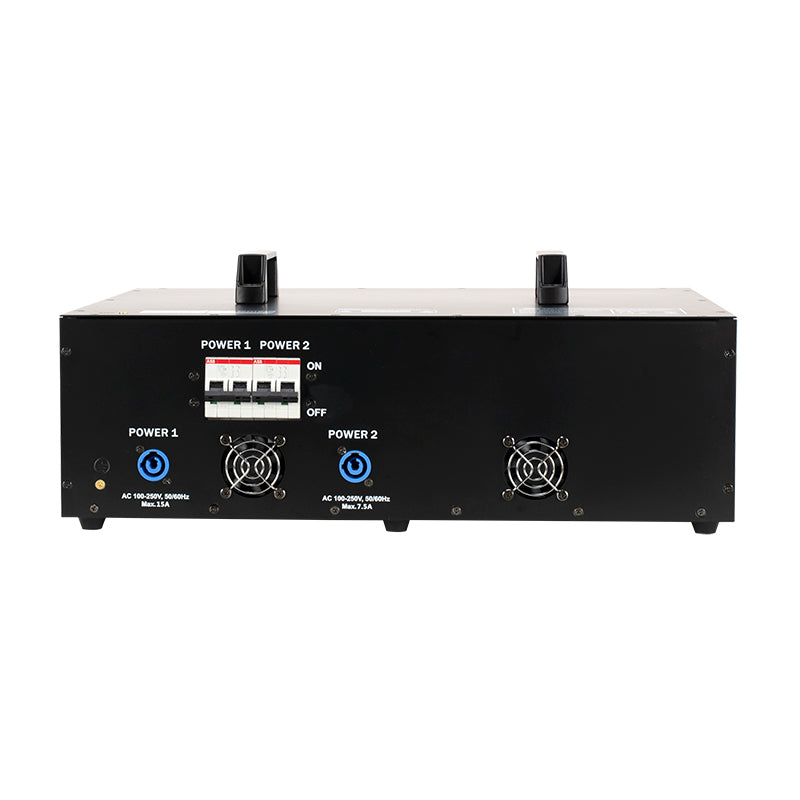

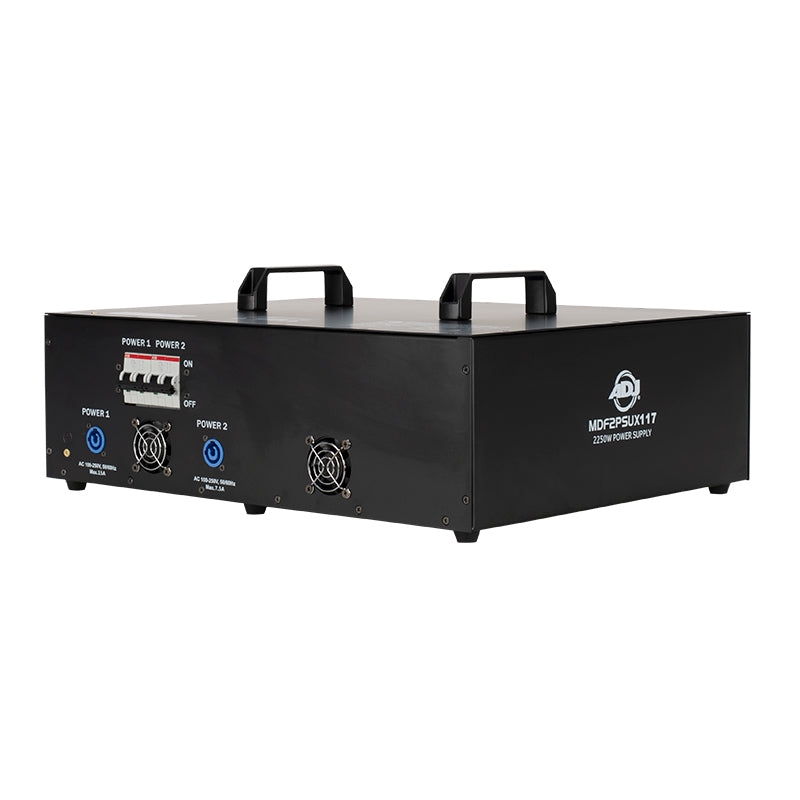

The ADJ MDF2PSUX117 is a 2250W external power supply for up to 117 ADJ MDF2 dance floor panels. It has two power locking inputs and two power breakers that each control 6 outputs.

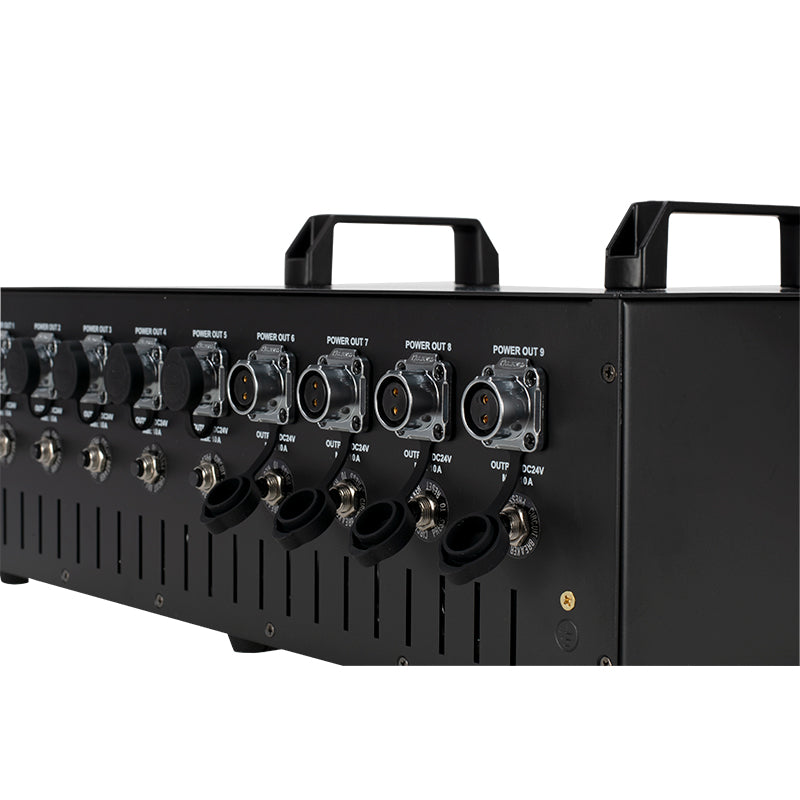

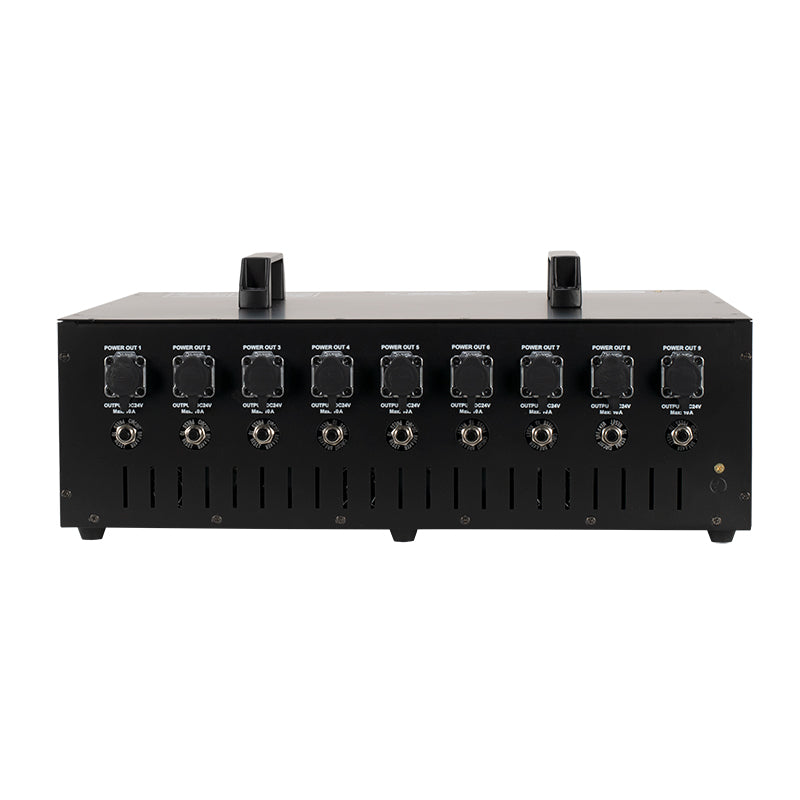

There are 9 power outputs with rubber protectors and 9 resettable breakers. There are two carrying hands on the top of the power supply, with rubber feet on the bottom.
The MDF2PSUX117 has two fans to keep the unit cool. There are two locking input power cables and nine 2-pin power output cables included in the box.
Specifications
FEATURES:
• 2250W External power supply for up to 117 ADJ MDF2 dance floor panels
• Nine (9) 2-pin power output connectors that will power a single row up to 13 MDF2 panels
• Nine (9) resettable breakers
• Two (2) separate power switches
• Two (2) locking power inputs
• Two (2) carrying handle
• Rubber feet on bottom of power supply
WHAT’S INCLUDED:

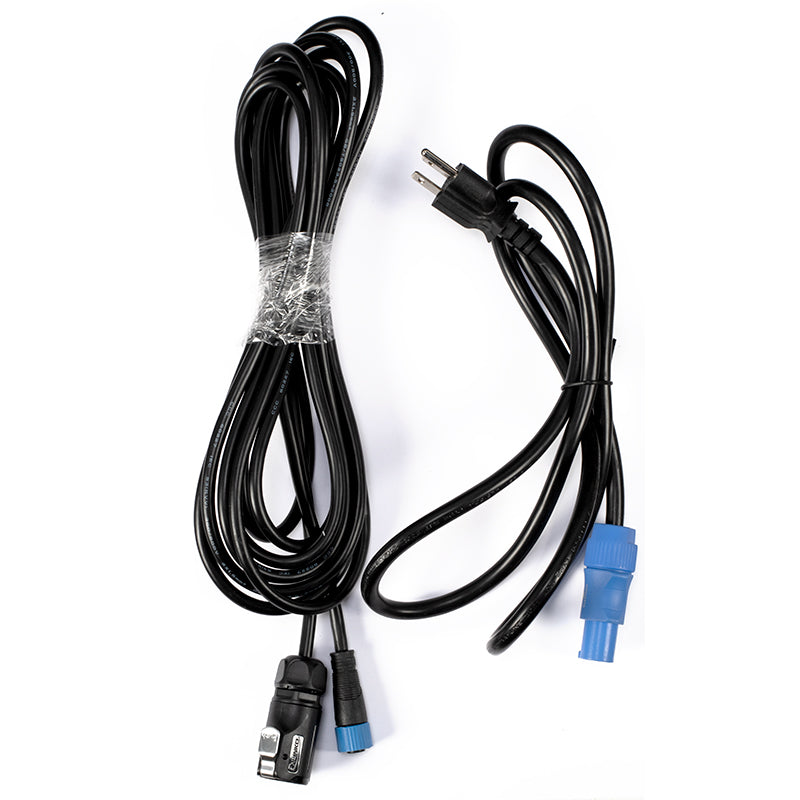

• Includes two (2) 3-foot locking power cables

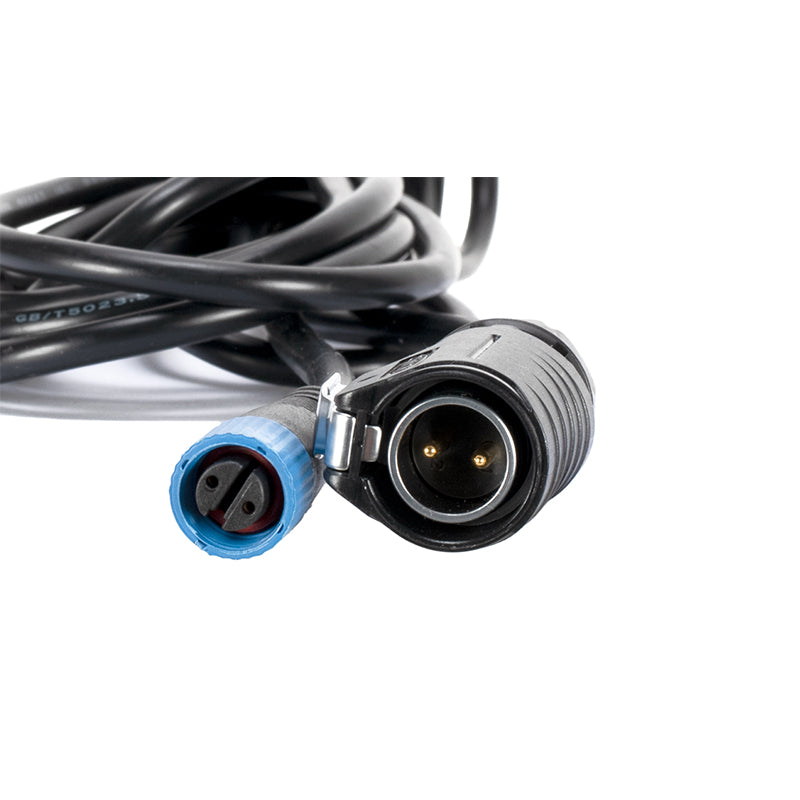

• Includes nine (9) 15-foot 2-pin power output cables to connect to MDF2 panels
ELECTRICAL:
• Input voltage: AC100-240VAC, 50/60Hz
• Output voltage: DC24V
• Maximum load power: 2250W
• Load Current: 90A
• Current Overload Protector Trip Time: Within 10A of max load: no trip; 10-15A over max load: trip within 1 hour; 15-20A over max load: trips in 5.2 to 30 second; 20-30A over max load: trips in 1.5 to 5.5 seconds
• Fan cooled
DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 19.7” x 17.0” x 8.1” (650.0mm x 433.0mm x 205.5mm)
• Weight: 30 lbs. (13.6 kg)
AMBIENT OPERATING CONDITIONS:
• Ambient Operating Temperature: -4˚ F to 158˚ F (-20˚ C to 70˚ C)
• IP Rating: IP20
MDF2PSUX117 Parts & Service
Our MDF2PSUX117 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your MDF2PSUX117. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
MDF2PSUX117 Parts & Service
Related Products
This item is discontinued
