Magic 260
This item is discontinued

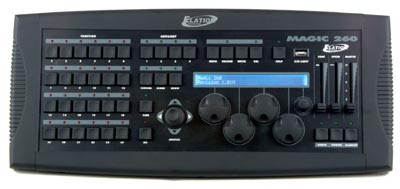

The Magic 260 is a 19-inch rack mount DMX controller that has many features that will make your life easier. Coming equipped with a large library of pre-installed profiles, you will be able to use the Magic 260 right out of the box.

Magic 260
Sale price$0.00
Magic 260
The Magic 260 is a 19-inch rack mount DMX controller from Elation Professional that’s perfect for lighting users with “mid-level” needs, such as neighborhood clubs, discos and professional DJs.Non-DMX lights can be connected to a power pack, run through the line, and turned on and off with one of the four auxiliary switches.With 260 DMX channels, the Magic 260 can control up to 48 DMX-compatible moving lights. It can store up to 24 x 48 scenes and 264 shows.The Magic 260 is a 19-inch rack mount DMX controller that has many features that will make your life easier. Coming equipped with a large library of pre-installed profiles, you will be able to use the Magic 260 right out of the box.A really unique feature on the Magic 260 is a Help Button that guides users step-by-step through the process of recording scenes and shows.It comes equipped with a large library of pre-installed profiles for Elation Professional and American DJ moving light fixtures so users don’t have to spend time programming their own.Users will be able to control non-DMX fixtures with the Magic 260, too. The unit features four On/Off auxiliary switches specifically for this purpose.
Specifications
- PAN/TILT Joystick
- 4 data wheels for moving light control and data entry
- 3 pin DMX Output
- 260 total moving light channels
- 4 On/Off buttons for switch pack control
- Internal fixture library
- Control up to 24 fixtures (up to 16 channels each)
- 1152 programmable scene
- 264 programmable shows
- MIDI Input and Thru
- 24 multi function buttons

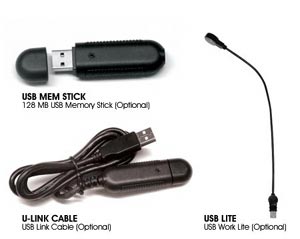

- USB input for optional work light or memory device
- 80 character backlit LCD display for easy programming
- Audio input
- Internal microphone
- Go button for manual show triggering
- Master fader for moving light dimmer control
- Separate speed and fade faders
- Help button for recording scenes and shows in English amp; Spanish
- Effects engine includes circle, figure 8 and pan amp; tilt movement with wave effect capability
- Pan/Tilt and Radius adjustment for built in effects engine
- Power: 9-12VDC, 500mA
- Dimension (LxWxH): 19" x 7" x 4" / 483x178x102mm
- Weight: 10 lbs. / 4.5 kgs
