Inno Pocket Fusion

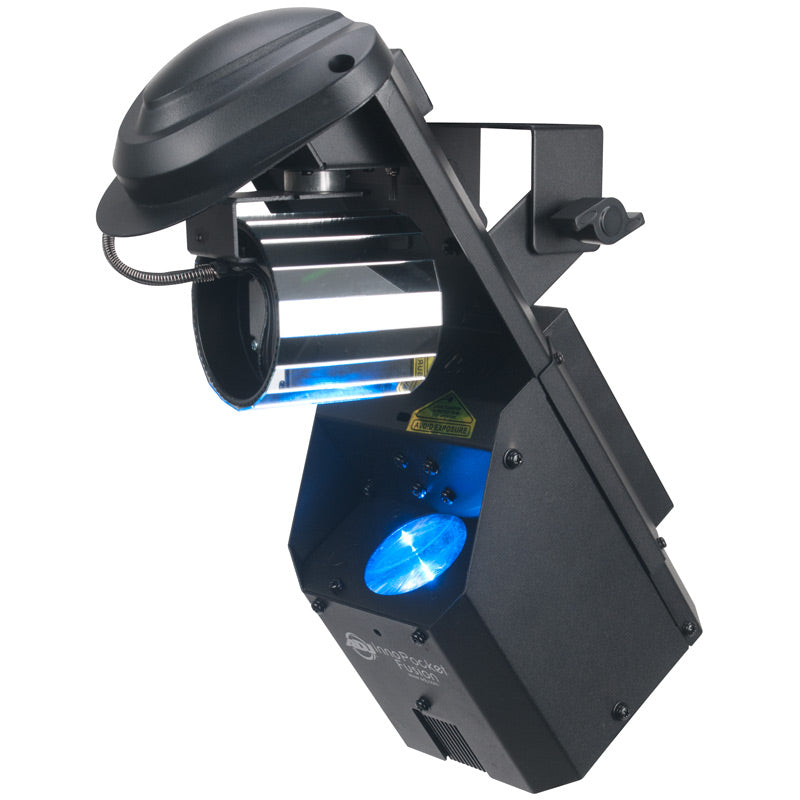

The Pocket Series revolution continues with another compact, light weight lighting fixture, the Inno Pocket Fusion. The Inno Pocket Fusion features a 12W LED barrel mirror scanner with a 4.9mW green laser for a fantastic, energy driven lighting effect. This Scanner is designed for any mobile entertainer, small and mid-size stages and nightclub, bar, lounge, bowling and entertainment centers.

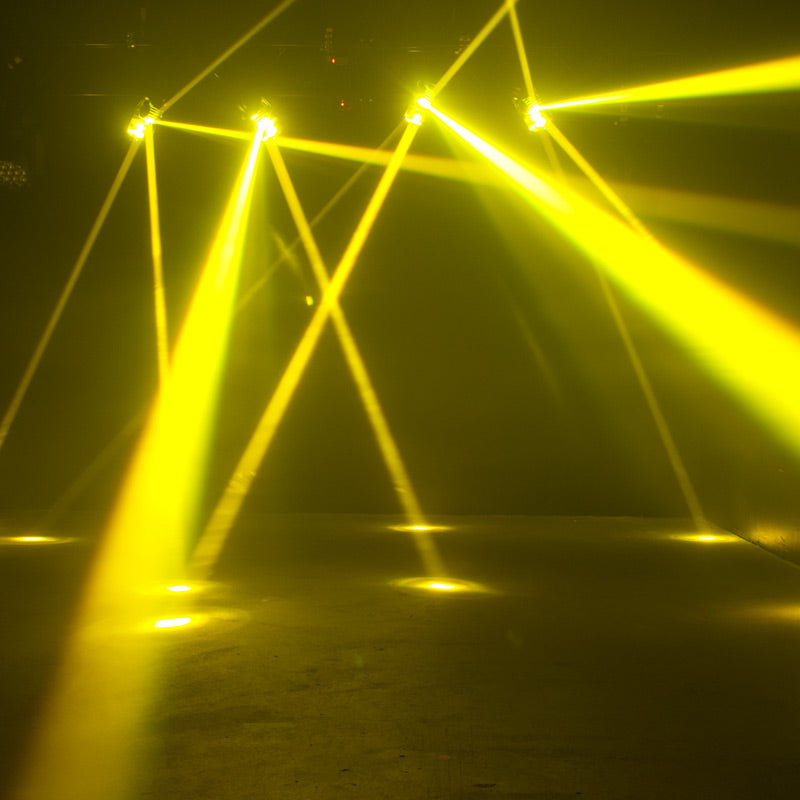

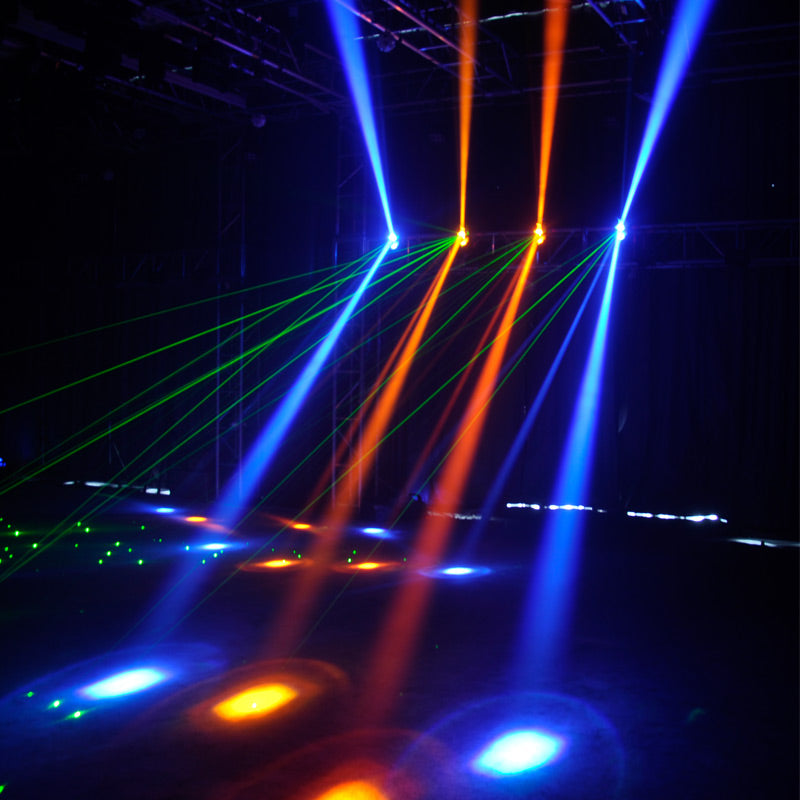

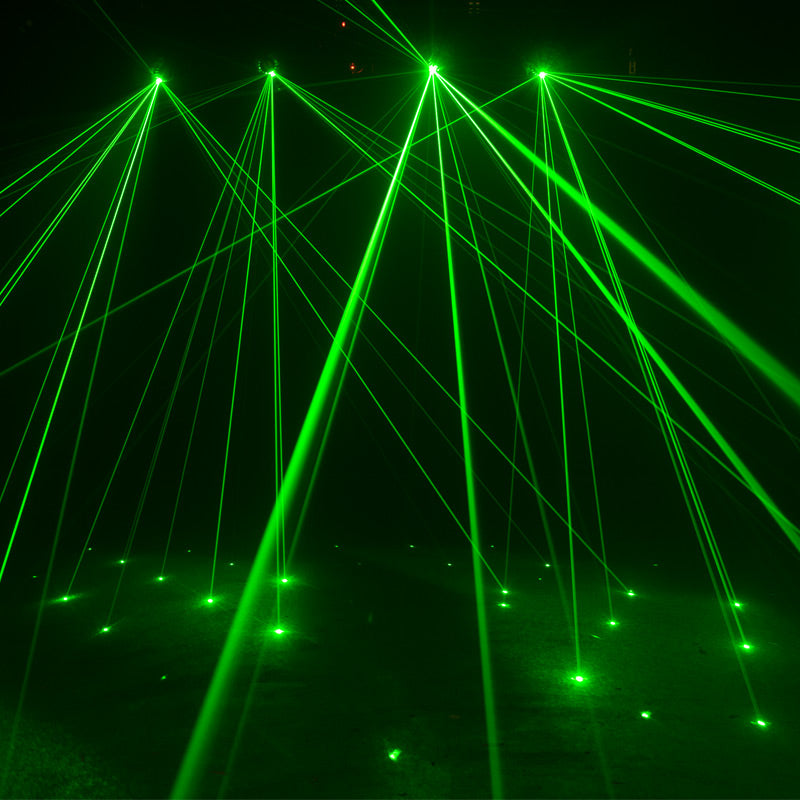

This fixture features 8 built-in shows and pan/tilt inversion modes for an exciting non-DMX lightshow. It also has 3 operational modes, 5 DMX channel modes, and 5 dim curves to help lighting designers create custom, one of a kind DMX lightshows.The fast mirror speed and high quality, precision stepper motors react greatly to high-energy music, plus the Barrel Mirror produces multiple LED beams and laser beams that shoot around a room for a unique effect. This fixtures compliments any one of ADJ’s Pocket Series fixtures.Specifications
• 8 colors + white
• 4.9mW green laser diode
• 3 Operational modes: DMX, Sound Active Internal Show control modes
• 5 DMX channel modes: 2/6/8/9/11
• 8 built-in shows
• Beam Angle: 5-degrees
• X/Y mirror movement
• Stepper motors with micro stepping
• 5 selectable Dim Curves (Standard, Stage, TV,Architectural Theatre)
• Shutter: Pulse effect; random strobe slow tofast
• Dimming: 0% - 100%
• Pan/Tilt Inversion Mode

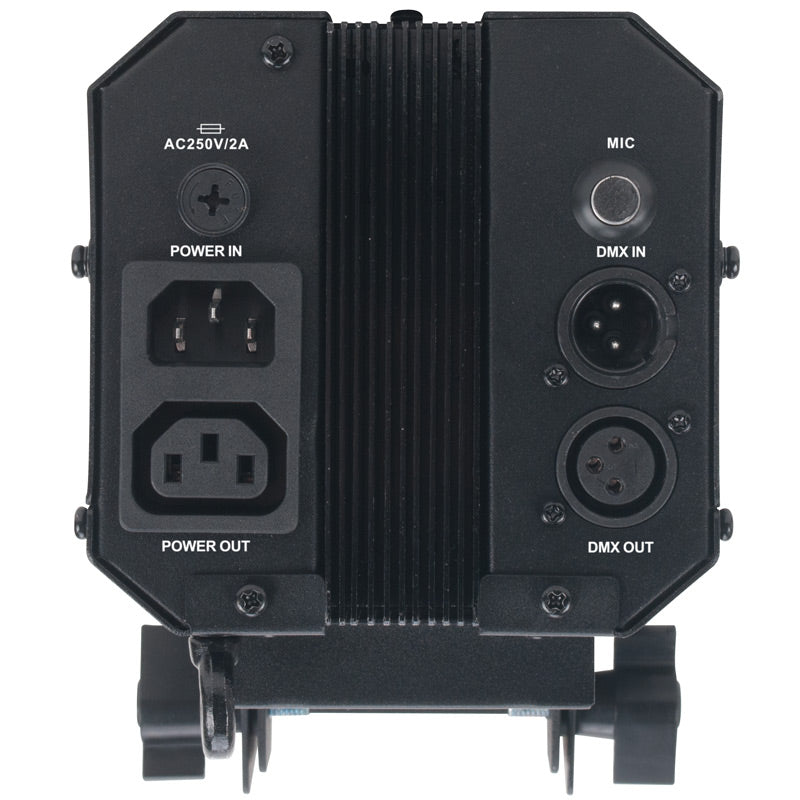

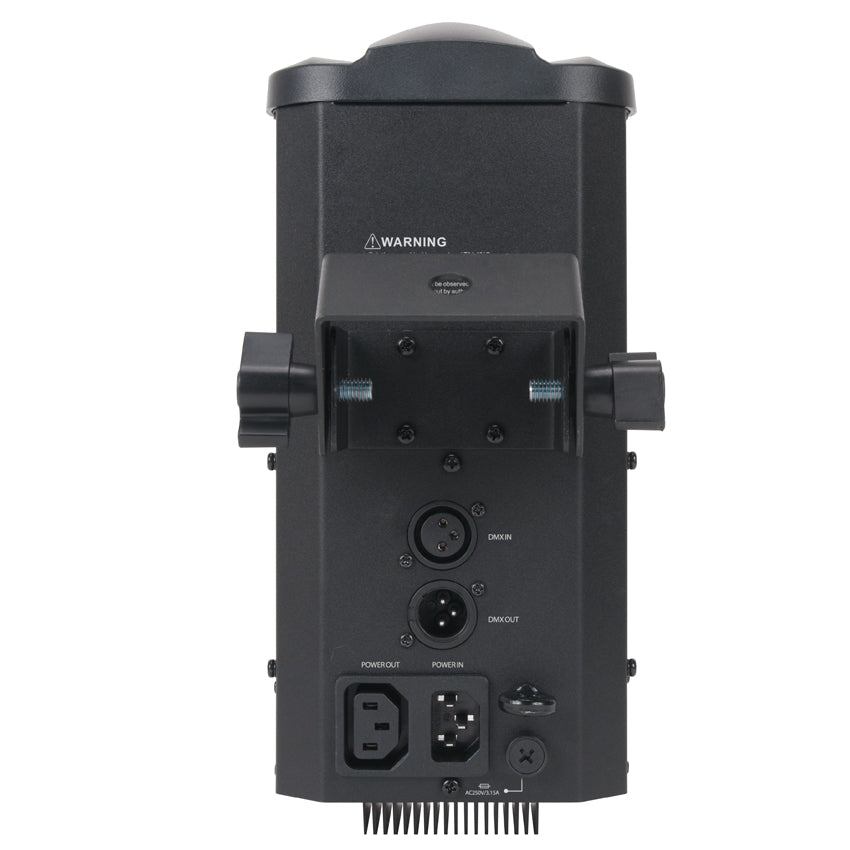

• IEC AC IN/OUT on rear to daisy chain power (upto 22 Inno Pocket Fusions @ 120V and 38 Inno Pocket Fusion @ 230V )
• Hanging Yoke + safety hook included
• Optional IR wireless remote control: Full On,Stand by, Strobe, Color Change, Laser On/off, Dimming, Sound Active On/Off (ADJ UC IR Not Included)
• Compatible with the ADJ Airstream IR
• Power consumption: 32W (Full-On)
• Light output: 13,300 LUX @ 2M; 3,610 LUX @ 4M (2-degree beam)
• Multi-voltage Operation: AC 100 - 240V,50/60Hz
• Power cable length: 1.5 meter (IEC)
• LED Source: 12W White LED source (Rated atapproximately 50,000 hrs)
• Dimensions (LxWxH): 13.5”x 5.25”x 7”/340 x 132 x 177mm
• Weight: 7.5 lbs. / 3.4 kgs.
• Laser Accession No. 1520523-000
Specifications subject to change without notice
