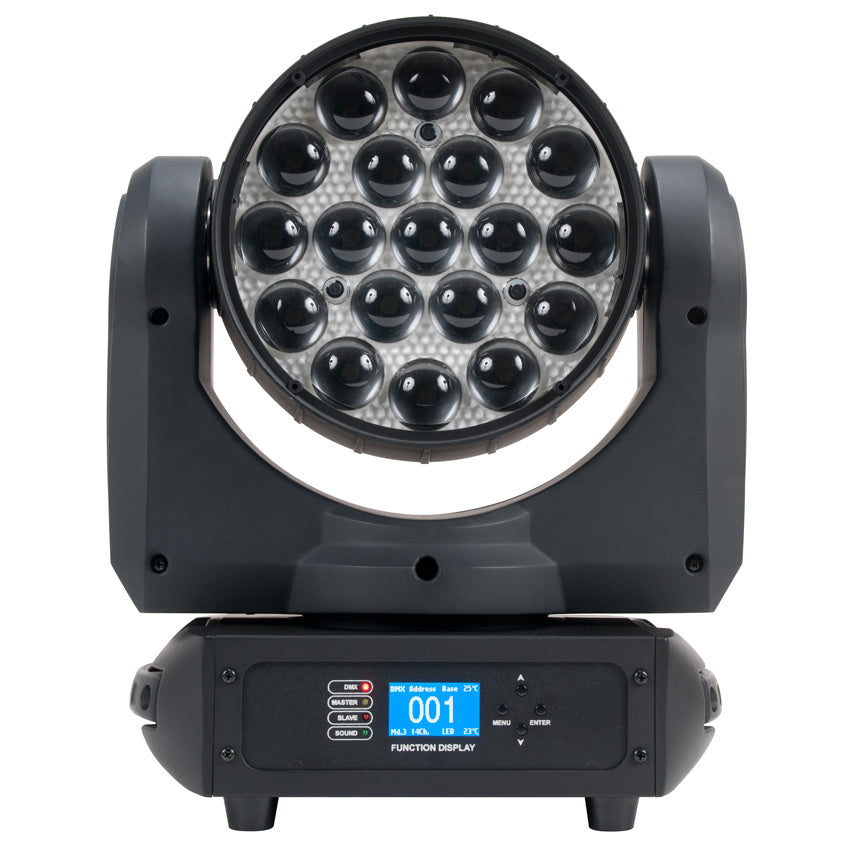

Inno Color Beam Z19

This product is CE certified. This product is ETL certified.

Add the extremely versatile Inno Color Beam Z19 to your lighting set up no matter what your next show is - perfect for clubs, theaters, churches, concert productions and lighting professionals! This fixture offers 19x 10W RGBW Quad Color (4-in-1) Osram LEDs that will keep the party going for 50,000 hours, plus a motorized zoom that changes the beam angle from 10-60 degrees.
UPC: 819730010834SKU: INN324

Video

Inno Color Beam Z19

The ADJ Inno Color Beam Z19 is a professional LED MovingHead fixture features motorized zoom allowing users to change the beam angle from10 to 60 degrees via DMX controls. Add the extremely versatile Inno Color Beam Z19 to your lighting set upno matter what your next show is - perfect for clubs, theaters, churches,concert productions and lighting professionals! This fixture offers 19x 10W RGBWQuad Color Osram LEDs that will keep the party going for 50,000 hours.

With its quick speed and built-in light shows, the InnoColor Beam Z19 brings pure lighting excitement to any venue. This fixtureoffers a wide range of professional features that let you customize your lightshow for the venue, music, and mood; Including electronic dimming, 64 built-incolor macros, and pan/tilt reverse mode for contrasting movement when units arelinked together. The ADJ Inno Color Beam Z19 fixture allows up to 5 fixtures (120V) or 11 fixtures (230V) tobe power daisy-chained using IEC connector cables. The variable degree beam angle allowsfor increased creativity and versatility. Made from thehighest quality components, this product will be the perfectaddition to lighting production application.

Specifications

  •  High Output LED Moving Head Wash with motorized zoom
  •  Nineteen RGBW Quad Color (4-IN-1) Osram Ostar LEDs
  •  Motorized Zoom: 10 ~ 60-degree beam angle
  •  3 Operational Modes: Sound Active, Show Mode, DMX Controlled
  •  14 DMX channels
  •  64 Built-In Color Macros
  •  Electronic Dimming: 0% - 100%
  •  Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
  •  Fast Pan Tilt Movement
  •  Pan: 540-degree; Tilt: 220-degree
  •  16-Bit Fine Pan/Tilt control
  •  4-Button DMX LCD menu with 180° Inverse View mode
  •  Stepper motors with micro stepping
  •  Includes Omega bracket for truss mounting

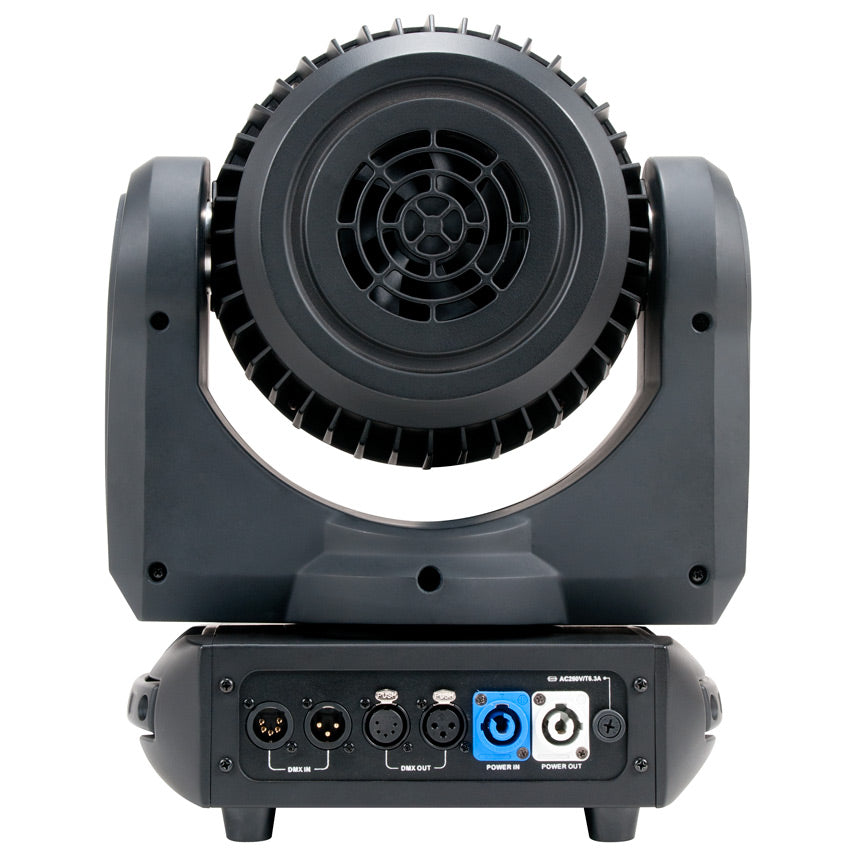

  •  3-pin and 5-Pin XLR In/Out
  •  With Wired Digital Communication Network
  •  Fan cooled
  •  Electronic Strobe/Pulse effect; random strobe slow to fast
  •  PowerCON AC In/Out on rear to daisy chain power
  •   (up to 5 Inno Color Beam Z19’s @ 120V and 11 Inno Color Beam Z19’s @ 230V )
  • PWM (Pulse Width Modulation): 1.1K
  • Strobe Rate: 1-17HZ
  •  Light Source: 19 x 10W High Output Osram Ostar LED’s
  • Light Output: 29500 LUX @2M; 6900 LUX @4M (10-degree beam), 3600 LUX @2M; 900 LUX @4M (60-degree beam)
  •  Long Life LED (Rated at approximately 50,000 hrs)
  •  Multi-voltage Operation: 100-230V, 50Hz/60Hz
  •  Power Consumption: 245W
  • Power Cable Length: 1.5M (IEC)
  •  Dimensions (LxWxH): 13” x 7.5” x 15.75”/ 329 x 188 x 395mm
  •  Weight: 21 lbs. /9.5 kg.
  •  CE | ETL Approved
