This product is CE certified.

The H9 is part of NovaStar's latest generation of video wall splicers, which feature outstanding image quality and are specifically designed for fine-pitch LED displays. The H9 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H9 can be used in a wide range of applications.

SKU: H9R001

H9 Rack

  • Two different types of 4K Sending Cards available#58;

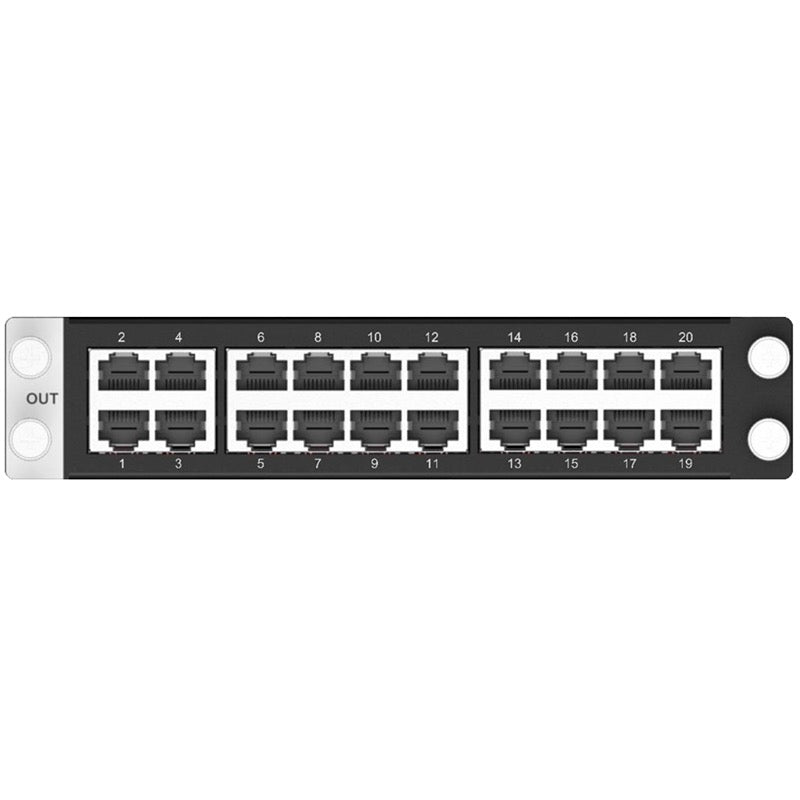

  • H_20xRJ45#58; Manages up to 13 million pixels
  • H_16xRJ45#58; Manages up to 10.4 million pixels (incl. 2x OPT-Out)
  • Different configurations possible on one Sending Card#58;
  • 4x 2K×1K@60Hz
  • 2x 4K×1K@60Hz
  • 1x 4K×2K@60Hz
  • Online monitoring for all input amp; output cards
  • quot;Hot-Swapquot; function for all in- amp; output cards
  • IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
  • Automatic decryption of HDCP protected sources
  • multi-screen management
  • web control

Specifications

  • Max. Number of input cards: 15
  • Max. Number of input channels: 60
  • Max. Number of output cards: 5
  • Max. Loading Capacity: 65,000,000 Pixel
  • Max. Number of layers: 80
  • Supply voltage: AC 100-240V, 50/60HZ
  • Power consumption: 450Watt
  • Dimensions: 482.6 x 533 x 405.8mm (WxDxH)
  • Weight: 35kg

Note: This item is an enclosure only. All input/output cards must be ordered separately.
