Focus Spot Three Z

Features:
• High Output 100W LED Moving Head spot with motorized zoom

• Motorized Focus
• Motorized Zoom: 12 ~ 18-degree beam angle

• 3 Operational Modes: Sound Active, Show Mode, amp; DMX Controlled

• 4 Built-in lighting shows
• Electronic Dimming: 0% - 100%

• Electronic Strobe/Pulse effect; random strobe slow to fast

• 5 Dimming Curves

• Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
• Fast Pan Tilt Movement

•Gobo Shake effect
• Two 6-facet rotating prism effects (one circular amp; one linear)
• 16-Bit Fine Pan/Tilt control
• Stepper motors with micro stepping

• 3-pin XLR In/Out
• With Wired Digital Communication Network
• 4-Button DMX LCD menu with 180° Inverse View mode

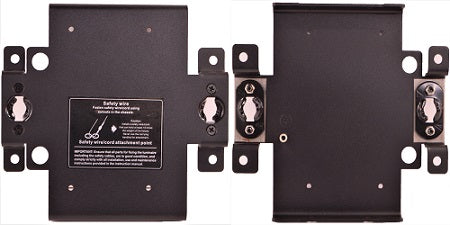

• Includes Omega bracket for truss mounting
• Fan cooled

Specifications:
• Light Source: 100W High Output LED
• LUX : 12 Degrees: 13090 @ 3M / 18 Degrees: 6300 @ 3M
• Variable beam angle: 12~ 18-degree beam angle
• 18 amp; 21 DMX channel modes

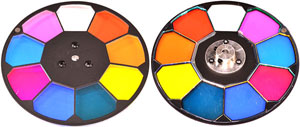

• 8 Colors + Spot

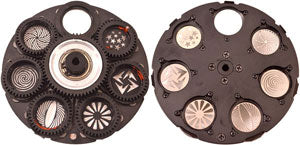

• 2 Independent Gobo Wheels: Gobo Wheel 1 has 7 Static Gobo’s + Spot; Gobo Wheel 2 has 6 Rotating Gobo’s + Spot
• Interchange Gobos on wheel 2: 23.8 mm Gobo Size; 20mm Viewable
• Pan: 540-degree; Tilt: 270-degree

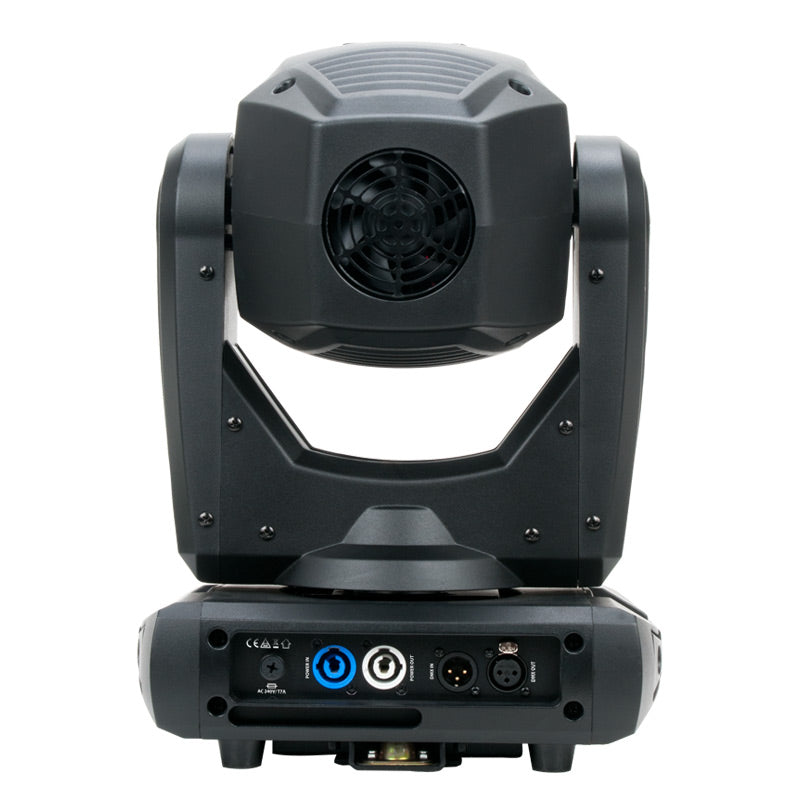

• Locking AC In/Out on rear to daisy chain power (up to 3 Focus Spot Three Z’s @ 120V and 6 Focus Spot Three Z’s @ 230V )
• PWM (Pulse Width Modulation): 1.2K
• Strobe Rate: 0.3-20HZ
• DB Rating @ 1Meter: Front: 52; Back: 50.4; Left: 51.1;
Right: 50.7; Top: 52.1
• Long Life LED (Rated at approximately 50,000 hrs)
• Multi-voltage Operation: 100-230V, 50Hz/60Hz
• Power Consumption: 230W
• Dimensions (LxWxH): 7.25” x 11.25” x 19.75”/ 183 x 284 x 489mm
• Weight:26 lbs. /12 kgs.
• ETL Approved
• Includes: Omega bracket to hang on truss amp; 5-foot locking power cord

Securely transport and store up to 4 Focus Spot Three Z fixtures in he ADJQRC-FS3Z road case.
